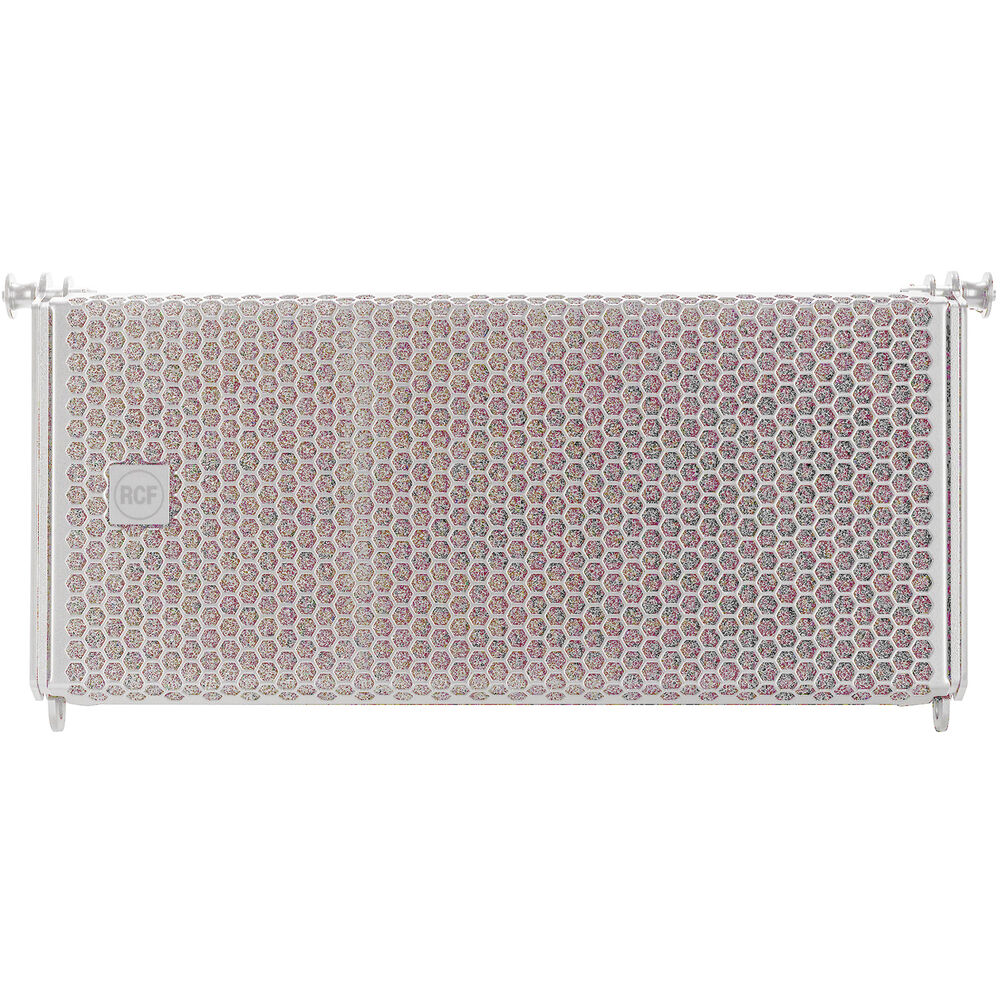

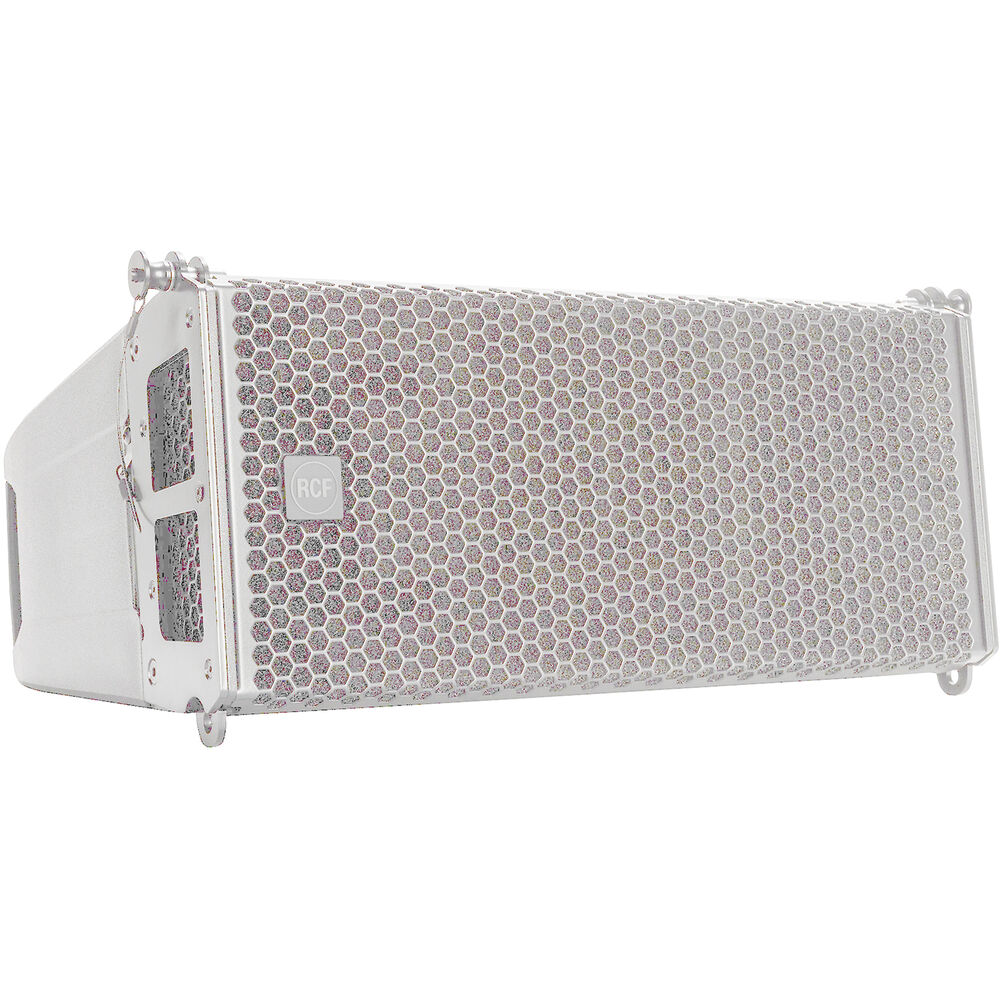

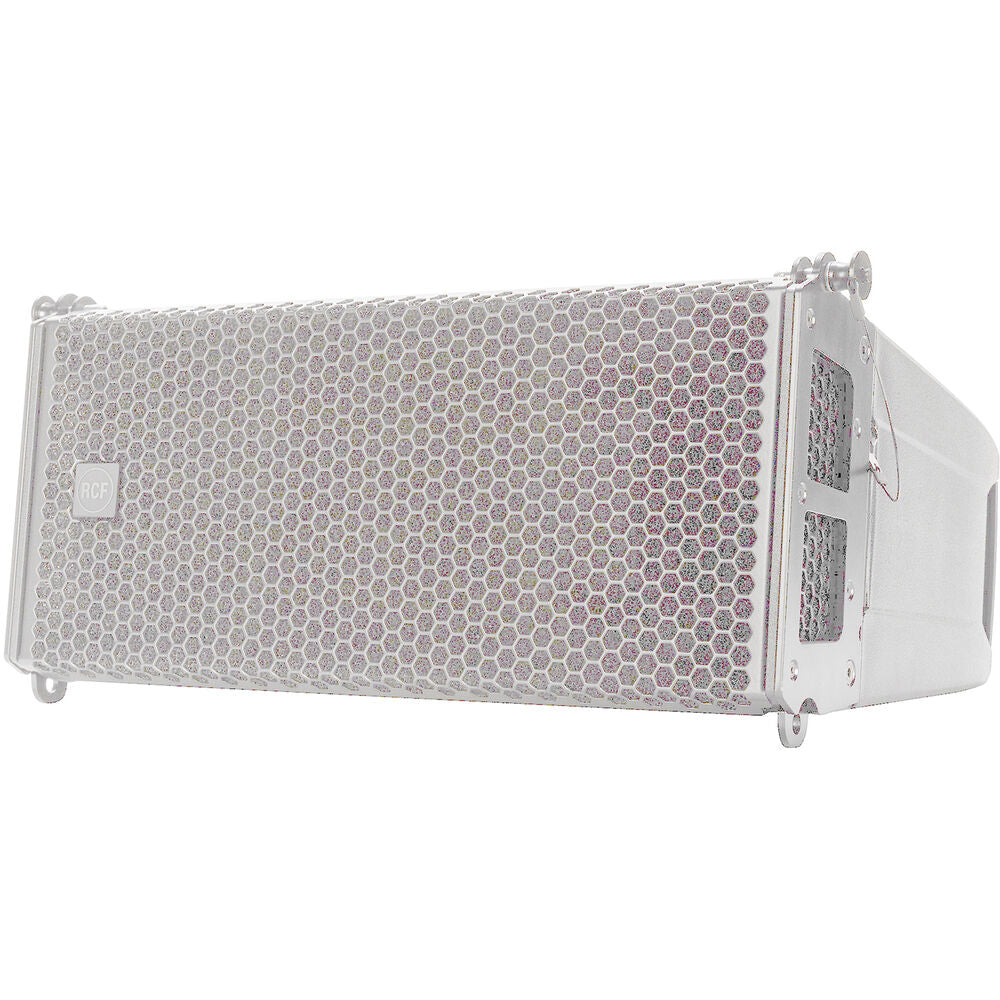

RCF HL 6 Compact Passive Two-Way Line Array Module | White

RCF HL 6 Compact Passive Two-Way Line Array Module | White

SoundPro Item: 205433 | Part Number: HL6-W

$1,739.00
$2,499.00 $1,739.00
Your Price Sold out
MSRP: $2,499.00 | MAP: $1,739.00

Usually ships in 5-7 business days

  • Constant-Directivity Waveguide Maintains Controlled Horizontal Coverage Across The Vocal Range
  • Dual Neodymium Woofers Deliver Extended Low-End With High Output Efficiency
  • Passive Full-Range Design Gives Integrators Complete Amplifier And DSP Flexibility
  • Linkable Array Mechanics Enable Beamforming And Steering In Multi-Box Configurations
  • PP Composite Enclosure Keeps Per-Unit Weight Low For Flown Array Applications
  • Dynamic Active MOSFET Protection Safeguards Transducers During High-Demand Events

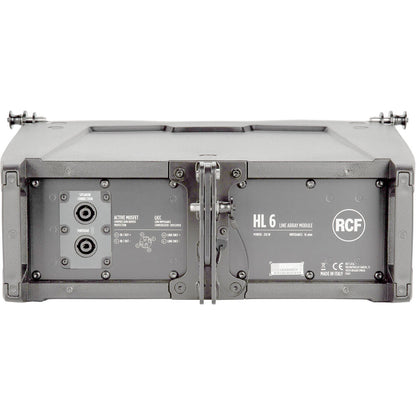

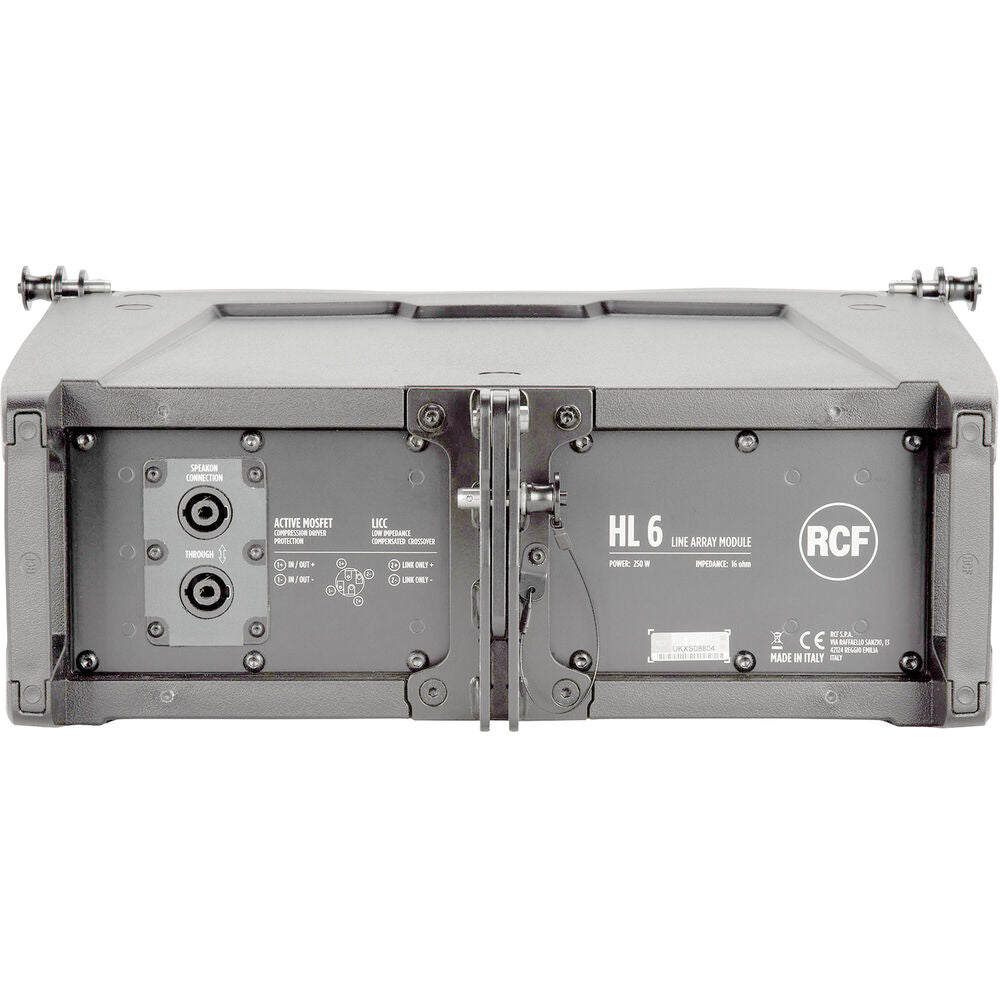

  • SpeakOn Input And Output Connectors Support Daisy-Chained Array Wiring
Log in or register for YOUR best price

The RCF HL 6 is built for audio integrators and production engineers who need scalable, full-range coverage in small to medium-sized venues without the rigging complexity of full-scale line array systems. Whether deployed as a standalone cluster or linked in a multi-box array for beamforming and steering, the HL 6 fills houses of worship, corporate event spaces, performing arts rooms, and club stages with consistent, controlled sound. The passive design allows system designers to pair the cabinet with the amplifier and DSP chain of their choice, preserving integration flexibility.

A 1.75-inch neodymium compression driver mated to a constant-directivity waveguide produces a horizontal pattern of 100 degrees across the full vocal range, minimizing off-axis splash and wall reflections in treated and untreated rooms alike. Twin 6-inch neodymium woofers back that high-frequency precision with extended low-end reach and output levels rarely found in cabinets of this footprint. The PP composite enclosure keeps per-unit weight low enough to allow multi-box flown arrays without demanding heavy rigging infrastructure, a direct advantage over heavier wood-cabinet competitors in the compact line array class.

View full details

Specifications

Audio
Frequency Response (-10 dB)
65 Hz - 20000 Hz
Max SPL @ 1m
131 dB
Horizontal Coverage Angle
100°
Vertical Coverage Angle
10°
Directivity Index Q
16
Crossover Frequency
900 Hz
Power
Amplification
Full Range
Nominal Impedance
16 ohm
Power Handling
250 W
Peak Power Handling
1000 W Peak
Protections
Dynamic Active MOSFET
Transducers
Compression Driver
1 x 1.0" neo, 1.75" v.c
Woofer
2 x 6.0" neo, 2.0" v.c
Connectivity
Input Connectors
Speakon
Output Connectors
Speakon
Construction
Cabinet Material
PP Composite
Hardware
Integrated Array Mechanics
Handles
2 on the Rear Panel
Grille
Steel
Color
White - RAL 9003
Certifications
Safety Agency
CE Compliant
Dimensions
Height
237 mm / 9.33"
Width
470 mm / 18.5"
Depth
377 mm / 14.84"
Weight
Unit Weight
11.8 kg / 26.01 lbs
Shipping
Package Height
260 mm / 10.24"
Package Width
550 mm / 21.65"
Package Depth
425 mm / 16.73"
Package Weight
13.3 kg / 29.32 lbs
