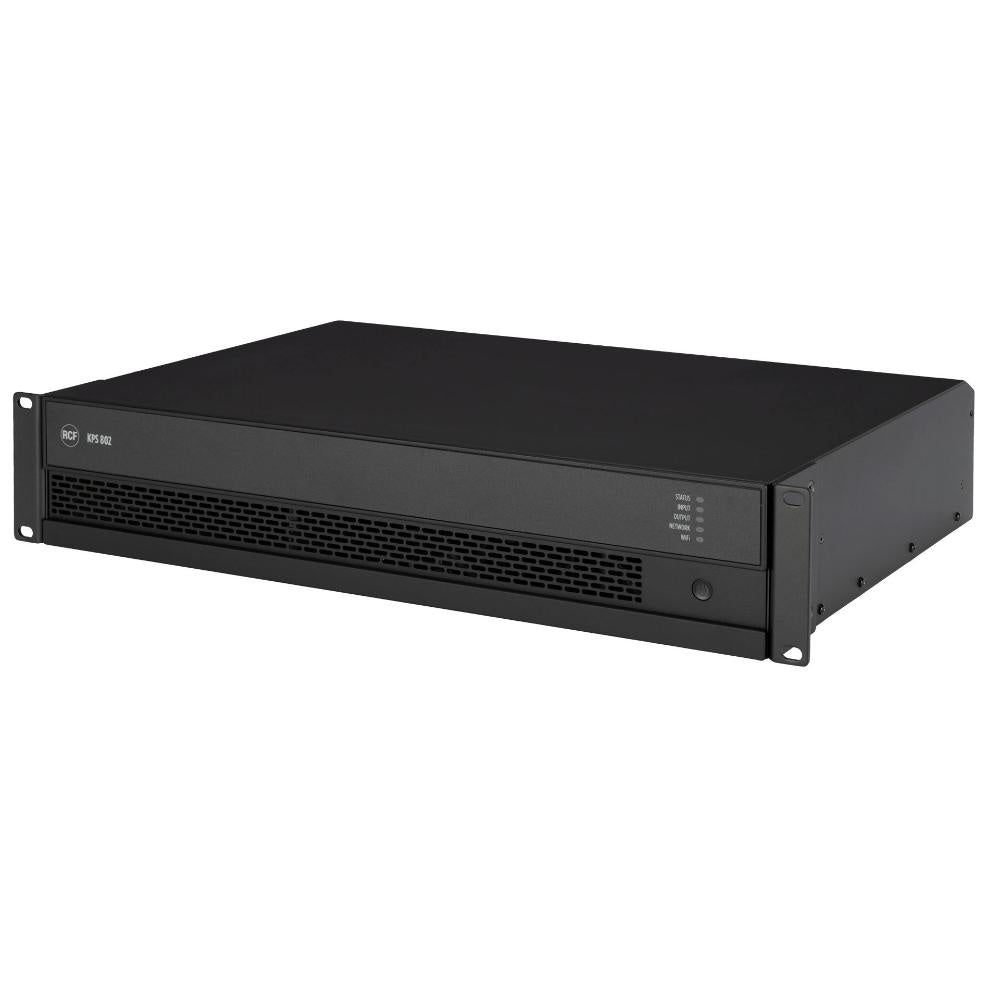

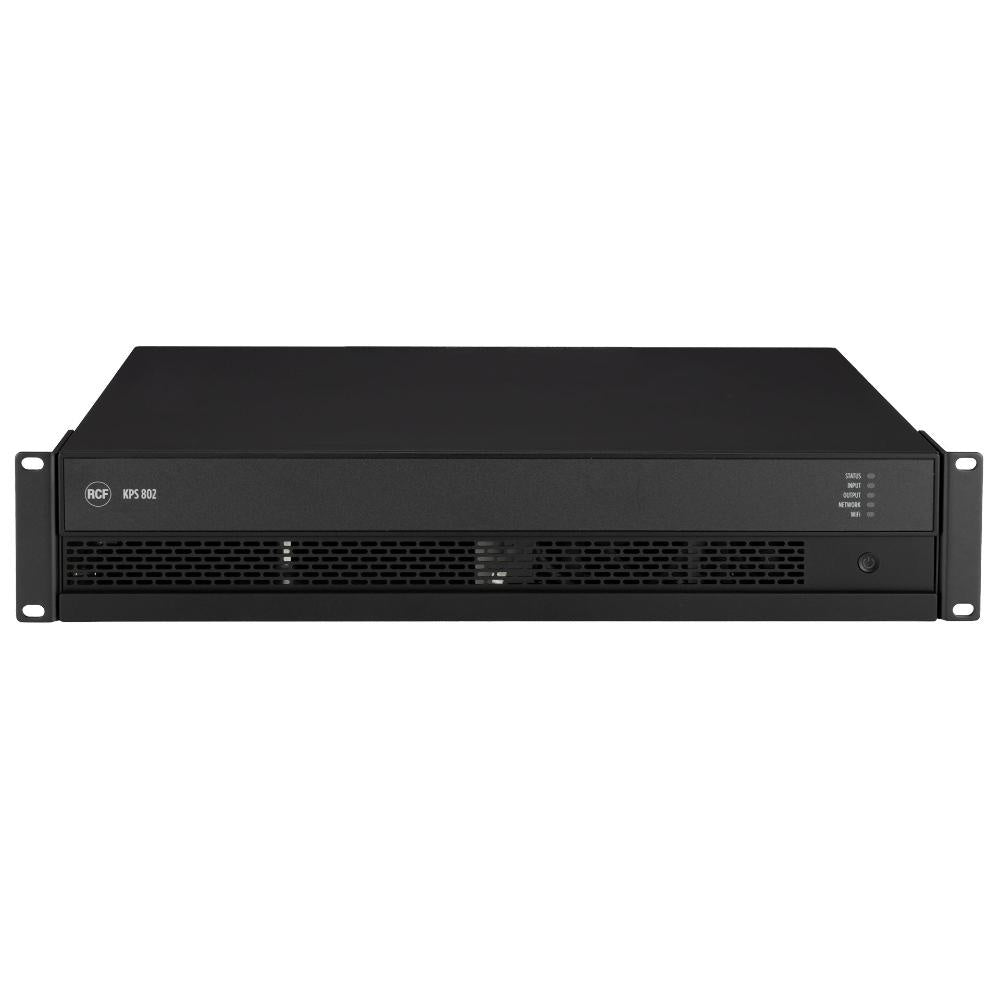

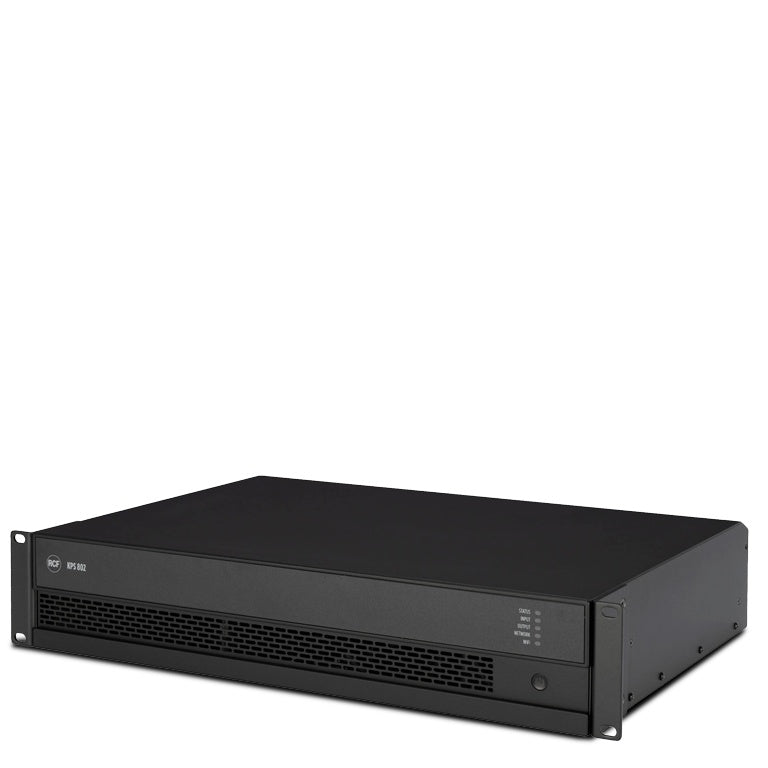

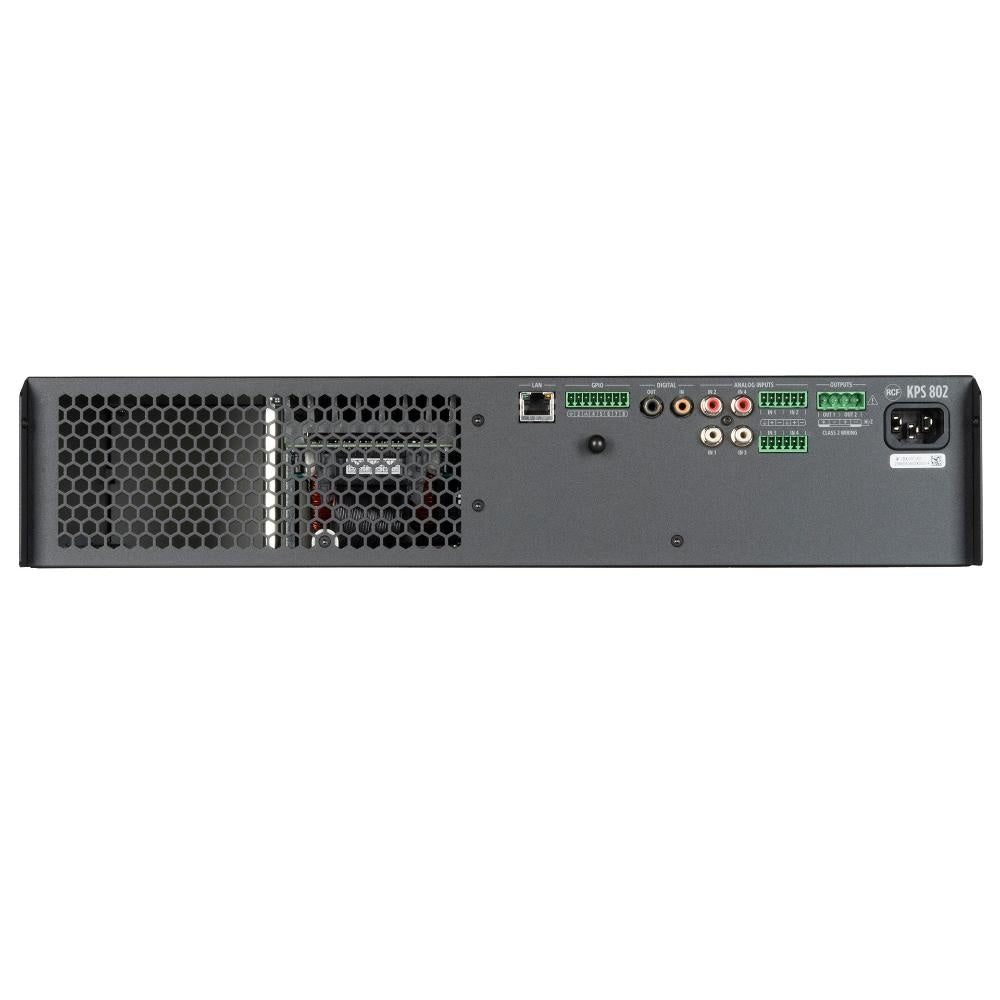

RCF KPS High-Power DSP Amplifier Class D With Integrated DSP | 2-Channel | Without Dante

RCF KPS High-Power DSP Amplifier Class D With Integrated DSP | 2-Channel | Without Dante

SoundPro Item: 203583 | Part Number: KPS 802

$2,789.00
$3,899.00 $2,789.00
Your Price Sold out
MSRP: $3,899.00 | MAP: $2,789.00

In stock and ready to ship

  • Class D Amplification Delivers High Output Efficiency In A 2U Rack Chassis
  • Integrated DSP Eliminates The Need For A Separate Signal Processor
  • RCF Speaker Presets Simplify Commissioning And Optimize System Performance
  • Low And High Impedance Outputs Support Both Direct Drive And 70V/100V Distributed Systems
  • Full-Matrix Multizone Management Enables Independent Zone Control Across Distributed Installations
  • RDSpace Software And Wireless Access Point Allow Wired And Mobile System Configuration
  • API Drivers For AMX, Q-SYS, Symetrix, RTI, And Elan Enable Third-Party Control Integration
Log in or register for YOUR best price

The RCF KPS series is engineered for systems integrators and audio professionals specifying fixed installations where reliable high-power amplification, signal processing, and networked control must coexist in a single rack unit. Available in 2-channel, 4-channel, and 8-channel configurations, with or without Dante AoIP, the KPS range scales from focused zone applications to large distributed systems handling dozens of independent outputs. Low and high impedance operation, including 70V and 100V transformer-coupled outputs, makes these amplifiers equally suited to commercial paging systems, hospitality audio, houses of worship, and corporate AV installs where speaker runs are long and load types vary.

Integrated DSP eliminates the need for an external processor, with RCF RDSpace software providing complete system configuration from a connected PC. A library of RCF speaker presets accelerates commissioning and optimizes performance without manual EQ guesswork. The built-in wireless access point allows technicians to connect directly from a smartphone or tablet for on-site adjustments, while native Ethernet enables independent zone control across distributed systems. Programmable GPI and GPO ports, plus API drivers for AMX, Q-SYS, Symetrix, RTI, and Elan, give integrators deep third-party control system integration without additional hardware. PoE wall accessories extend remote control to the room level, rounding out a purpose-built platform for professional installed audio.

View full details

Specifications

Certifications
Safety Agency
CE compliant, UL62368-1
Audio
Amplifier Class
D
Output Power
2 x 800 W @ 2 ohm, 2 x 800 W @ 4 ohm, 2 x 400 W @ 8 ohm, 1 x 1600 W @ 4 ohm (bridge), 1 x 1600 W @ 8 ohm (bridge)
Output Power @ 100 V
1 x 1600 W @ 100 V
Output Power @ 70 V
1 x 1200 W @ 70 V
Frequency Response (-3dB)
20 Hz - 20000 Hz
SNR Analog Inputs (A-weighted)
>108 dB
SNR Digital Inputs (A-weighted)
>108 dB
Distortion (THD+N) (20 Hz - 20000 Hz, 400 W @ 8 ohm)
<0.05%
Connectivity
Total Number Of Inputs
5
Mic+Line Inputs
4
Mic+Line Connectors
Euroblock, RCA
Digital Inputs
1
Digital Connectors
RCA
Digital Type
S/PDIF
General Purpose Inputs (GPI)
5
Programmable GPI
Yes
Signal Output Number
1
Signal Output Connectors
RCA
Power Output Connectors
Euroblock
General Purpose Outputs (GPO)
5
Programmable GPO
Yes
Controls
DSP
Yes
Configuration
PC Software
Network
Ethernet
RCF Speaker Presets
Yes
Priority
Yes
Protocols For System Integration
AMX, Q-SYS, Symetrix, RTI, Elan
Protections
Cooling
Forced
Short Circuit
Yes
Thermal
Yes
DC
Yes
Fuses
Yes
VHF Protection
Yes
Electrical
Operating Voltage
90-240 V~ 50/60Hz
Power Consumption (MAX)
350 W
Construction
Cabinet Material
Metal
Color
Black
Rack Mounting
19", 2U
Dimensions
Height
3.46"
Width
19.02"
Depth
12.6"
Weight
Product Weight
13.01 lbs
Shipping
Package Height
7.48"
Package Width
15.35"
Package Depth
22.05"
Package Weight
17.42 lbs
