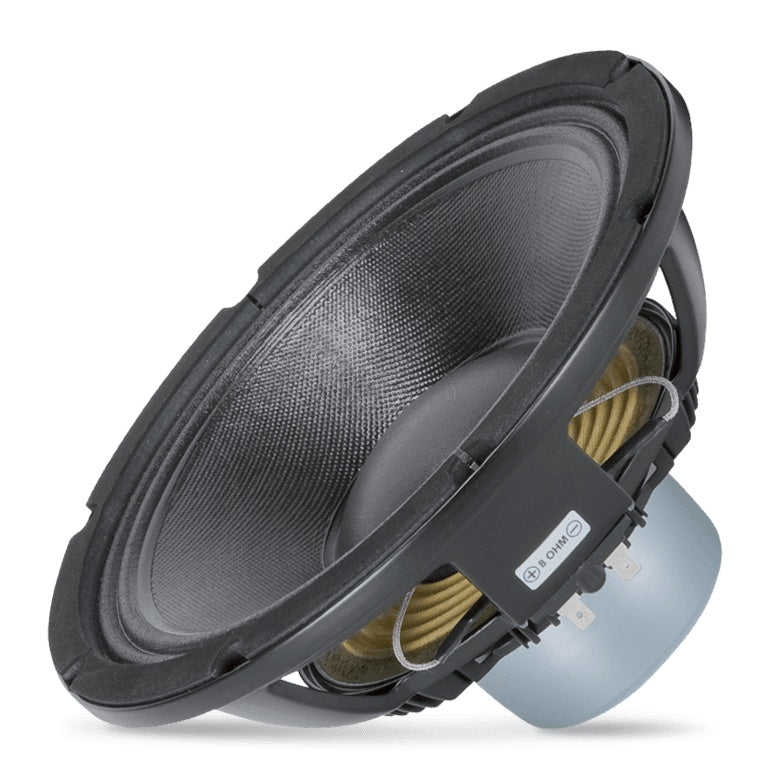

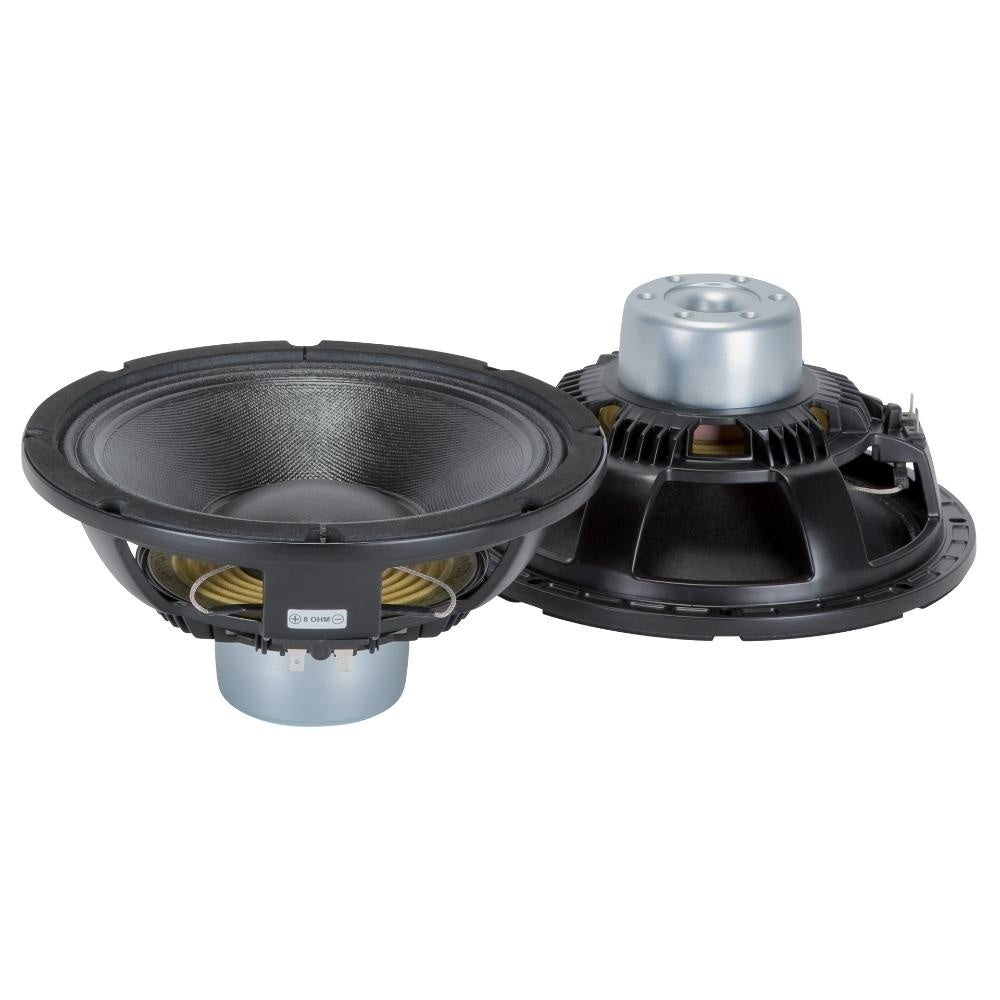

RCF 10" Mid-Bass Woofer CE-Compliant 8 Ohm Driver | MB10N251

RCF 10" Mid-Bass Woofer CE-Compliant 8 Ohm Driver | MB10N251

SoundPro Item: 113826 | Part Number: MB10N251

$309.00
$449.00 $309.00
Your Price Sold out
MSRP: $449.00 | MAP: $309.00

Usually ships in 5-7 business days

  • M-Roll Surround And Spider Design Deliver Linear Displacement And Precise Reproduction
  • Aluminum Voice Coil On Fiberglass Former Supports Efficient Heat Dissipation Under Load
  • Strong Magnetic Structure Provides Dynamic Control And Transient Accuracy
  • Curved Cone With Exponential Geometry Extends Usable Frequency Response
  • CE Compliant Construction Supports International Professional Installation Requirements
  • Available In Ceramic And Neodymium Magnet Versions To Match System Design Needs
Log in or register for YOUR best price

Speaker designers, systems integrators, and touring engineers building or servicing professional enclosures need drivers that deliver consistent performance under real-world conditions. This RCF 10" mid-bass woofer family is engineered for that job, combining a strong magnetic structure with precision suspension geometry to produce accurate, low-distortion reproduction across the mid-bass range. The M-roll surround and spider design work together to maintain linear displacement and controlled excursion, which translates directly to tighter transient response and reduced coloration in two-way and three-way cabinet designs used in live sound, installed audio, and stage monitoring applications.

The aluminum voice coil wound on a fiberglass former provides efficient heat transfer under sustained program levels, making these drivers a practical choice for enclosures that face continuous duty in club installations, theater fills, or touring line array components. CE compliance confirms suitability for professional installations across international markets. Available in ceramic and neodymium magnet configurations, and with varying power handling ratings, the range lets integrators select the driver that best matches the enclosure tuning and amplifier headroom of a specific system design without compromising the consistent acoustic architecture shared across the family.

View full details

Specifications

Certifications
Safety Agency
CE Compliant
Audio
Nominal Diameter
10 inch / 254 mm
Rated Impedance
8 ohm
Minimum Impedance
6.4 ohm
Program Power
600 W
Power Handling Capacity
300 W
Sensitivity
97.0 dB
Frequency Range
50-3500 Hz
Effective Piston Diameter
210 mm / 8.27"
Max. Excursion Before Damage
40 mm / 1.57"
Construction
Magnets
Neodymium
Voice Coil Diameter
2.5" / 63 mm
Voice Coil Winding Material
Aluminum
Voice Coil Length
14 mm / 0.55"
Number Of Layers
1
Kind Of Layers
Outside
Top Plate Thickness
9 mm / 0.35"
Cone Design
Curved
Surround Material
Polycotton
Surround Design
M-roll
Dual-Force Air Ventilation
Yes
Spider
01
Color
Black
Thiele-Small Parameters
Resonance Frequency (Fs)
55 Hz
DC Resistance (Re)
5.10 ohm
Mechanical Factor (Qms)
4.20
Electrical Factor (Qes)
0.29
Total Factor (Qts)
0.27
Bl Factor
15.20 T x m
Effective Moving Mass (Mms)
36.0 g
Equivalent Cas Air Loaded (Vas)
39.0 liters
Effective Piston Area (Sd)
0.040 m2
Max. Linear Excursion (Xmax)
5 mm
Voice Coil Inductance @ 1kHz (Le1k)
1.30 mH
Half-Space Efficiency (Eff)
2.20%
Dimensions
Overall Diameter
260 mm / 10.24"
Height
123 mm / 4.84"
Bolt Circle Diameter
241-246 mm / 9.49-9.69"
Bolt Hole Diameter
6 mm / 0.24"
Front Mount Baffle Cut-Out
234 mm / 9.21"
Rear Mount Baffle Cut-Out
234 mm / 9.21"
Volume Occupied By Driver
1.2 liters / 0.05 ft3
Weight
Weight
2.5 kg / 5.51 lbs
Shipping
Package Height
180 mm / 7.09"
Package Width
290 mm / 11.42"
Package Depth
290 mm / 11.42"
Package Weight
3 kg / 6.61 lbs
