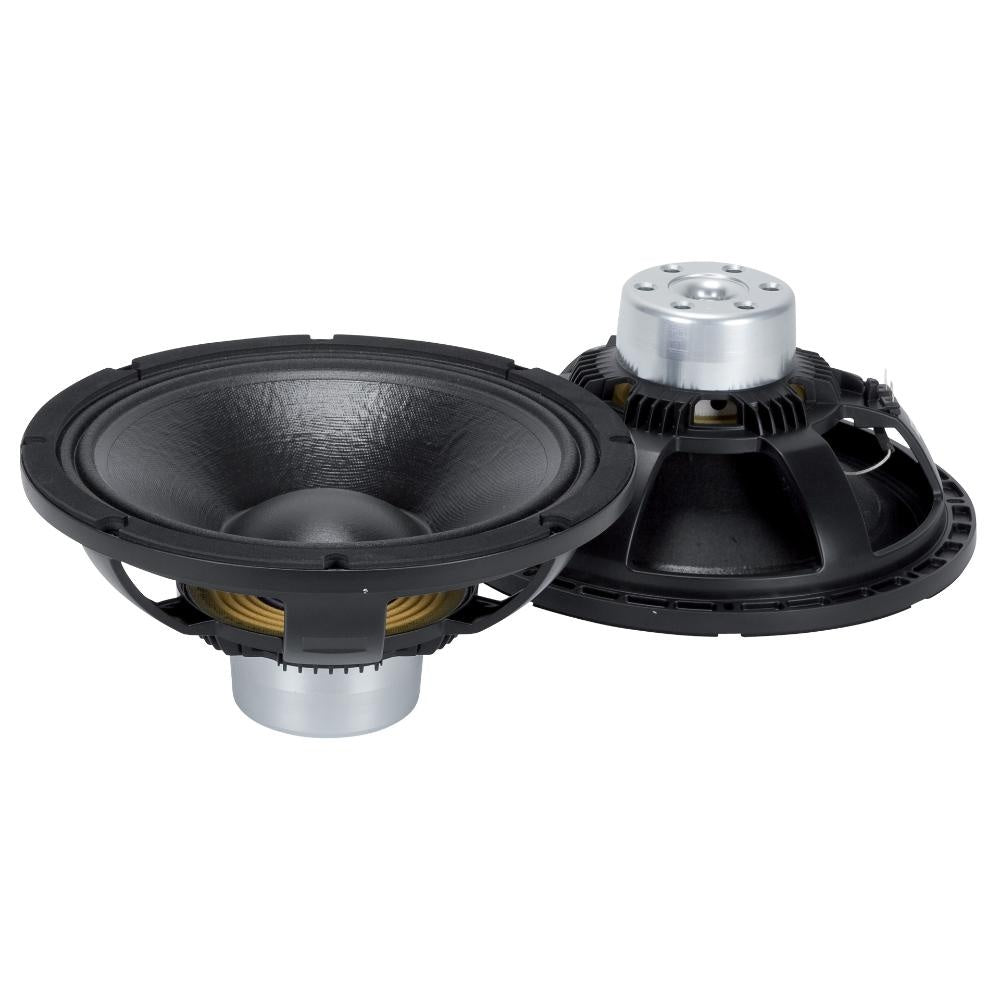

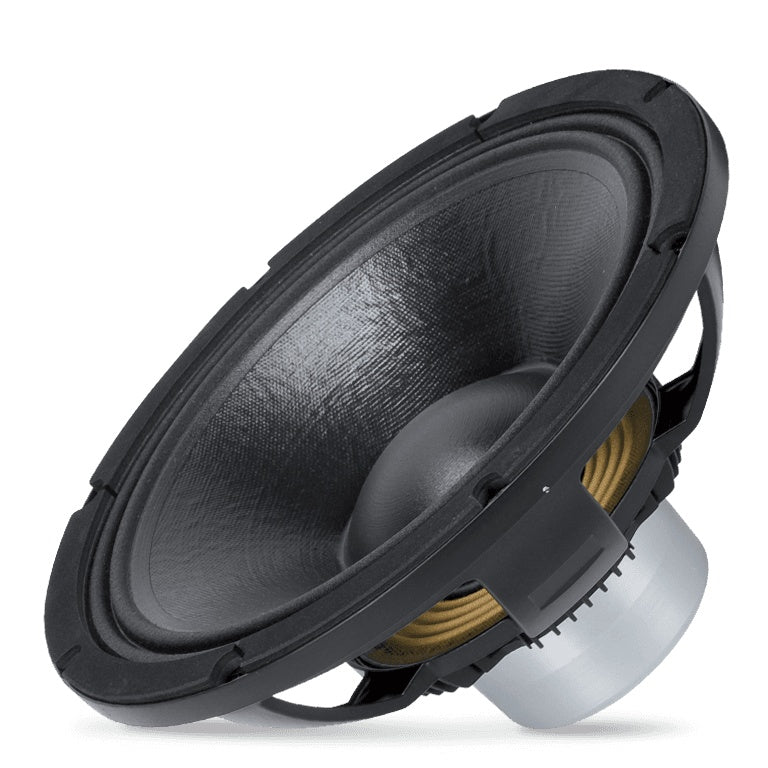

RCF 12" Mid-Bass Woofer High Efficiency Replacement Driver | MB12N301

RCF 12" Mid-Bass Woofer High Efficiency Replacement Driver | MB12N301

SoundPro Item: 75753 | Part Number: MB12N301

$369.00
$529.00 $369.00
Your Price Sold out
MSRP: $529.00 | MAP: $369.00

Usually ships in 5-7 business days

  • Fiberglass Inside/Outside Voice Coil Construction For Efficient Power Transfer
  • Curved Exponential Cone Geometry Maintains Linearity Across The Passband
  • Polycotton M-Roll Surround Delivers Controlled Excursion And Low Distortion
  • 8 Ohm Rated Impedance Compatible With Standard Professional Amplifier Loads
  • CE Compliant Construction Meets Regulatory Requirements For Pro AV Installs
  • Published Thiele-Small Parameters Support Accurate Enclosure Modeling
Log in or register for YOUR best price

The RCF 12" mid-bass woofer series is engineered for professional loudspeaker builders, cabinet designers, and system integrators who need a reliable, high-efficiency driver for mid-bass duties in touring and installed sound applications. Each driver in the range delivers a curved exponential cone geometry paired with polycotton surround construction to maintain precise linearity across the operating bandwidth. The fiberglass former and inside/outside layered voice coil design allow the cone assembly to manage demanding power loads while keeping moving mass in check, preserving the transient accuracy required in full-range and bi-amped system configurations.

These drivers are well suited for replacement work in existing RCF-based enclosures as well as new custom cabinet builds where engineers need verified Thiele-Small parameters to model alignment accurately. The consistent 12" nominal diameter and shared overall form factor across the family simplify integration into standard baffle configurations, while the range of available power handling and magnetic structure options lets integrators select the specific headroom and efficiency profile their system demands. CE compliance confirms the series meets regulatory requirements for professional installation across applicable markets.

View full details

Specifications

Certifications
Safety Agency
CE Compliant
Dimensions
Nominal Diameter
12" / 305 mm
Effective Piston Diameter
260 mm / 10.24"
Overall Diameter
320 mm / 12.6"
Height
146 mm / 5.75"
Voice Coil Diameter
3.0" / 76 mm
Voice Coil Length
17 mm / 0.67"
Top Plate Thickness
10 mm / 0.39"
Front Mount Baffle Cut-Out
288 mm / 11.34"
Rear Mount Baffle Cut-Out
288 mm / 11.34"
Bolt Circle Diameter
295-304 mm / 11.61-11.97"
Bolt Hole Diameter
6 mm / 0.24"
Volume Occupied By Driver
2.2 liters / 0.09 ft3
Max. Excursion Before Damage
34 mm / 1.34"
Weight
Product Weight
3.4 kg / 7.5 lbs
Audio
Rated Impedance
8 ohm
Minimum Impedance
6.7 ohm
Program Power
1000 W
Power Handling Capacity
500 W
Sensitivity
98.5 dB
Frequency Range
50 - 3000 Hz
Construction
Magnets
Neodymium
Cone Design
Curved
Surround Material
Polycotton
Surround Design
M-roll
Voice Coil Winding Material
Aluminum
Number Of Layers
2
Kind Of Layers
Inside/Outside
Dual-Force Air Ventilation
Yes
Spider
01
Thiele-Small Parameters
Resonance Frequency (Fs)
54 Hz
DC Resistance (Re)
5.80 ohm
Mechanical Factor (Qms)
3.10
Electrical Factor (Qes)
0.26
Total Factor (Qts)
0.24
Bl Factor
19.00 T x m
Effective Moving Mass (Mms)
48.0 g
Equivalent Air Volume (Vas)
71.0 liters
Effective Piston Area (Sd)
0.050 m2
Max. Linear Excursion (Xmax)
6 mm
Voice Coil Inductance @ 1kHz (Le1k)
1.80 mH
Half-Space Efficiency (Eff)
4.00%
Shipping
Package Height
194 mm / 7.64"
Package Width
364 mm / 14.33"
Package Depth
354 mm / 13.94"
Package Weight
4.2 kg / 9.26 lbs
