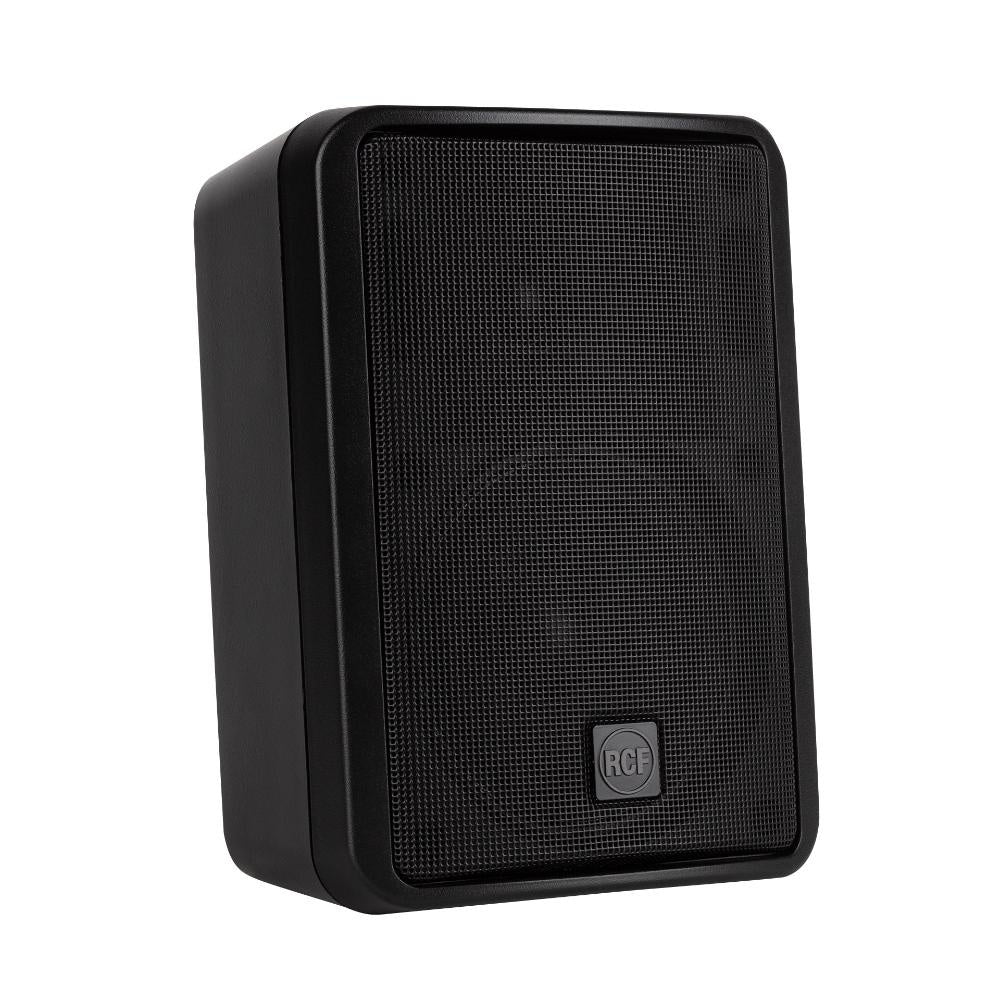

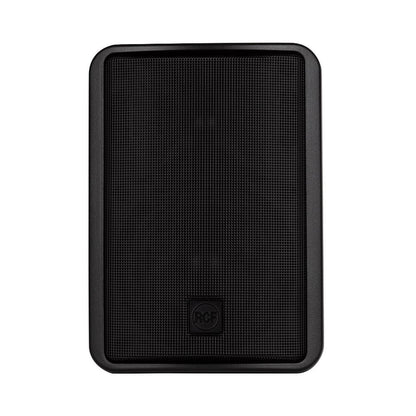

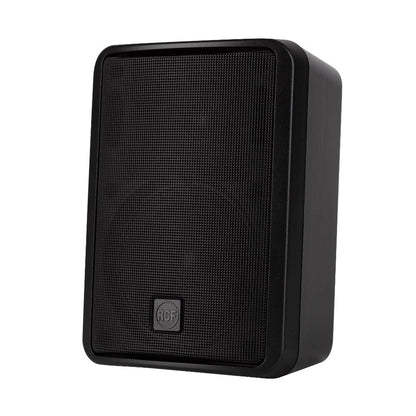

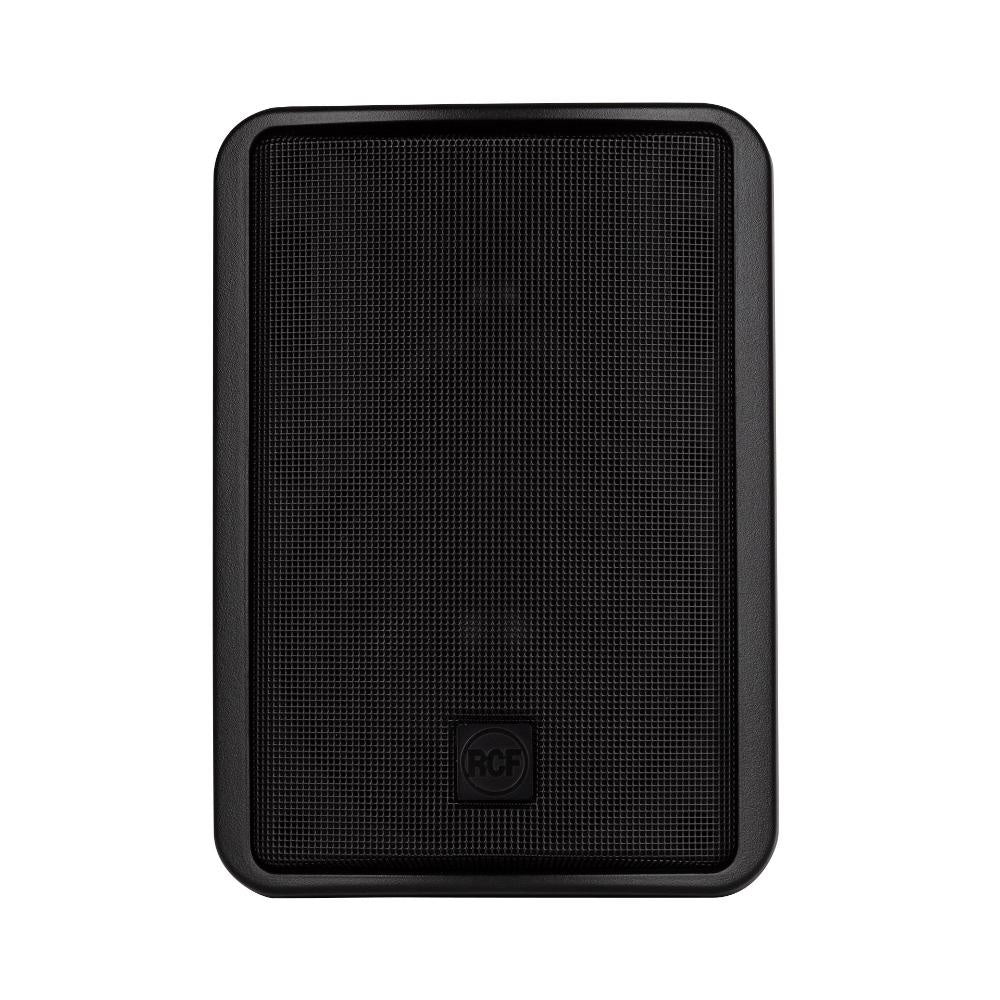

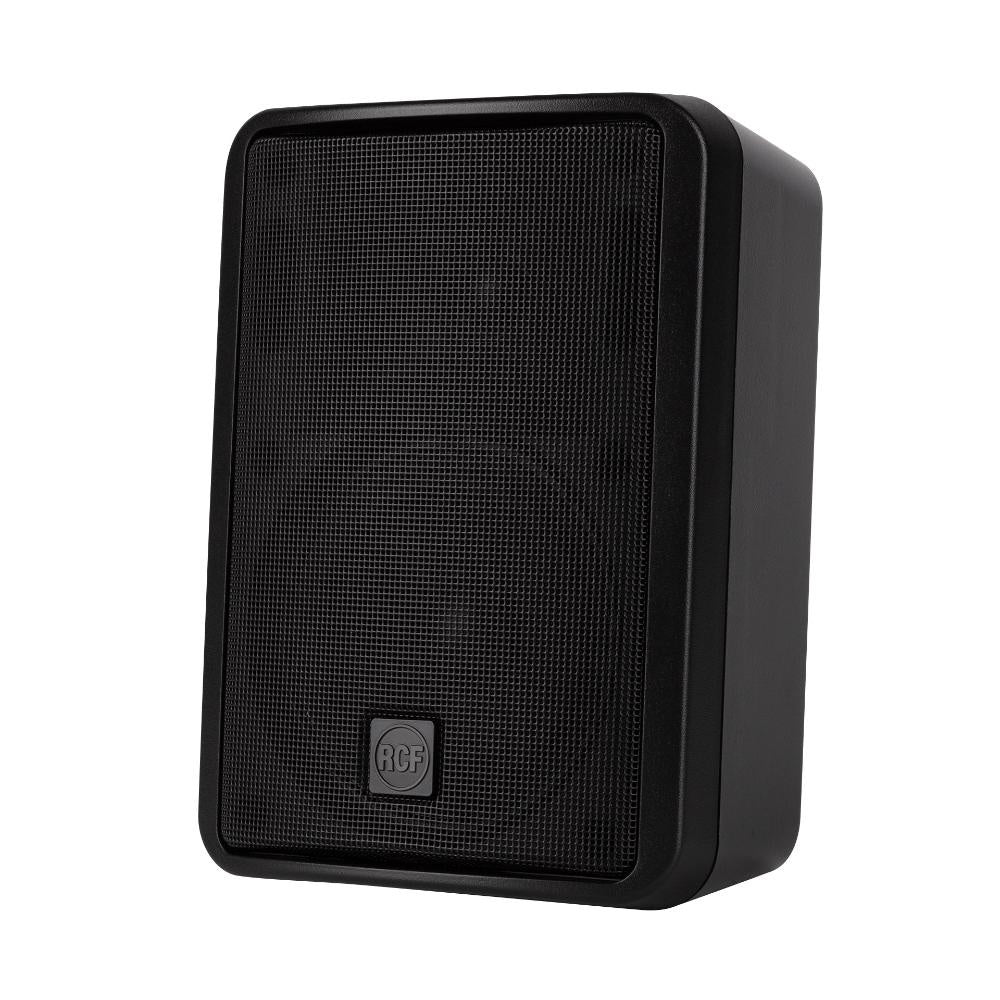

RCF Two-Way Bass Reflex Speaker Passive 4" Install Speaker Pair | With Transformer | Black

RCF Two-Way Bass Reflex Speaker Passive 4" Install Speaker Pair | With Transformer | Black

SoundPro Item: 47235 | Part Number: MR40-T

$469.00
$639.00 $469.00
Your Price Sold out
MSRP: $639.00 | MAP: $469.00

Usually ships in 5-7 business days

  • IP 55 Rated Enclosure Supports Permanent Indoor And Outdoor Fixed Installations

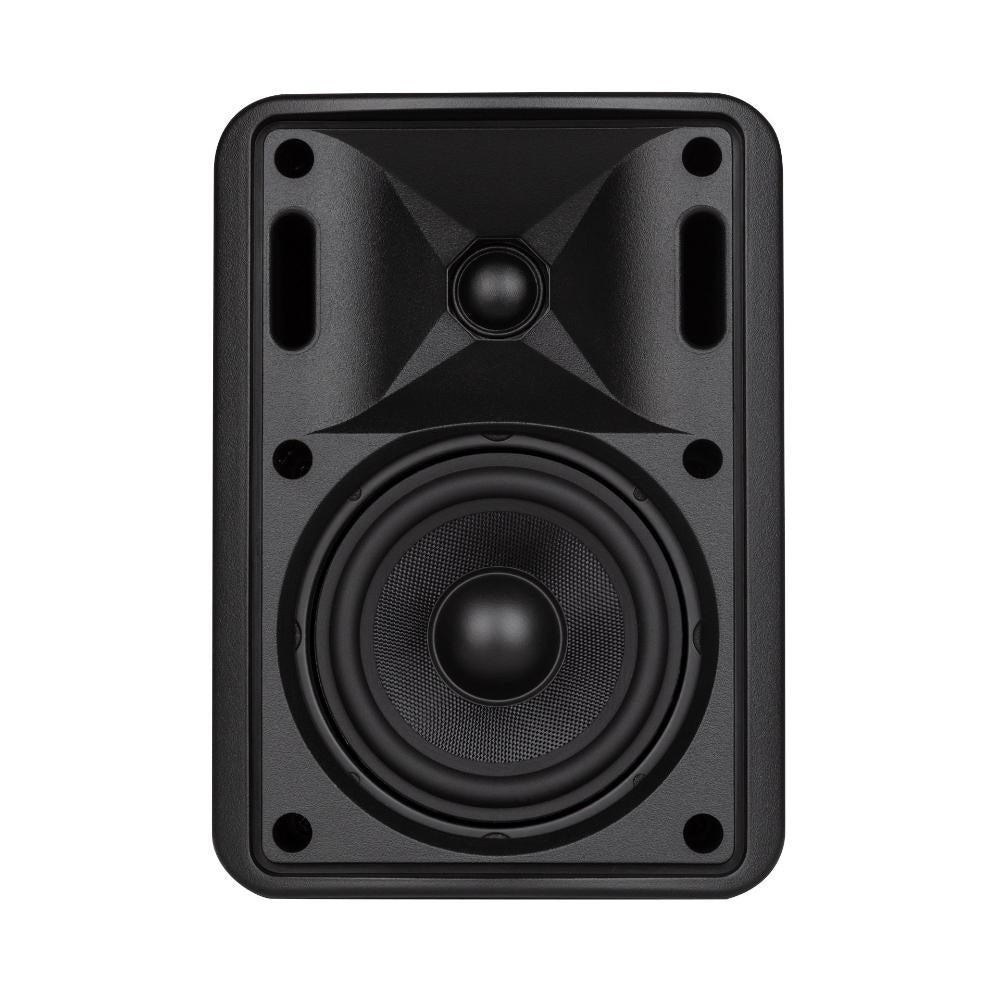

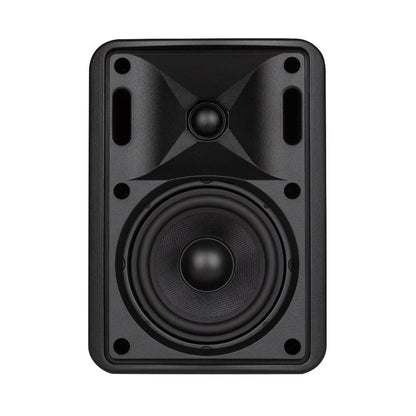

  • Neodymium Dome Tweeter Delivers Detailed High-Frequency Response
  • Wide 110 x 100 Degree Dispersion Covers Broad Listening Areas From A Single Cabinet
  • Available With Or Without 70/100 V Line Transformer For Flexible System Design

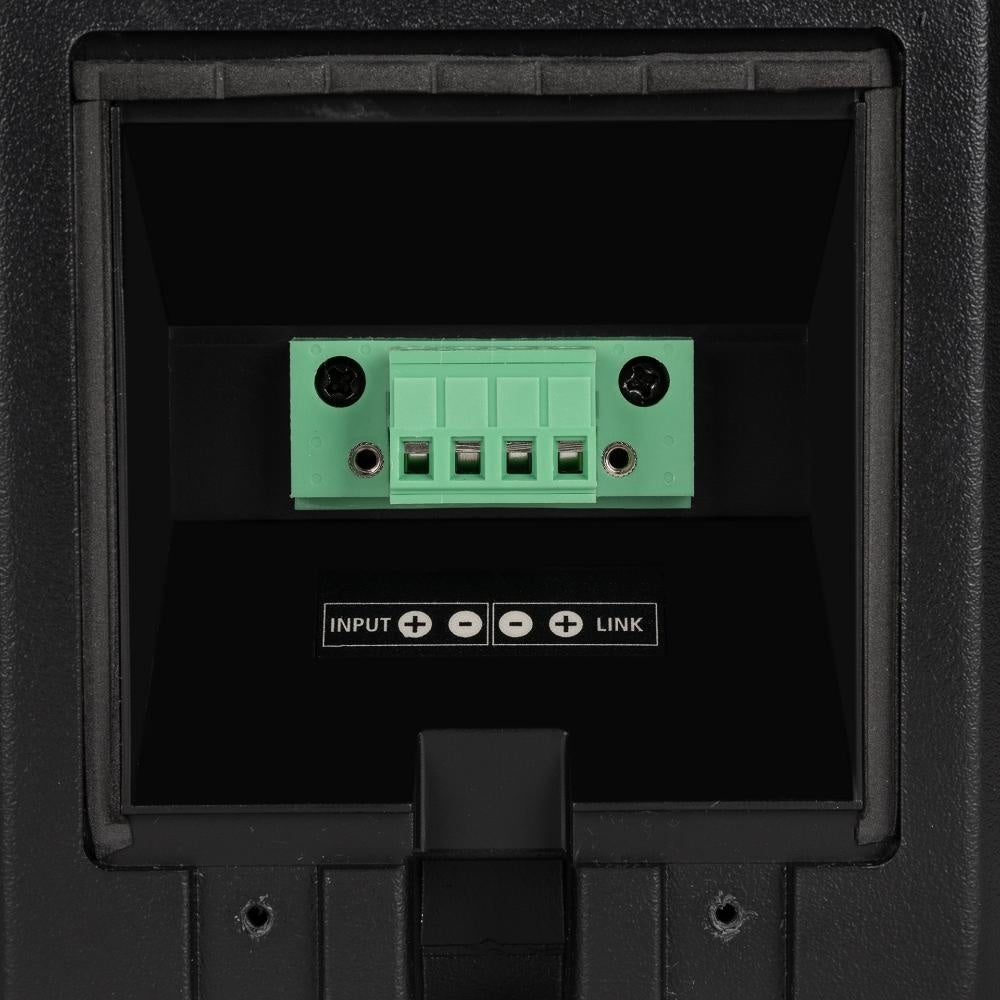

  • Euroblock Input And Output Connectors Simplify Permanent Wiring Runs

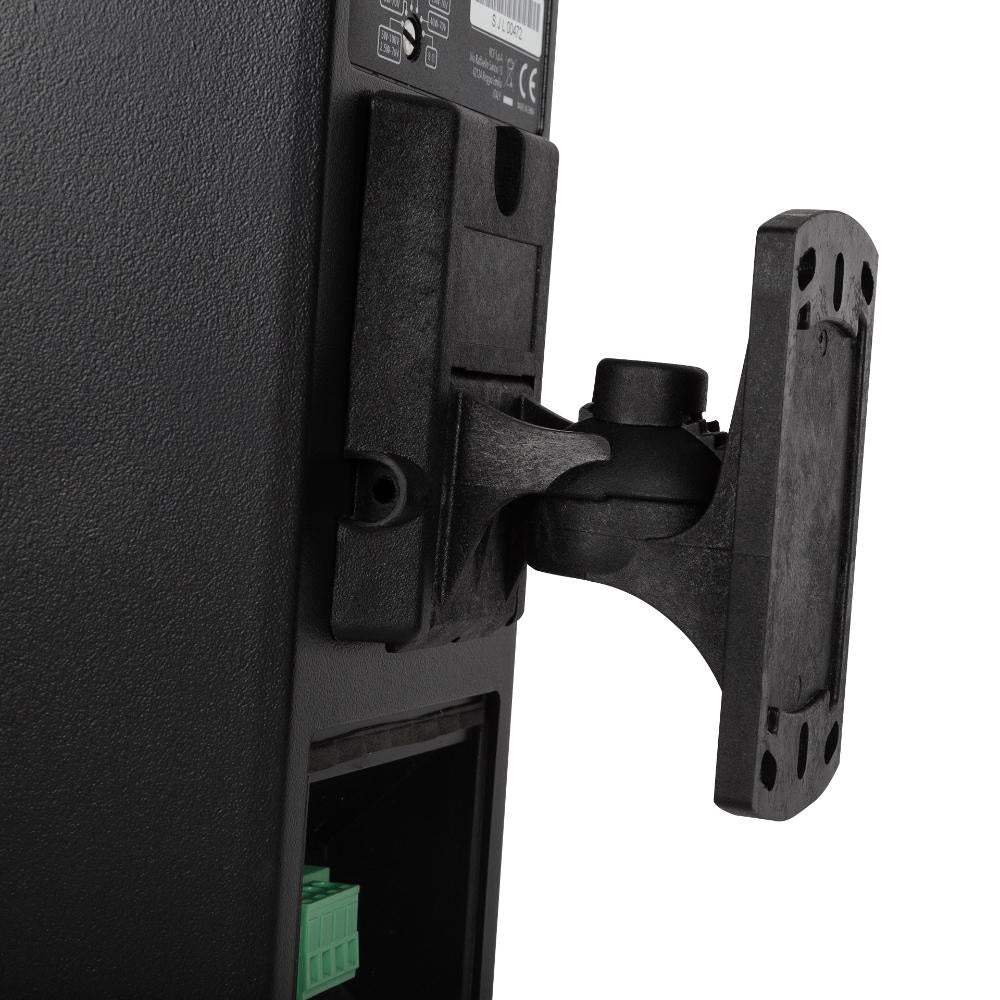

  • Swivel Wall Mount Bracket Included For Immediate Deployment Without Third-Party Hardware
  • Available In Black And White Finishes To Suit Any Architectural Interior
Log in or register for YOUR best price

The RCF MR 40 series targets systems integrators and installation engineers who need a compact, full-range loudspeaker that performs consistently across demanding environments. The bass-reflex two-way design covers 70 Hz to 20000 Hz and reaches 108 dB max SPL, making it a practical choice for corporate AV systems, retail background music, restaurant and hospitality audio, houses of worship, and outdoor terrace or courtyard applications where weather resilience is required.

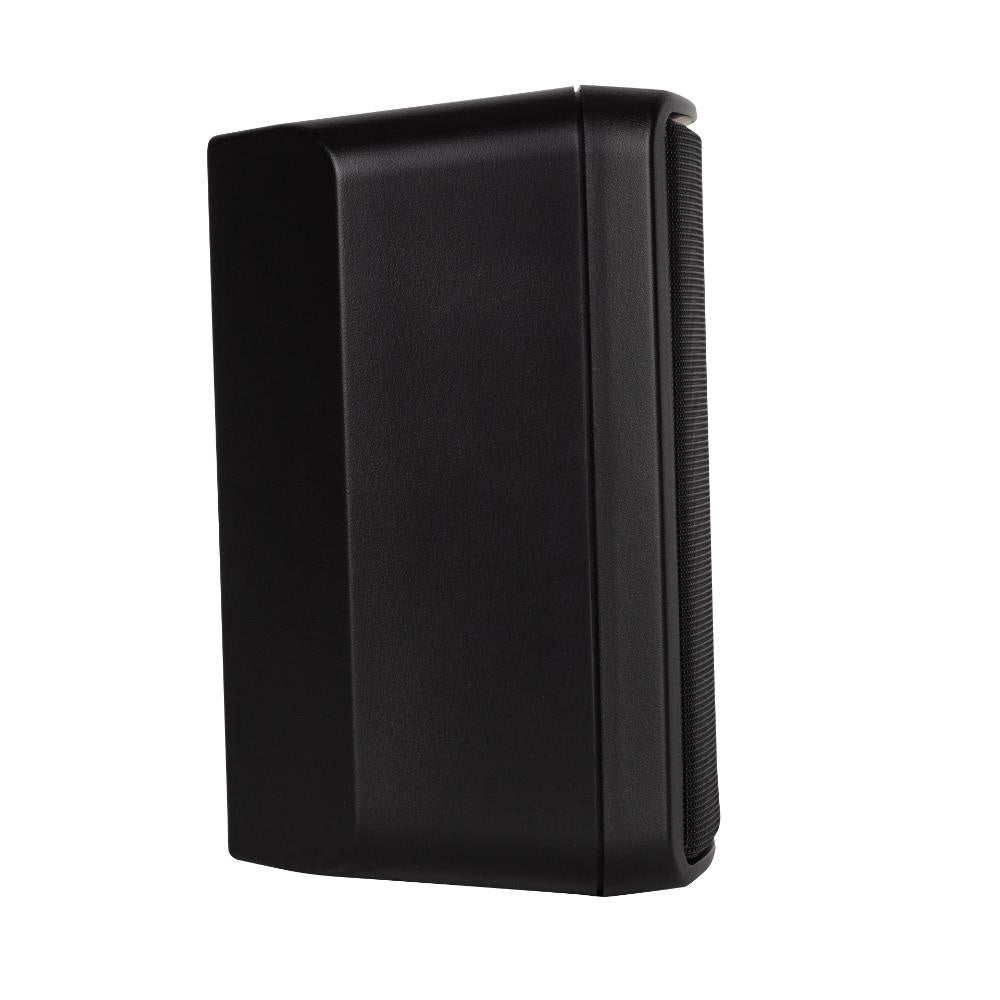

What separates this family from generic install speakers is the combination of an IP 55-rated plastic enclosure, an aluminum grille, and a neodymium dome tweeter, all packaged at a size and weight that simplifies bracket mounting in tight ceiling or wall cavities. The 110 degree horizontal by 100 degree vertical dispersion pattern suits wide rooms where a single speaker must cover a broad listening area without a secondary fill. Euroblock connectors on both input and output support neat, permanent wiring runs standard in installed AV. The family is available with or without a built-in 70/100 V line transformer, addressing both low-impedance amplifier topologies and distributed constant-voltage systems in a single product range.

Available in black and white finishes, the series integrates into virtually any architectural interior without the speaker becoming a visual distraction. The included swivel wall mount bracket eliminates the need to source third-party hardware, reducing project lead time and installation cost.

View full details

Specifications

Certifications
IP Protection Grade
IP 55
Safety Agency
CE Compliant
Audio
Frequency Response (-10dB)
70 Hz - 20000 Hz
Max SPL @ 1m
108 dB
System Sensitivity
86 dB
Horizontal Coverage Angle
110°
Vertical Coverage Angle
100°
Directivity Index Q
7
Crossover Frequency
3000 Hz
Power
Amplification
Full Range
Nominal Impedance
8 ohm
Power Handling
40 W
Peak Power Handling
160 W Peak
Protections
Bulb lamp

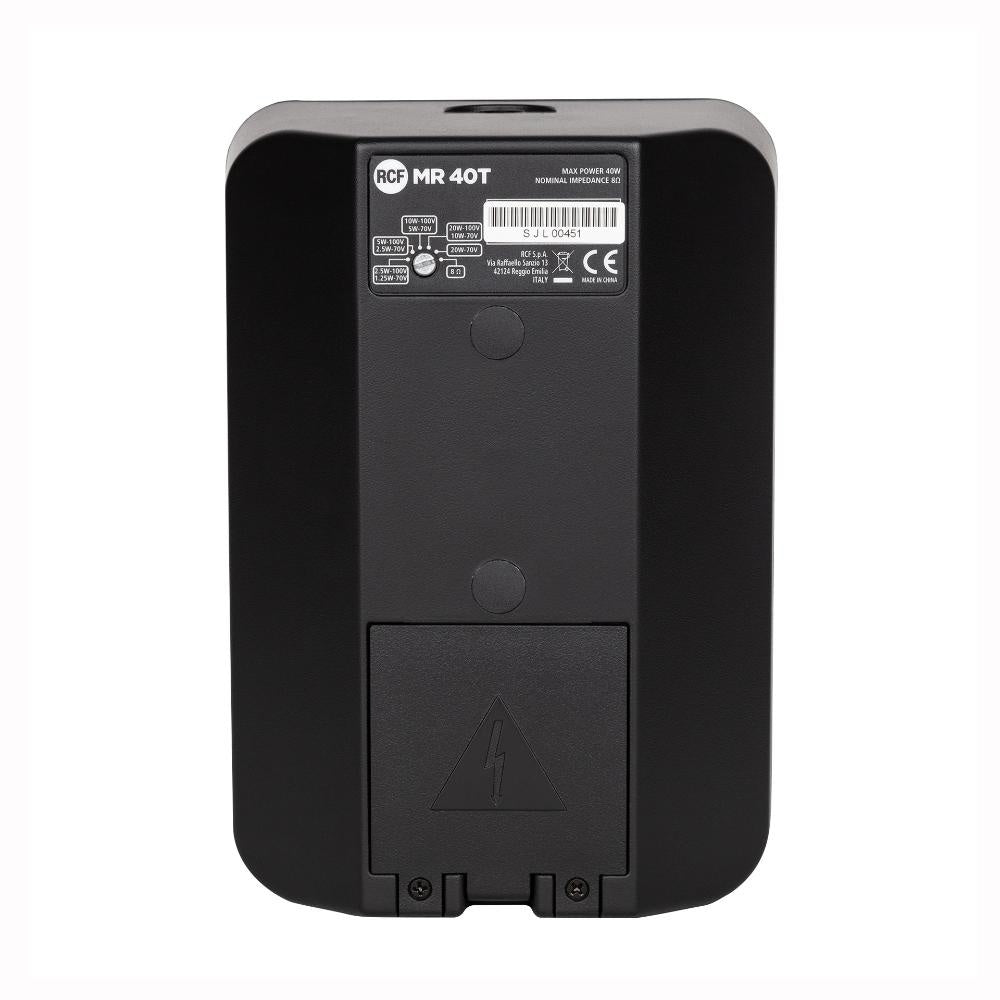

Constant Voltage Transformer
70/100 V
Power Selection 1
20 W - 500 ohm
Power Selection 2
10 W - 1000 ohm
Power Selection 3
5 W - 2000 ohm
Power Selection 4
2.5 W - 4000 ohm
Transducers
Woofer
1 x 4.0", 1.0" v.c.
Dome Tweeter
1 x 1.0" neo, 0.8" v.c.
Connectivity
Input Connectors
Euroblock
Output Connectors
Euroblock
Construction
Cabinet Material
Plastic
Grille
Aluminium
Hardware
Wall mount bracket
Color
Black - RAL 9005
Dimensions
Height
8.5"
Width
6.06"
Depth
5.31"
Weight
Unit Weight
5.07 lbs
Shipping
Package Height
11.22"
Package Width
15.75"
Package Depth
9.25"
Package Weight
12.13 lbs
