Specifications
Certifications
IP Protection Grade
IP 55
Safety Agency
CE Compliant
Audio
Frequency Response (-10dB)
70 Hz - 20000 Hz
Max SPL @ 1m
108 dB
System Sensitivity
86 dB
Horizontal Coverage Angle
110°
Vertical Coverage Angle
100°
Directivity Index Q
7
Crossover Frequency
3000 Hz
Power
Amplification
Full Range
Nominal Impedance
8 ohm
Power Handling
40 W
Peak Power Handling
160 W Peak
Protections
Bulb Lamp
Connectivity

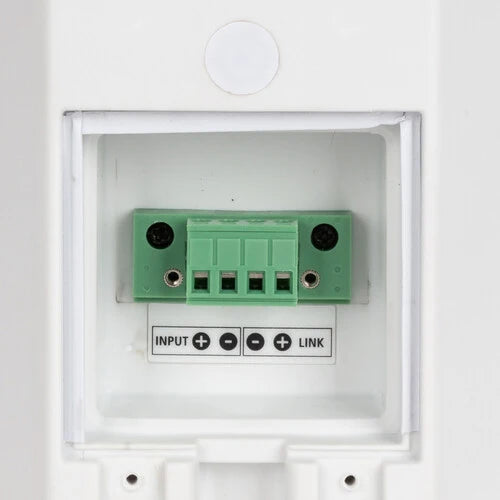

Input Connectors
Euroblock
Output Connectors
Euroblock

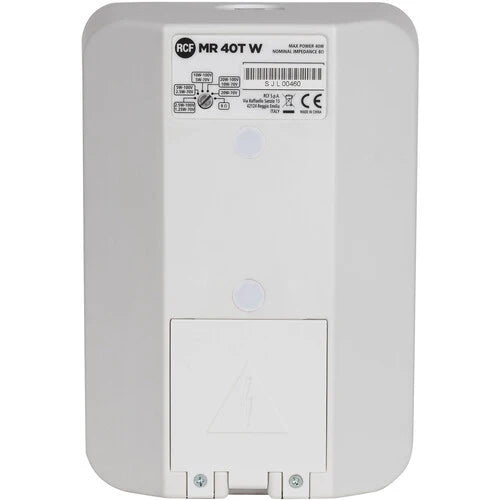

Constant Voltage Transformer
70/100 V
Power Selection 1
20 W - 500 ohm
Power Selection 2
10 W - 1000 ohm
Power Selection 3
5 W - 2000 ohm
Power Selection 4
2.5 W - 4000 ohm
Transducers
Woofer
1 x 4.0", 1.0" v.c.
Dome Tweeter
1 x 1.0" neo, 0.8" v.c.
Construction
Cabinet/Case Material
Plastic
Grille
Aluminium
Color
White - RAL 9003
Hardware
Wall Mount Bracket
Dimensions
Height
8.5"
Width
6.06"
Depth
5.31"
Weight
Unit Weight
5.07 lbs
Shipping
Package Height
11.22"
Package Width
15.75"
Package Depth
9.25"
Package Weight
12.13 lbs
