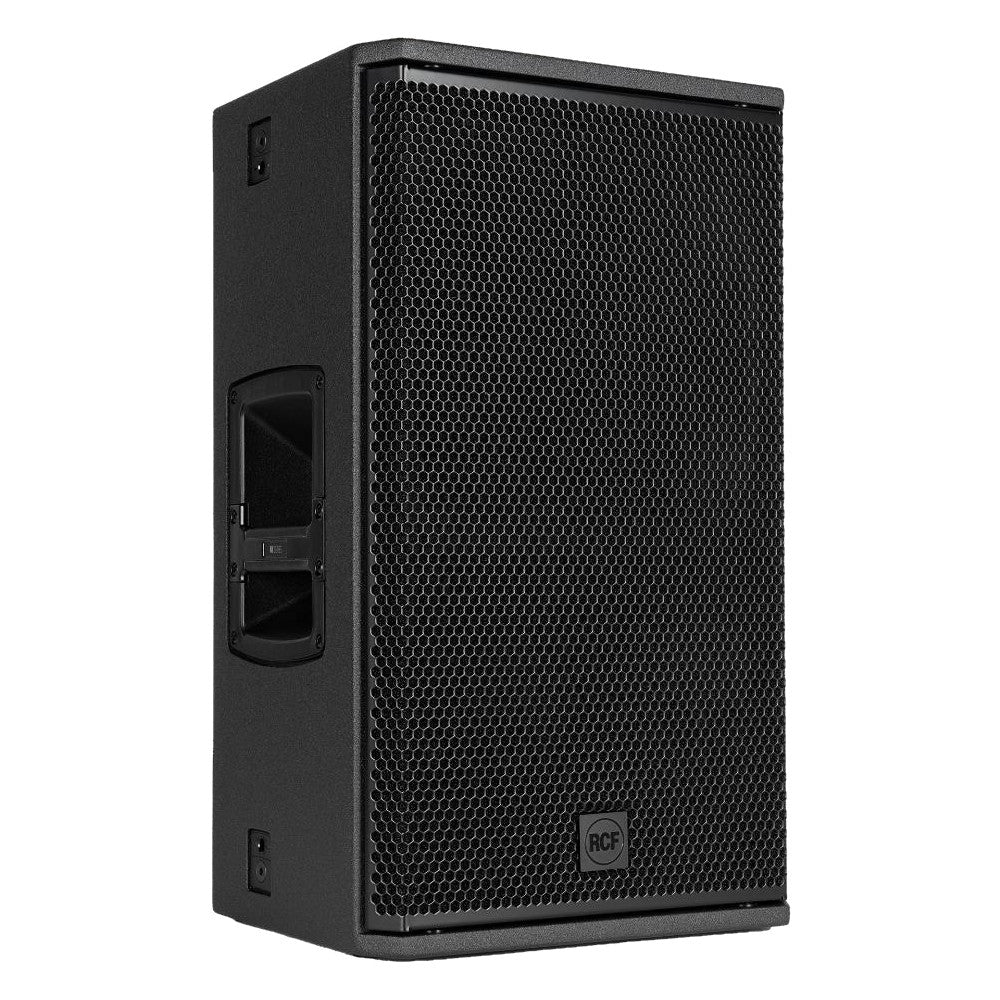

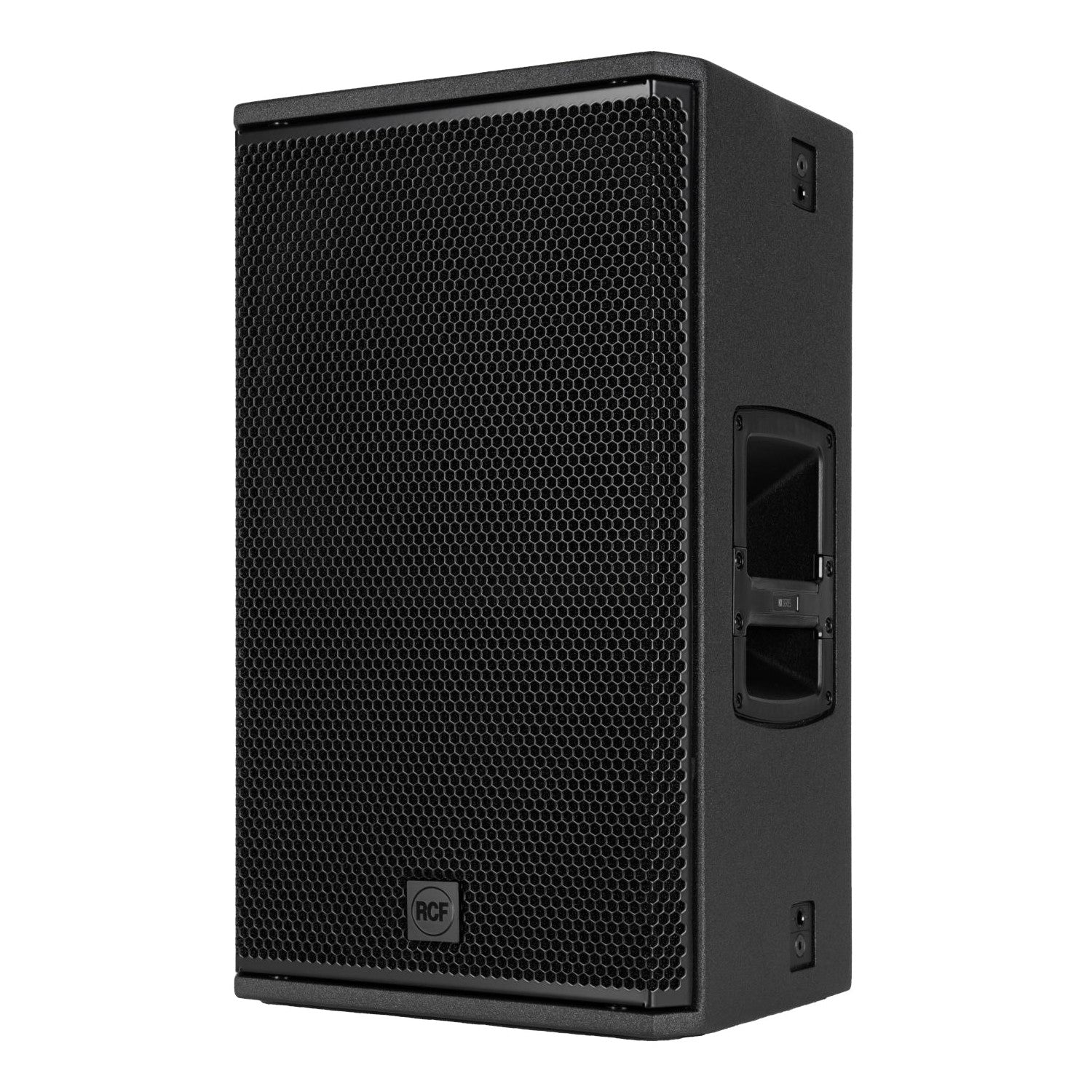

RCF NX 932-A 12-Inch Powered Speaker
RCF NX 932-A 12-Inch Powered Speaker
SoundPro Item: 141346 | Part Number: NX932A
In stock and ready to ship
- Up to 132 dB Sound Pressure Level
- 2100W Class-D Bi-Amplification
- 45-20000 Hz linear frequency response
- 3" Titanium/Neodymium Compression Driver
- 12" Woofer
- FiRPHASE zero degrees phase technology
- Bass Motion Control woofer excursion management
- Six M10 and four Quick Lock rigging points
Couldn't load pickup availability
NX 932-A is masterfully engineered from the ground up to deliver stellar audio performance for sound providers, small bands and DJs. The combination of a 3" titanium/neodymium compression driver, 12" woofer - two-channel 2,100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 70° coverage for the listening area with up to 132 dB SPL, distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown speaker, the NX 932-A blends high performance and reliability in a compact package. Merging RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute sound clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and secure to install on a pole-, flown-, wall-, or truss-mounted using the dedicated rigging points available.
- Acoustical
- Frequency response: 45 hz ÷ 20000 hz
- Max SPL @ 1m: 132 db
- Horizontal coverage angle: 100°
- Vertical coverage angle: 70°

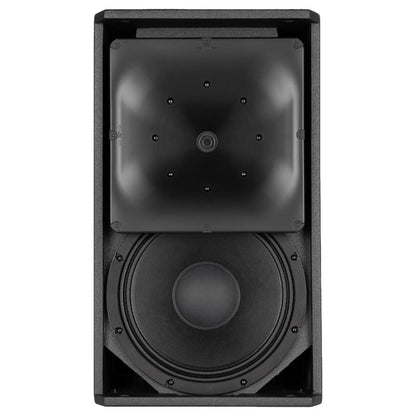

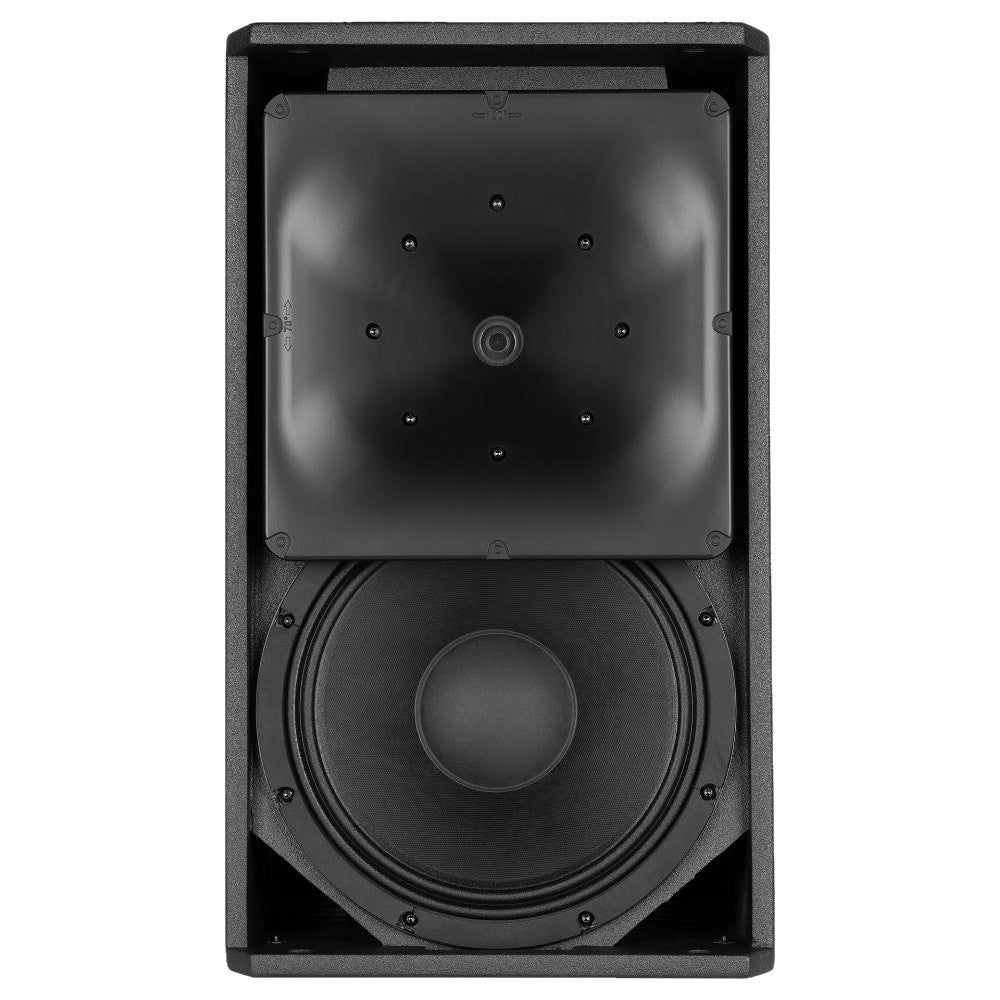

- Transducers
- Compression driver: 1x1.4'' neo, 3.0" v.c
- Woofer: 12'', 2.5'' v.c

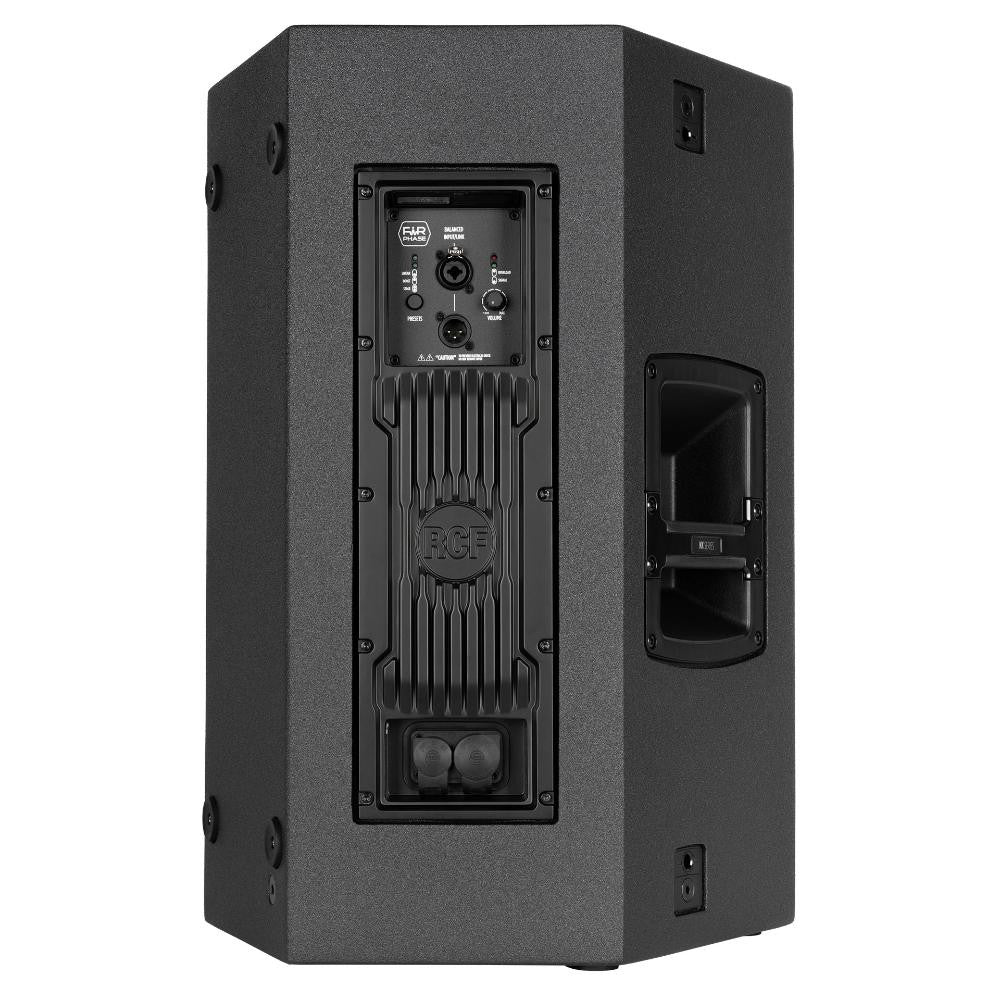

- Input/output section Processor section
- Input signal: Bal/unbal
- Input connectors: Combo xlr/jack
- Output connectors: Xlr
- Input sensitivity: -2 dbu/+4 dbu
- Crossover frequencies: 700hz
- Protections: Thermal, rms
- Limiter: Soft limiter
- Controls: Linear, boost, stage, volume
- Power section
- Total power: 2100W peak
- High frequencies: 700W peak
- Low frequencies: 1400W peak
- Cooling: Convection
- Connections: Powercon true1 top in/out
- Standard complianceSafety agency: Ce compliant
- Physical
- Cabinet/case material: Plywood

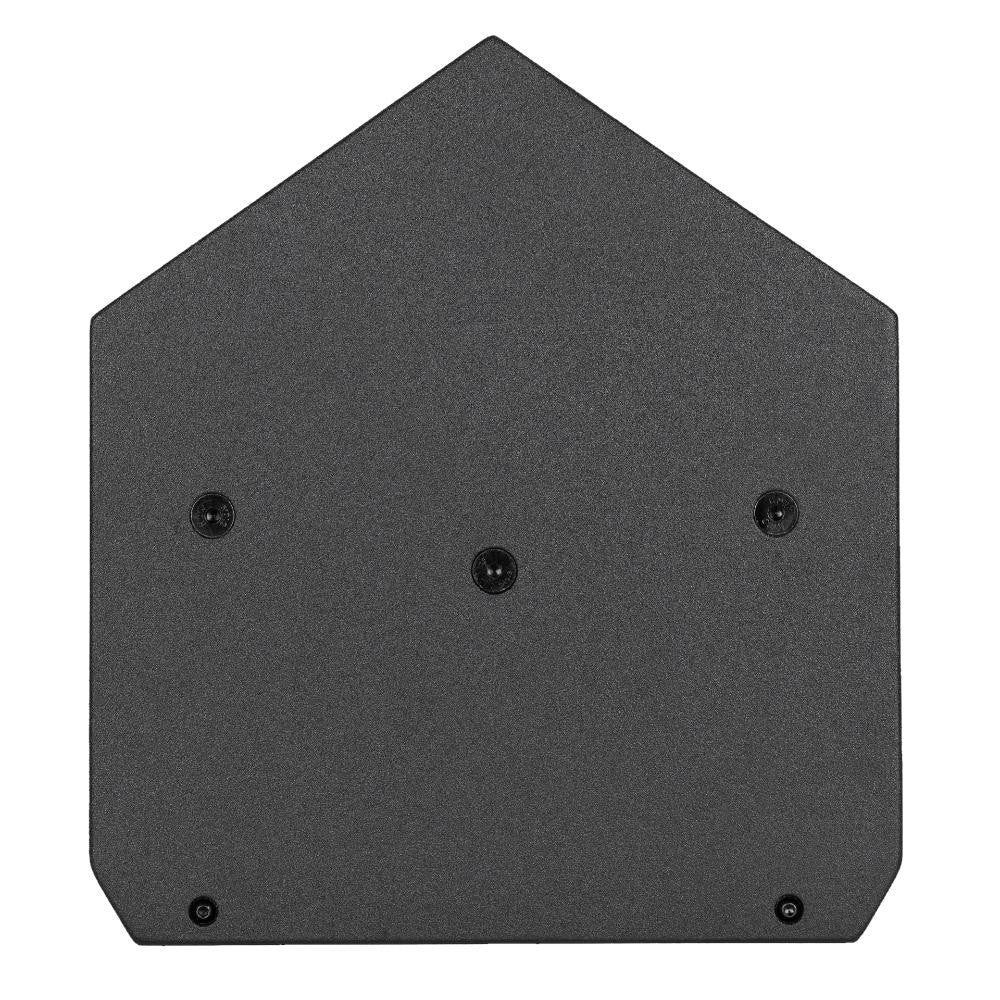

- Hardware: 2 x m10 top, 1 x m10 each side, 1 x m10 bottom, 1 x m10 rear; 2 each side quick lock pin seat
- Handles: 1 x side

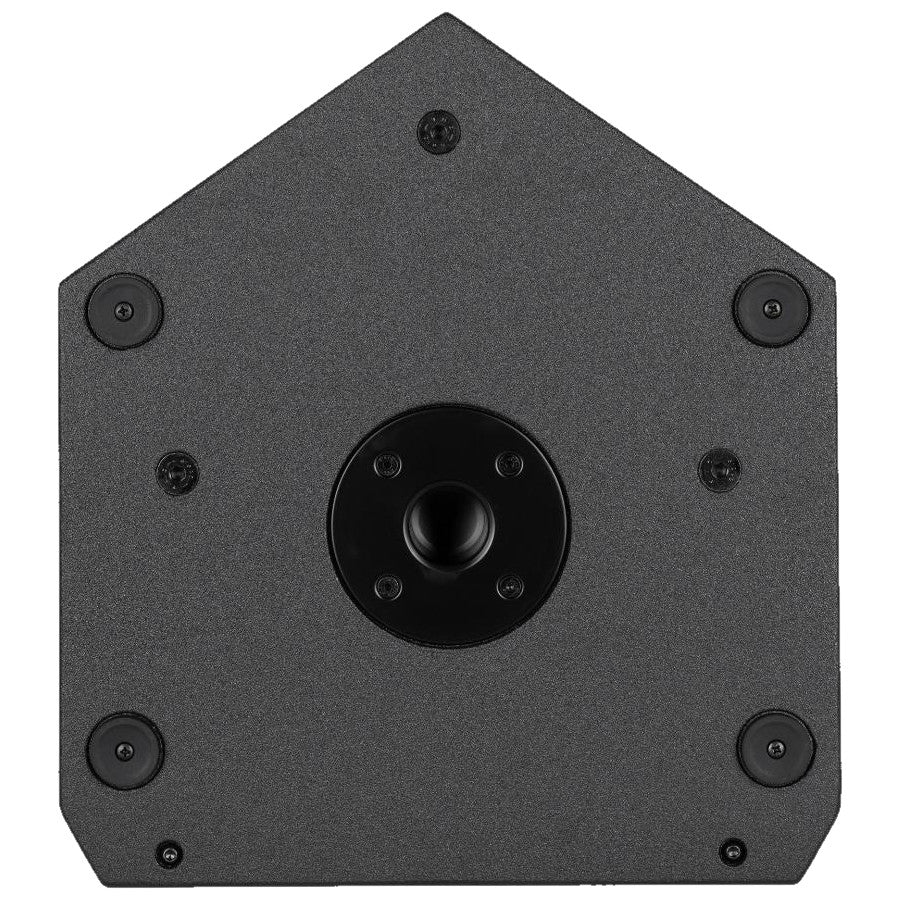

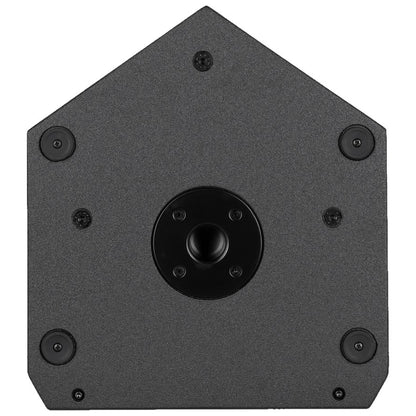

- Pole mount/cap: Yes

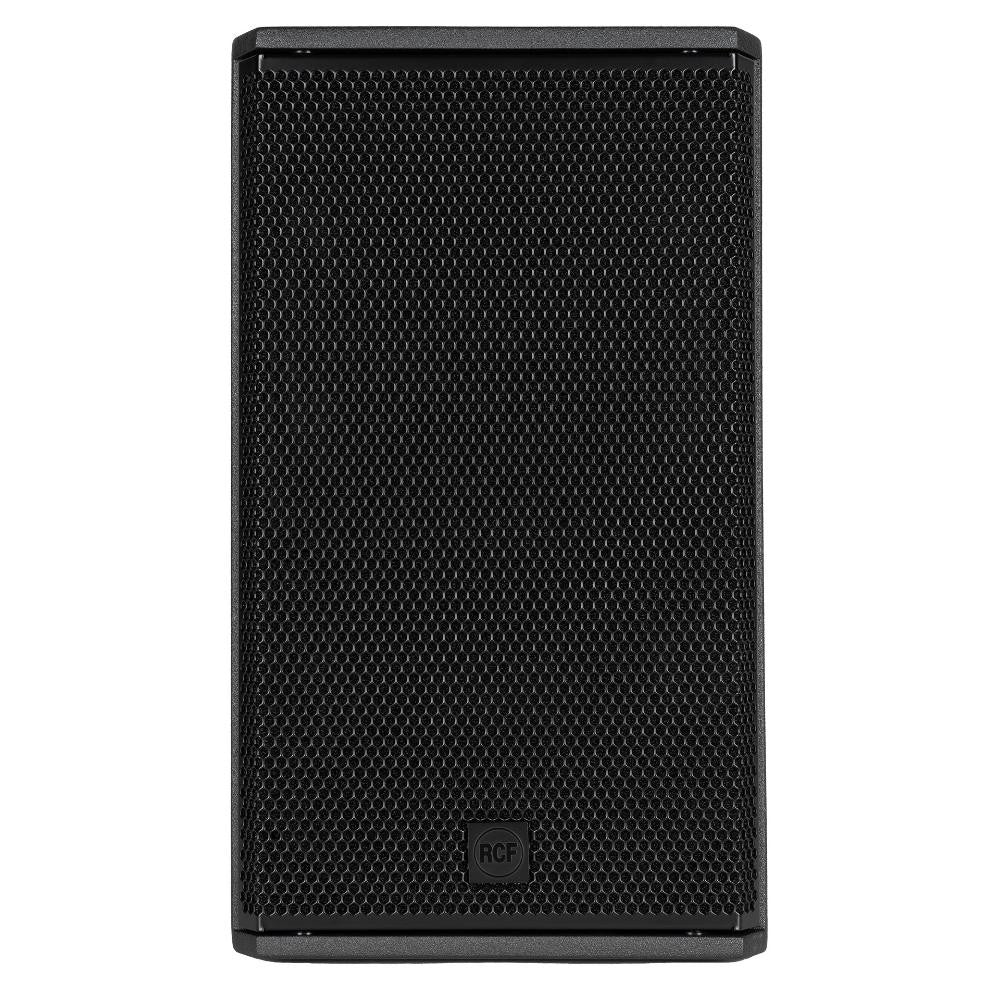

- Grille: Steel
- Color: Black
- Size
- Height: 620 mm / 24.41 inches
- Width: 362 mm / 14.25 inches
- Depth: 405 mm / 15.94 inches
- Weight: 20.8 kg / 45.86 lbs
- Shipping
- Package height: 666mm/26.22"
- Package width: 461mm/18.15"
- Package depth: 416mm/16.38"
- Package weight: 22.8kg/50.27 lbs
