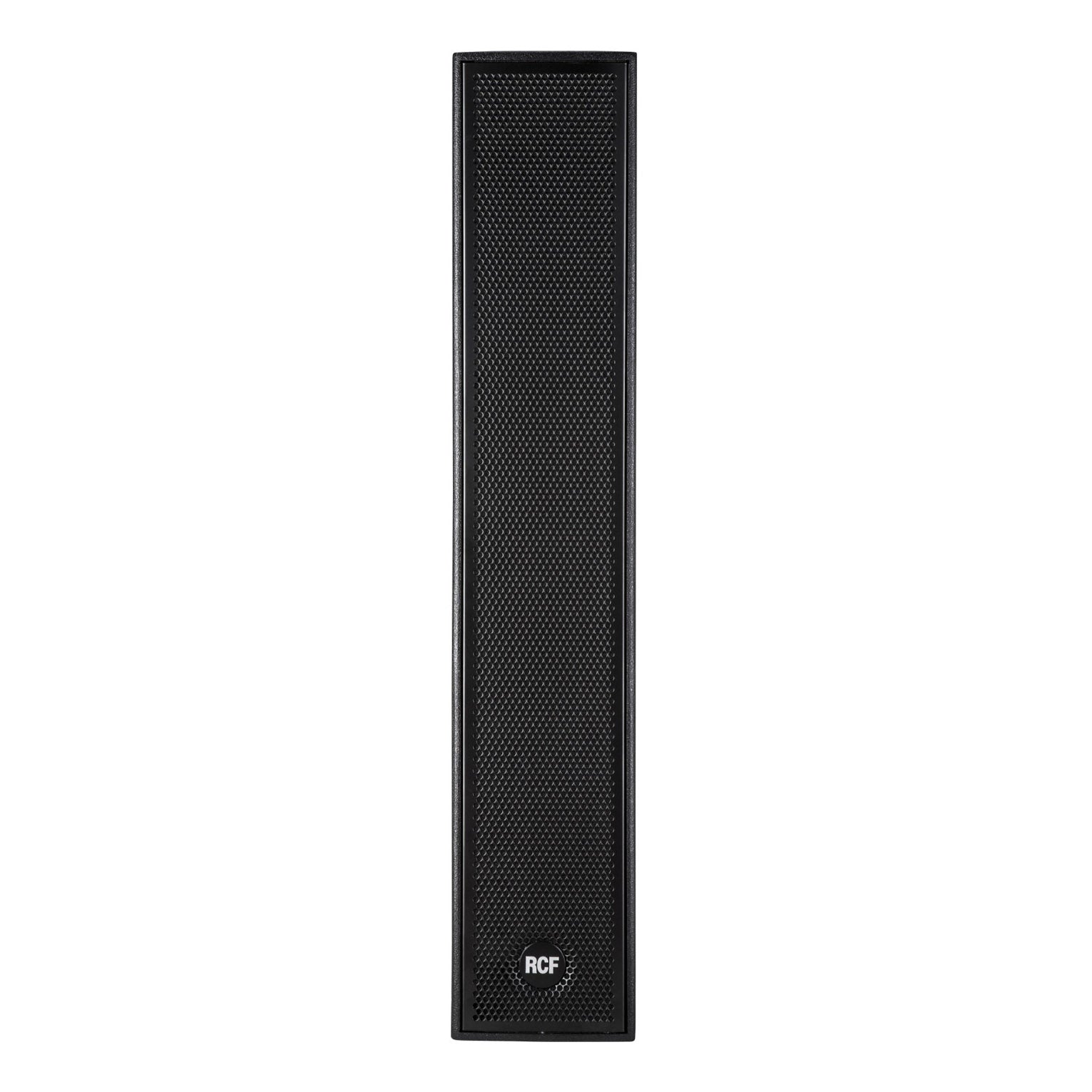

• RCF NX-L24A-MK2 2-Way Column Array Powered Speaker

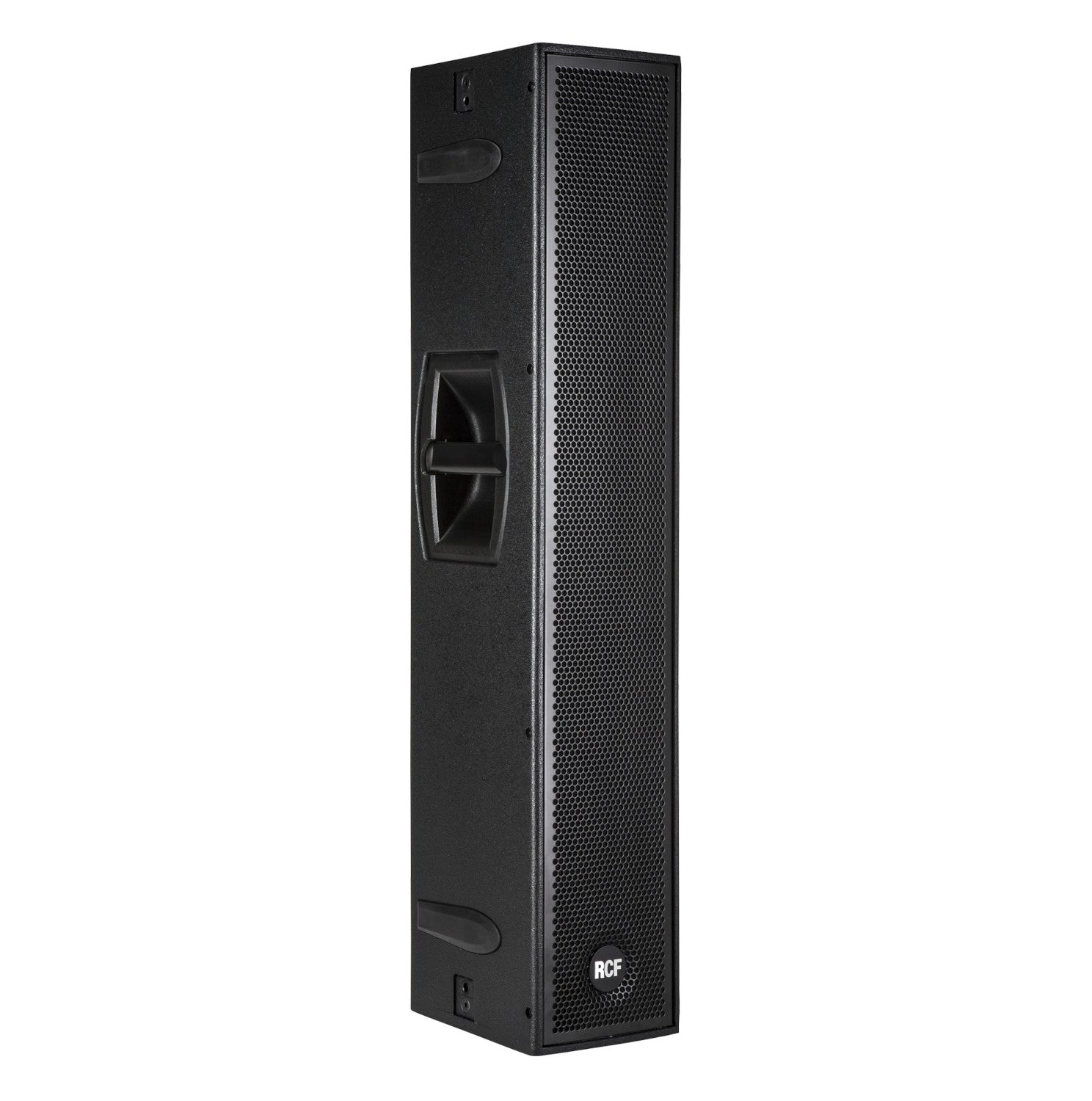

  • RCF NX-L24A-MK2 2-Way Column Array Powered Speaker side

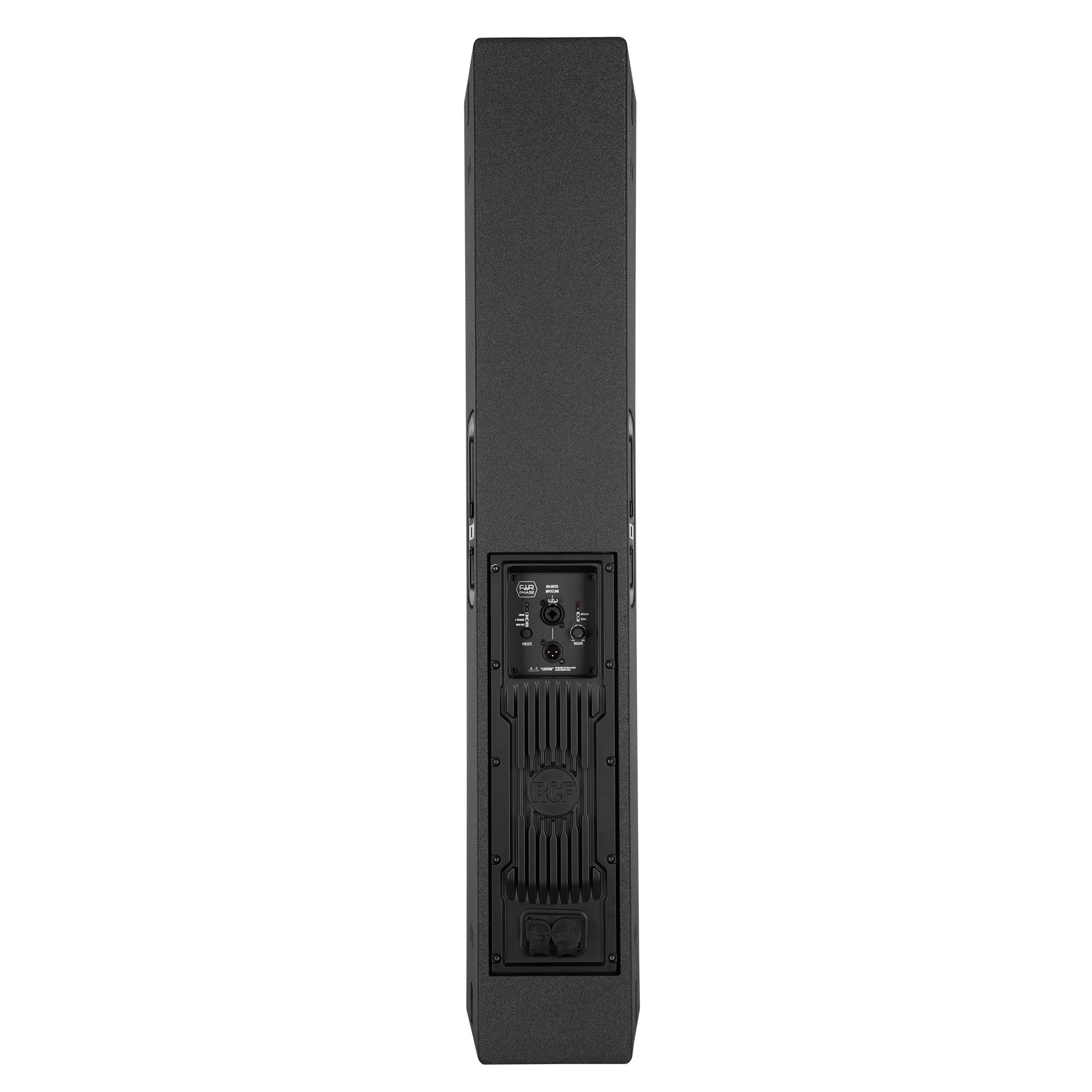

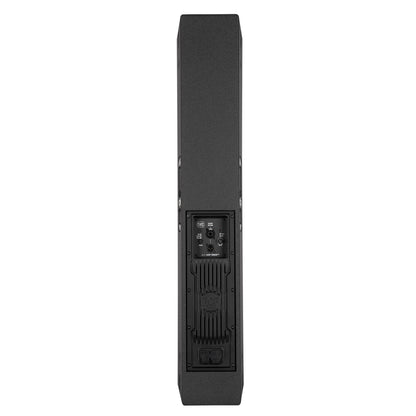

  • RCF NX-L24A-MK2 2-Way Column Array Powered Speaker back

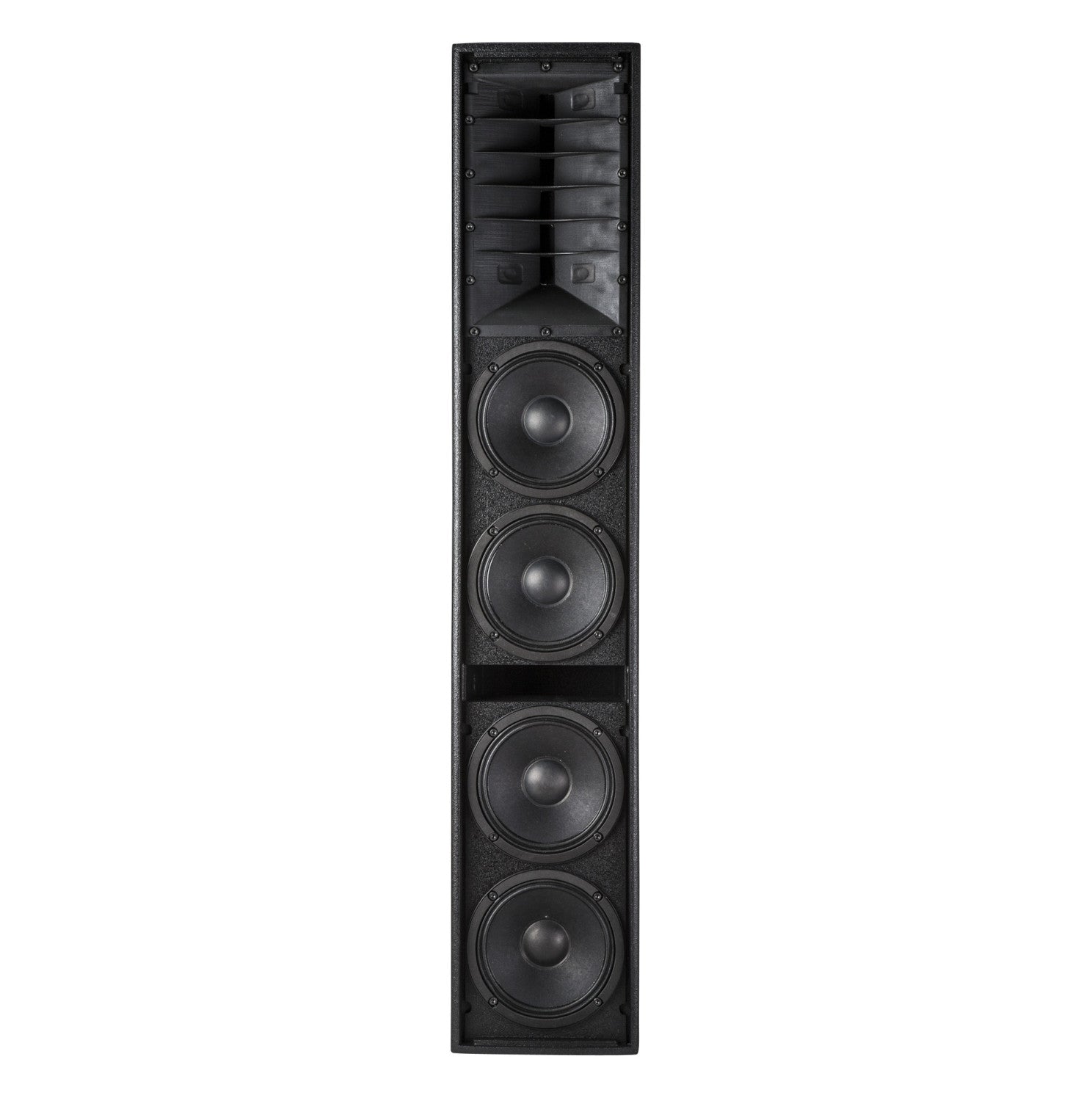

  • RCF NX-L24A-MK2 2-Way Column Array Powered Speaker front without grille
1 4

RCF NXL 24-A MK2 Column Array Powered Speaker

RCF NXL 24-A MK2 Column Array Powered Speaker

SoundPro Item: 121810 | Part Number: NX-L24A-MK2

$2,899.00
$4,109.00 $2,899.00
Your Price Sold out
MSRP: $4,109.00 | MAP: $2,899.00

In stock and ready to ship

  • Please Note: In order to securely pole-mount the NX-L24A, the K&M 21441 Ring Lock Adapter Sleeve is required.
  • Active column speaker array system for installed sound
  • Great for offices, hospitality, entertainment, communication, and more applications
  • 1,400W Class D bi-amplification
  • 131 dB SPL
  • 65 Hz - 20 kHz frequency response
  • 4 x 6" woofers
  • 2.5" voice coil RCF Precision C. Driver on a waveguide
  • 100° x 30° slightly tilted pattern control
  • DSP controlled input section with single or dual EQ preset
  • Easy to fly and install with built-in rigging points and pole mount socket
  • Thermal and RMS protections
  • Soft Limiter
  • Controls for volume, EQ shape, mic/line
Log in or register for YOUR best price

The NXL 24-A is an active column speaker array system with four 6” high power woofers and a 2.5” voice coil compression driver loaded on a 100° x 30° constant directivity waveguide. The amplifier delivers 1,400 Watts and is controlled by a DSP handling crossover, equalization, phase alignment, soft limiting, and speaker protections. Equalization can be applied to a single unit or a pair of speakers.

View full details
  • ACOUSTIC
    • Frequency Response: 60 Hz ÷ 20000 Hz
    • Max SPL @ 1m: 132 dB
    • Horizontal coverage angle: 100°
    • Vertical coverage angle: 30°
  • TRANSDUCERS
    • Compression Driver: 1 x 1.4'' neo, 3.0'' v.c
    • Woofer: 4 x 6.0'' neo, 1.5'' v.c
  • INPUT/OUTPUT SECTION
    • Input signal: bal/unbal
    • Input connectors: Combo XLR/Jack
    • Output connectors: XLR
    • Input sensitivity: +4 dBu
  • PROCESSOR SECTION
    • Crossover Frequencies: 800
    • Protections: Thermal, Excurs., RMS
    • Limiter: Soft Limiter
    • Controls: Linear, 2 Speakers, High-Pass, Volume
  • POWER SECTION
    • Total Power: 2100 W Peak
    • High frequencies: 700 W Peak
    • Low frequencies: 1400 W Peak
    • Cooling: Convection
    • Connections: Powercon TRUE1 TOP IN/OUT
  • STANDARD COMPLIANCESafety agency: CE compliant
  • PHYSICAL
    • Cabinet/Case Material: Baltic birch plywood
    • Hardware: 4 x M8, 4 x quick lock
    • Handles: 2 side
    • Pole mount/Cap: Yes
    • Grille: Steel
    • Color: Black
  • SIZE
    • Dimensions (HxWxD): 41.57x7.91x11.43” (1056x201x290.4mm)
    • Weight: 53.79 lbs (24.4 kg)
  • SHIPPING
    • Package Dimensions (HxWxD): 12.6x42.52x9.06” (320x1080x230mm)
    • Package Weight: 60.63 lbs (27.5 kg)
