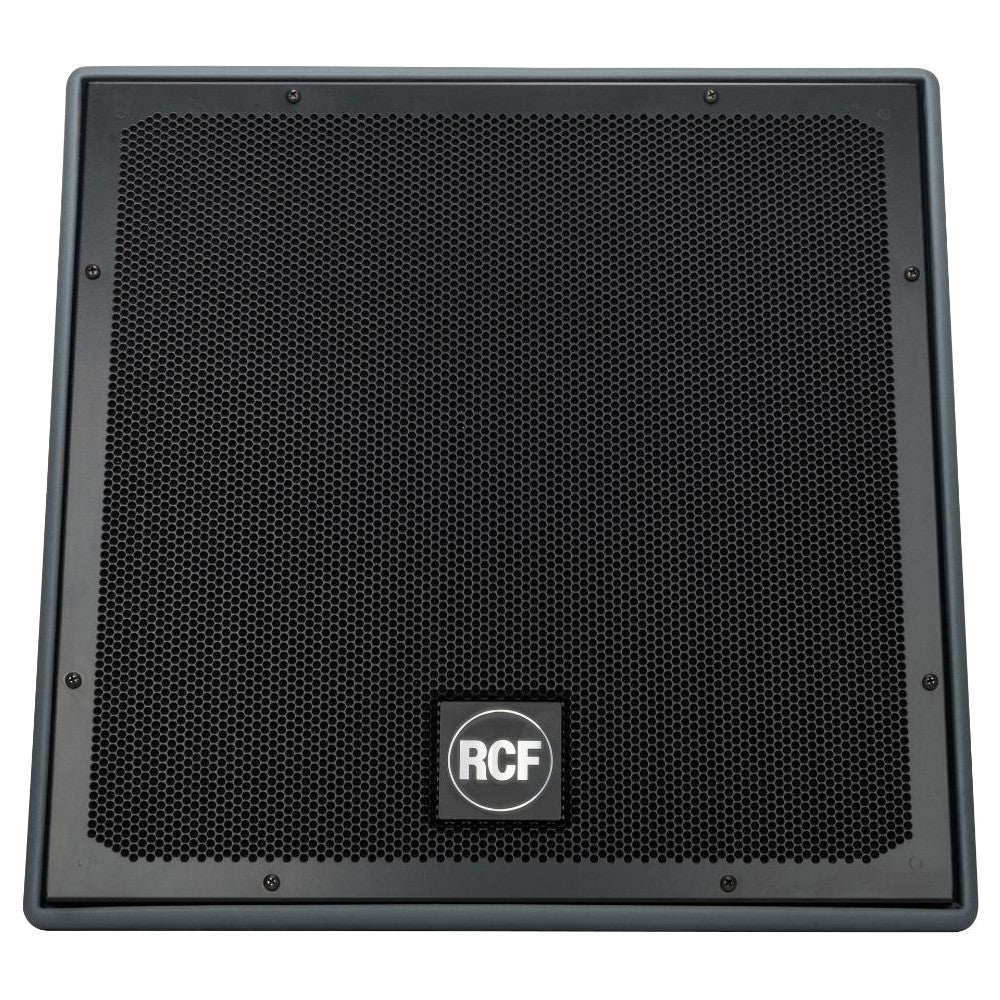

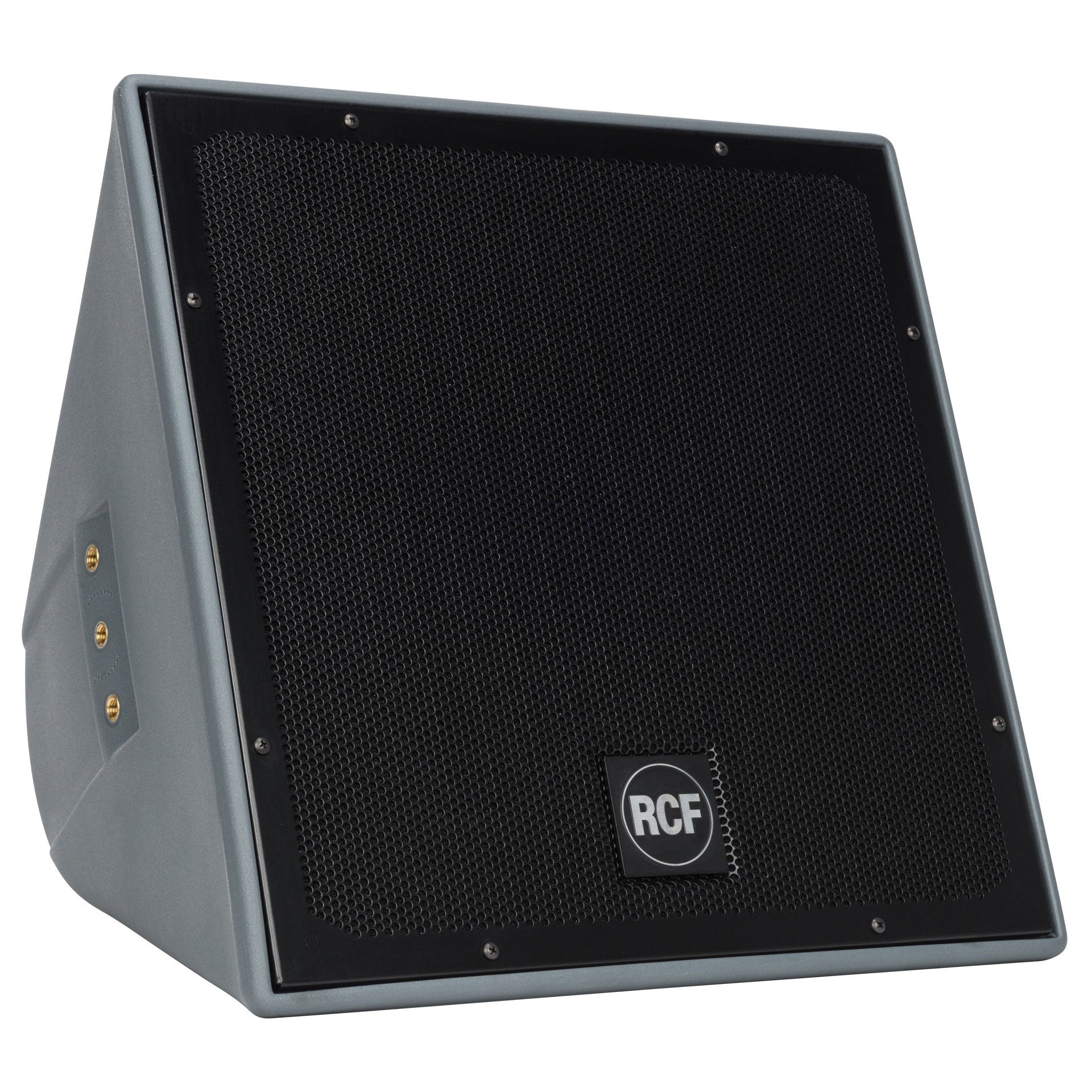

RCF P3115-T 15-Inch Passive Weatherproof Outdoor Speaker | Color: Black
RCF P3115-T 15-Inch Passive Weatherproof Outdoor Speaker | Color: Black
SoundPro Item: 47271 | Part Number: P3115-T
Usually ships in 5-7 business days
- 300W RMS power handling
- 129 dB max SPL
- 75 Hz ÷ 20000 Hz frequency range
- 15" neodymium woofer, 2.5" v.c.
- 1.75" v.c. neodymium compression driver
- 90° x 60° constant directivity
- Weatherproof IP55 cabinet with UV protection
- Aluminum grille

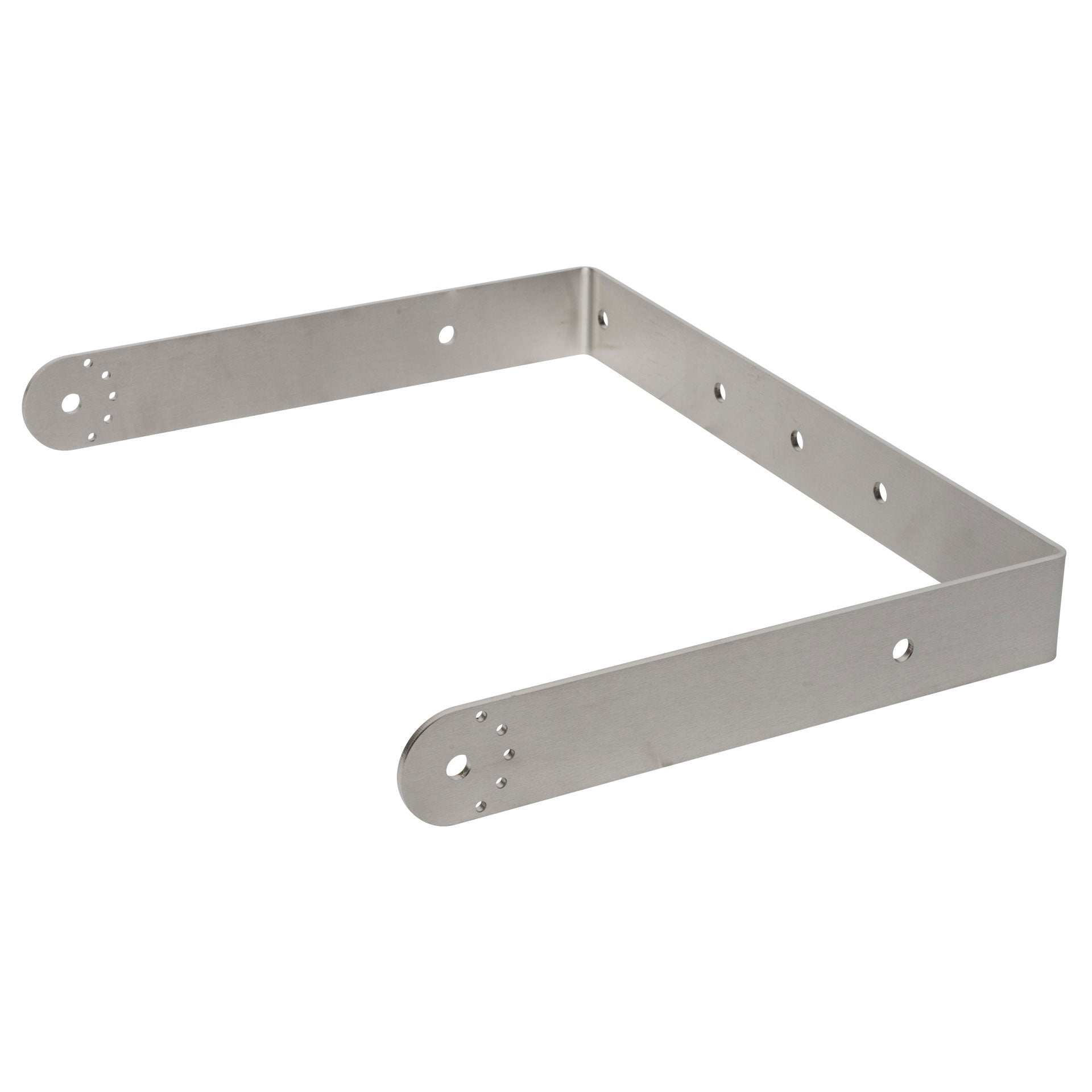

- AISI 316L stainless steel bracket
- Built in 100V line transformer

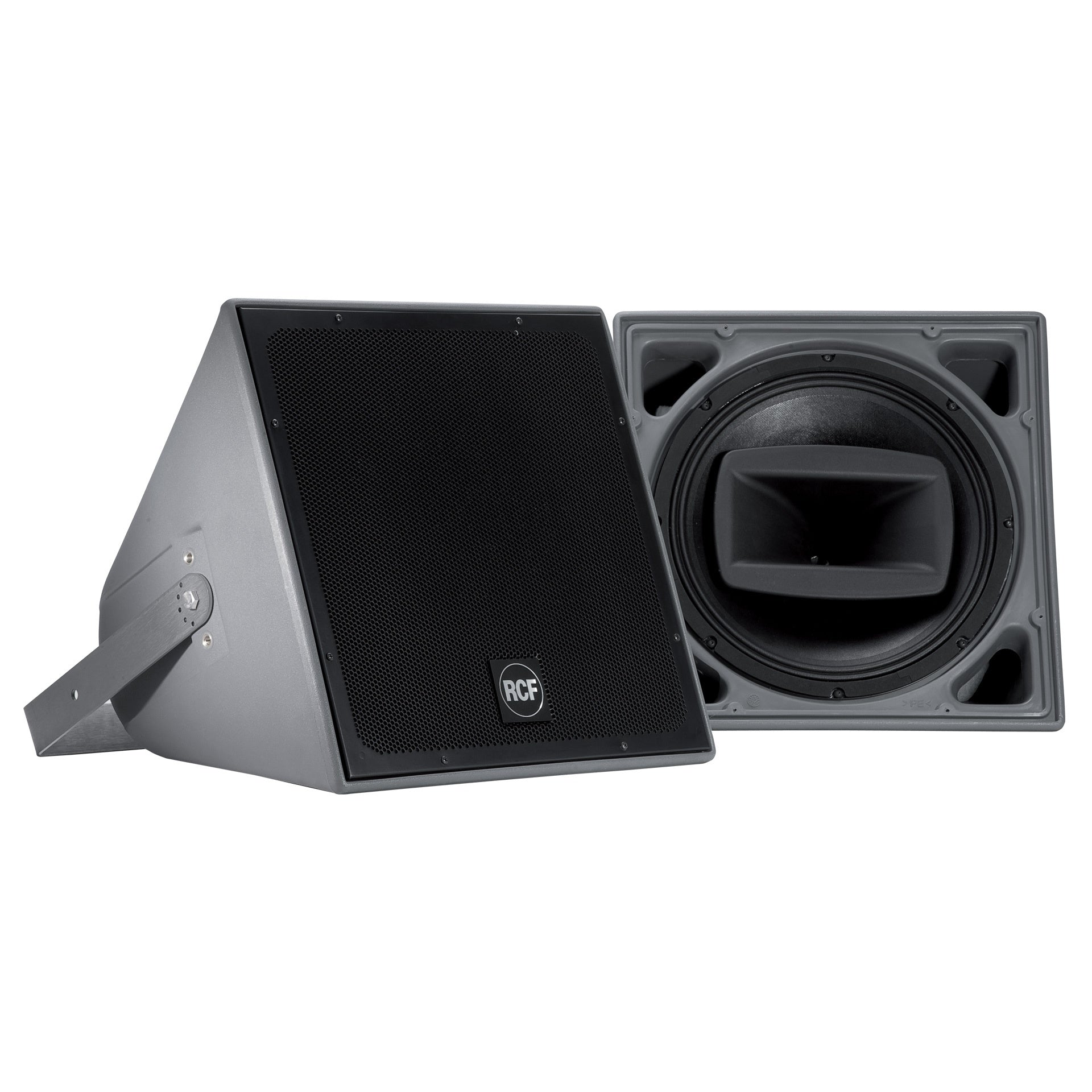

The P 3115T is a weatherproof full range, wide-dispersion, coaxial two-way loudspeaker system for a variety of professional indoor or outdoor applications. The speaker can be installed individually or coupled in array configurations. The low-frequency transducer is a 15” woofer with a 3” voice coil. The high-frequency section combines a 1.3” RCF Precision compression driver with a 2.5” diaphragm assembly centrally mounted in the throat of the LF driver and loaded on a constant directivity CMD horn for smooth, wide dispersion. The P3115-T features a selectable line transformer for 70 - 100 volt applications, built-in LICC crossover, and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP-55 standard requirements, equipped with M10 brass inserts (12x), and a durable and corrosion-resistant 316P stainless steel U-Bracket with spacers (2x) for 90° mounting. The aluminum grille cover is powder coated with water-repellent backing material and has a rotatable logo plate.
- ACOUSTICAL
- Frequency Response (-10dB): 75 Hz ÷ 20000 Hz
- Max SPL @ 1m: 129 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 60°
- Directivity index Q: 13
- System Sensitivity: 98 dB
- POWER SECTION
- Amplification: Full Range
- Nominal Impedance: 16 ohm
- Power Handling: 300 W
- Peak Power Handling: 1200 W PEAK
- Recommended Amplifier: 600 W
- Protections: Dynamic active mosfet
- Crossover Frequencies: 1300 Hz
- TRANSDUCERS
- Compression Driver: 1.0'', 1.5'' v.c
- Woofer: Coaxial 15'', 2.5'' v.c
- INPUT/OUTPUT SECTION
- Input connectors: Neoprene Cable
- Constant Voltage Transformer: 100V
- Power selection 1: 120W - 83 ohm
- Power selection 2: 60W - 167 ohm
- Power selection 3: 30W - 333 ohm
- STANDARD COMPLIANCE
- IP protection grade: IP 55
- Safety agency: CE compliant
- PHYSICAL
- Cabinet/Case Material: PE Low Density

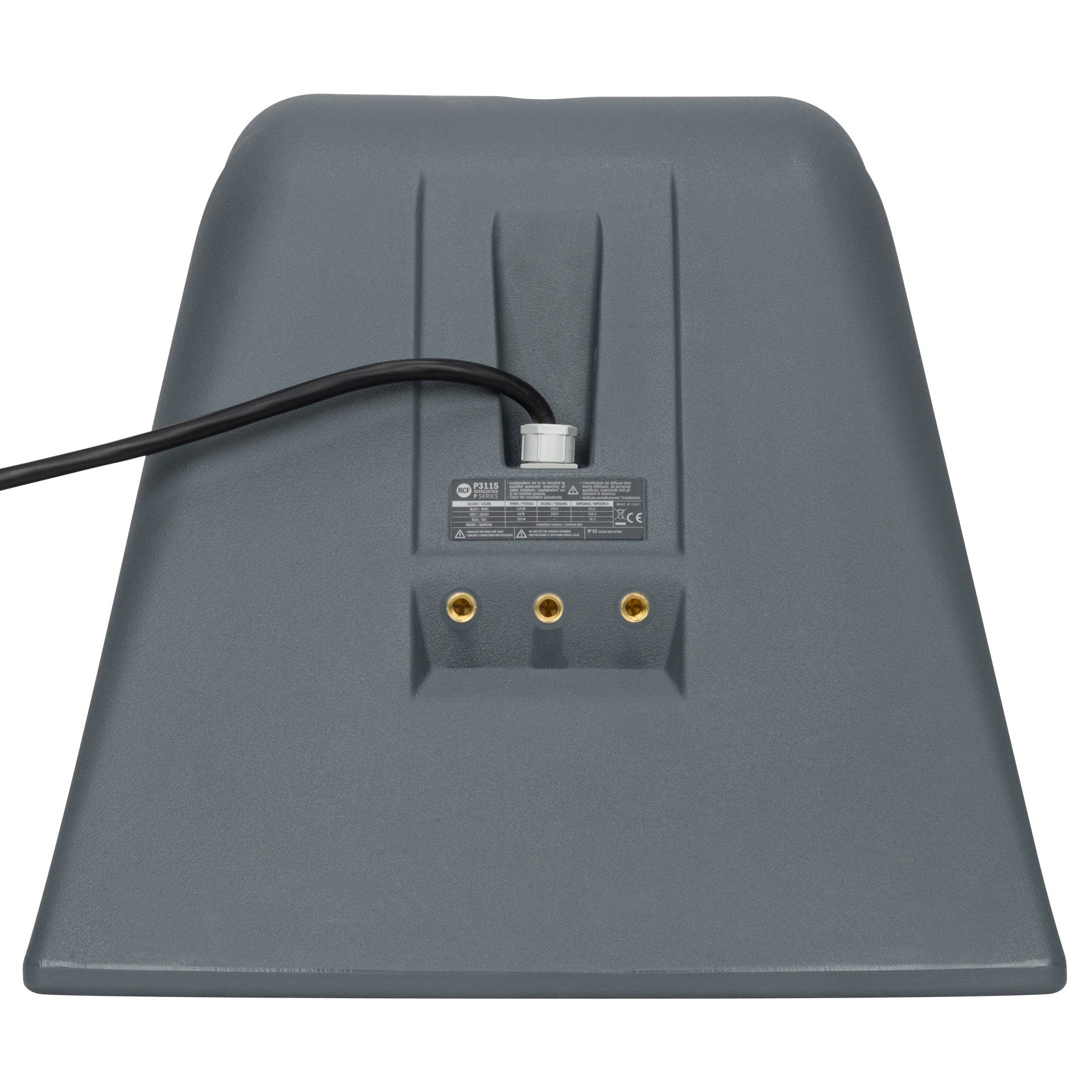

- Hardware: 12 x M10 inserts + U-brackets and pair of spacers
- Grille: Aluminum with waterproof clothing
- Color: Grey, White - RAL 9003
- SIZE
- Height: 463 mm / 18.23 inches
- Width: 463 mm / 18.23 inches
- Depth: 433 mm / 17.05 inches
- Weight: 18.4 kg / 40.57 lbs
- SHIPPING
- Package Height: 530 mm / 20.87 inches
- Package Width: 490 mm / 19.29 inches
- Package Depth: 490 mm / 19.29 inches
- Package Weight: 23.2 kg / 51.15 lbs
