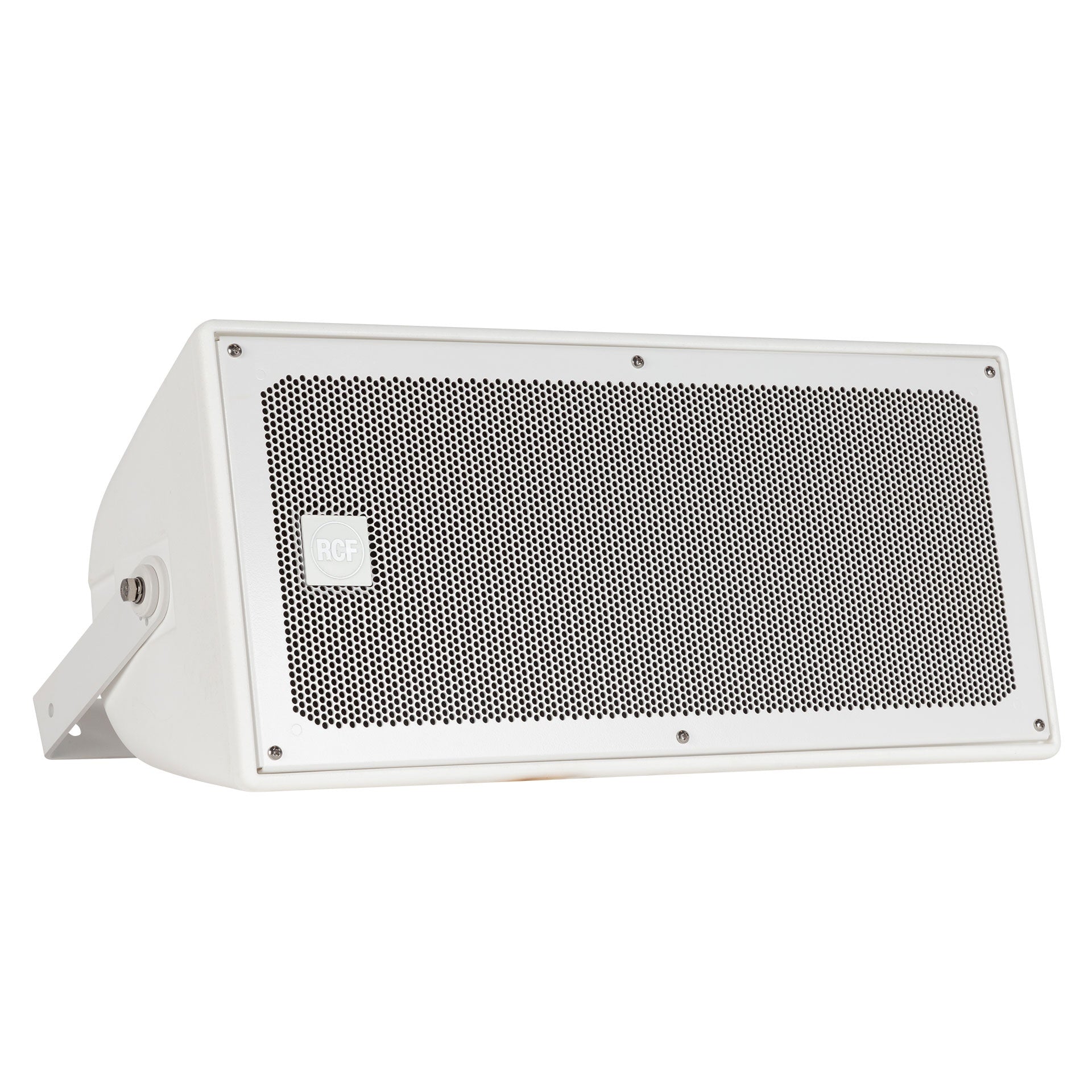

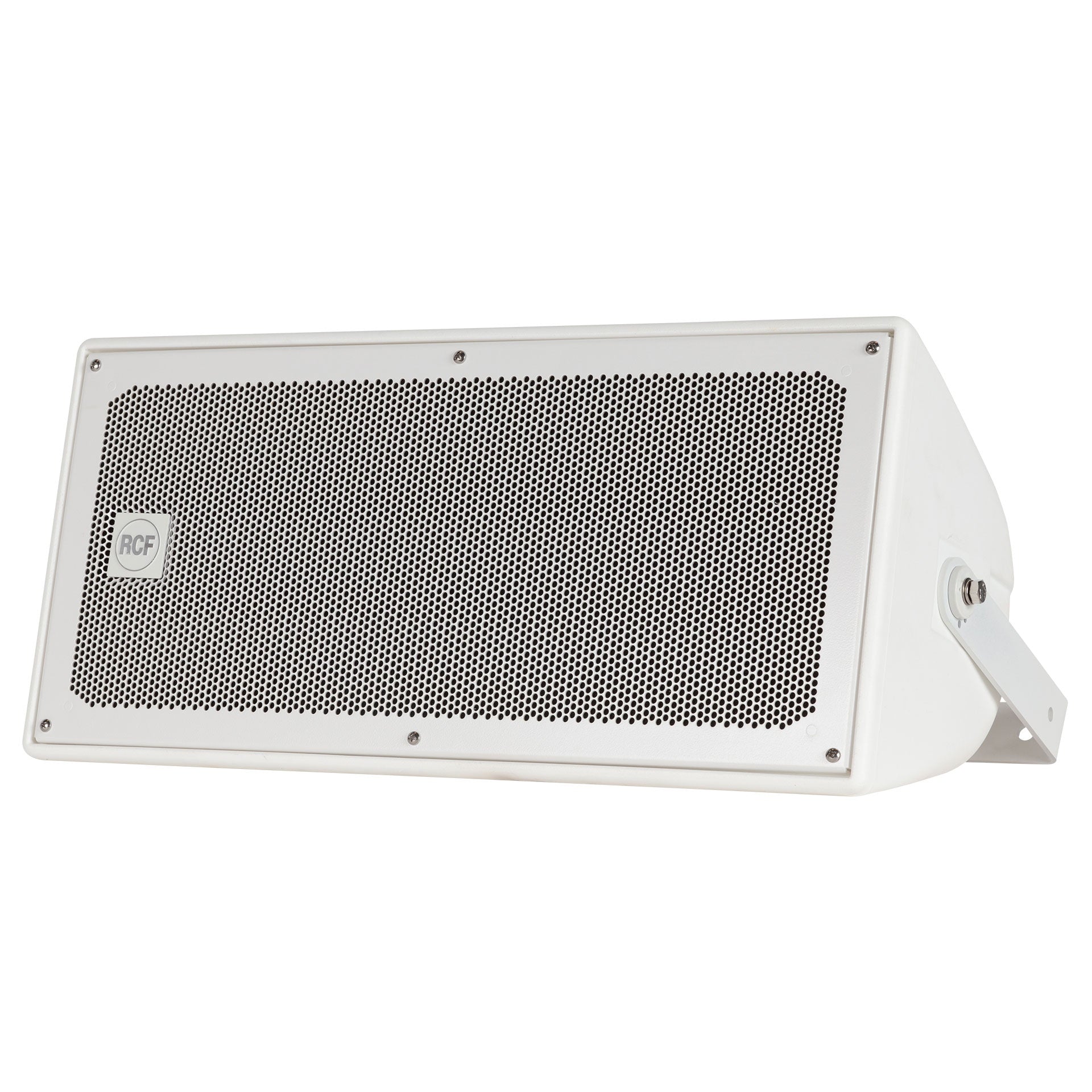

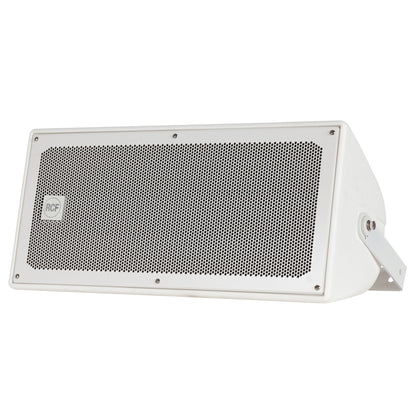

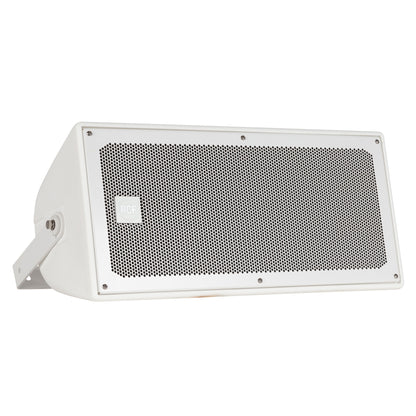

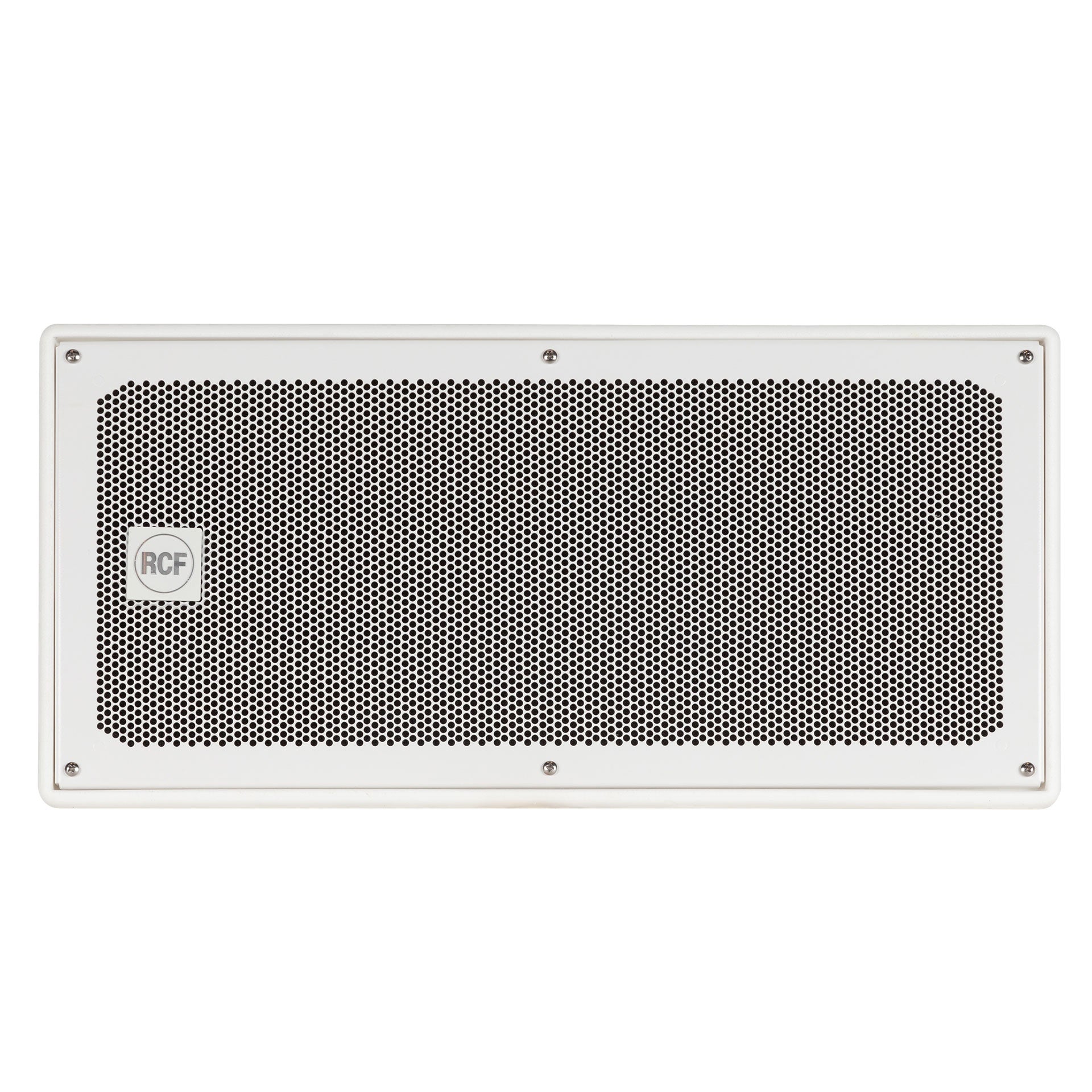

RCF P4228 Dual 8-Inch Weatherproof Outdoor Speaker | Color: White
RCF P4228 Dual 8-Inch Weatherproof Outdoor Speaker | Color: White
SoundPro Item: 113786
Usually ships in 5-7 business days
- Weatherproof cabinet IP 55
- Aluminium grill and stainless steel bracket
- Two 8" high-output LF transducer with 2.5" voice coil
- One RCF Precision 1.4" Neo Compression Driver with 2.5" voice coil
- 110° x 60° constant directivity horn
- Built in passive crossover
- 2° x 15° enclosure sides for array configurations
- Active Mosfet Compression Driver Protection
- LICC (Low Impedance Compensated Crossover) network
The high frequency section is a constant directivity CMD horn loaded with a 1.4” RCF Precision compression driver with a 2.5” diaphragm assembly for smooth, wide dispersion. The low-frequency transducer is a double 8” woofer with a 2.5” voice coil. The cabinet is asingle piece rotational moulded in medium density polyethylene, full UV protected. The cabinet is equipped with 4 x M8 brass inserts, a stainless steel U-Bracket. The front logo is in aluminium and rotatable. The grille is in custom perforated aluminium with open-cell fibres and water repellent woven fabric backing. The P 4228 is suitable for indoor and outdoor applications/installations, and meets the requirements of IP 55 code (International Protection Rating).
- Acoustic
- Frequency Response (-10dB): 80 Hz ÷ 20000 Hz
- Max SPL @ 1m: 129 dB
- Horizontal coverage angle: 110°
- Vertical coverage angle: 60°
- Directivity index Q: 9
- System Sensitivity: 97 dB
- Power
- Nominal Impedance: 8 ohm
- Power Handling: 400 W
- Peak Power Handling: 1600 W PEAK
- Recommended Amplifier: 800 W
- Protections: Dynamic active mosfet
- Crossover Frequencies: 1100 Hz
- Transducers
- Compression Driver: 1 x 1.4'' neo, 2.5'' v.c
- Woofer: 2 x 8'', 2.5'' v.c

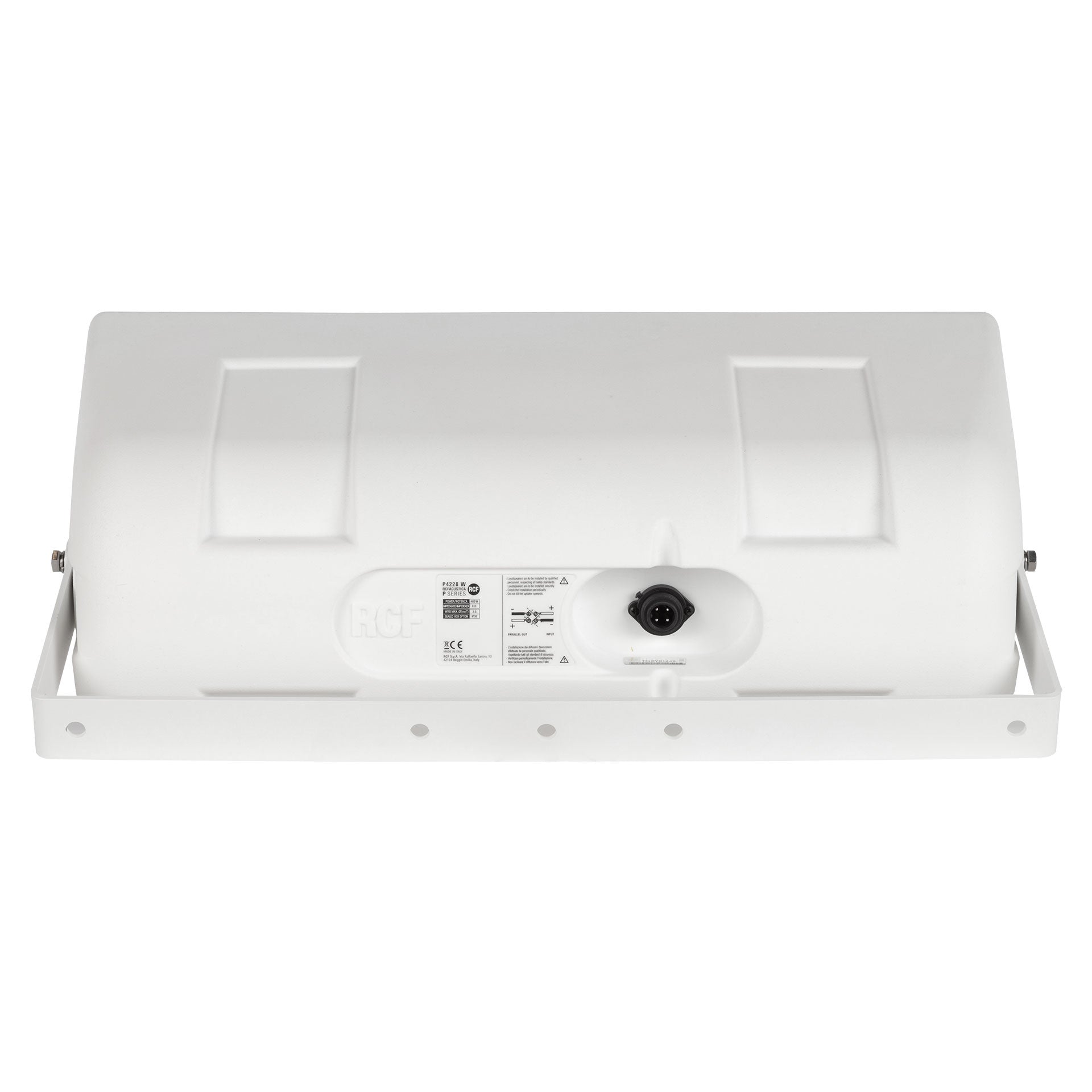

- Input/OutputInput connectors: Amphenol eco/mat IP 67
- Standard ComplianceCE marking: Yes
- Physical
- Cabinet/Case Material: PE Low Density

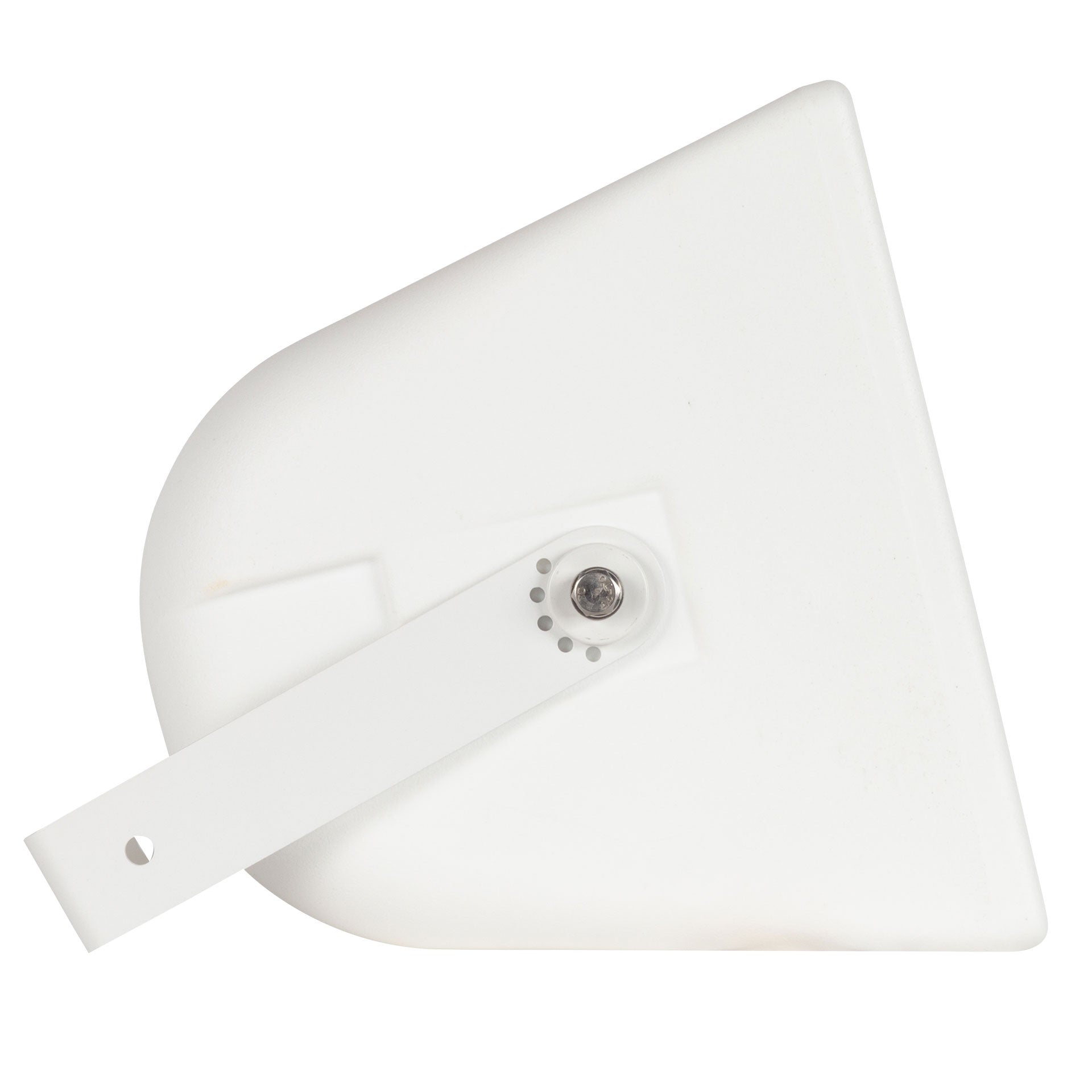

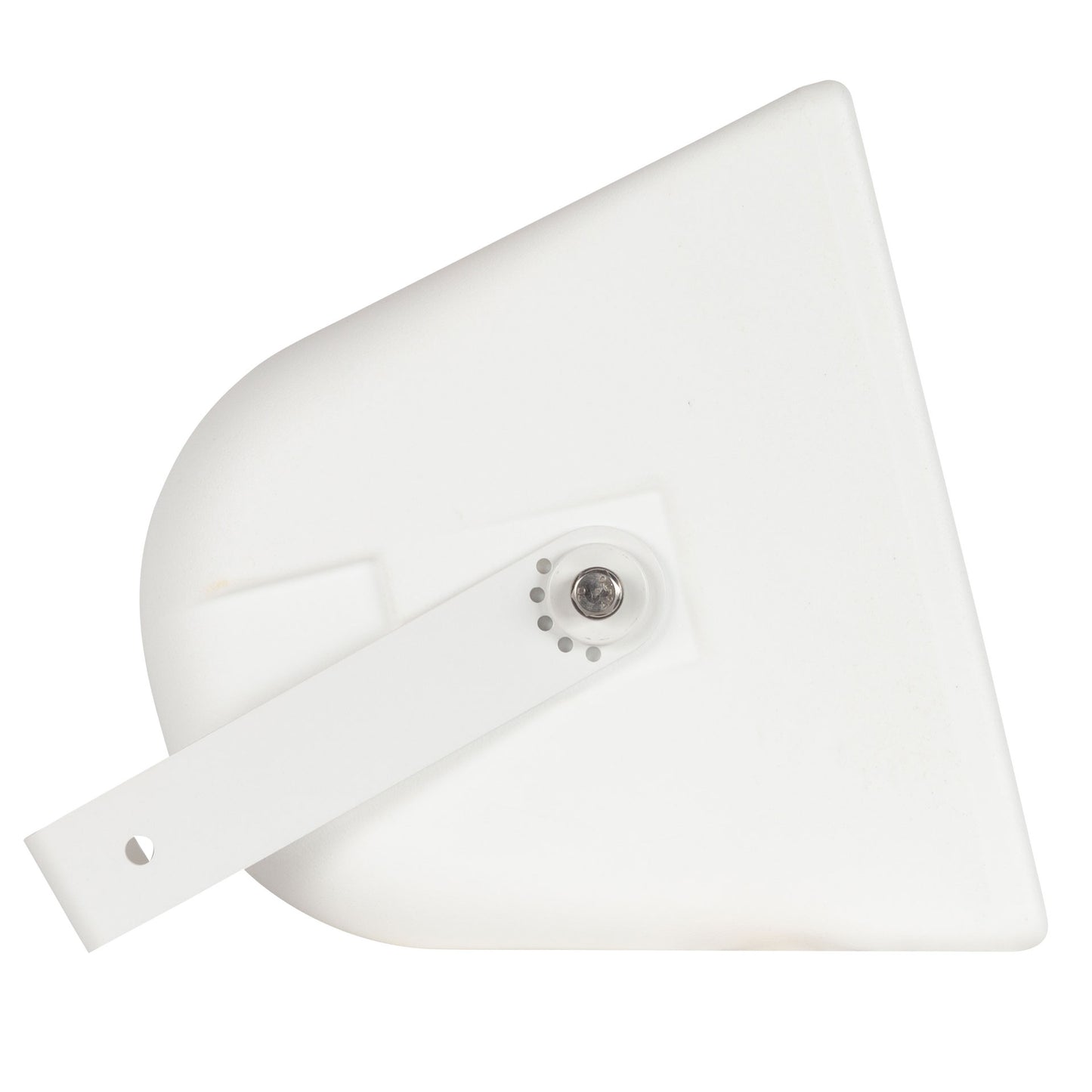

- Hardware: 4 x M8 + U-bracket and pair of spacers
- Grille: Aluminum with waterproof clothing
- Color: Gray, White - RAL 9003
- Dimensions (HxWxD): 10.55x22.28x9.84" (268x566x250 mm)
- Weight: 30.86 lbs (14 kg)
- Shipping Dimensions (HxWxD): 26.93x16.89x15.51" (684x429x384 mm)
- Package Weight: 34.39 lbs (15.6 kg)
