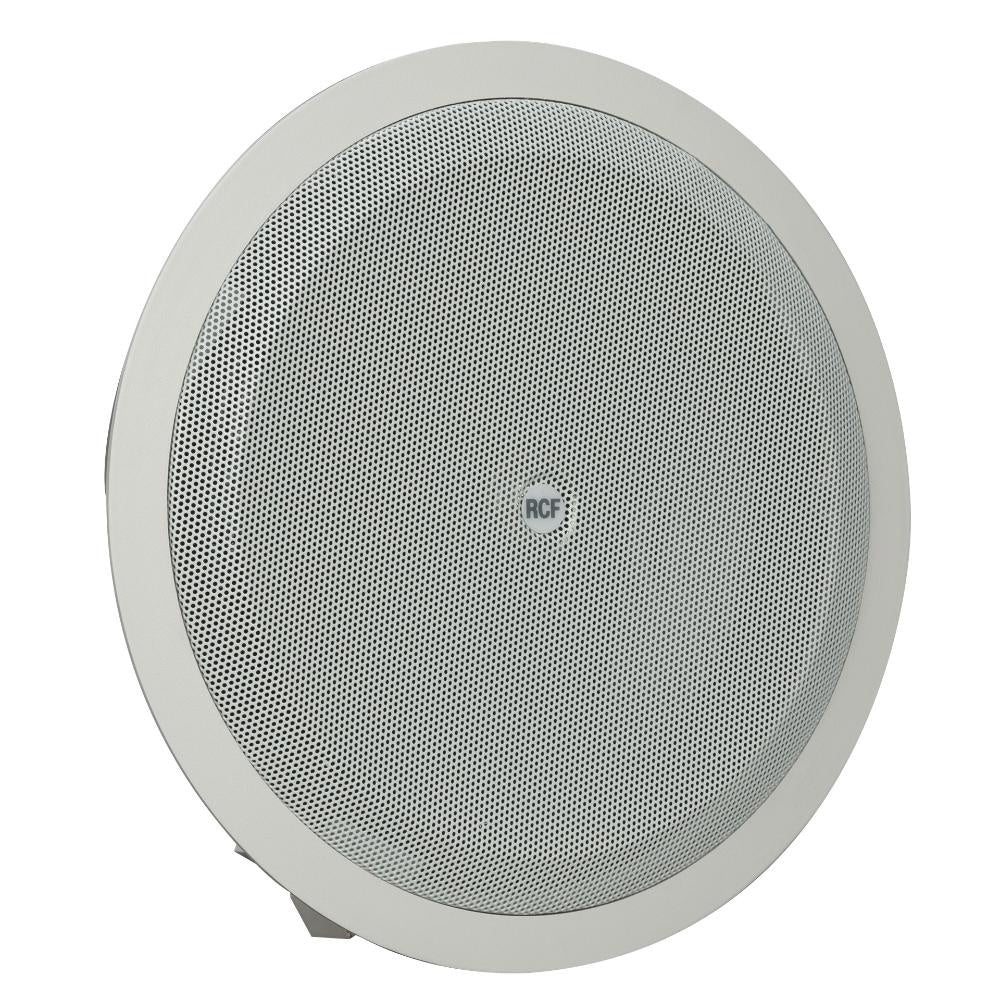

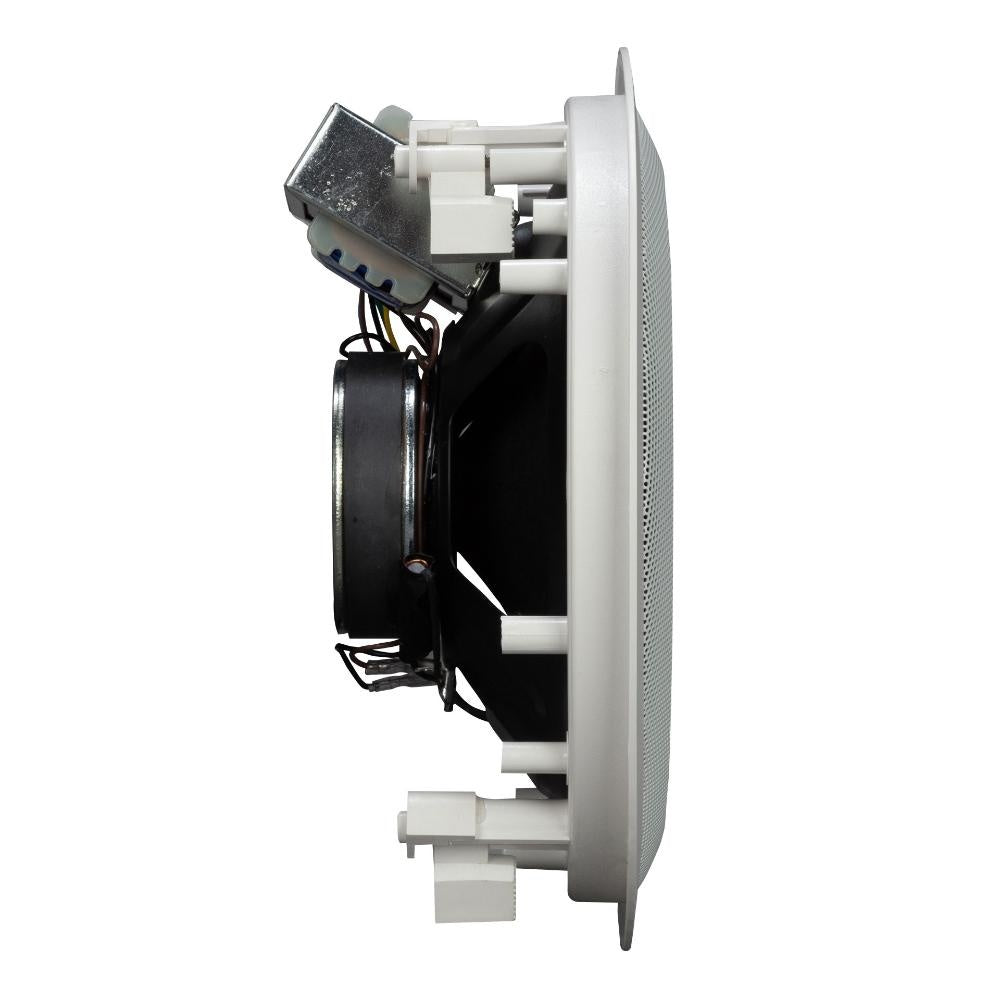

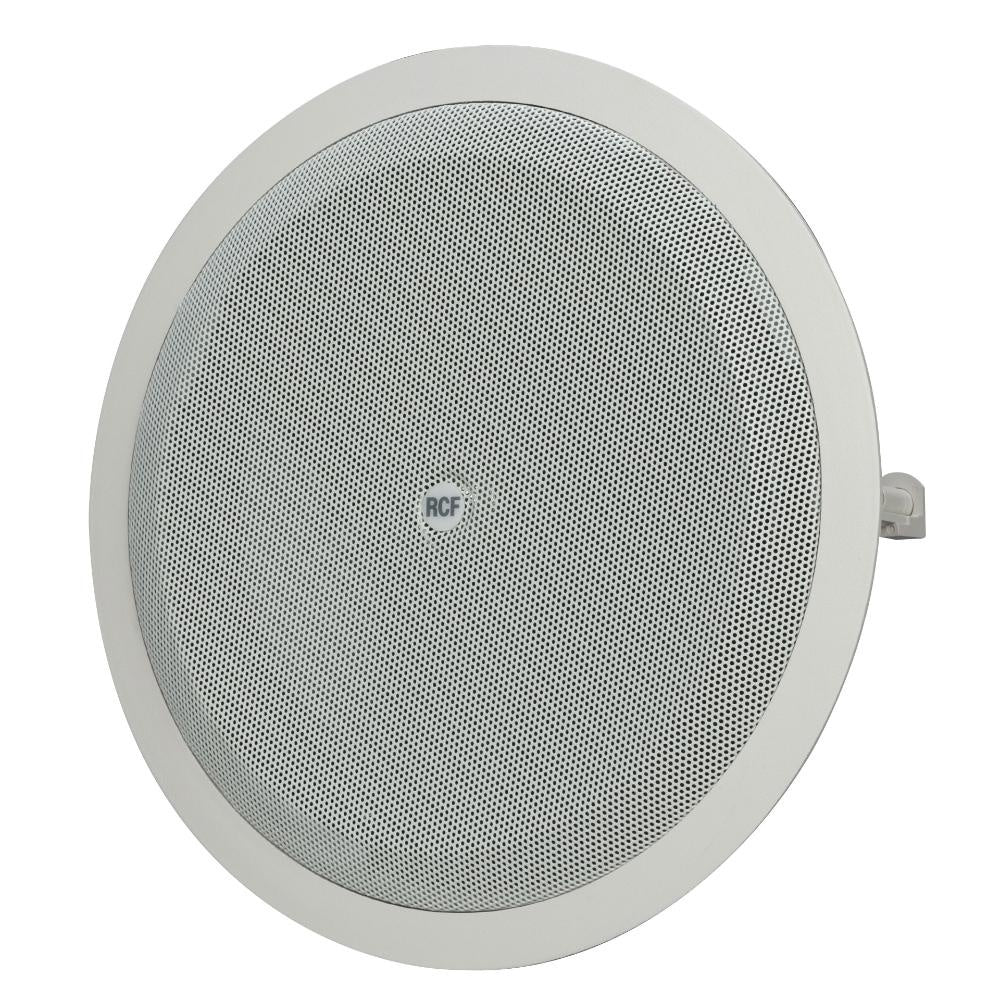

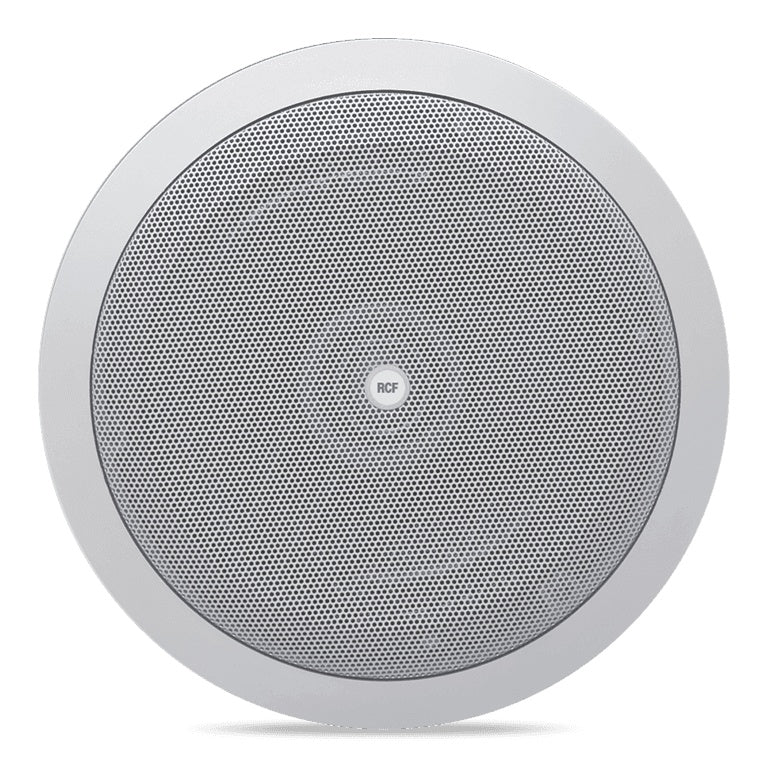

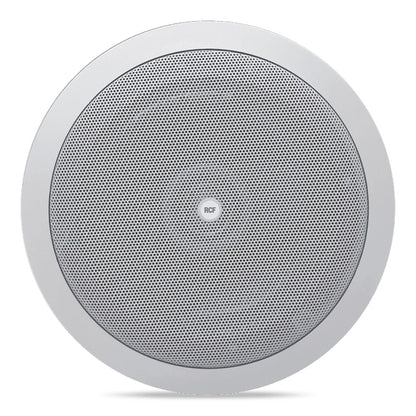

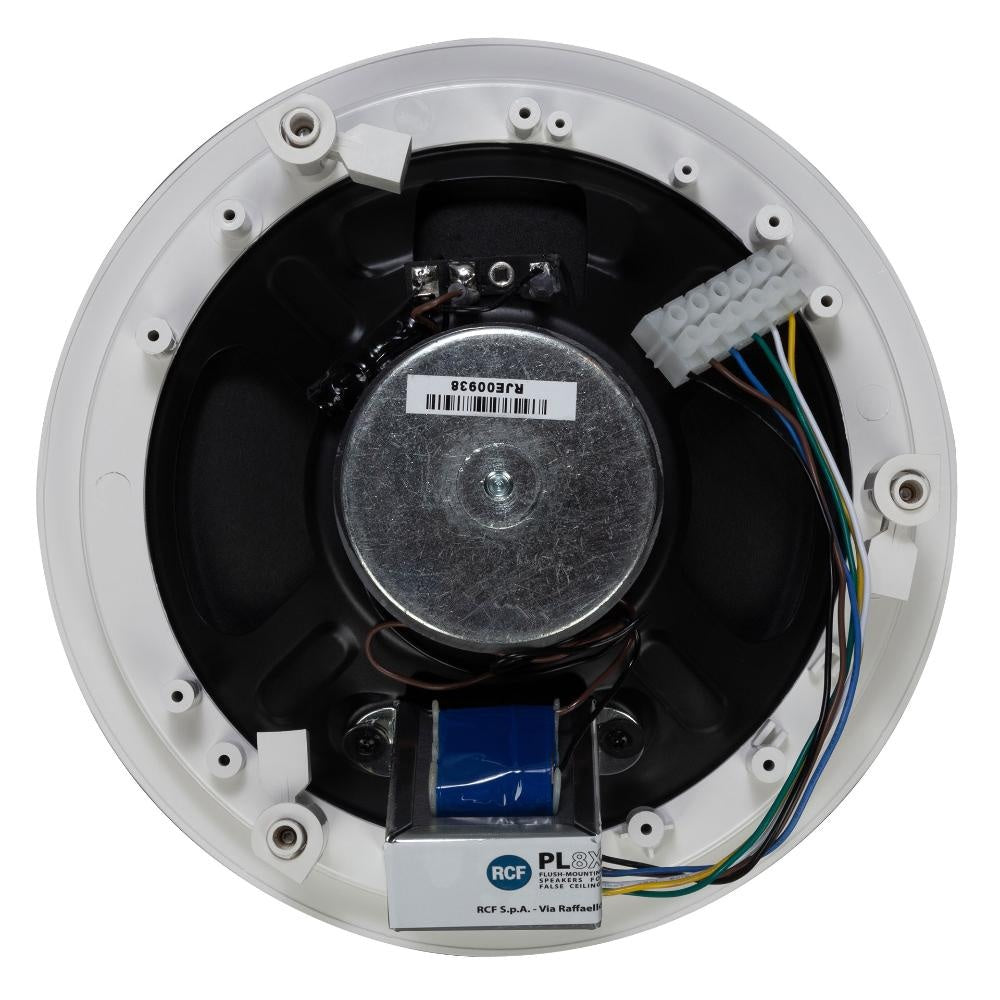

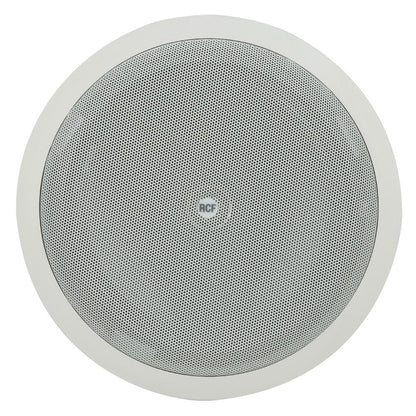

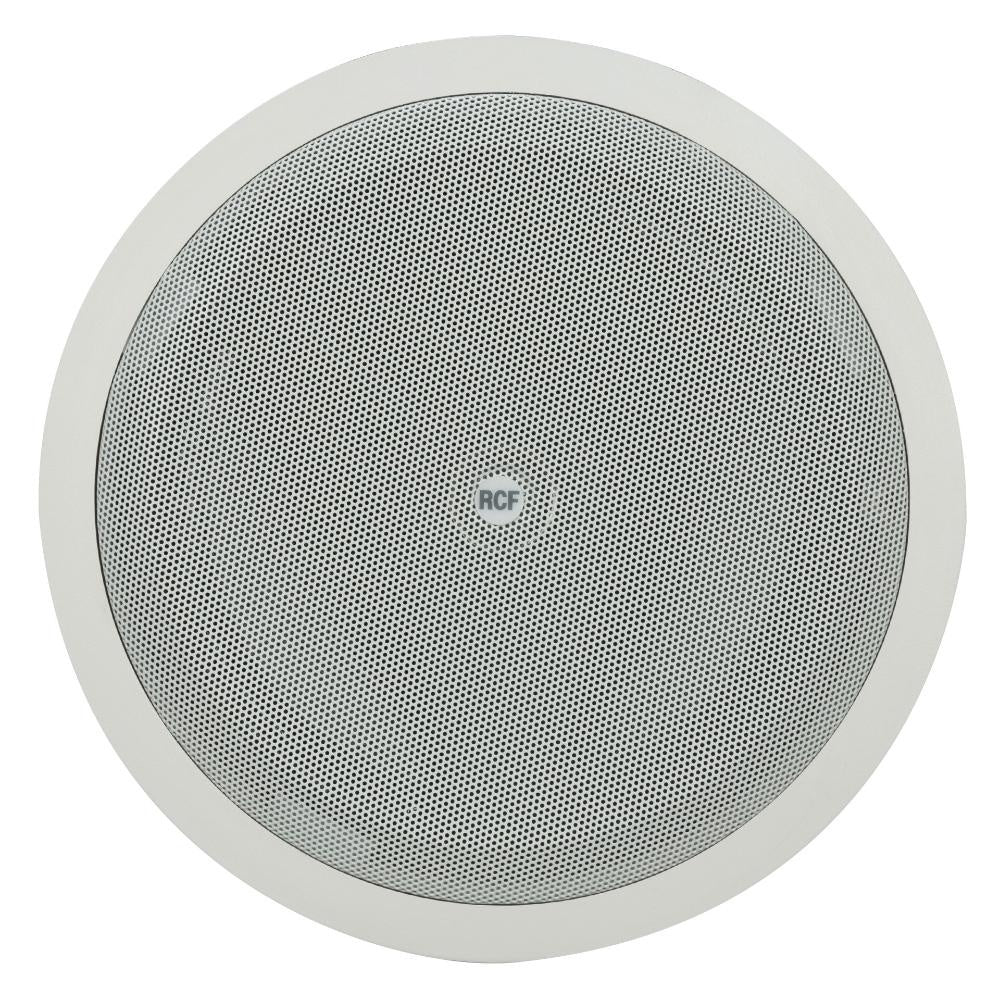

RCF PL 8X Coaxial Ceiling Speaker Flush-Mount 2-Way With Transformer | White

RCF PL 8X Coaxial Ceiling Speaker Flush-Mount 2-Way With Transformer | White

SoundPro Item: 205464 | Part Number: PL8X W

$129.00
$159.00 $129.00
Your Price Sold out
MSRP: $159.00 | MAP: $129.00

Usually ships in 5-7 business days

  • Coaxial 2-Way Driver Design Provides Full-Range Coverage From A Single Cutout
  • Built-In 70/100V Line Transformer Connects Directly To Constant-Voltage Amp Systems
  • Multiple Power Taps Allow Per-Speaker Level Setting Without External Attenuation
  • IP44 Protection Rating Suits Semi-Exposed And Splash-Risk Installation Locations
  • Three-Hook Spring-Clip Mount Secures Speaker Without Screws Or Backplates
  • UL 94 V0 Plastic Frame Meets Commercial Fire-Resistance Requirements
  • Available In Black And White Finishes To Match Varied Ceiling Specifications
Log in or register for YOUR best price

The RCF PL 8X is built for AV integrators and system designers specifying distributed audio in commercial, hospitality, retail, and light industrial environments. The coaxial 2-way driver configuration delivers full-range coverage from a single ceiling cutout, making it a practical choice for spaces where clean aesthetics and consistent coverage both matter. The integrated line transformer connects directly to 70V or 100V constant-voltage amplifier systems without additional hardware, and the multi-tap design lets installers set the output level per zone from the speaker itself.

Installation is engineered to save time on the job site. A three-hook spring-clip system secures the speaker into the ceiling cutout without screws, backplates, or additional mounting hardware, a real advantage on large-scale installs across multiple rooms or floors. The UL 94 V0 rated plastic frame meets fire-resistance requirements relevant to commercial building codes, while the IP44 protection rating makes the speaker suitable for semi-exposed locations such as covered outdoor areas, bathrooms, or kitchen zones where splash resistance is required. Available in black and white finishes to blend with ceiling treatments across different interior specifications.

View full details

Specifications

Certifications
IP Protection Grade
IP44
Safety Agency
CE Compliant
Audio
Frequency Response (-10dB)
60 Hz - 20000 Hz
Max SPL @ 1m
109 dB
Coverage Angle
80°
System Sensitivity
93 dB
Amplification
Full Range
Power Handling
20 W RMS
Peak Power Handling
80 W PEAK
Recommended Amplifiers
DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162
Transducers
Woofer
8"
Dome Tweeter
1.0"
Connectivity
Input Connectors
Screw Terminals
Output Connectors
Screw Terminals

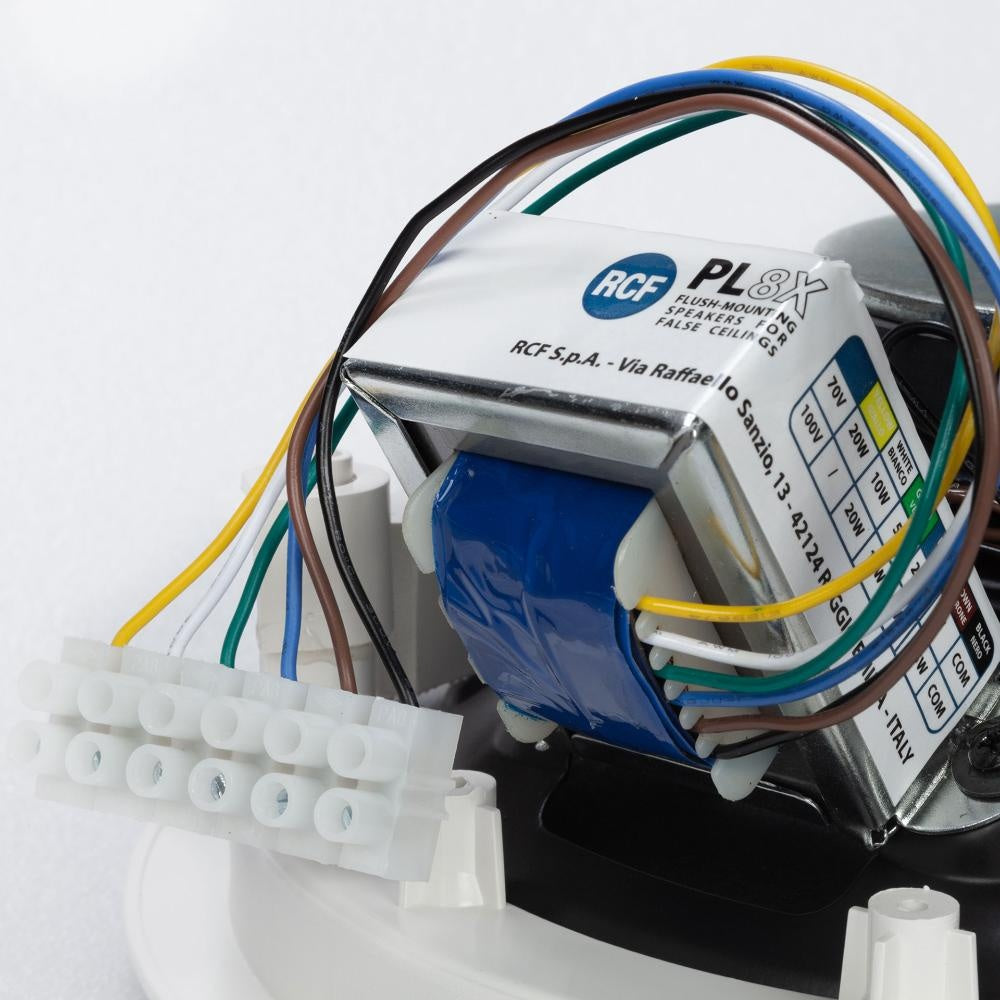

Constant Voltage Transformer
70/100 V
Power Selection 1
20 W - 500 ohm
Power Selection 2
10 W - 1000 ohm
Power Selection 3
5 W - 2000 ohm
Power Selection 4
2.5 W - 4000 ohm
Construction
Cabinet Material
Plastic
Hardware
Plastic
Grille
Aluminum
Color
White - RAL 9003
Dimensions
Depth
3.46"
Recessed Depth
3.15"
Diameter
9.72"
Cut Out Diameter
8.82"
Weight
Unit Weight
2.71 lbs
Shipping
Package Height
11.02"
Package Width
11.02"
Package Depth
5.12"
Package Weight
4.61 lbs
