RCF PR-63 Three-Phase Power Distribution Rack With LKS Connectors
RCF PR-63 Three-Phase Power Distribution Rack With LKS Connectors
SoundPro Item: 63617 | Part Number: PR-63
Usually ships in 5-7 business days
- Individual RCBOs On Every Output Isolate Faults Without Dropping The Whole System
- Front-Panel RCBO Access Speeds Fault Diagnosis During Load-In
- Dedicated Powercon Auxiliary Output Powers The CR 16-ND Control Rack Directly
- LKS19 And Powercon Outputs Eliminate Adapters When Feeding Mixed Connector Loads
- Tour-Grade Flight Case Construction Survives Repeated Load-In And Transport

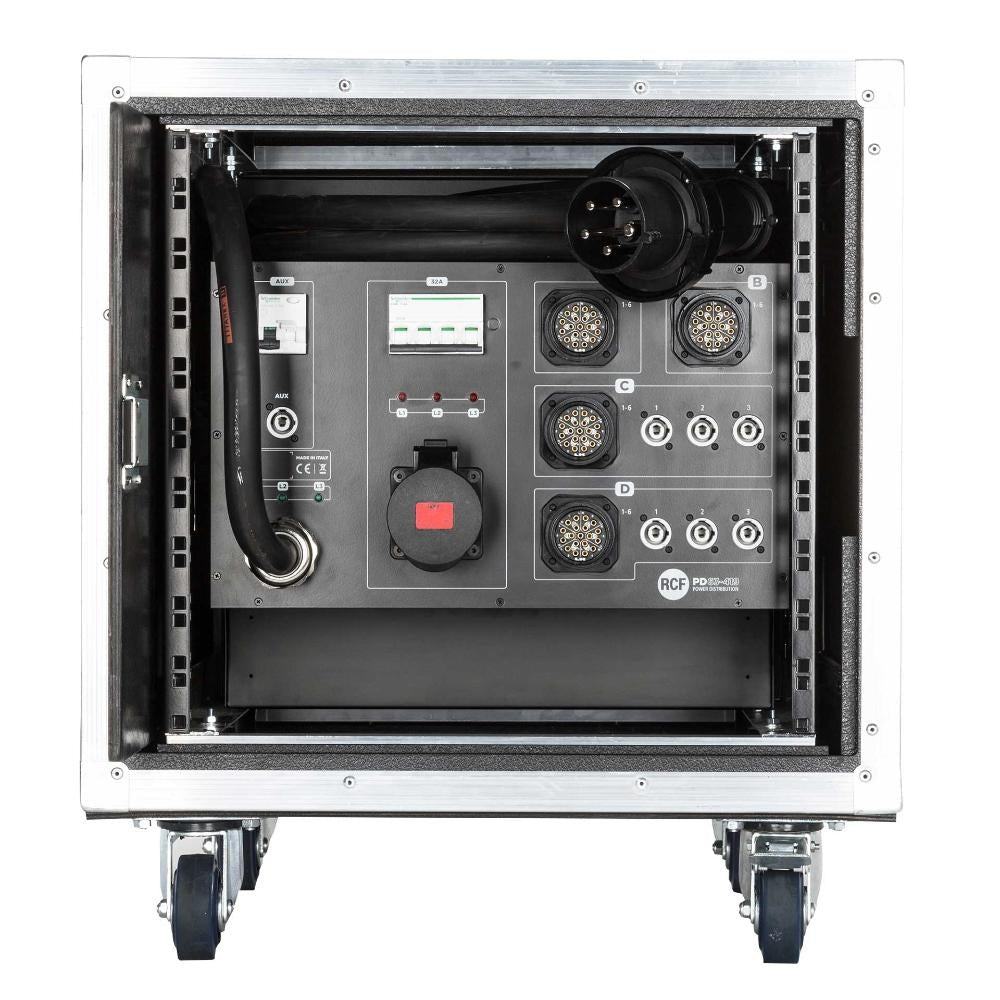

The RCF PR-63 is a tour-grade power distribution rack engineered for large-scale live sound deployments where system reliability and circuit isolation are non-negotiable. It accepts a 63 Ampere Cekon three-phase input via a fixed 5-meter cable and fans that power out to a 32A Cekon output, four LKS19 outputs, six Powercon outputs, and a dedicated Powercon auxiliary output sized for the CR 16-ND Control Rack. This combination of connector types gives system engineers the flexibility to feed amplifier racks, drive units, and control hardware from a single, centralized distribution point without adapters or workarounds.
What separates the PR-63 from generic power distros is its 24 individual RCBOs, one per output line. A Residual Current-operated Circuit-Breaker with Overcurrent protection means that a fault on any single output trips only that leg. The remainder of the system stays powered, protecting the audience experience and the connected equipment. Front-panel access to 32A and auxiliary individual RCBOs simplifies fault diagnosis without opening the case. The flight case construction is built to the standards touring productions demand: load-in after load-in, in conditions that rule out anything less.
Production companies running RCF TT+ or HDL system arrays, rental houses speccing power infrastructure for festival stages, and installed sound contractors building rack rooms for large venues will find the PR-63 a logical anchor for power distribution. It integrates directly into the RCF ecosystem and is CE compliant for professional deployment across international touring markets.
Specifications
