• RCF RDNet Control 8 8 Output Master Unit Network Switch
1 1

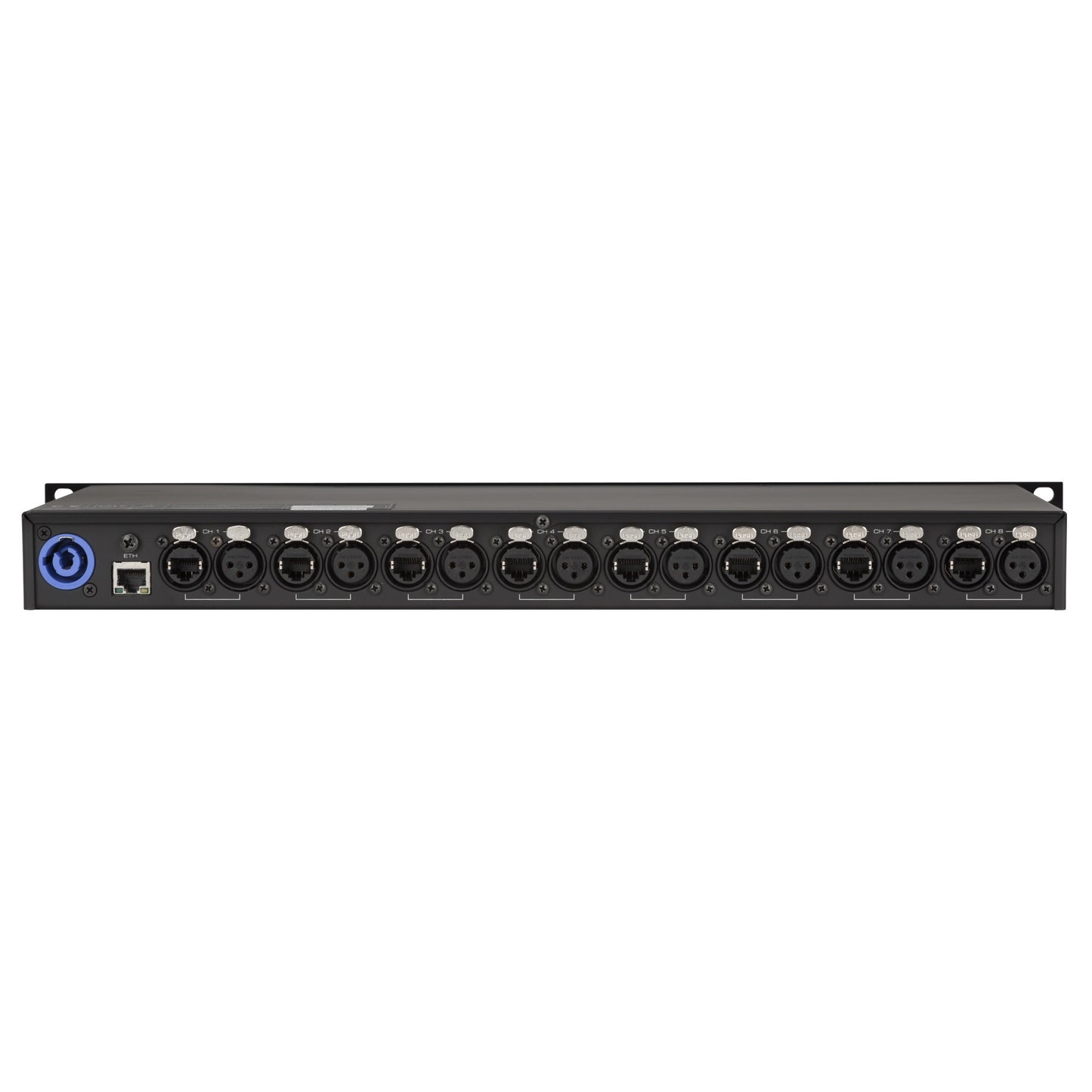

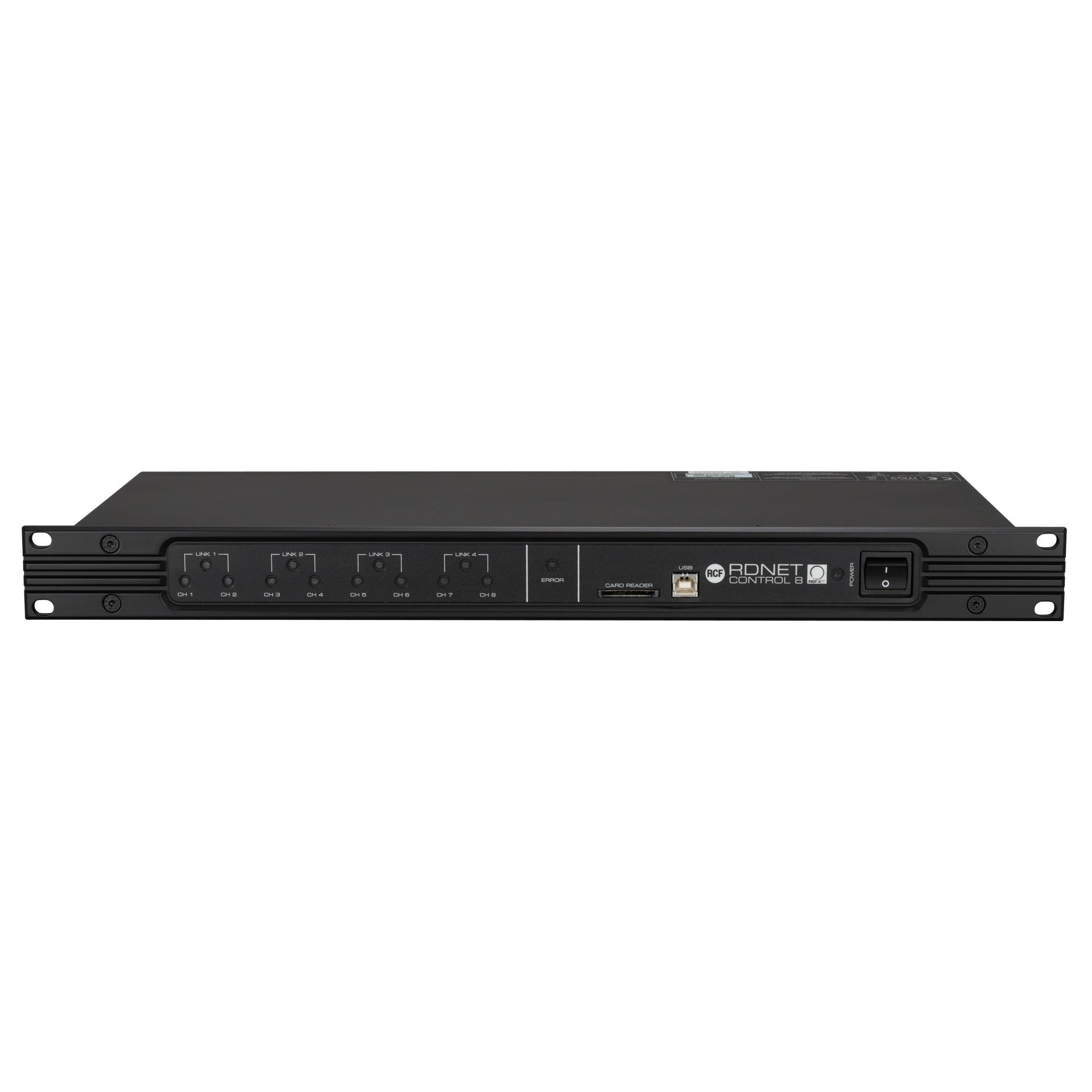

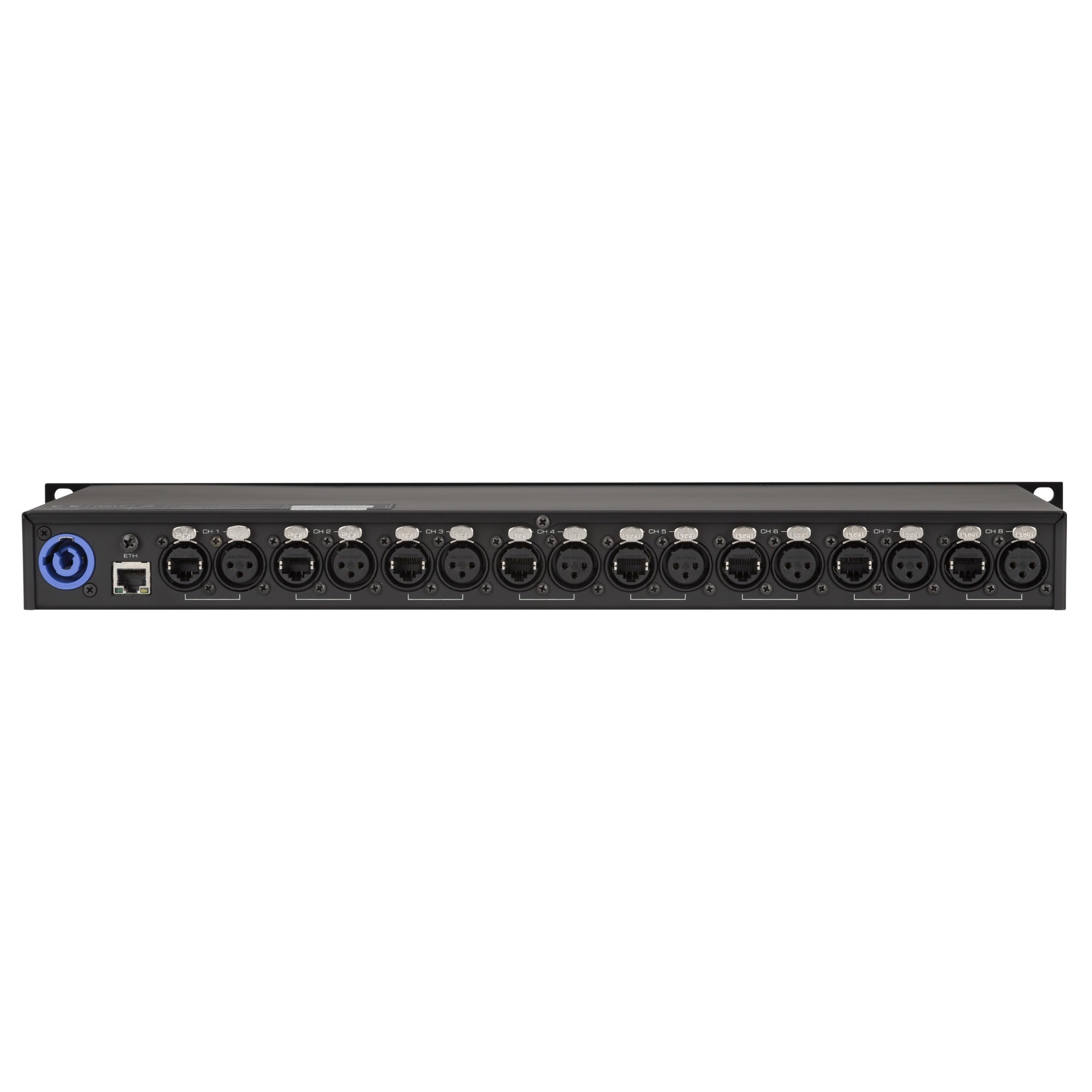

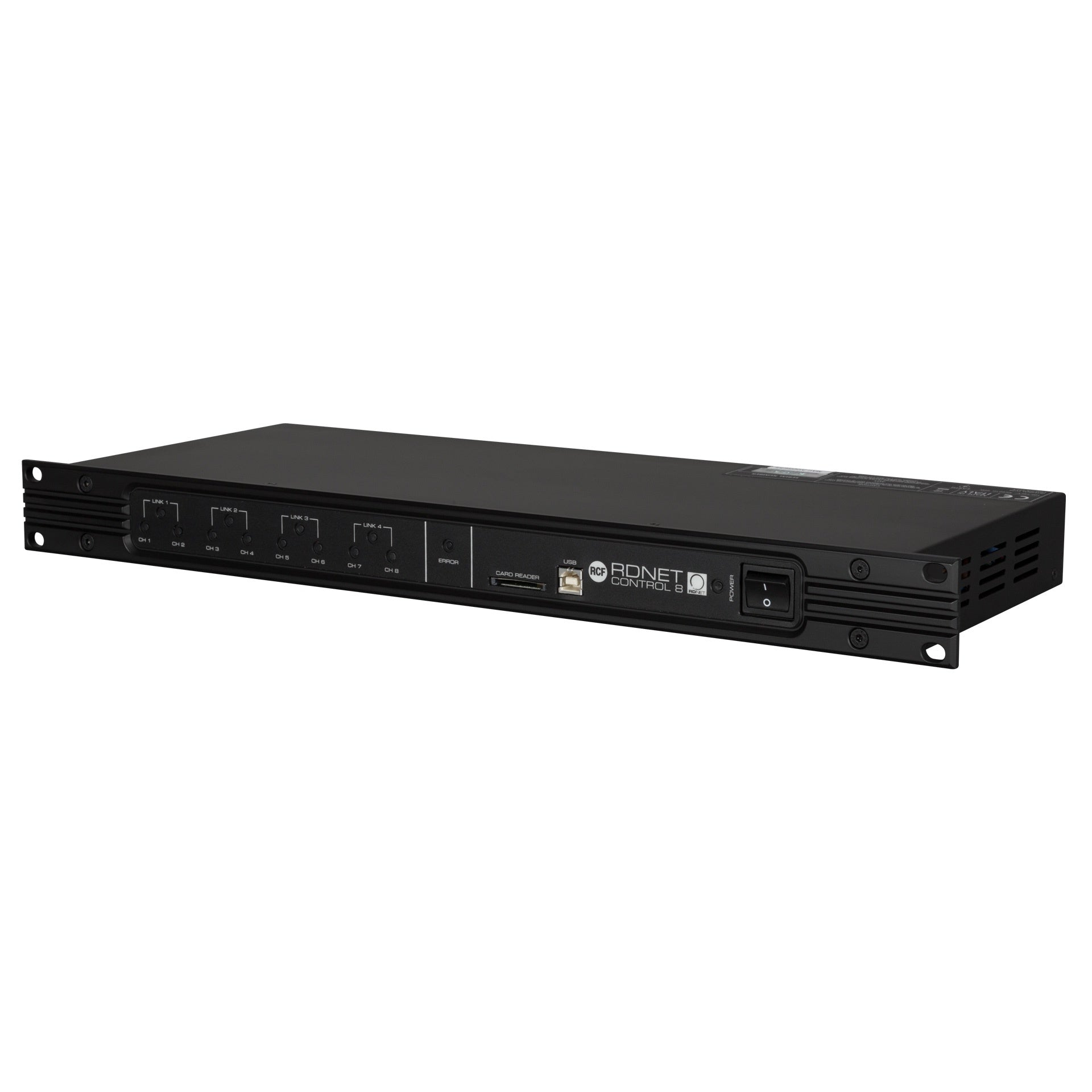

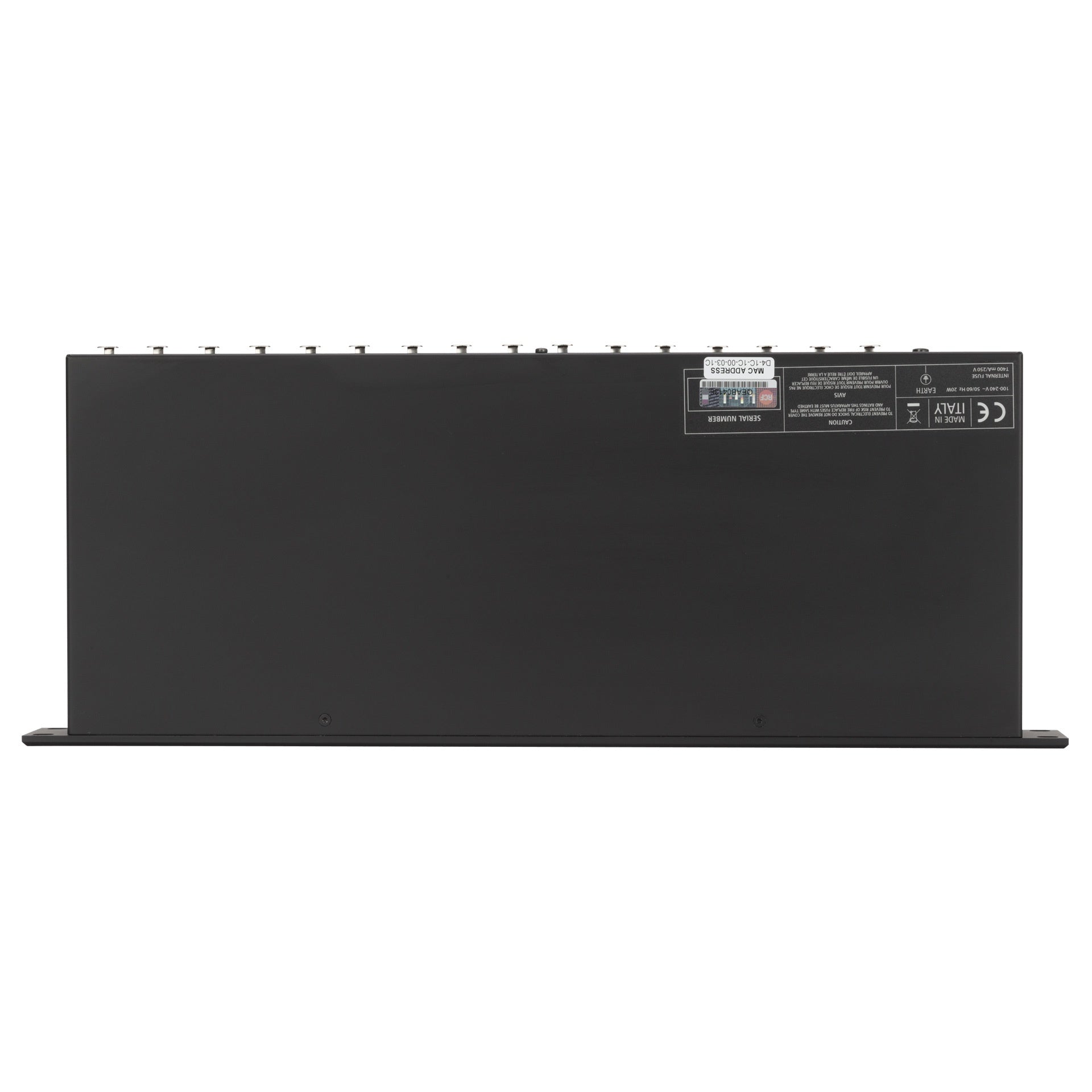

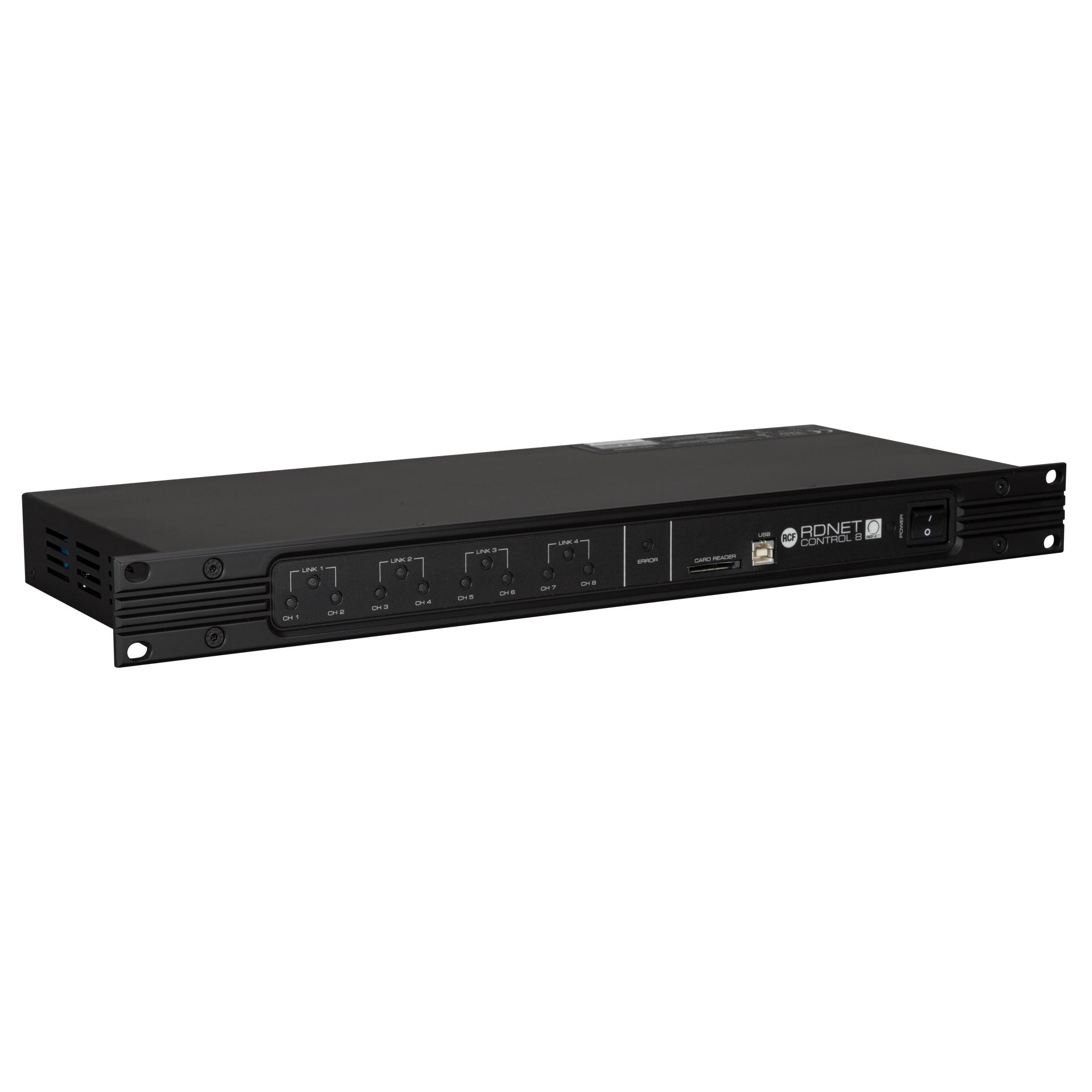

RCF RDNet Control 8 8 Output Master Unit Network Switch

RCF RDNet Control 8 8 Output Master Unit Network Switch

SoundPro Item: 47288 | Part Number: RDNET-8

$2,599.00
$2,599.00 $2,599.00
Your Price Sold out
MSRP: $2,599.00 | MAP: $2,599.00

Usually ships in 5-7 business days

  • Ethernet (remote control) and USB (direct control) PC connection to RDNet
  • Control up to 8 SUB-NETS of up to 32 Slave Devices
  • All devices are cyclically scanned (“POLLING”) 10 times a second
  • Auto detect device placement
  • Controlling slave devices status and functions
  • Monitoring and displaying faults and warnings sent from slave devices
  • Storing subnet user filters configuration in a removable memory card
Log in or register for YOUR best price

The RDNet Control 8 is a real-time monitor and control system able to manage up to 256 devices linked in a bus or up to 128 devices in a ring topology. All the data collected from the slaves are delivered to the sound engineer by USB in a local installation or by Ethernet from remote locations. The interface can be directly connected to the DSP on board of every TT+ line array module through the exclusive RDNet protocol making it possible to address in single cabinets or groups, specific presets or modification parameters in real-time. The key point of RDNet Control 8, in fact, is to ensure minimum refresh time (at least 5 per second) of all the system data performance, for example: RMS signals, compressor activity, temperature, fans speed, warnings, etc. Data transfer can be routed also through the provided xlr connectors enabling the control of the system on traditional multi-cored cables.

View full details
  • Number of subnets8
  • ConnectorsRJ 45, XLR
  • Max number of devices (for each subnet) 32
  • ConfigurationPC software
  • PC connectionUSB (type B), Ethernet
  • Data storageSD card (max. 4 GB)
  • Operating voltage90-240 V~ 50/60Hz
  • Power consumption (W) 15
  • RDNetYes
  • STANDARD COMPLIANCESafety agency: CE compliant
  • PHYSICAL SPECIFICATIONS
    • Color: Black
    • Rack mounting: 19", 1U
  • Dimensions (HxWxD)1.73x18.98x7.17” (44x482x182mm)
  • Weight5.97 lbs (2.71 kg)
  • SHIPPING INFORMATION
    • Package Dimensions (HxWxD): 4.17x10.59x21.42” (106x269x544mm)
    • Package Weight: 8.18 lbs (3.71 kg)
