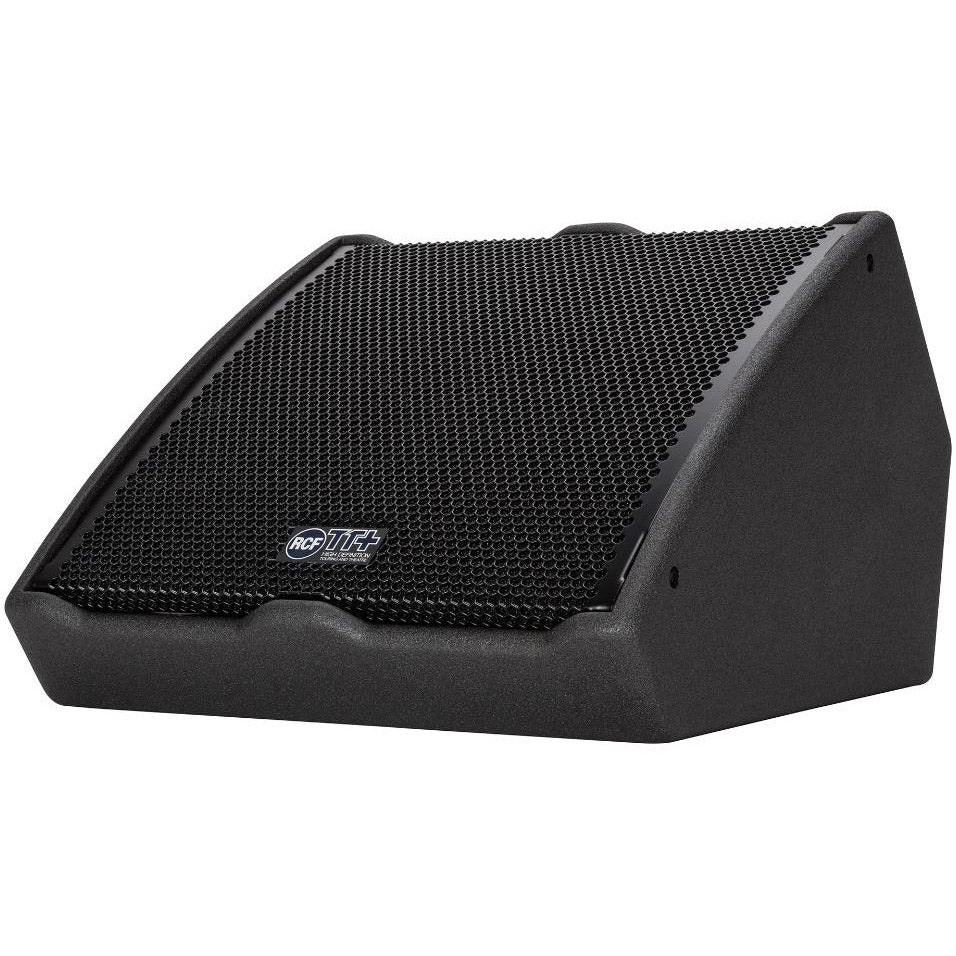

RCF TT 20-CXA Dual 8-Inch Powered Stage Monitor

RCF TT 20-CXA Dual 8-Inch Powered Stage Monitor

SoundPro Item: 47315 | Part Number: TT20-CXA

$4,399.00
$4,399.00 $4,399.00
Your Price Sold out
MSRP: $4,399.00 | MAP: $4,399.00

Usually ships in 5-7 business days

  • 131 dB SPL Max
  • 1000W RMS, two-way Class-D amplifier
  • 90° x 70° constant directivity coverage
  • Multifuncional cabinet with symmetrical transducers’ design
  • FiRPHASE
  • 2 x 8’’ neodymium Woofers, 2.5’’ voice coil
  • Horn loaded 1.4” neo comp. driver, 3’’ voice coil
  • RDNet Networked Management
Log in or register for YOUR best price

The optimized frequency and phase response, consistent coverage, and potent output make the TT20-CXA ideal for any stage as a monitor or, full range FOH system. This active high output stage monitor is a full range, low-profile enclosure with symmetrical transducers arrangement. With an exceptional transient response and the powerful FiRPHASE processing, the TT CXA series far exceeds the capabilities of conventional stage monitors.

View full details
  • Frequency Response60Hz - 20,000Hz
  • Max. SPL (@ 1m)131 dB
  • Coverage Angle (HxV)90° x 70°

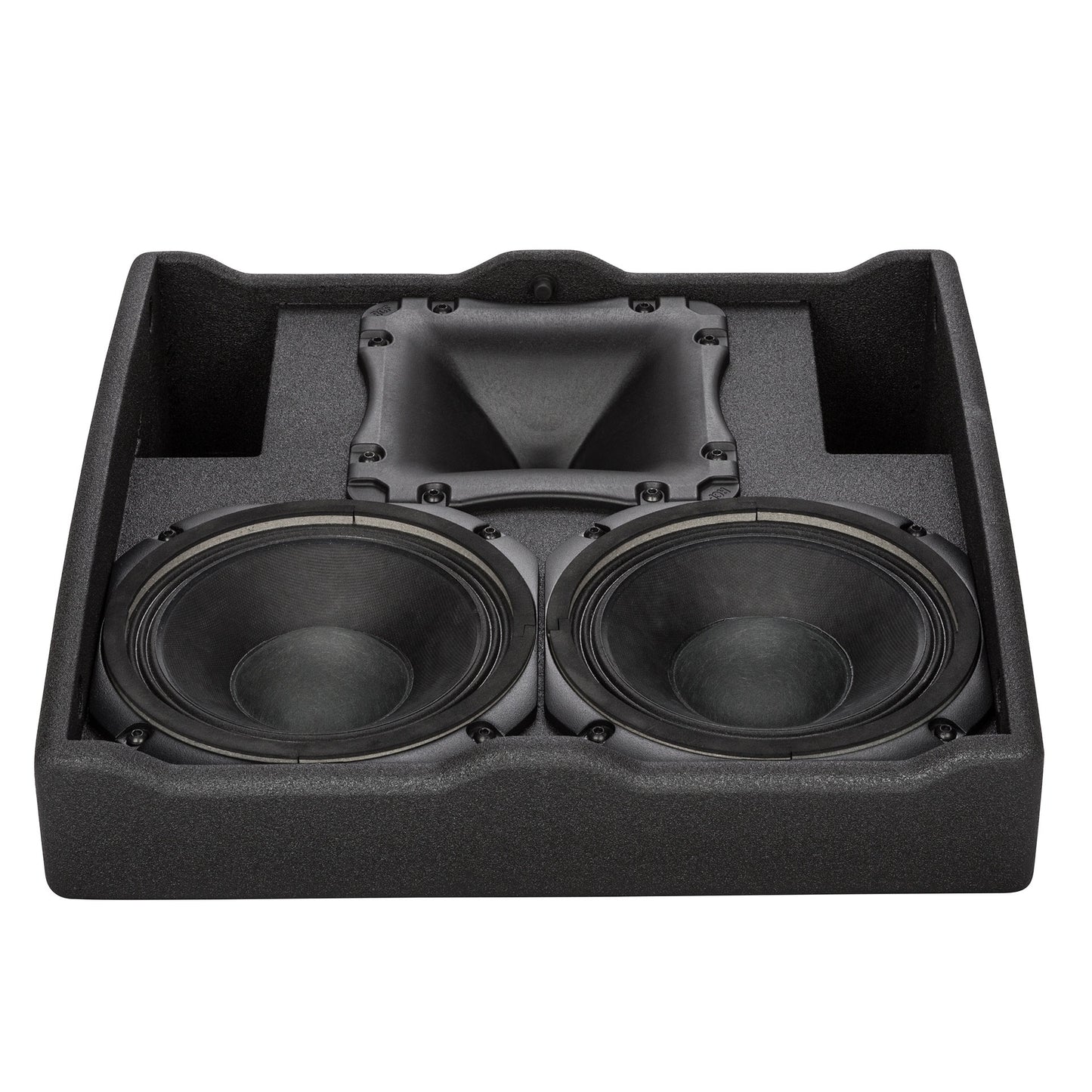

  • Transducers
    • Compression Driver: 1 x 1.5'' neo, 3.0'' v.c
    • Woofer: 2 x 8'' neo, 2.5'' v.c
  • Input/Output Section
    • Input Signal: bal/unbal
    • Input Connectors: XLR, RDNet Ethercon
    • Output Connectors: XLR, RDNet Ethercon
    • Input Sensitivity: -2 dBu/+4 dBu
  • Processor Section
    • Crossover Frequencies: 900Hz
    • Protections: Thermal, HF
    • Limiter: Fast Limiter
    • Controls: Bypass, Linear/High Pass, Volume, RDnet on board
    • RDNet: yes
  • Power Section
    • Total Power: 2000 W Peak, 1000 W RMS
    • High Frequencies: 600 W Peak, 300 W RMS
    • Low Frequencies: 1400 W Peak, 700 W RMS
    • Cooling: convection
    • Connections: Powercon IN/OUT
  • Construction
    • Cabinet/Case Material: Baltic birch plywood
    • Handles: 1 top
    • Grille: steel
  • Dimensions (HxWxD)12.52" x 17.52" x 17.72"
  • Weight30.86 pounds
