• RCF TTL 4-A Dual 10-Inch Powered Speaker
1 1

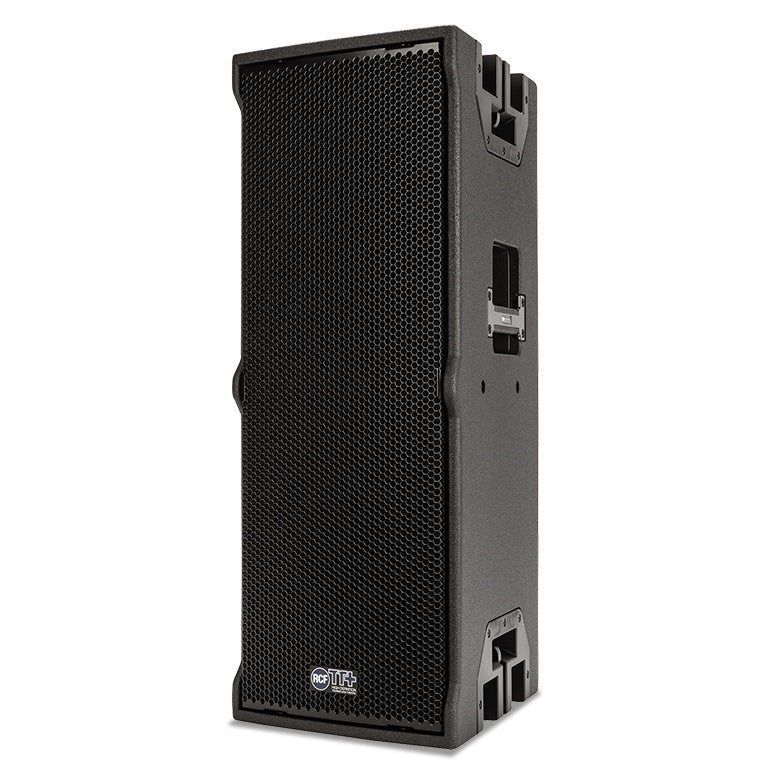

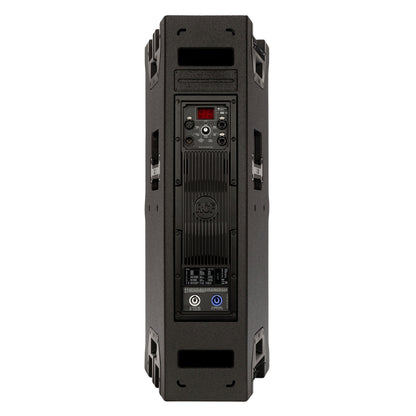

RCF TTL 4-A Dual 10-Inch Powered Speaker

RCF TTL 4-A Dual 10-Inch Powered Speaker

SoundPro Item: 46477 | Part Number: TTL 4-A

$7,999.00
$7,999.00 $7,999.00
Your Price Sold out
MSRP: $7,999.00 | MAP: $7,999.00

Usually ships in 5-7 business days

  • 135 dB max SPL
  • 100x25° coverage

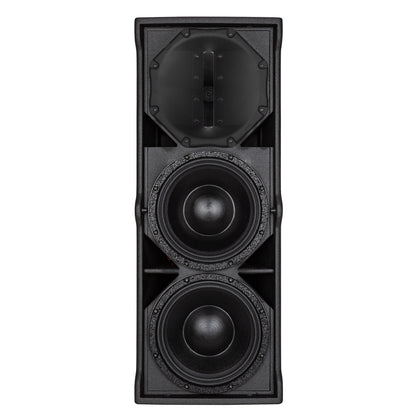

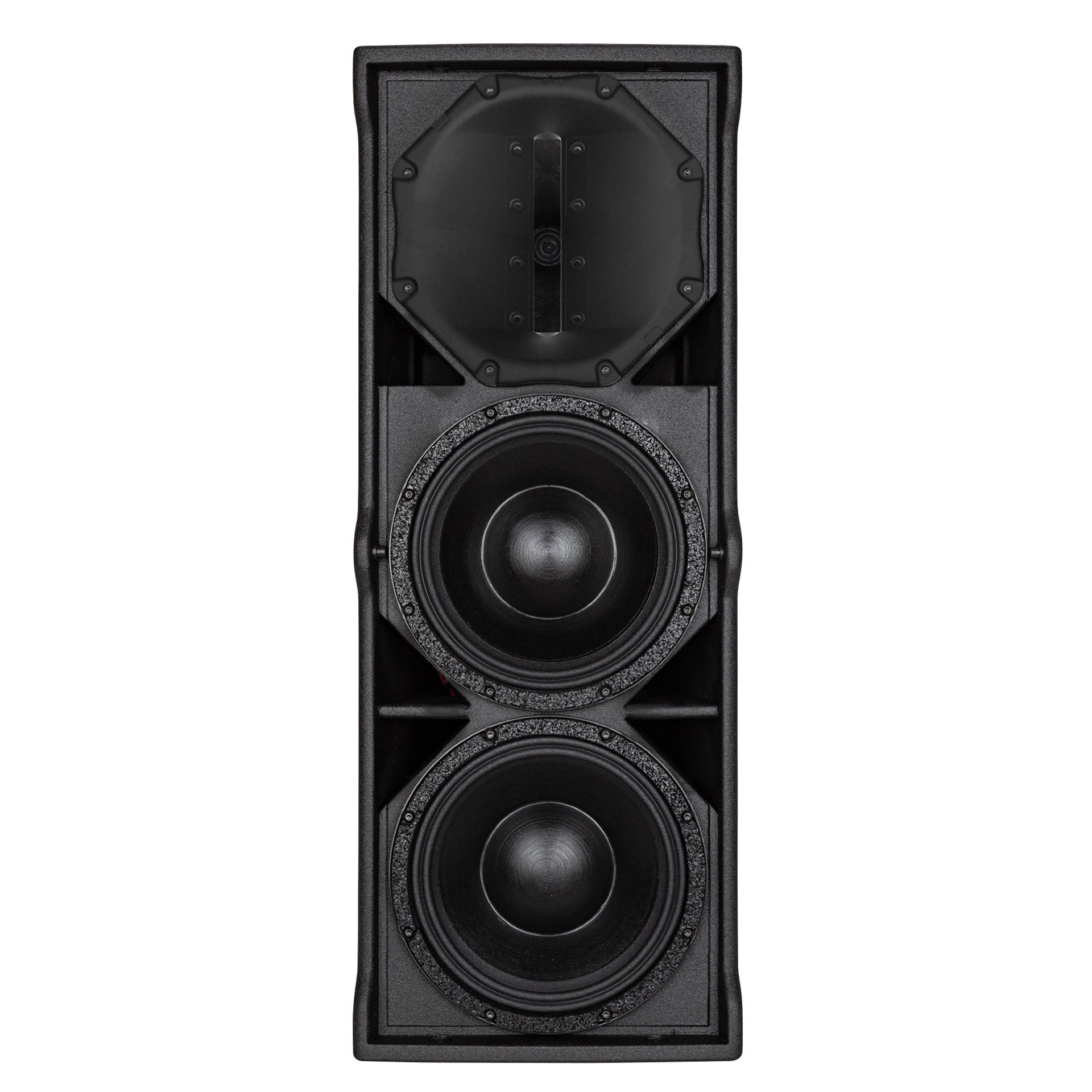

  • LF 2x10’’ neodymium woofer, 3.0” voice coil
  • HF 1.5” Nd comp. driver 4.0” voice coil
  • 2 x Class-D amplifiers, 1600W RMS total power
  • 45 – 20.000 Hz frequency range
  • RDNet on board
  • FiRPHASE 0° linear phase
Log in or register for YOUR best price

The TTL 4-A speaker module delivers top-quality sound for highly demanding events indoors or outdoors on small to medium-sized areas. Its design provides the audio engineer with the best tonal balance and intelligibility while maintaining an unobtrusive and adaptable footprint. With all the advantages of TT+ technology, such as high directivity, long-range, power, and precision, it’s designed for professional applications.

Top-quality sound for highly demanding events indoors or outdoors in small to medium-sized areas. The TT 4 series flexibility fills the gaps between point source and line array speakers, providing the audio engineer with augmented coverage adaptability. This approach combines all the advantages of TT+ technology, such as controlled dispersion, outstanding clarity and extreme power with three coverage options, multiple rigging accessories, remote control and recallable presets. A groundbreaking solution for a vast range of applications.

View full details
  • Acoustical Specifications
    • Frequency Response: 45Hz - 20kHz
    • Max SPL @ 1m: 135 dB
    • Horizontal coverage angle: 100°
    • Vertical coverage angle: 25°
  • Transducers
    • Compression Driver: 1x1.5'' neo, 4.0'' v.c
    • Woofer: 2x10'' neo, 3.0'' v.c

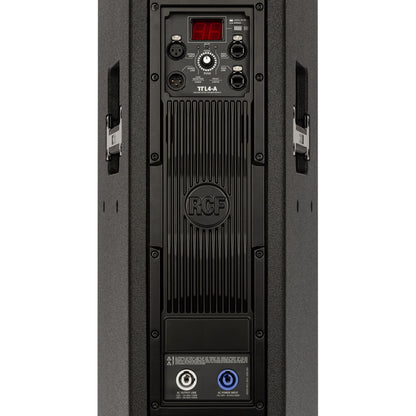

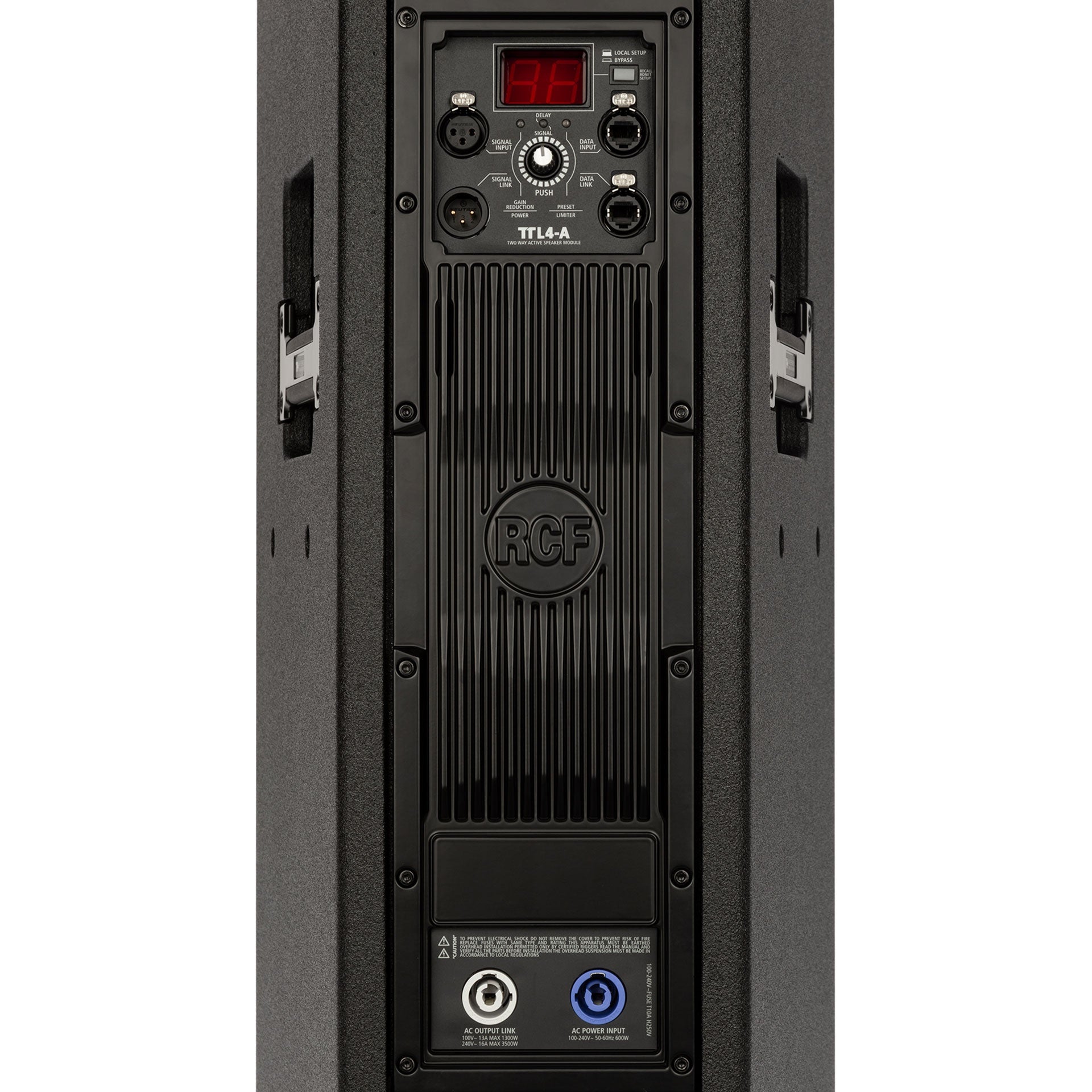

  • Input/Output Section
    • Input signal: bal/unbal
    • Input connectors: XLR, RDNet Ethercon
    • Output connectors: XLR, RDNet Ethercon
    • Input sensitivity: +4 dBu
  • Crossover Frequencies900Hz
  • Power Section
    • Total Power: 3200W Peak, 1600W RMS
    • High frequencies: 1200W Peak, 600W RMS
    • Low frequencies: 2000W Peak, 1000W RMS
    • Connections: Powercon IN/OUT
  • Physical Specifications
    • Cabinet/Case Material: Baltic birch plywood

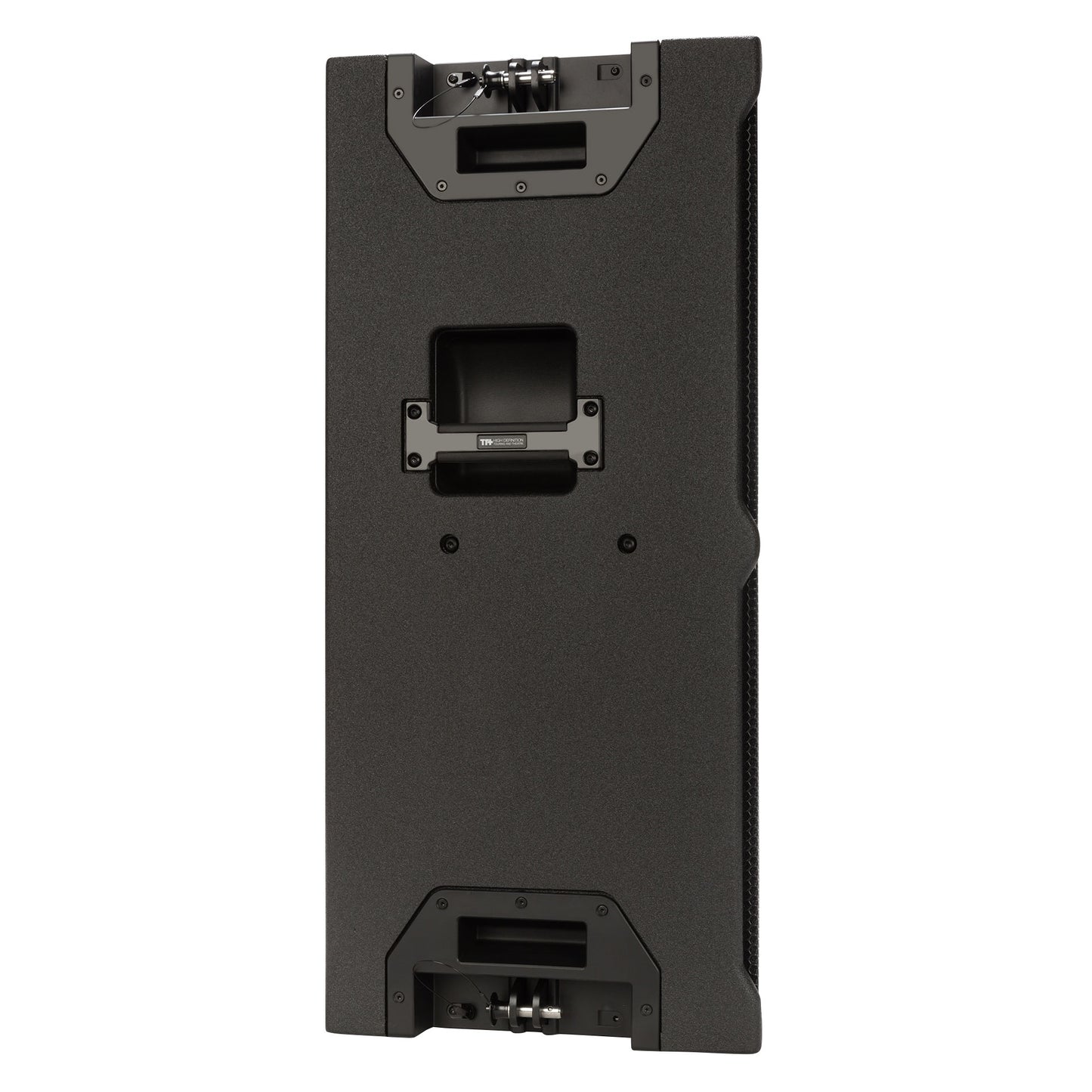

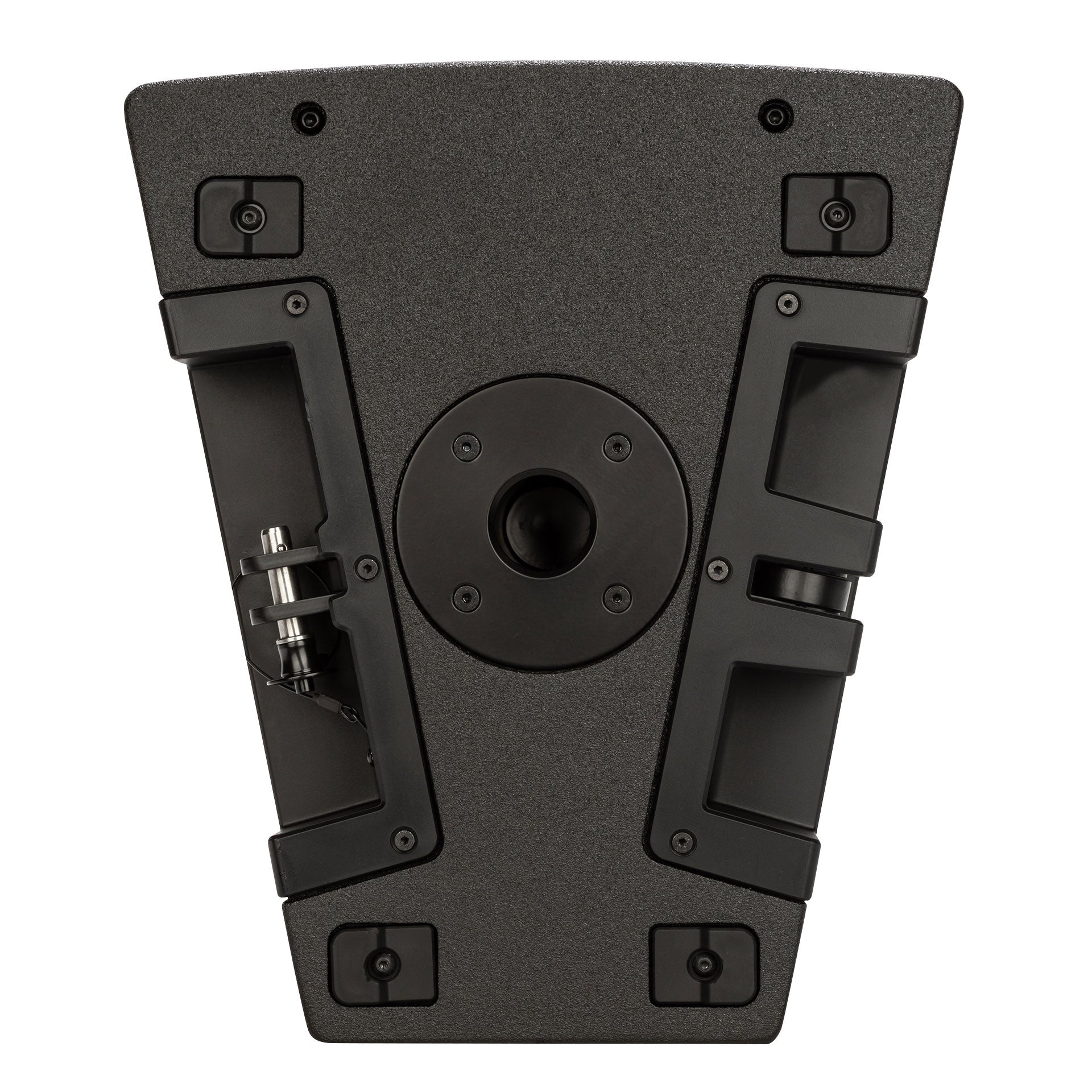

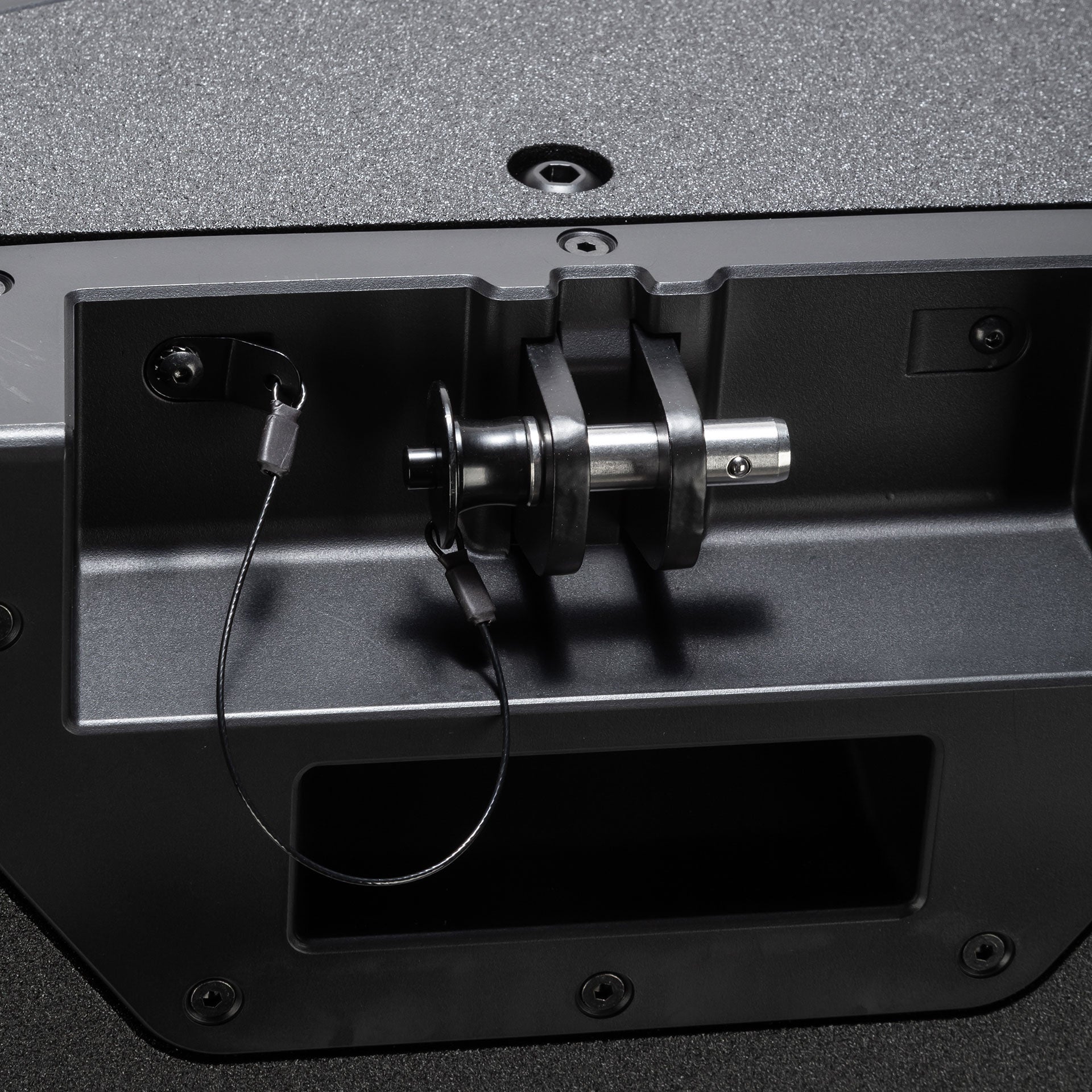

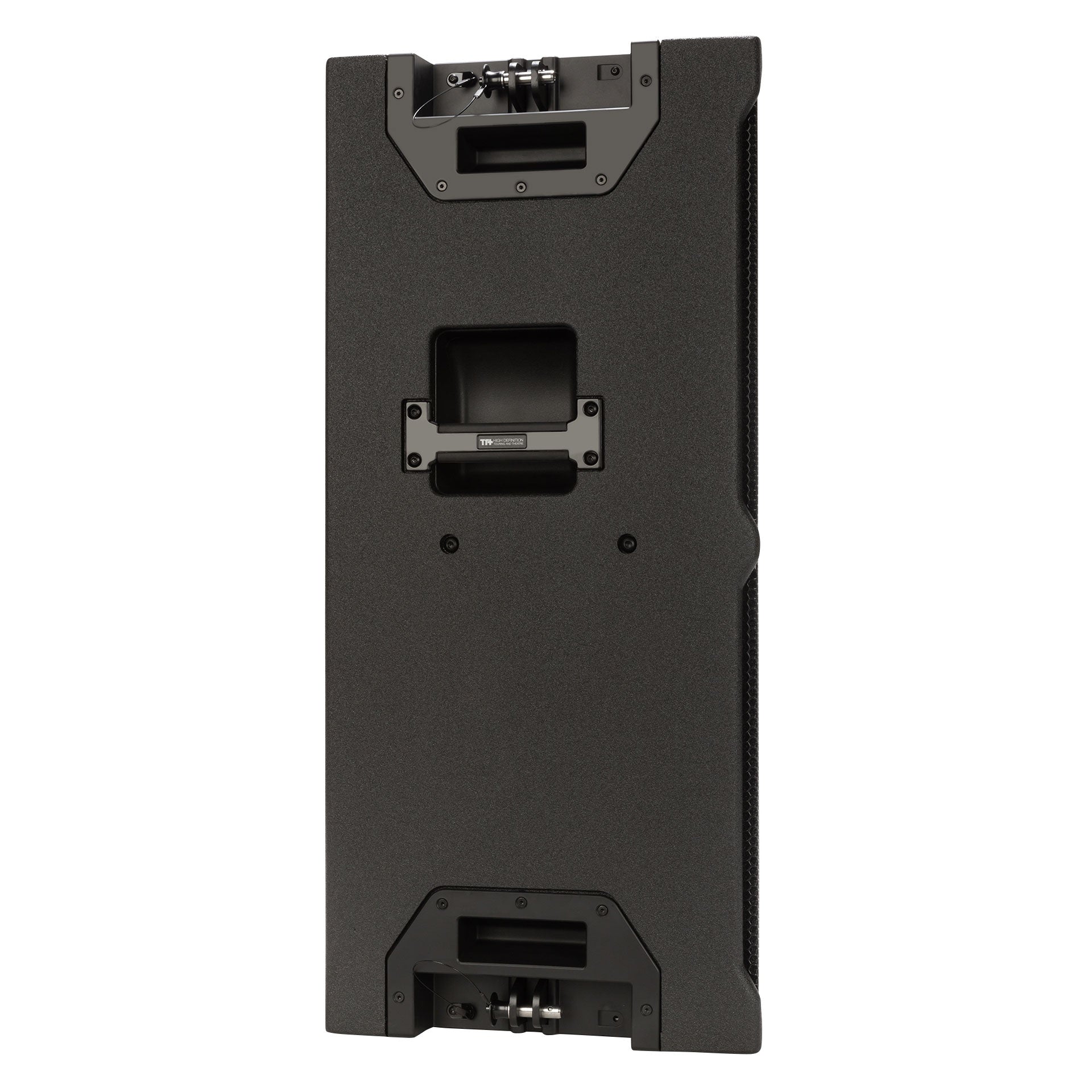

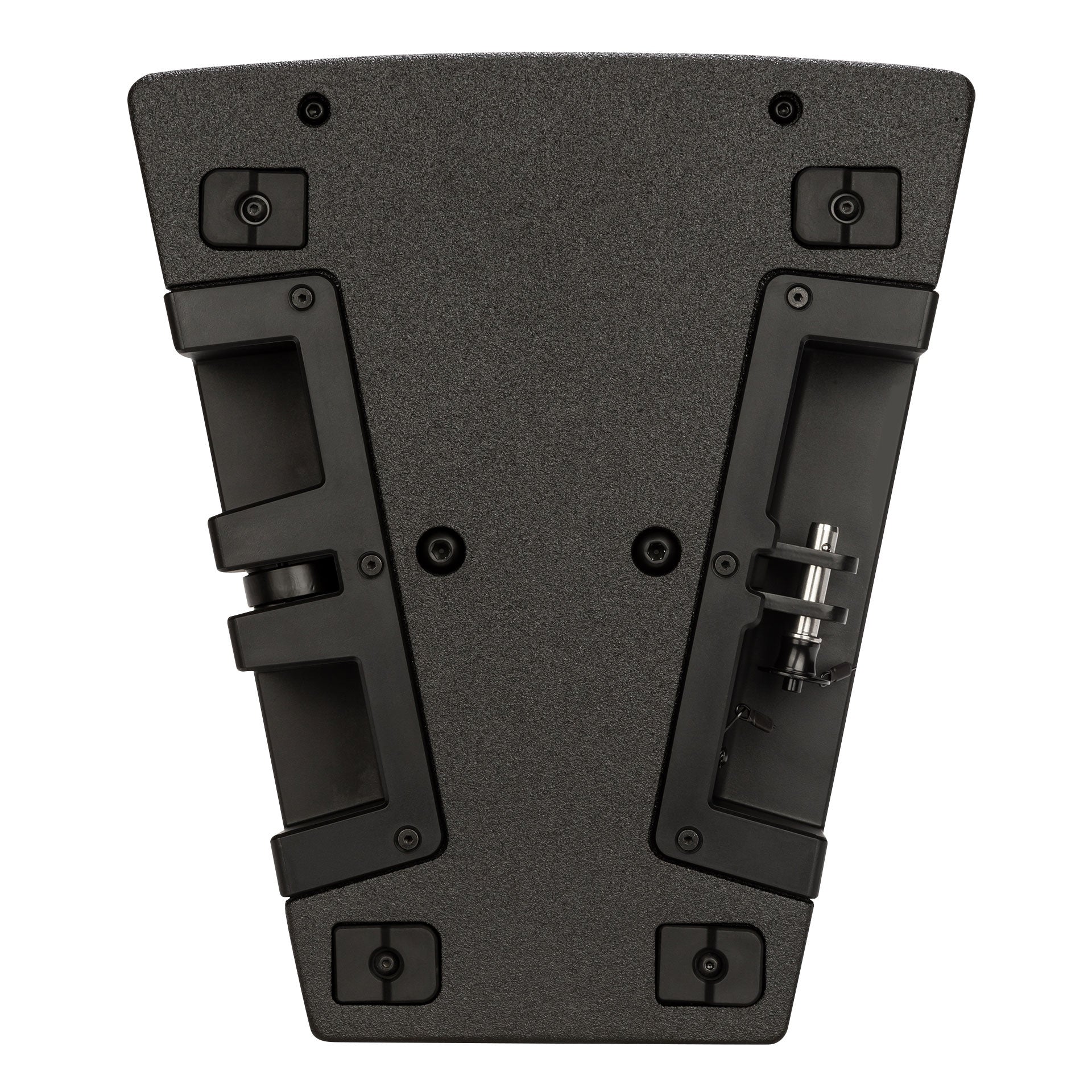

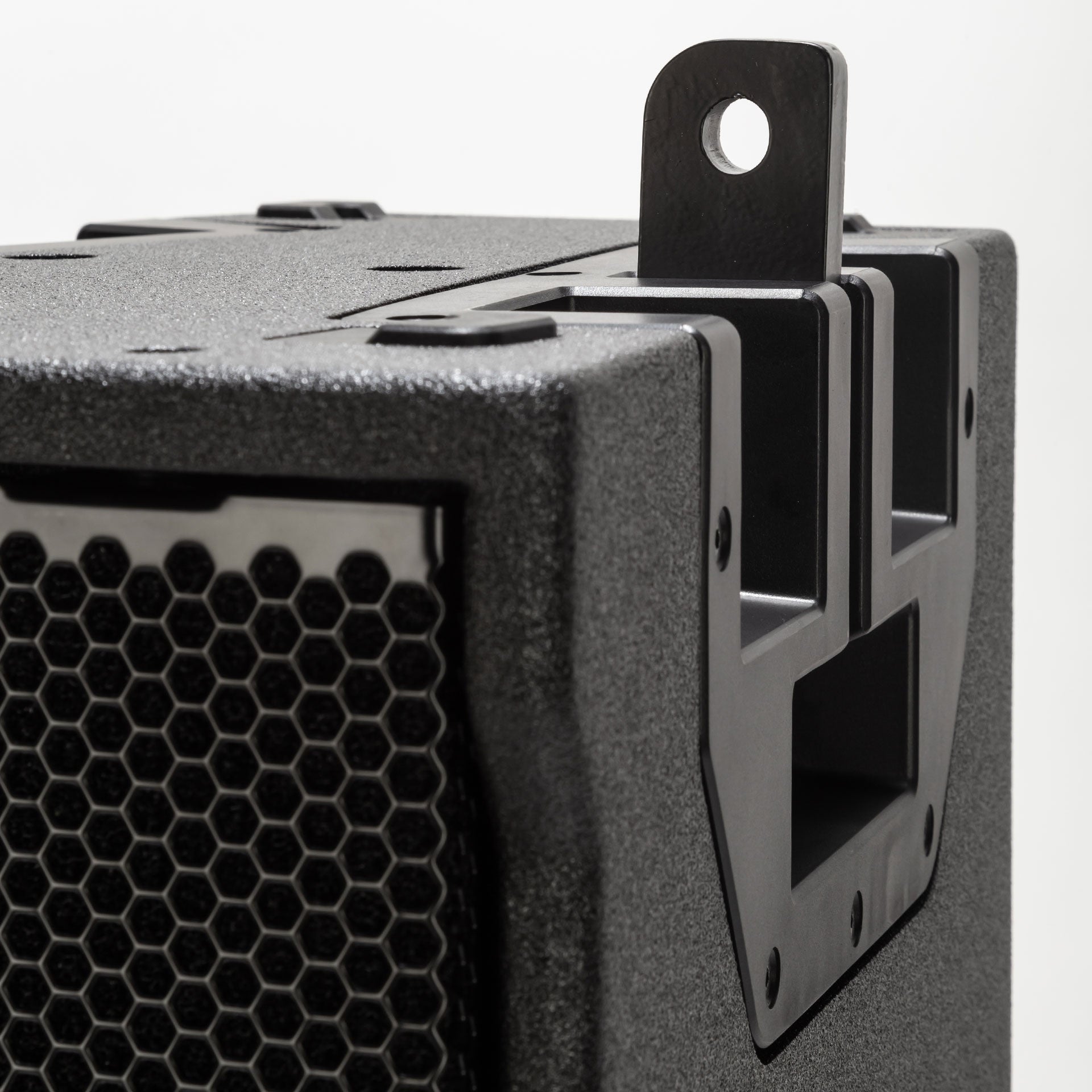

    • Hardware: Array fittings, 2xM10 on the top, 2xM8
    • Pole mount/Cap: Yes

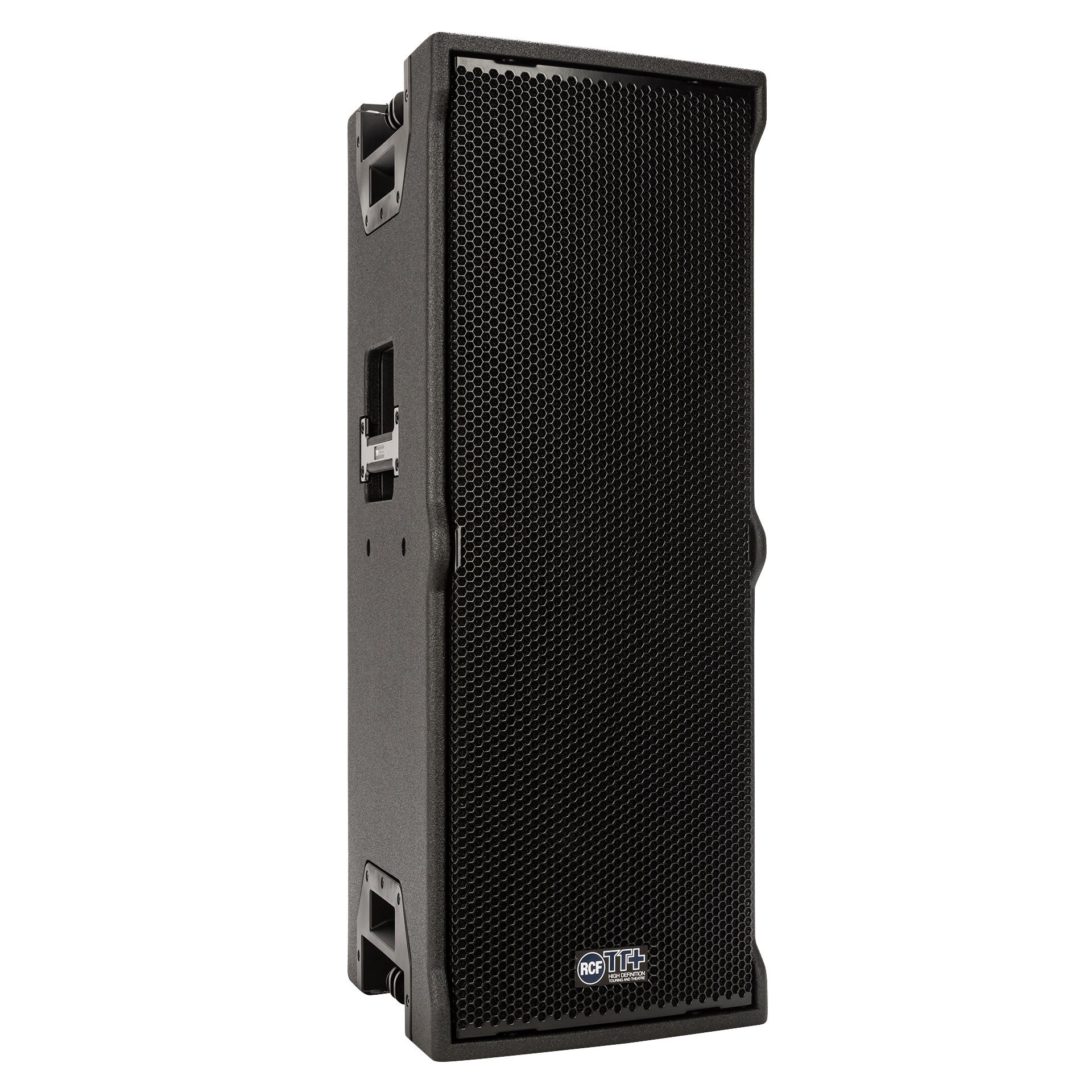

    • Grille: Steel
  • Dimensions
    • Height: 825mm/32.48"
    • Width: 316mm/12.44"
    • Depth: 369mm/14.53"
    • Weight: 30.4 kg/67.02 lbs
