- Acoustical Specifications
- Frequency Response: 45 Hz ÷ 20000 Hz
- Max SPL @ 1m: 139 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 30°

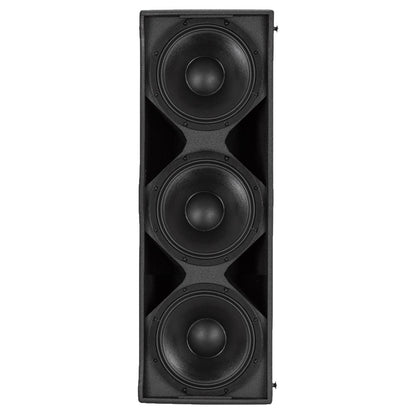

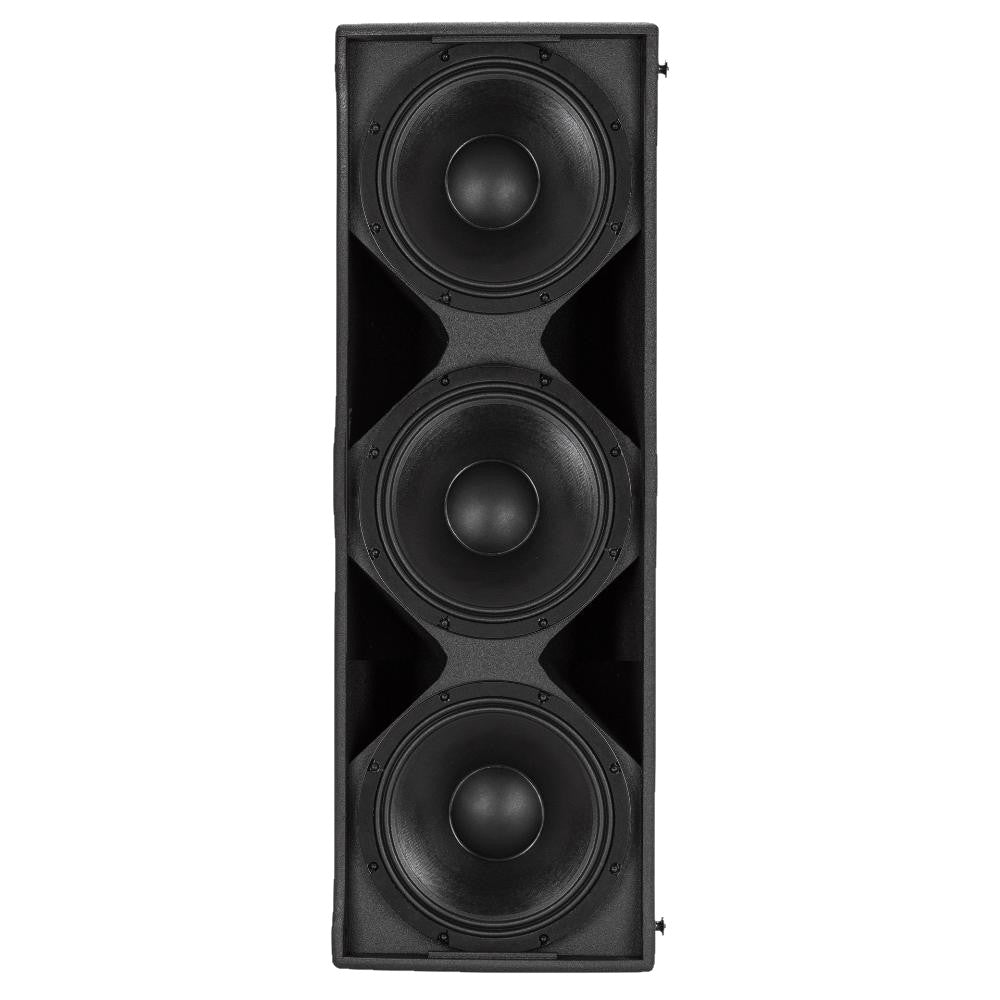

- Transducers
- Compression Driver: 1x1.4'' neo, 3.0'' v.c
- Midrange: 4x6.0'' neo, 2.0'' v.c
- Woofer: 2x12'' neo, 3.0'' v.c

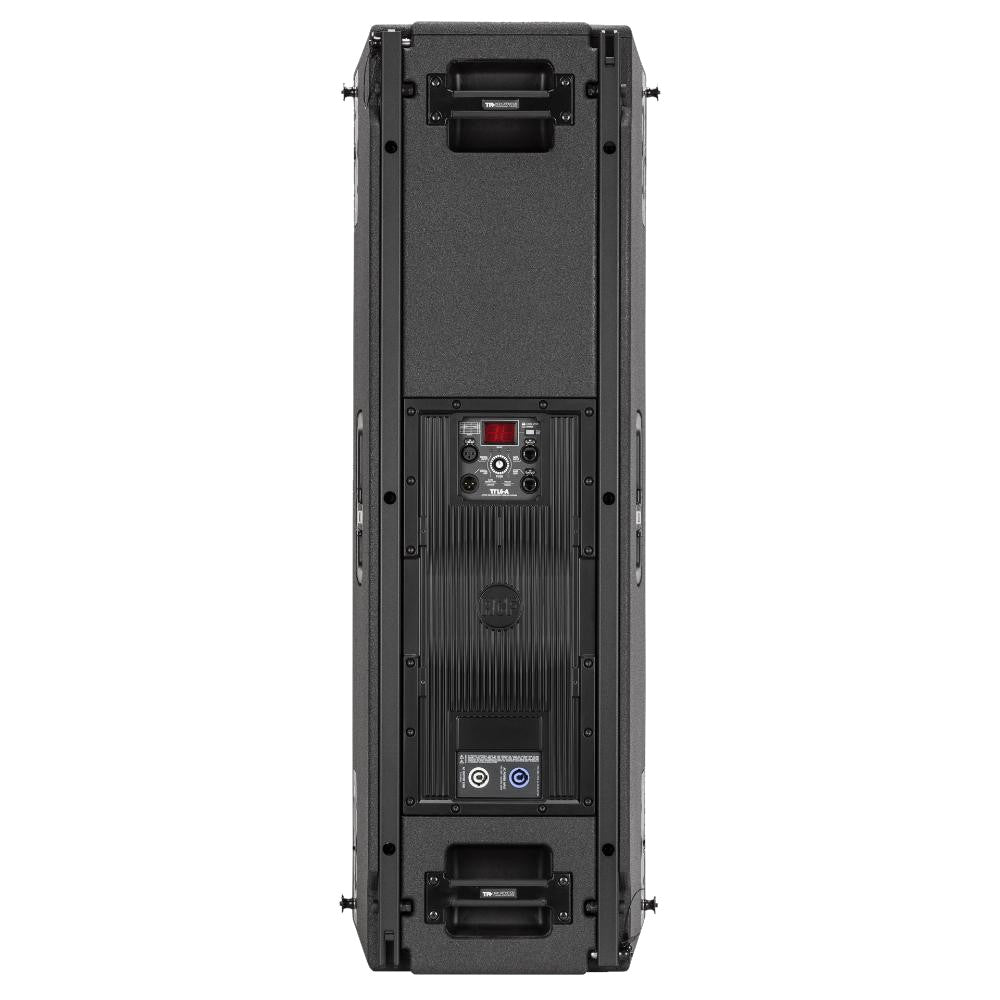

- Input/Output Section
- Input signal: bal/unbal
- Input connectors: XLR, RDNet Ethercon
- Output connectors: XLR, RDNet Ethercon
- Input sensitivity: +4 dBu
- Processor Section
- Crossover Frequencies: 200 Hz - 800 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Close, Linear, Far, 2x Presets
- RDNet: Yes
- Power Section
- Total Power: 4400W Peak, 2200W RMS
- High frequencies: 800W Peak, 400W RMS
- Mid frequencies: 1400W Peak, 700W RMS
- Low frequencies: 2200W Peak, 1100W RMS

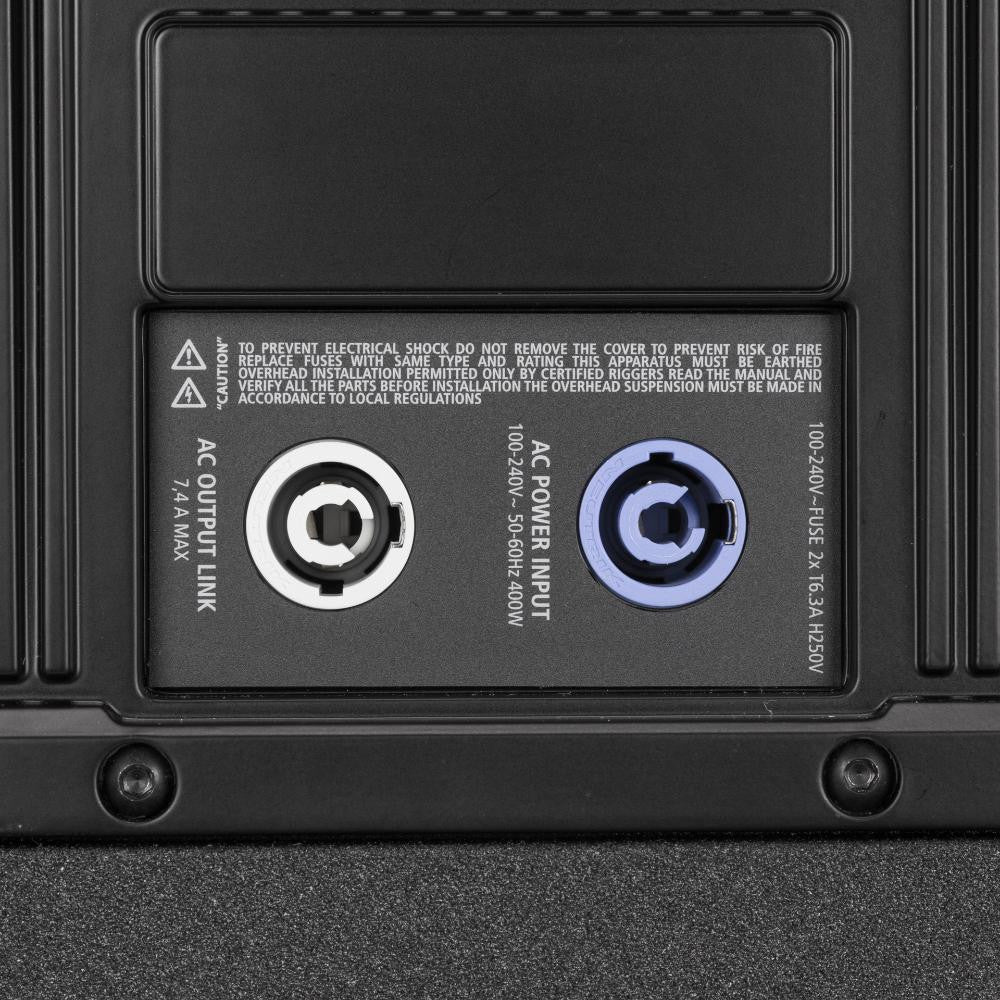

- Connections: Powercon IN/OUT
- Standard ComplianceCE compliance: Yes
- Physical Specifications
- Cabinet/Case Material: Baltic birch plywood

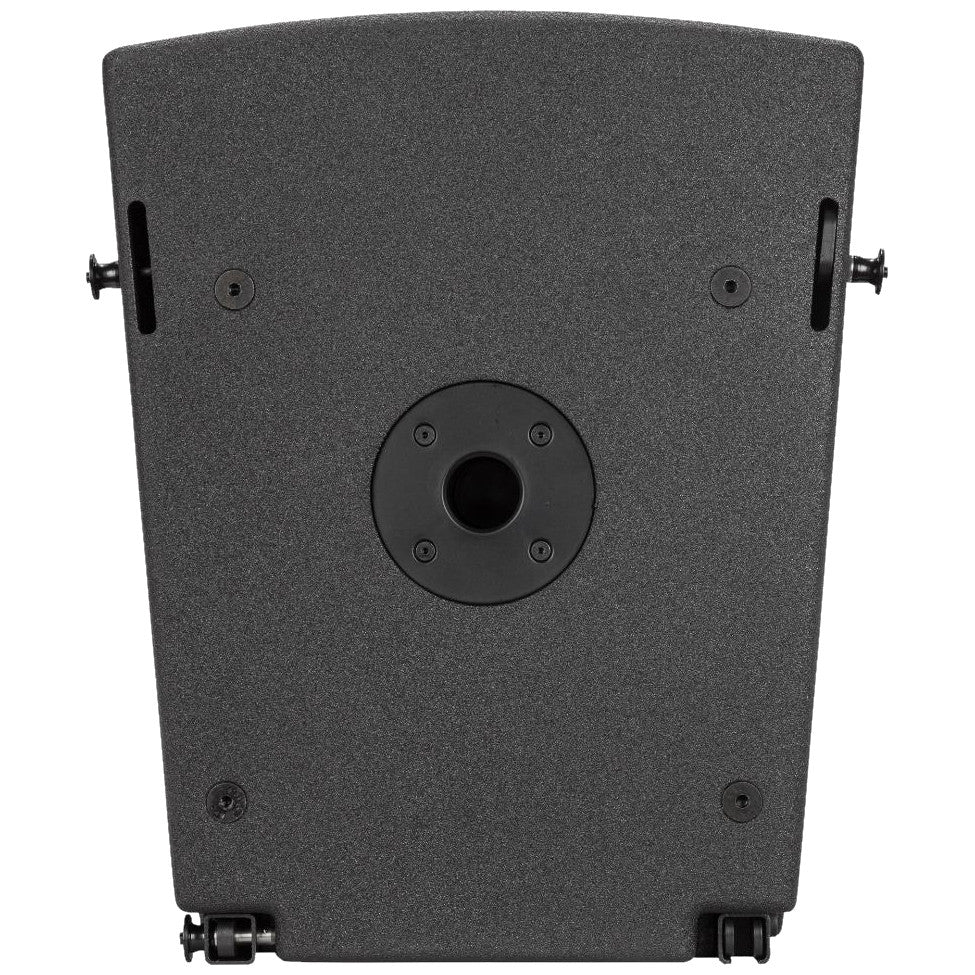

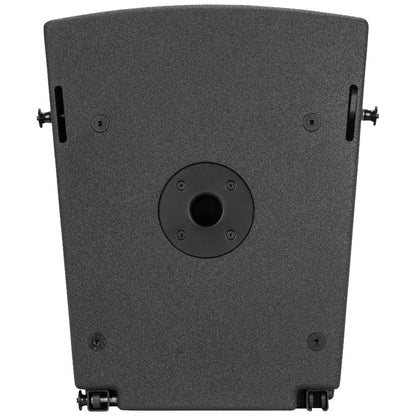

- Hardware: Pole Mount, integrated

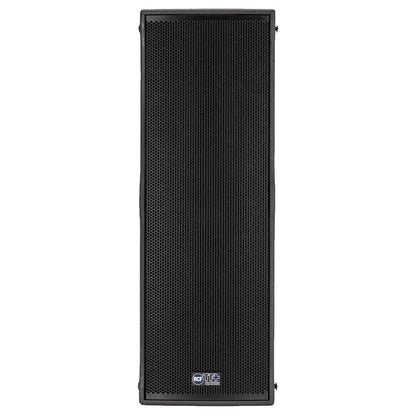

- Grille: Steel
- Dimensions
- Height: 1100mm/43.31"
- Width: 378mm/14.88"
- Depth: 468mm/18.43"
- Weight: 53 kg/116.84 lbs
