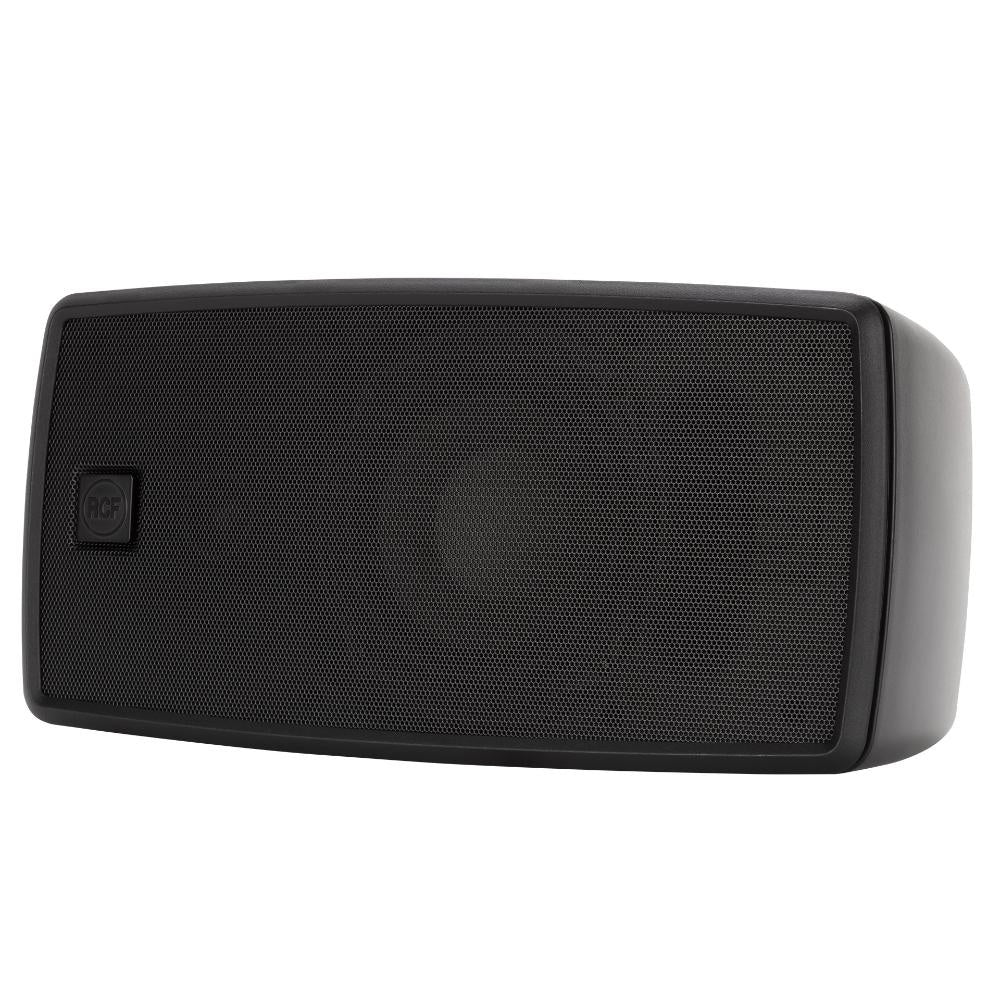

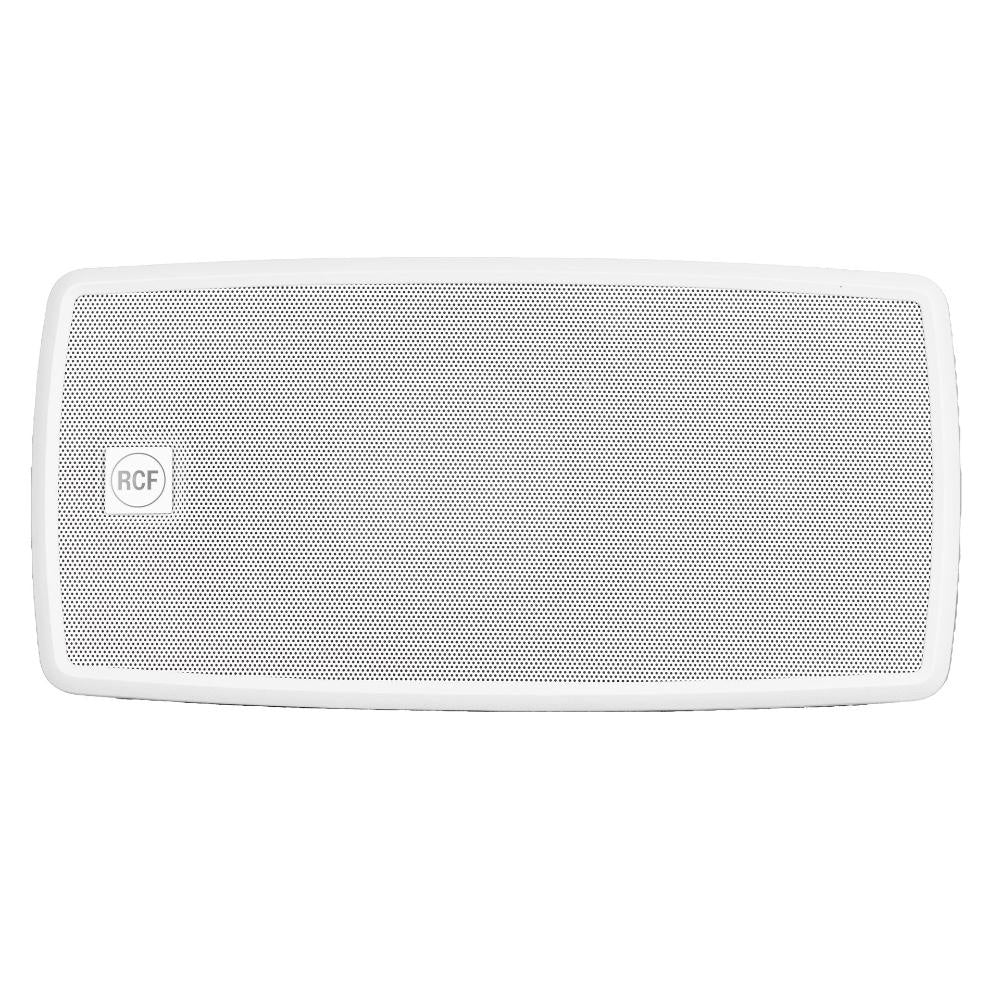

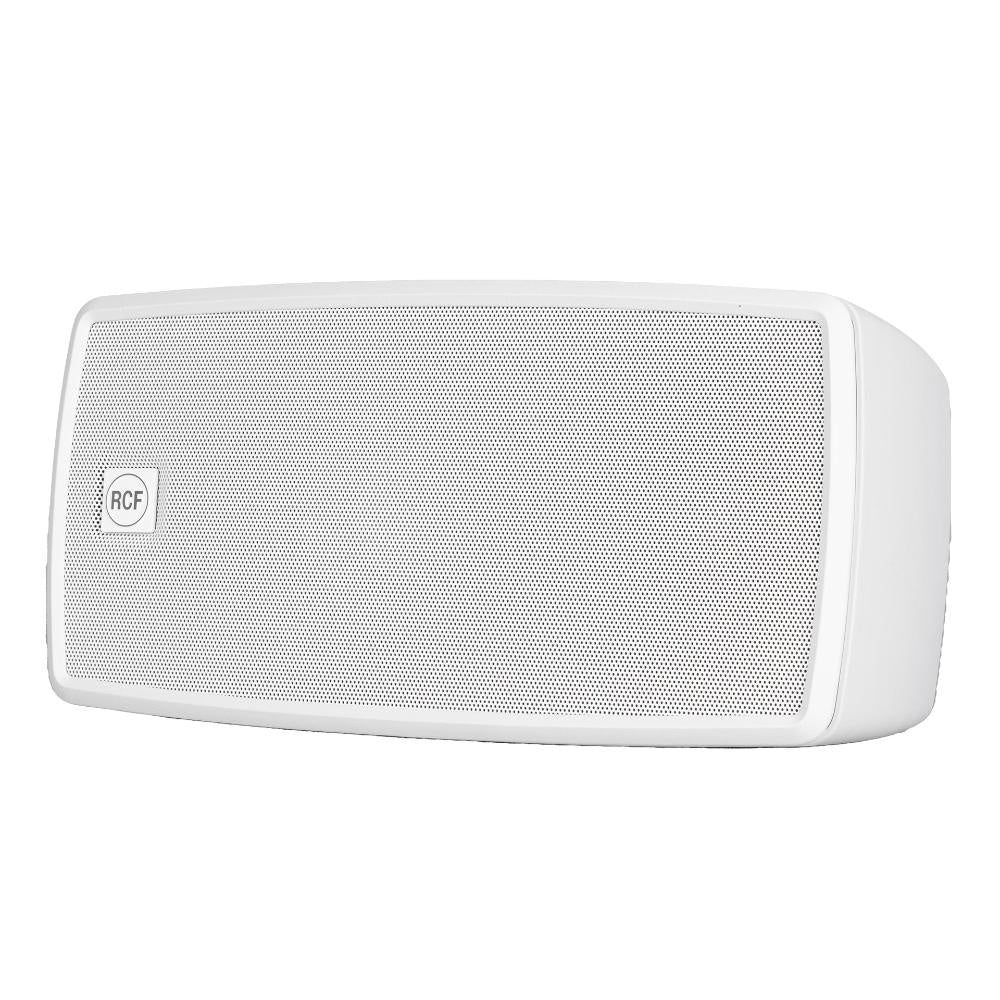

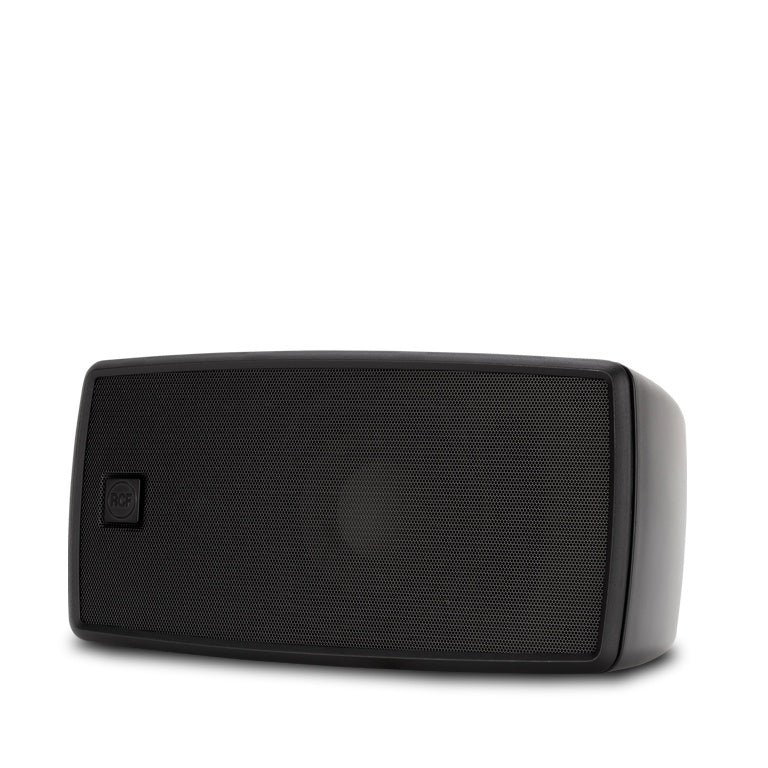

RCF WMR Two-Way Wall Mount Monitor Speaker with Transformer | 5" | White

RCF WMR Two-Way Wall Mount Monitor Speaker with Transformer | 5" | White

SoundPro Item: 143326 | Part Number: WMR-50T - W

$369.00
$499.00 $369.00
Your Price Sold out
MSRP: $499.00 | MAP: $369.00

Usually ships in 5-7 business days

  • IP55 Environmental Protection Suits Indoor And Outdoor Installed Audio Deployments
  • Built-In 70/100V Transformer Enables Distributed Audio Wiring Without External Hardware

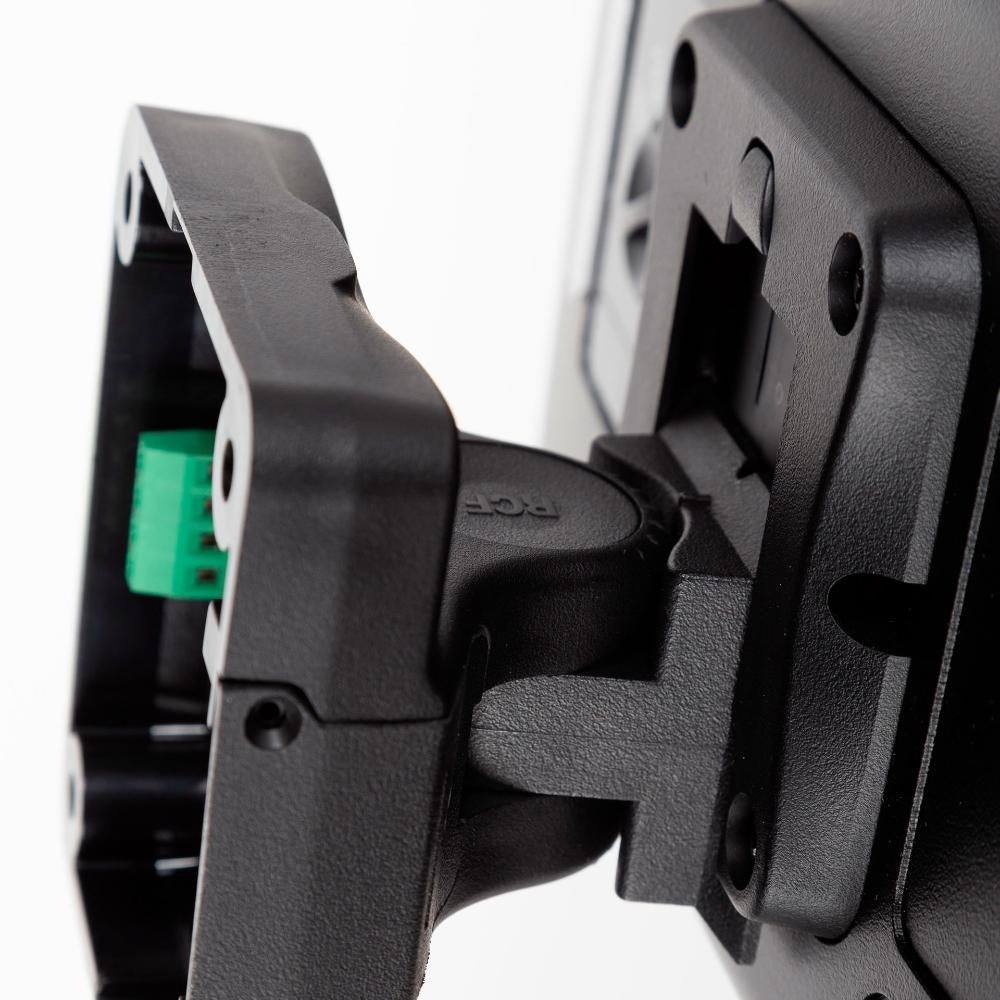

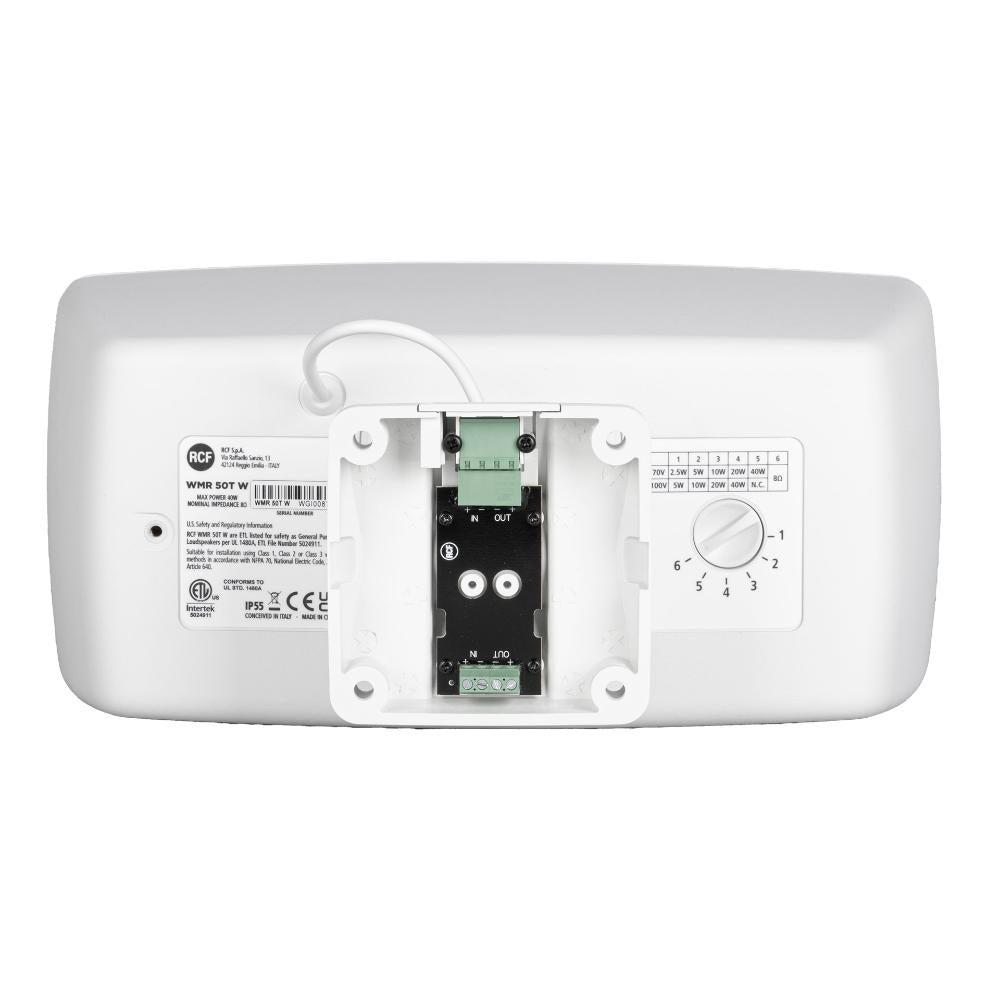

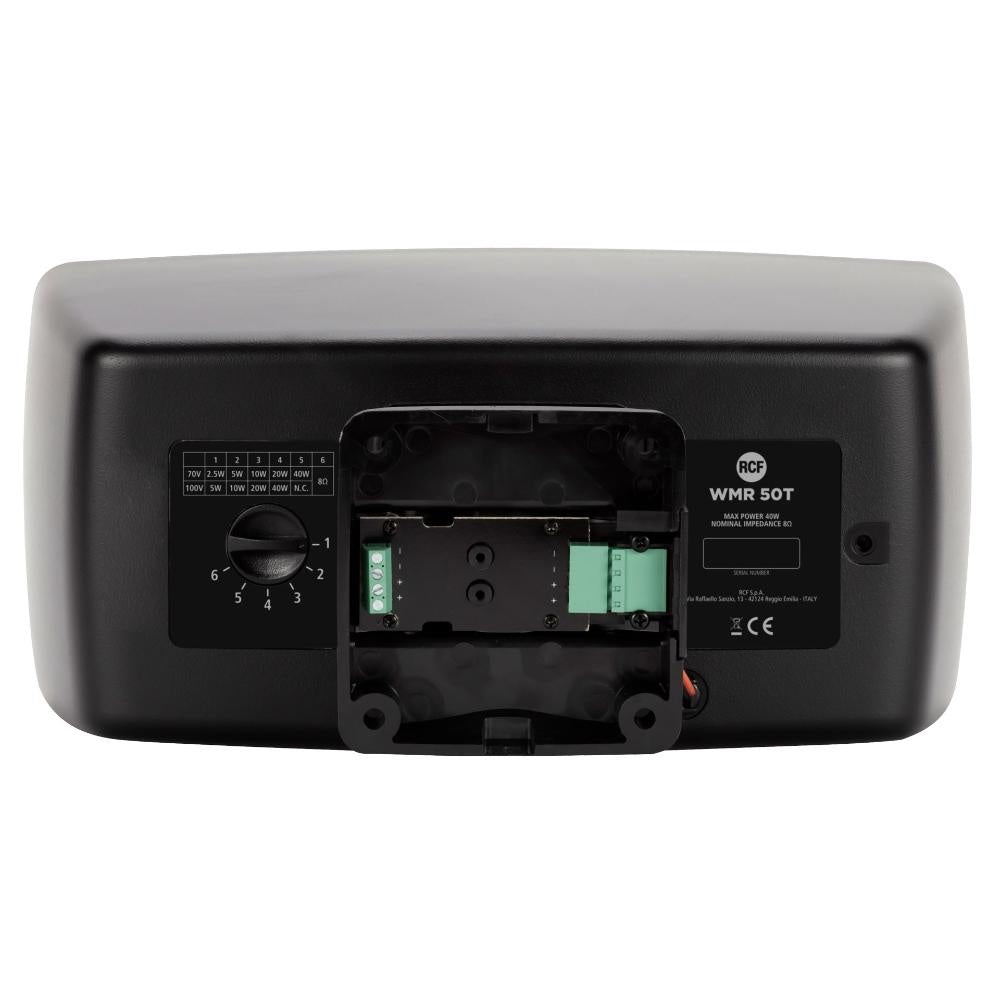

  • Connection Board Integrated Into Included Wall Bracket Allows Tool-Free Wiring

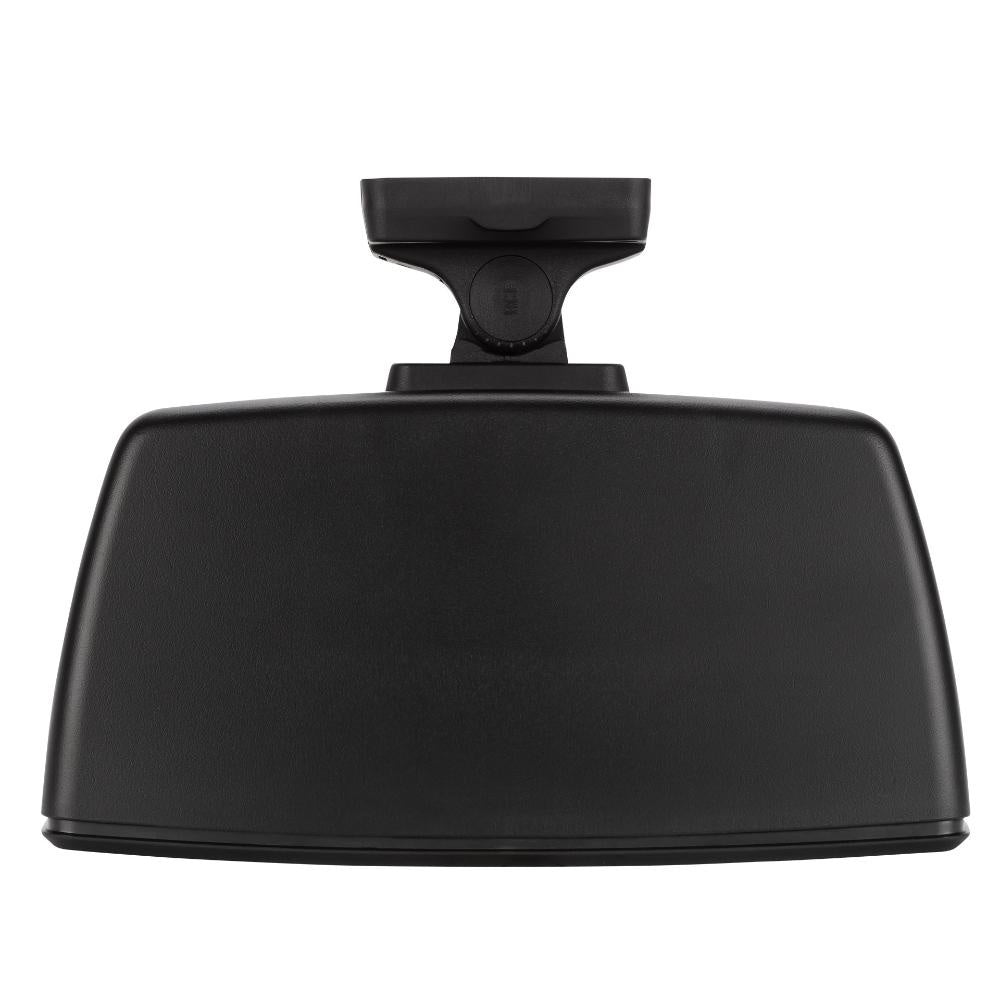

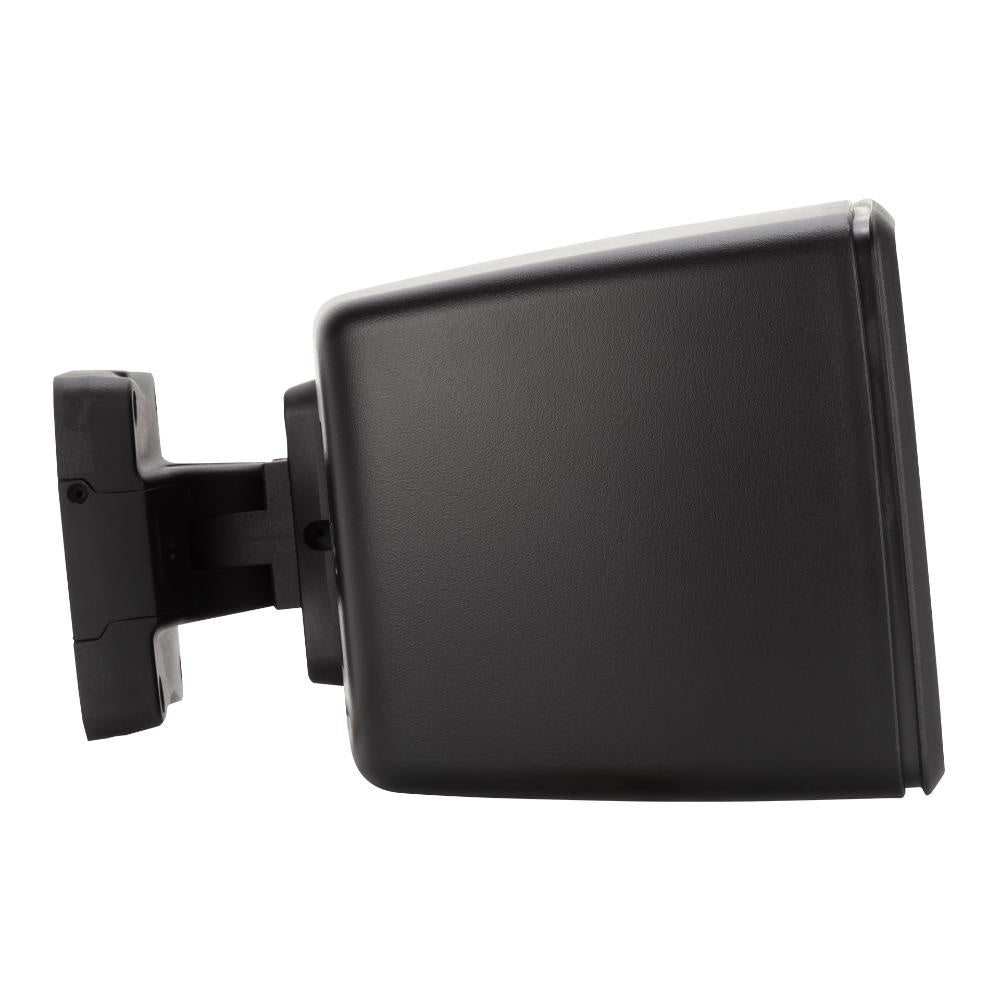

  • Adjustable Tilt On Wall Bracket Lets Installers Optimize Coverage Before Locking Down

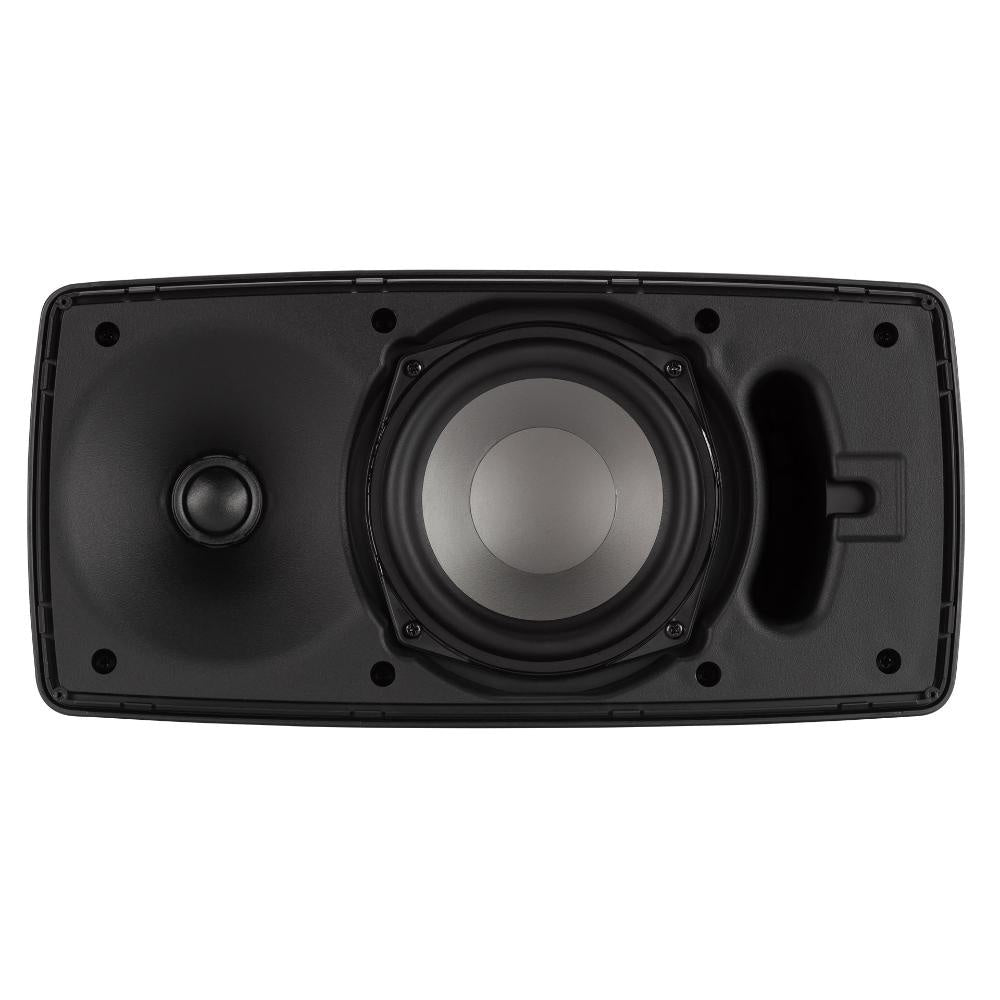

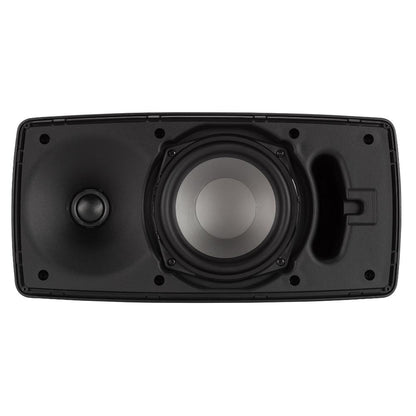

  • 1" Neodymium Dome Tweeter Delivers High-Frequency Clarity In A Compact Enclosure
  • 140 x 100 Degree Constant Directivity Pattern Maintains Consistent Coverage Across Zones
  • CE And UL 1480A Certified For Safety Compliance In Commercial Installations
Log in or register for YOUR best price

The RCF WMR series is designed for systems integrators and AV installers who need a compact, architecturally discreet wall mount speaker that performs reliably across a wide range of installed audio environments. Hotels, restaurants, retail spaces, houses of worship, transit facilities, and corporate lobbies all represent core applications. The built-in 70/100V constant voltage transformer supports daisy-chaining across distributed audio systems without external transformer hardware, and the 4-pole Euroblock connector provides both audio input and parallel link output from a single connection board integrated into the included wall mount bracket. This eliminates the need for separate junction boxes and significantly reduces installation time.

Where the WMR stands apart from standard install speakers is in its combination of IP55 environmental protection, a neodymium dome tweeter for high-frequency clarity, and a 140 x 100 degree constant directivity coverage pattern that keeps sound consistent across the listening area. The self-extinguishing ABS cabinet and steel grille meet safety compliance requirements, and the design is certified CE and UL 1480A. The series is available in two woofer sizes and in black or white finishes to suit different architectural contexts. Recommended amplifier pairings include RCF XPS, KPS, and DMA series amplifiers.

View full details

Specifications

Certifications
IP Protection Grade
IP55
Safety Agency
CE compliant, UL 1480A
Audio
Frequency Response (-10dB)
80 Hz - 20000 Hz
Max SPL @ 1m
110 dB
System Sensitivity
88 dB
Horizontal Coverage Angle
140°
Vertical Coverage Angle
100°
Crossover Frequency
2500 Hz
Electrical
Nominal Impedance
8 ohm
Power Handling
40 W RMS
Peak Power Handling
160 W Peak
Amplification
Full Range
Protections
Bulb lamp
Constant Voltage Transformer
70/100 V
Power Selection 1
40 W - 250 ohm
Power Selection 2
20 W - 500 ohm
Power Selection 3
10 W - 1000 ohm
Power Selection 4
5 W - 2000 ohm
Power Selection 5
2.5 W - 4000 ohm
Connectivity
Input Connectors
Euroblock
Output Connectors
Euroblock
Construction
Cabinet Material
ABS
Grille
Steel
Color
White - RAL 9003
Hardware
Wall mount bracket
Woofer
1 x 5.0", 1.0" v.c
Dome Tweeter
1 x 1.0" neo, 1.0" v.c
Recommended Amplifiers
XPS Series, KPS Series, DMA Series
Dimensions
Height
13.74"
Width
6.69"
Depth
9.96"
Weight
Product Weight
9.26 lbs
Shipping
Package Height
10.94"
Package Width
16.46"
Package Depth
12.13"
Package Weight
11.68 lbs
