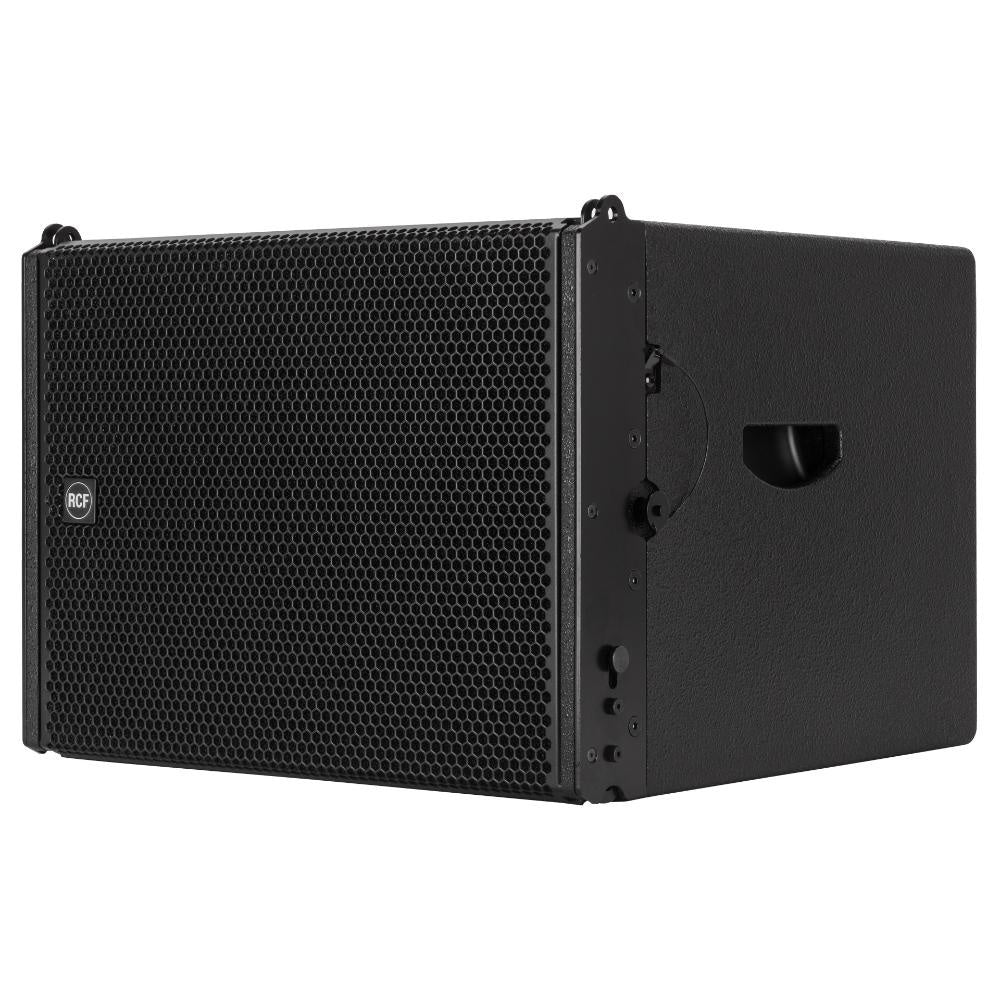

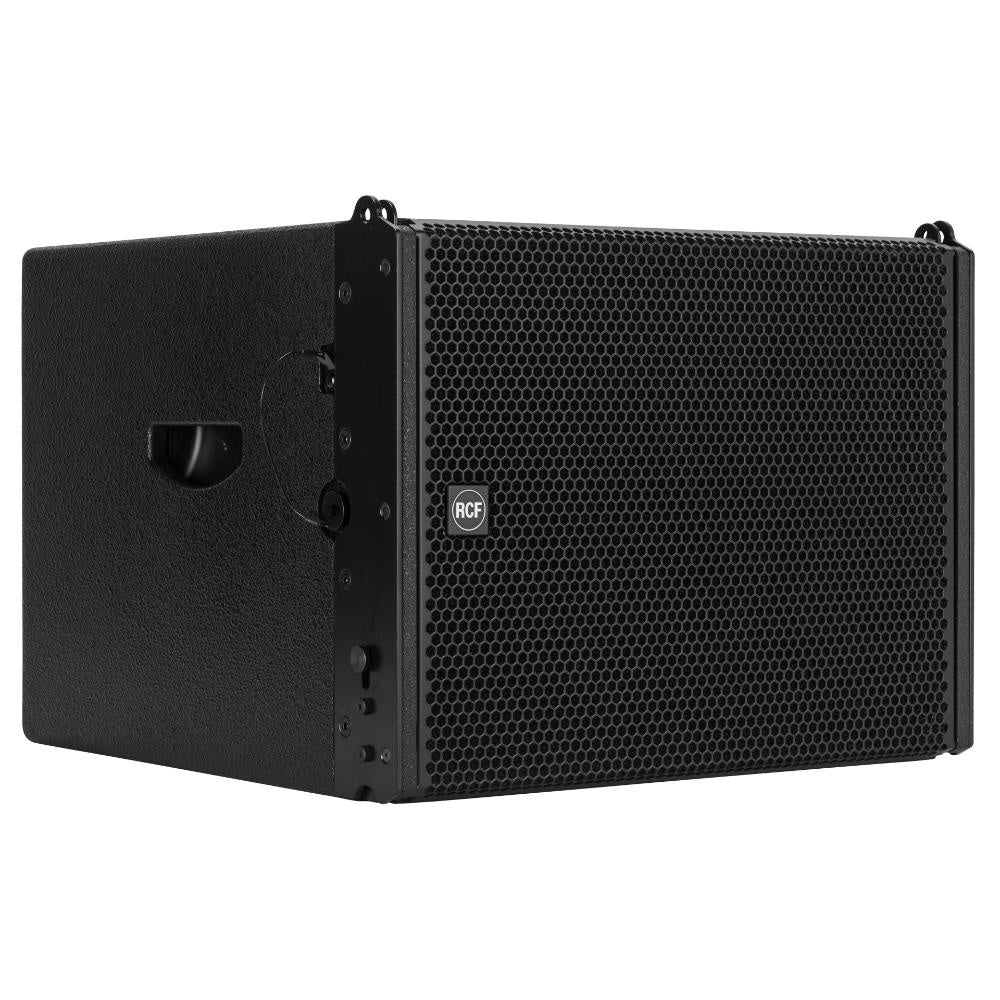

RCF HDL12-AS Active Flyable High Power Subwoofer

RCF HDL12-AS Active Flyable High Power Subwoofer

SoundPro Item: 62152 | Part Number: HDL12-AS

$2,199.00
$3,509.00 $2,199.00
Your Price Sold out
MSRP: $3,509.00 | MAP: $2,199.00

Usually ships in 5-7 business days

  • 1400 Watt Peak Digital Amplifier With 700 Watt RMS Continuous Output
  • 131 dB Maximum SPL Achieves High Sound Pressure In Compact Enclosure
  • 40 Hz To 120 Hz Frequency Response Focuses Energy On Deep Bass Frequencies

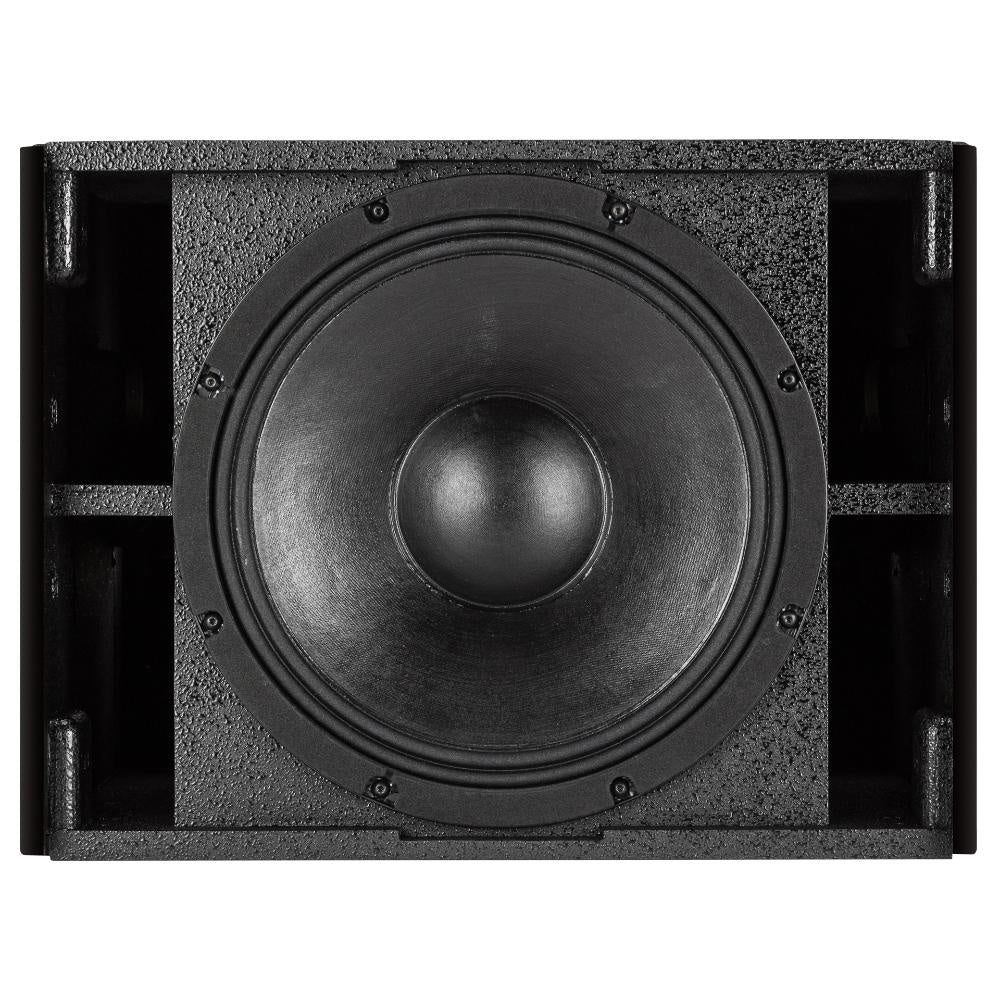

  • 12-Inch Woofer With 3-Inch Voice Coil Provides Accurate Low-End Reproduction
  • Integrated DSP Stereo Crossover With Adjustable High-Pass And Low-Pass Frequencies
  • Polarity Reverse Switch And Three-Band EQ Enable Precise Phase Alignment

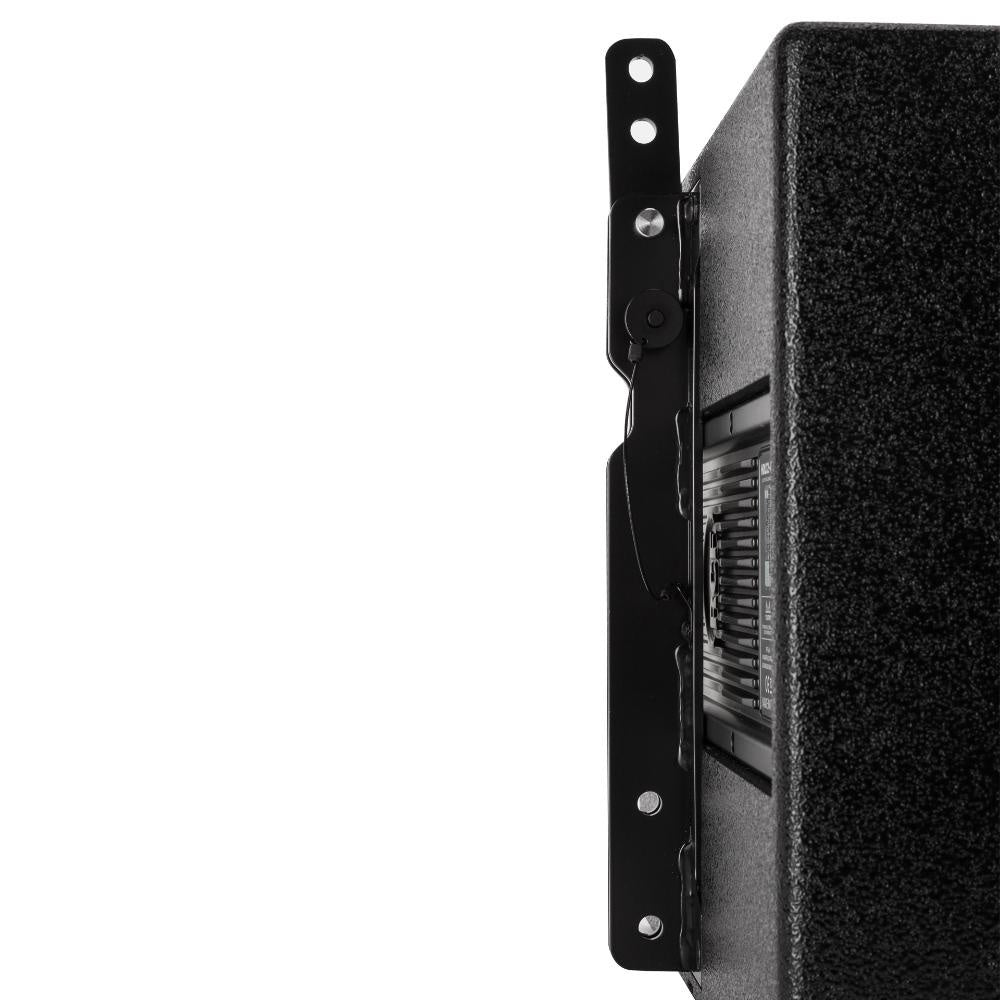

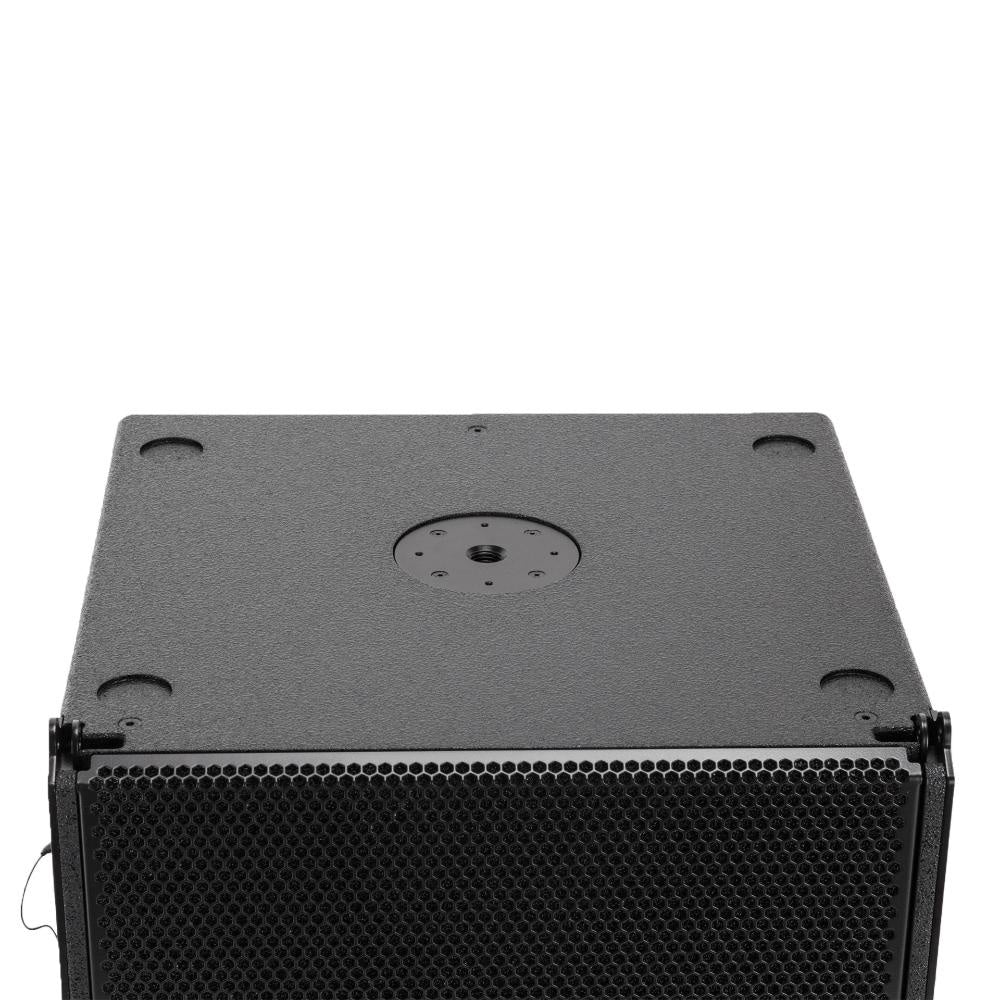

  • Array Fittings And M20 Pole Connection Allow Direct Flying With HDL 6-A Clusters

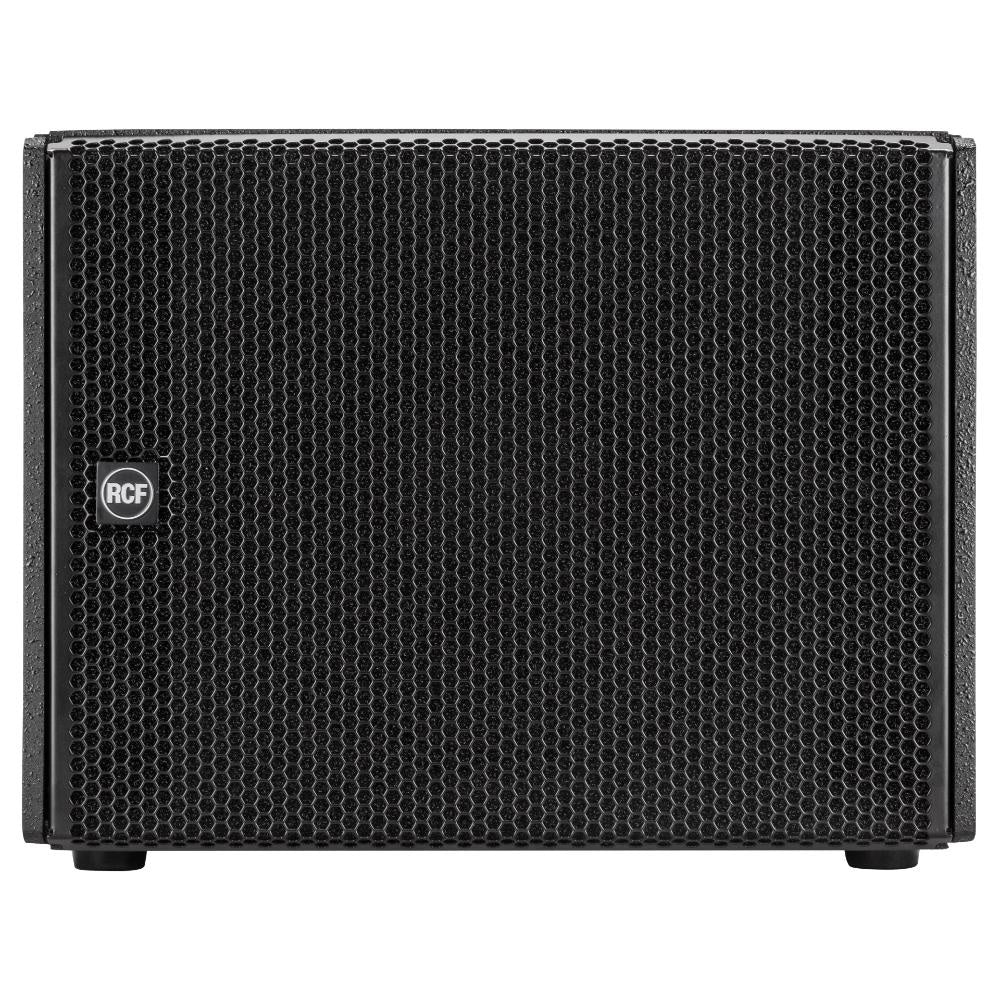

  • Balt Birch Plywood Cabinet With Steel Grille Provides Durability For Touring And Install
Log in or register for YOUR best price

The RCF HDL12-AS is a purpose-built companion subwoofer for HDL 6-A line array systems, designed for touring and installed applications that demand portable flyable subwoofer solutions. Its 1400W peak digital amplifier and 12-inch woofer deliver authoritative low-frequency reproduction across 40 Hz to 120 Hz, reaching 131 dB maximum SPL at 1 meter—enough output to anchor large-format HDL 6-A clusters without adding significant system weight or footprint.

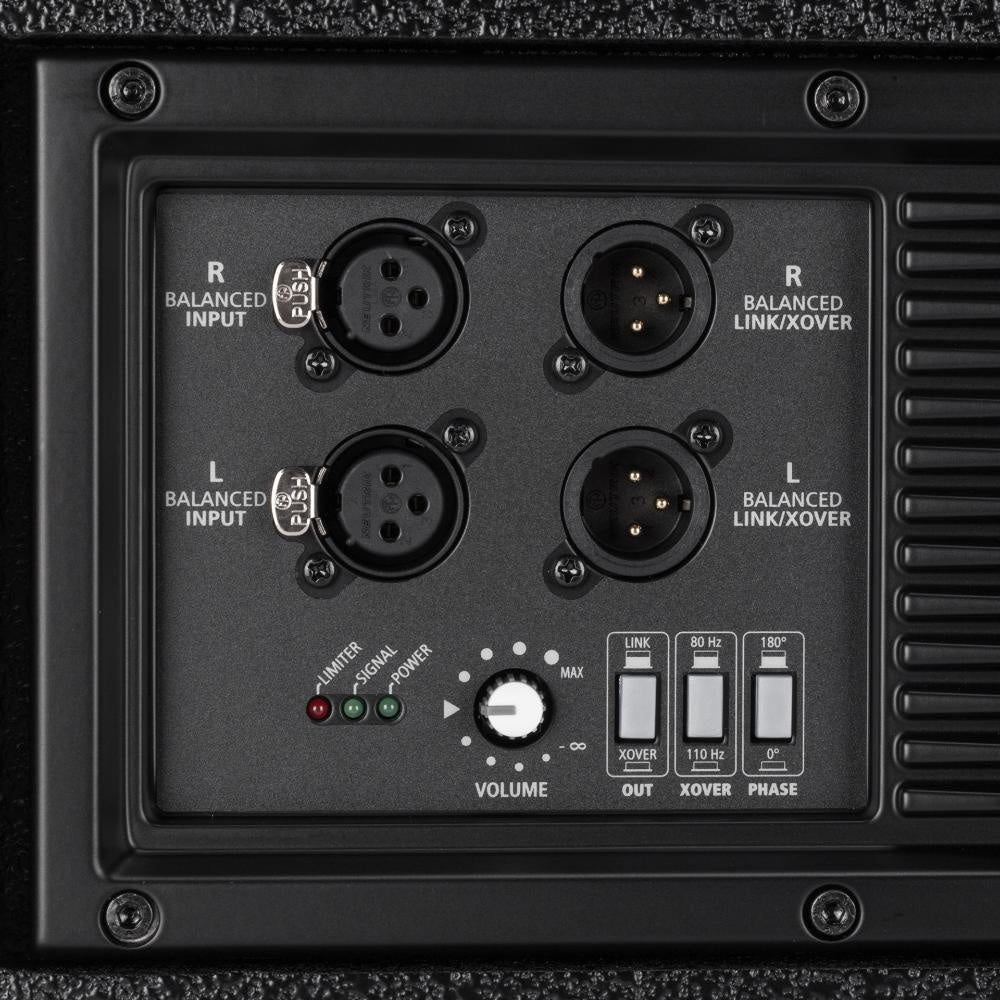

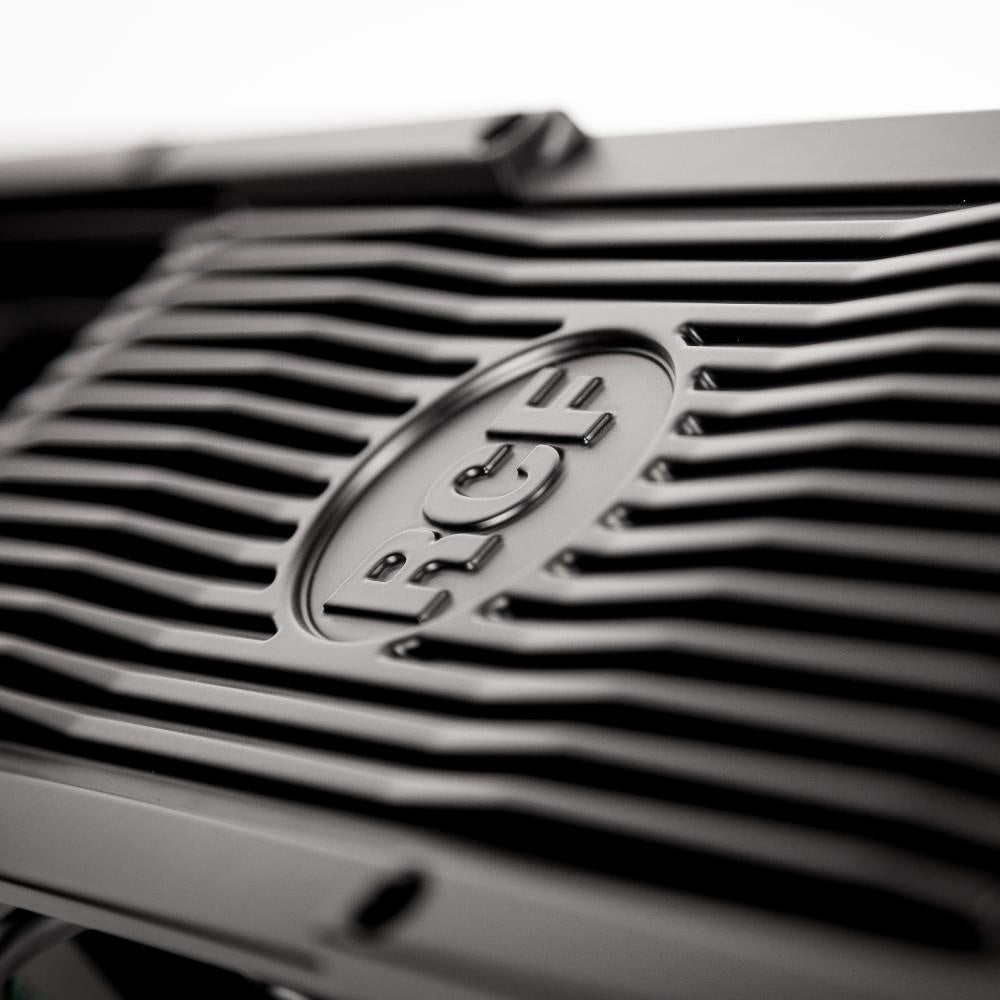

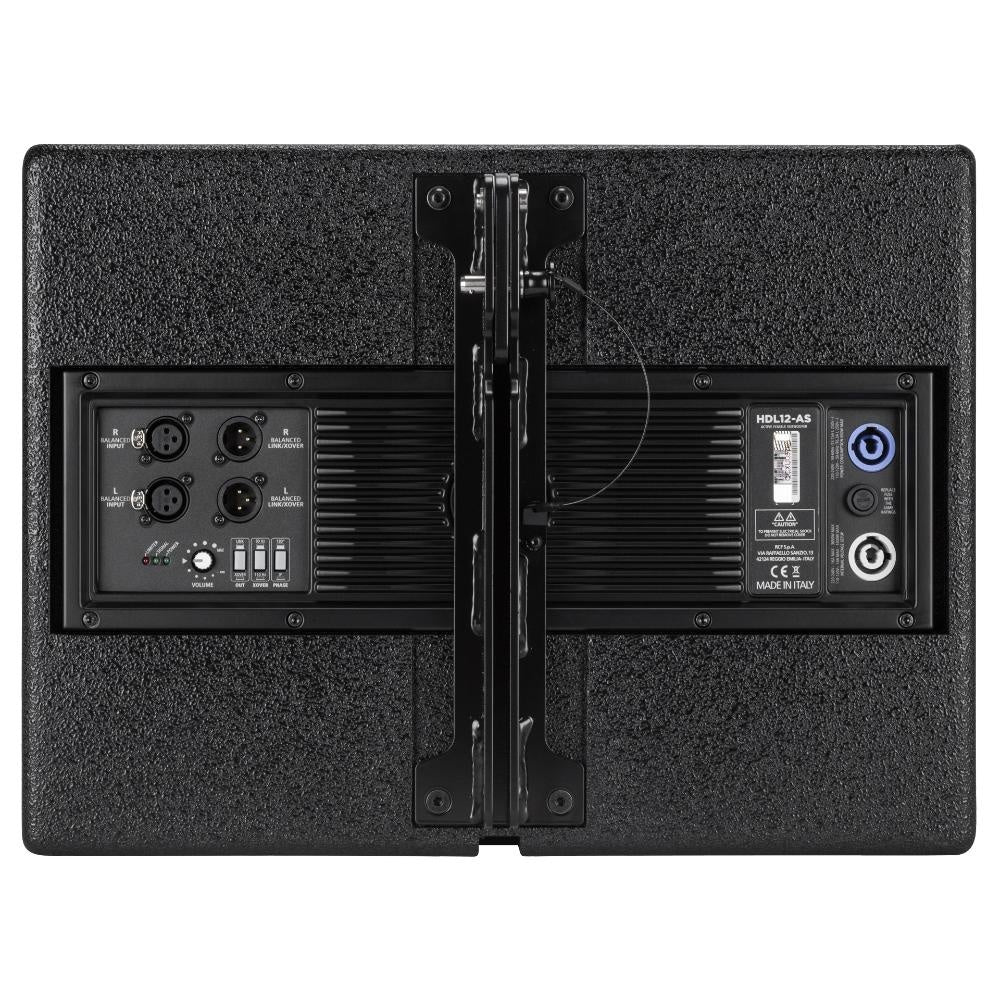

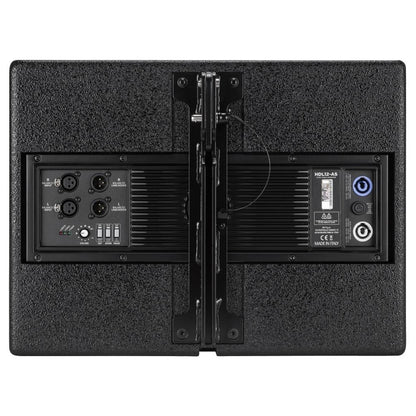

The integrated processor includes stereo DSP crossover with user-selectable high-pass and low-pass frequencies (40 Hz high-pass; 80 Hz or 110 Hz low-pass), phase reverse, volume, and three-band EQ. Thermal and RMS limiting protect the amplifier during extended operation. Dual XLR balanced/unbalanced inputs and outputs allow daisy-chaining to satellite speakers or mixing consoles. The cabinet is constructed from Baltic birch plywood with a steel grille, array-compatible hardware for M20 poles, and dual side handles for manual rigging. Convection cooling eliminates fan noise for studio and theater environments.

Choose the HDL12-AS when you need a compact, flyable sub that integrates with modular line array systems and fits into touring rigs where space and weight are constraints. Its DSP-driven crossover and protection suite make it as reliable in permanent installations as it is in temporary event setups.

Downloads

View full details

Specifications

Audio
Frequency Response
40 Hz–120 Hz
Max SPL @ 1m
131 dB
Woofer
1 x 12", 3.0" v.c.
Electrical
Total Power
1400 W Peak, 700 W RMS
Low Frequencies Power
1400 W Peak, 700 W RMS
Input Sensitivity
-2 dBu/+4 dBu
Cooling
Convection
Connectivity
Input Signal
Balanced/Unbalanced
Input Connectors
XLR
Output Connectors
XLR

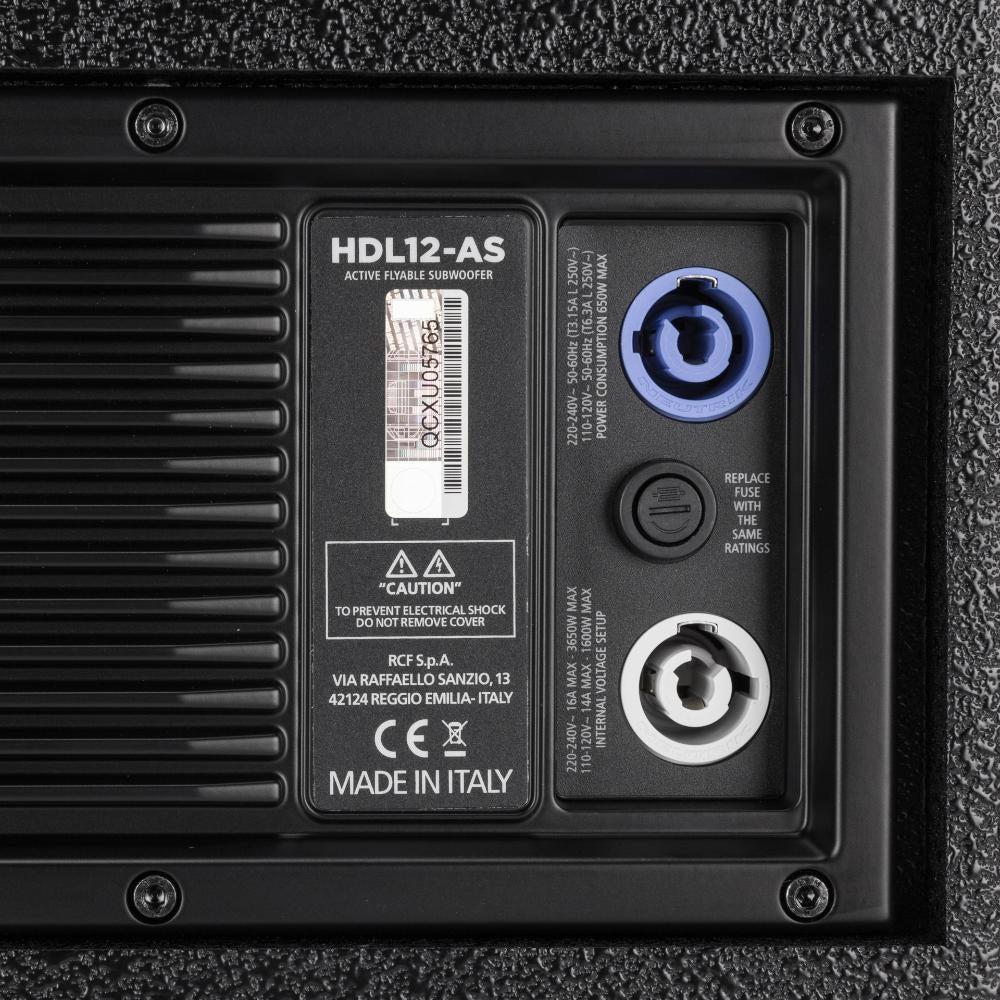

Power Connections
Powercon IN/OUT
Processor
Hi-Pass Frequencies
40 Hz
Low-Pass Frequencies
80 Hz, 110 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume, EQ, Phase, Xover
Construction
Cabinet Material
Baltic Birch Plywood
Grille
Steel
Hardware
Array Fittings, M20 Pole
Handles
2 Side
Color
Black, White
Dimensions
Height
14.92"
Width
18.50"
Depth
20.00"
Weight
Product Weight
55.12 lbs
Shipping
Package Height
17.13"
Package Width
22.05"
Package Depth
20.47"
Package Weight
61.73 lbs
Certifications
Safety Agency
CE Compliant
