Specifications
Electrical
Amplifier Class
H
Output Power @ 4 Ohms
2 x 1250 W
Output Power @ 8 Ohms
2 x 800 W
Output Power Bridge @ 8 Ohms
1 x 2500 W
Frequency Response (-3dB)
20 Hz - 22000 Hz
Distortion (THD+N) @ 1 kHz
<0.01 %
Crosstalk
<80 dB
Operating Voltage
220-240/115 V~ 50/60Hz
Power Consumption (MAX)
900 W
Inputs
Total Number Of Inputs
2
Input Type
Balanced XLR
Input Configuration
2 Mono Line Inputs

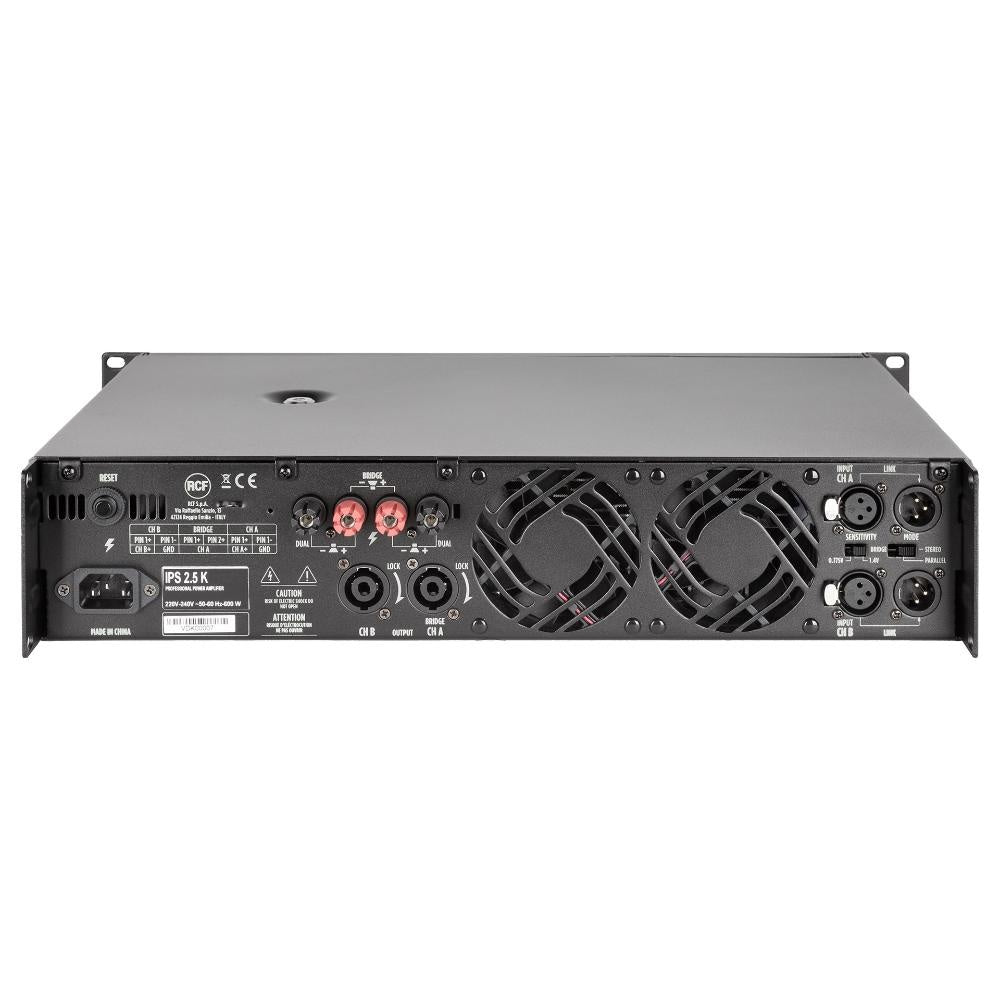

Outputs
Signal Output Number
2
Signal Output Connectors
XLR
Power Output Connectors
Binding Post, speakON
Dimensions
Height
3.46"
Width
18.98"
Depth
12.80"
Rack Mounting
19", 2U
Weight
Product Weight
41.45 lbs
Shipping
Package Height
5.51"
Package Width
21.65"
Package Depth
20.87"
Shipping Weight
45.42 lbs
Construction
Cabinet Material
Metal
Color
Black - RAL 9005
Certifications
Safety Agency
CE compliant
Short Circuit Protection
Yes
Thermal Protection
Yes
DC Protection
Yes
Fuse Protection
Yes
VHF Protection
Yes
