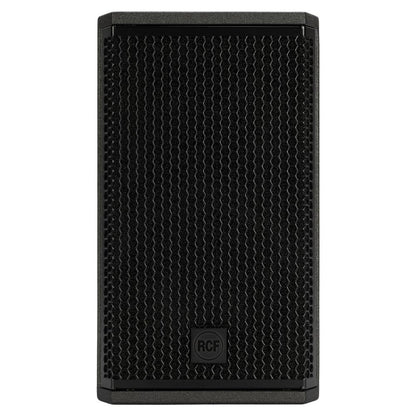

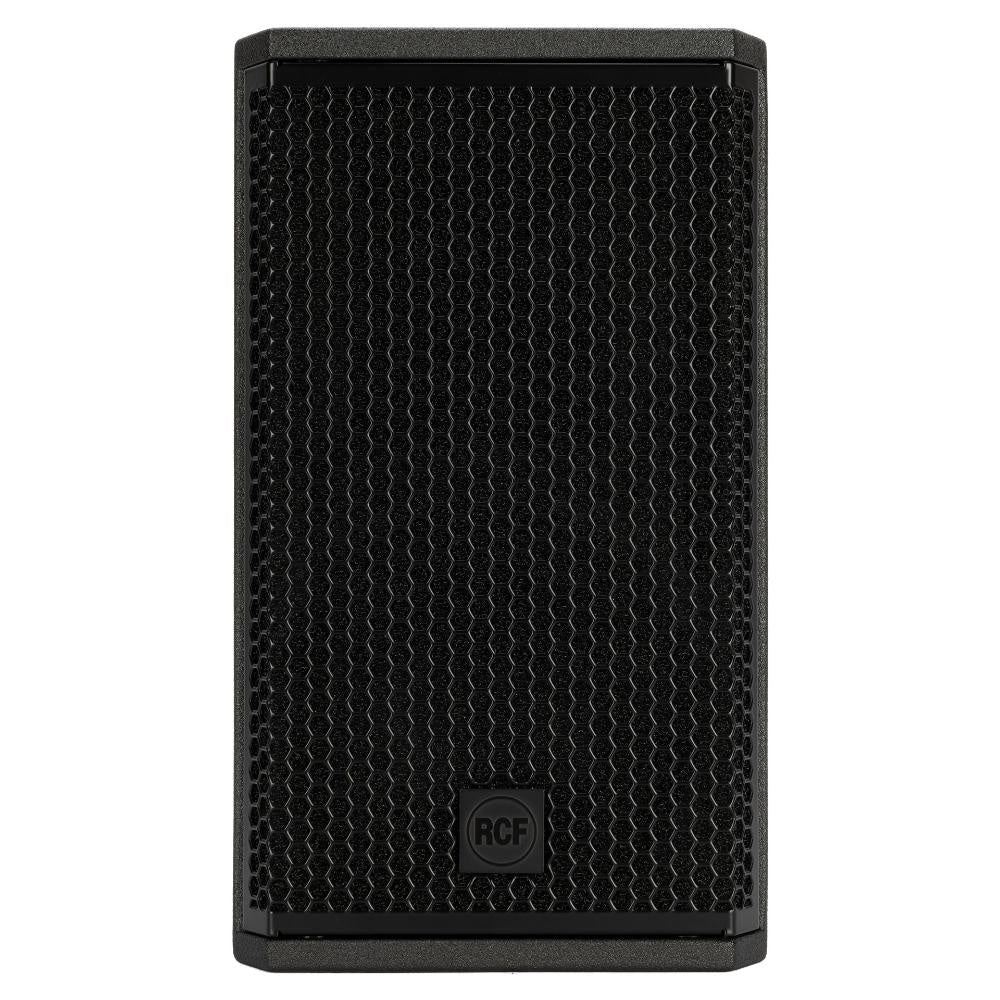

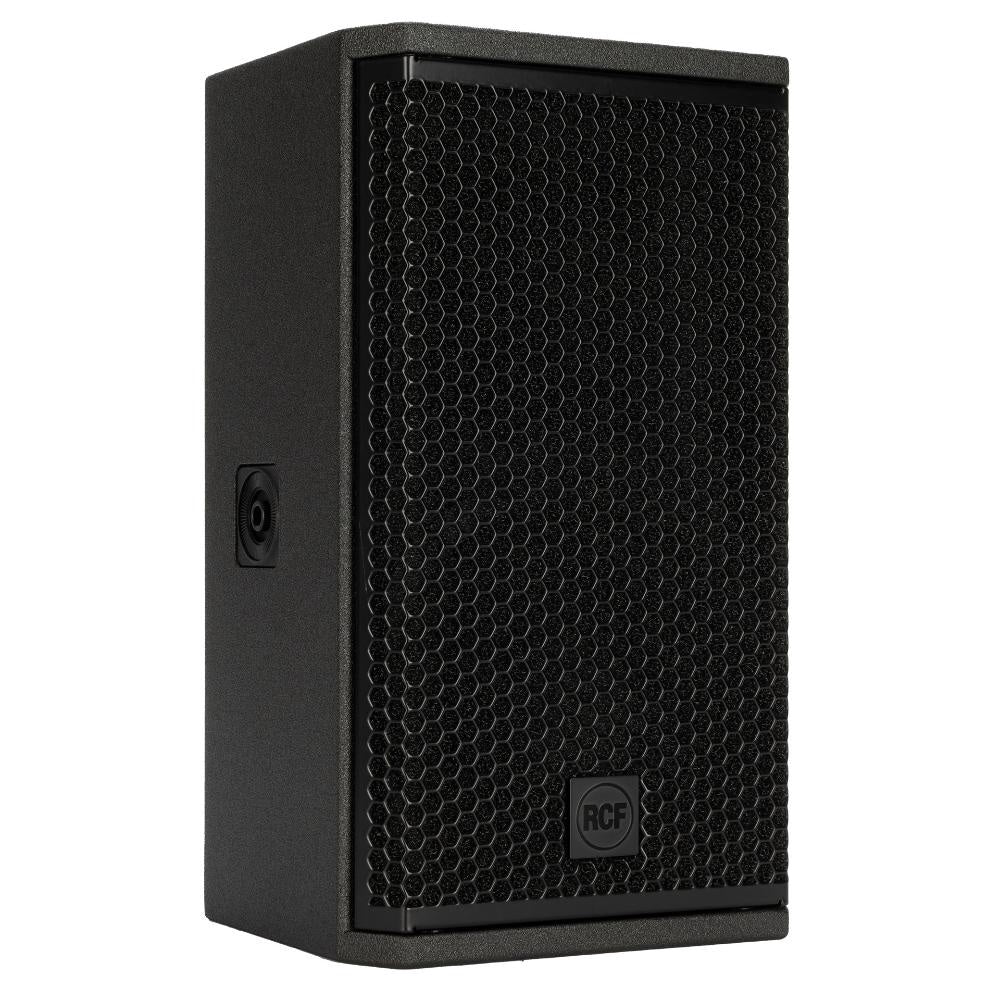

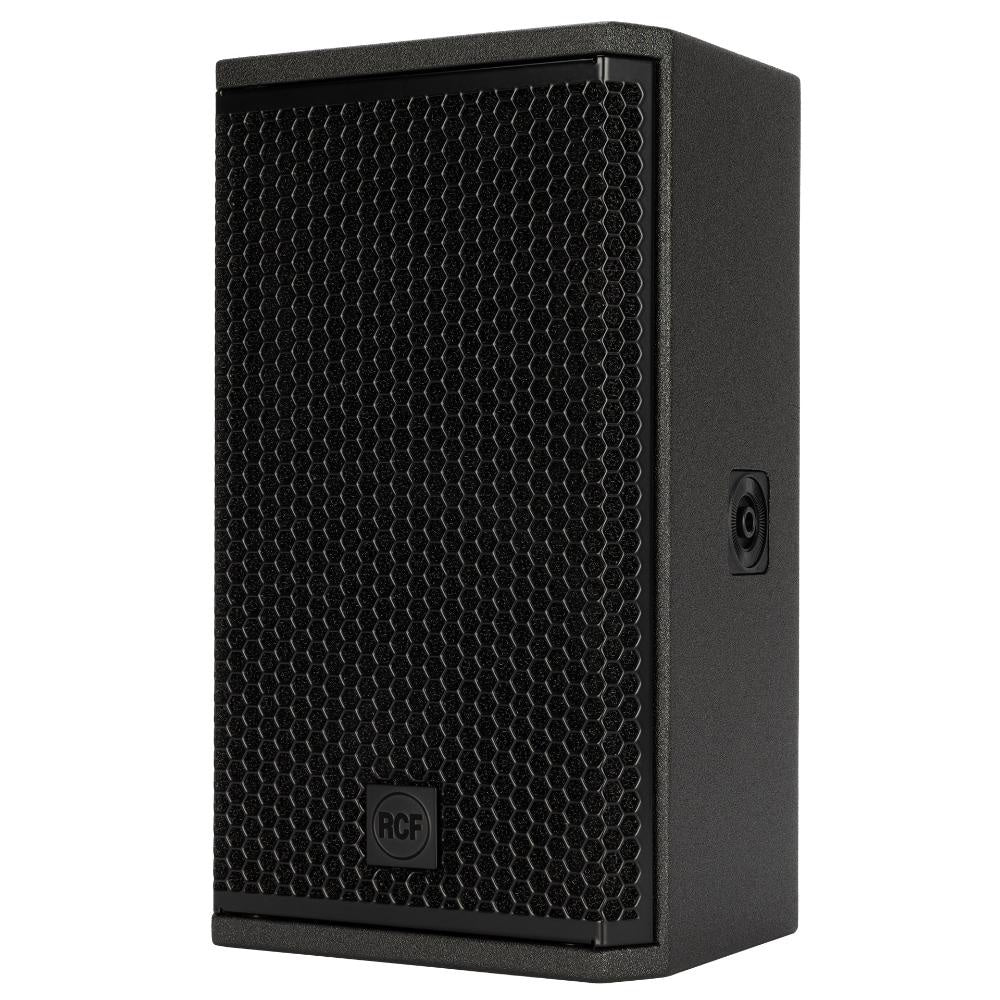

RCF KX 08-A Powered Line Array Module with RDNet

RCF KX 08-A Powered Line Array Module with RDNet

SoundPro Item: 203773 | Part Number: KX 08-A

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • 128 dB SPL supports high-output array use
  • Rotatable TRW horn adapts site coverage
  • FiRPHASE and BMC optimize system tuning
  • RDNet control enables remote management

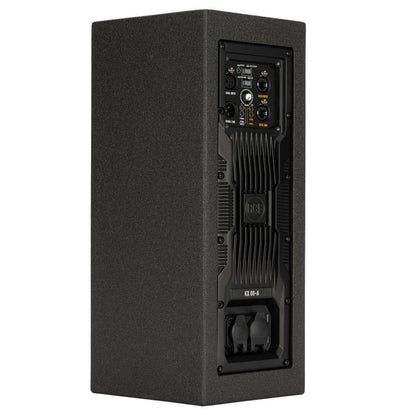

  • powerCON TRUE1 TOP IN/OUT streamlines power
  • Convection cooling supports silent operation

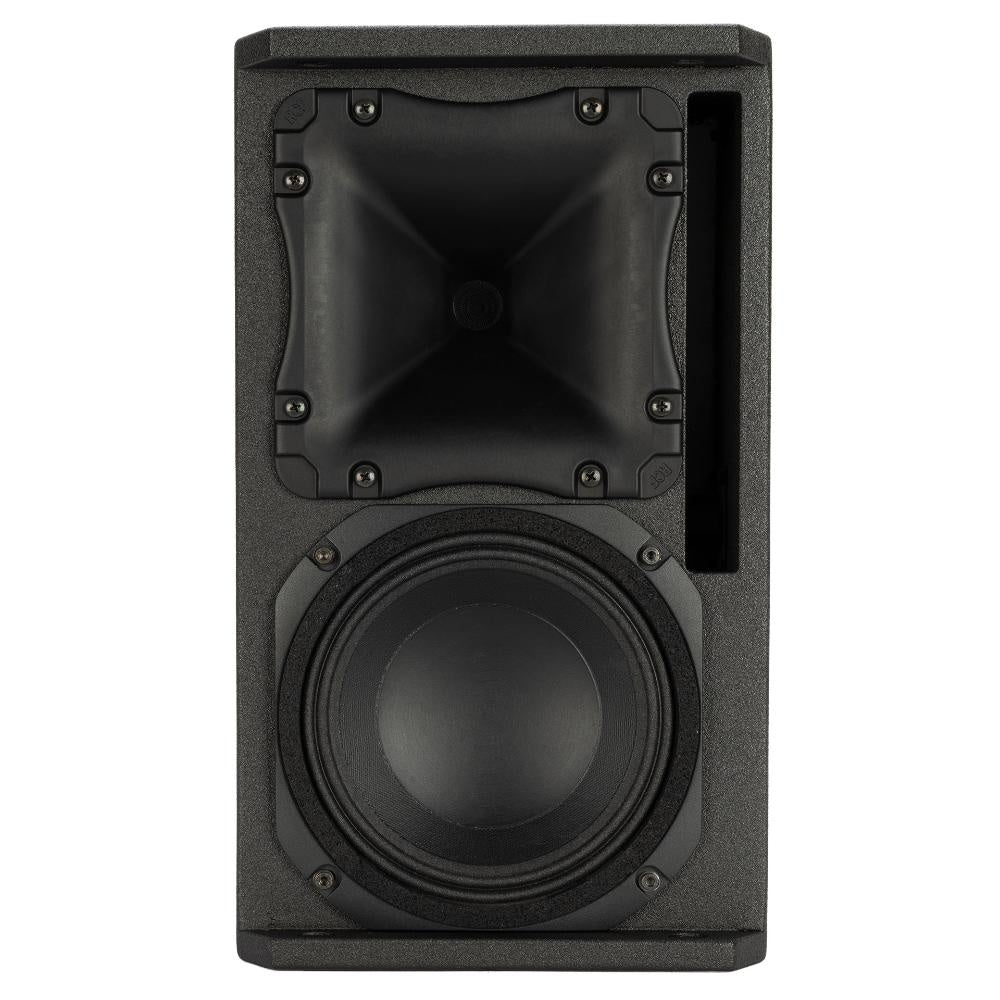

The KX 08-A is a compact 2-way active loudspeaker built for professional system integration where controlled coverage and high output are required. Its 8'' neodymium woofer and neodymium compression driver are paired with a rotatable 90° x 70° True Resistive Waveguide to adapt the enclosure to different aiming requirements.

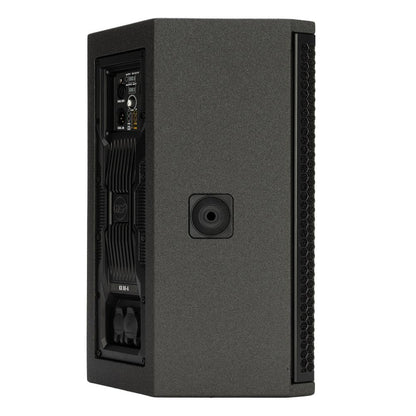

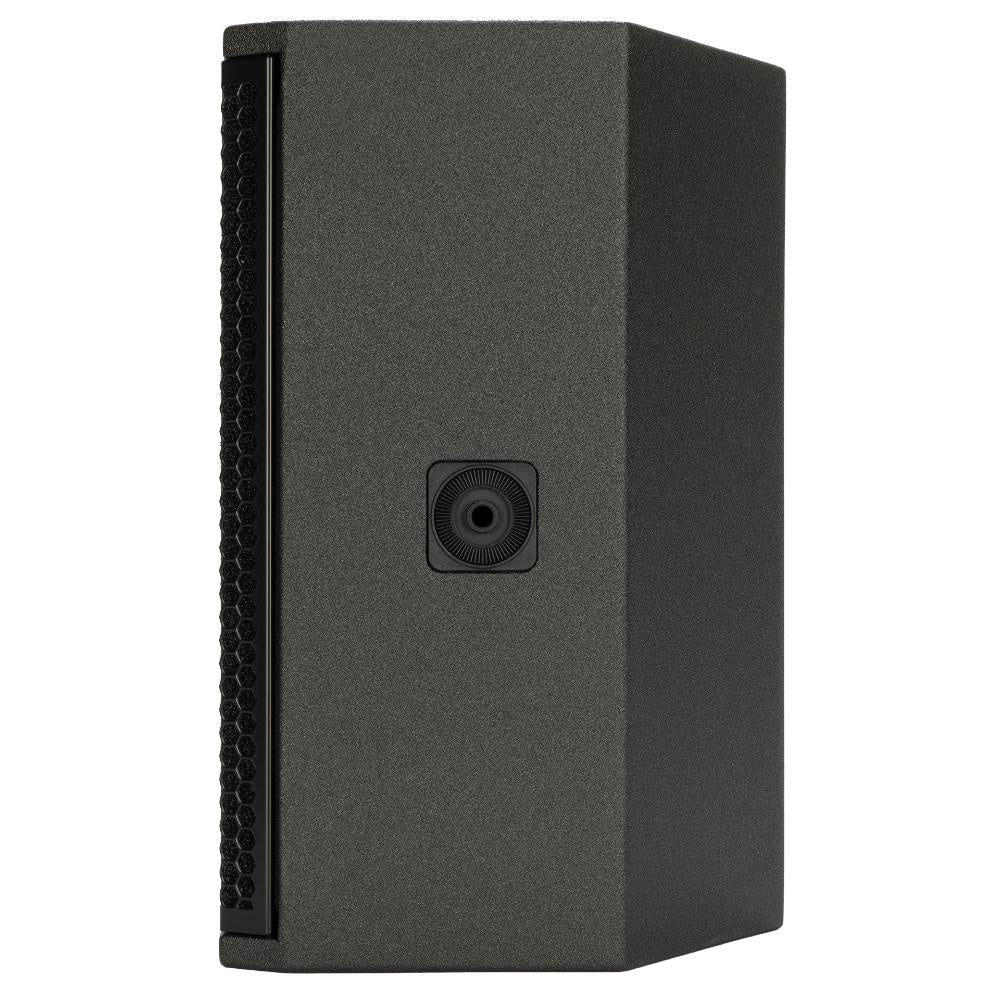

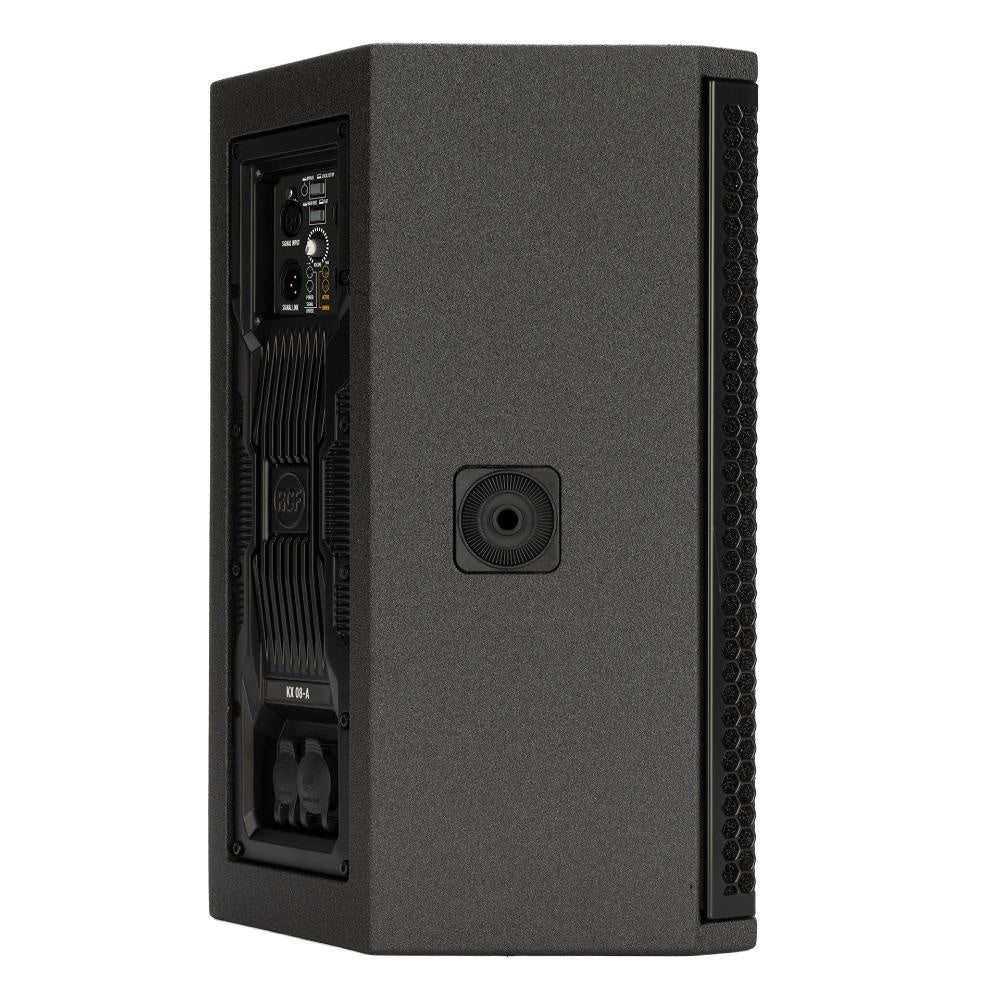

An integrated two-channel 2000 W Class D amplifier with DSP, FiRPHASE, BMC, and onboard RDNet supports configured operation and remote management. The enclosure also supports ground-stacked, pole-mounted, or flown installation using Quick Fit and M10 mounting points.

View full details

Specifications

Acoustical
Frequency Response
65 Hz - 20000 Hz
Max SPL @ 1m
128 dB
Horizontal coverage angle
90°
Vertical coverage angle
70°
Transducers
Compression Driver
1 x 1.0'' neo, 1.75'' v.c
Woofer
1 x 8'' neo, 2.5'' v.c

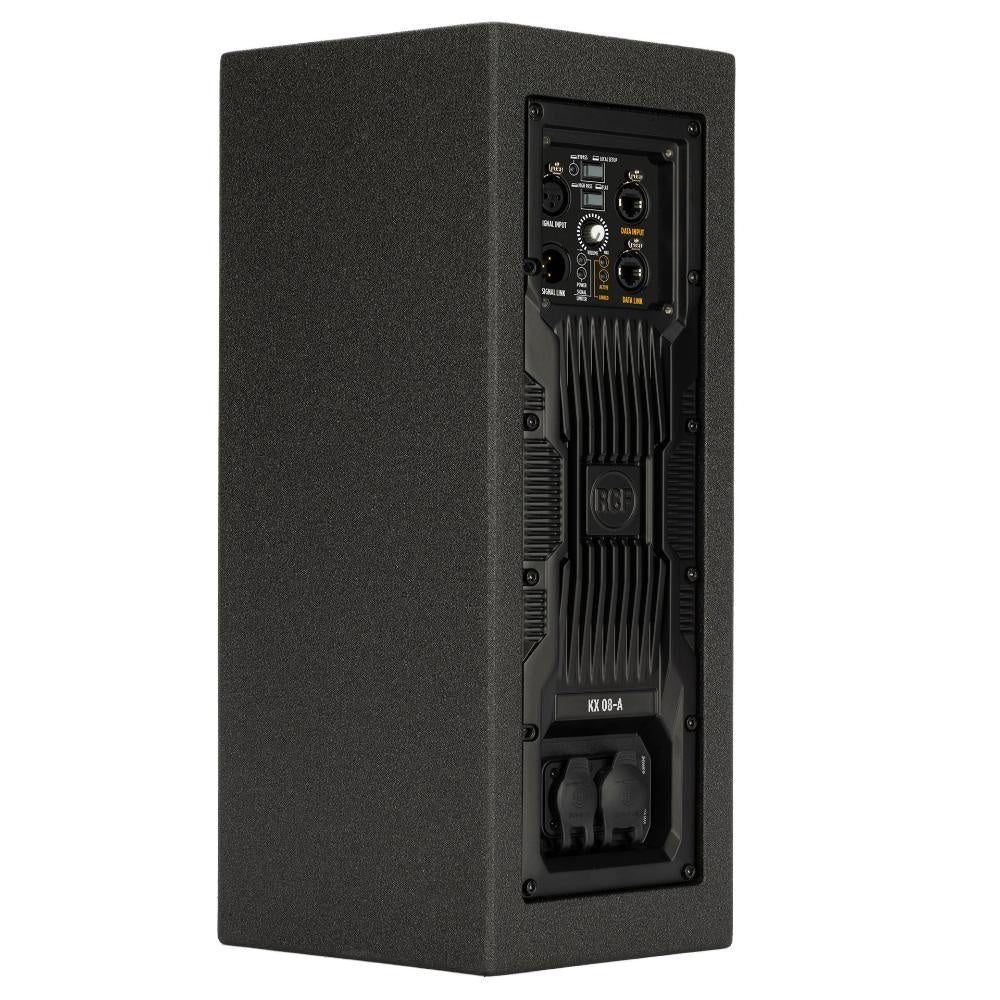

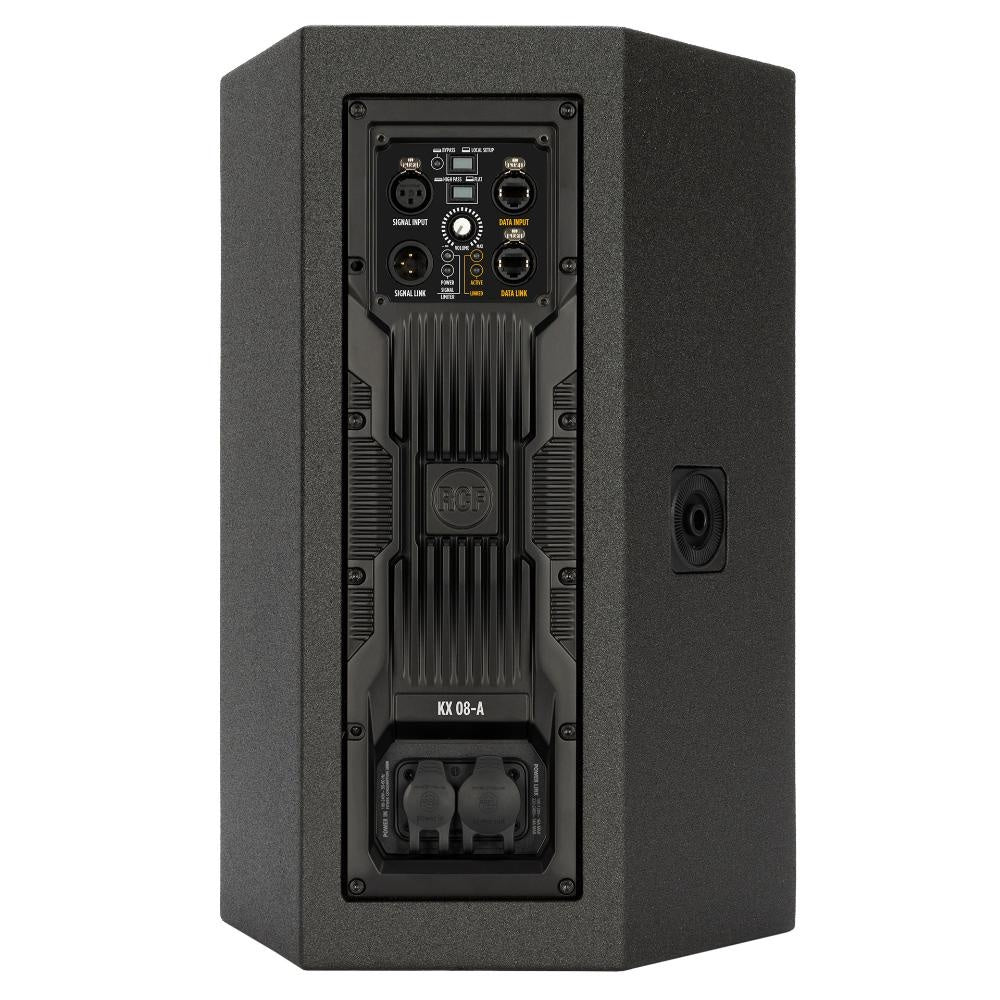

Input/Output
Input signal
bal/unbal
Input connectors
XLR, RDNet Ethercon
Output connectors
XLR, RDNet Ethercon
Input sensitivity
-2 dBu/+4 dBu
Processor
Crossover Frequencies
1400Hz
Protections
Thermal, HF
Limiter
Fast Limiter
Controls
Bypass, Linear/High Pass, Volume
RDNet
Onboard
Power
Total Power
2000 W Peak
High frequencies
600 W Peak
Mid frequencies
1400 W Peak
Cooling
Convection
Connections
Powercon TRUE1 TOP IN/OUT
Compliance
Safety agency
CE compliant
Physical
Cabinet/Case Material
Baltic birch plywood
Hardware
3X M10 TOP AND BOTTOM 2X PIN D.10 AND M10 SIDE

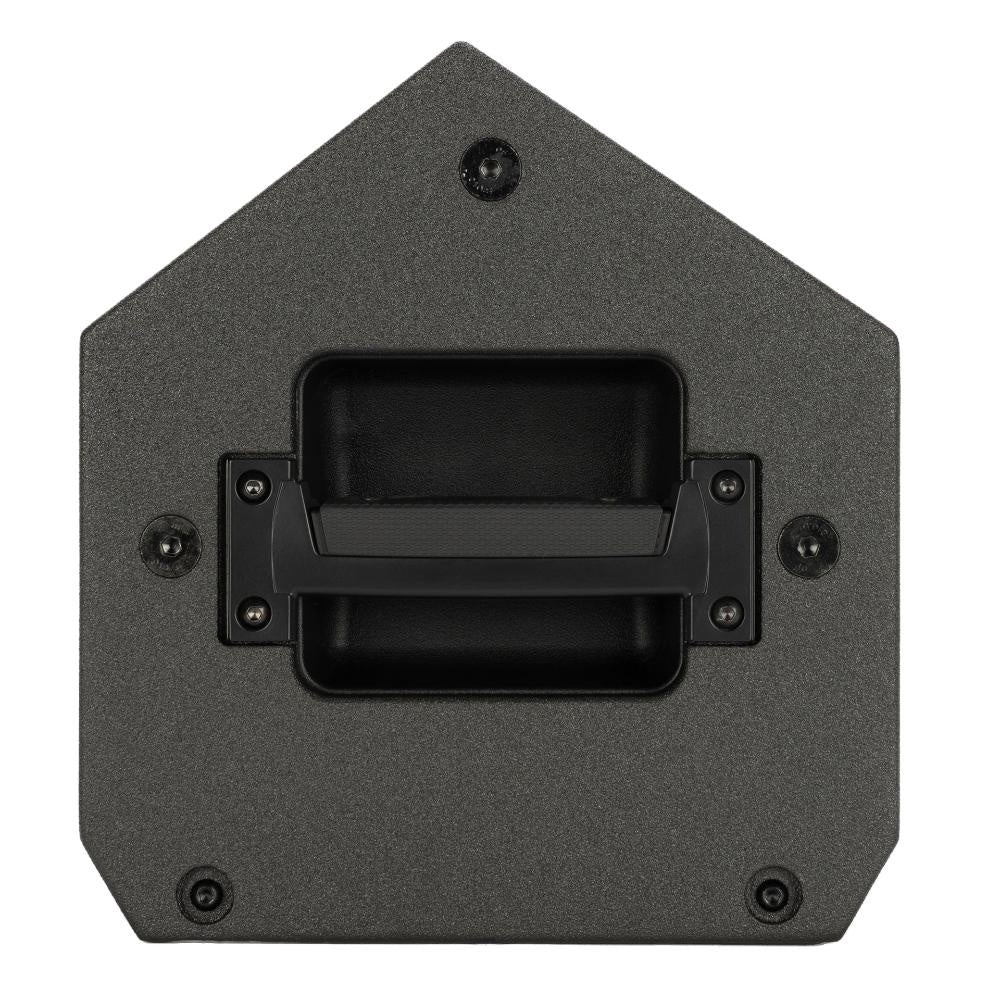

Handles
1 TOP

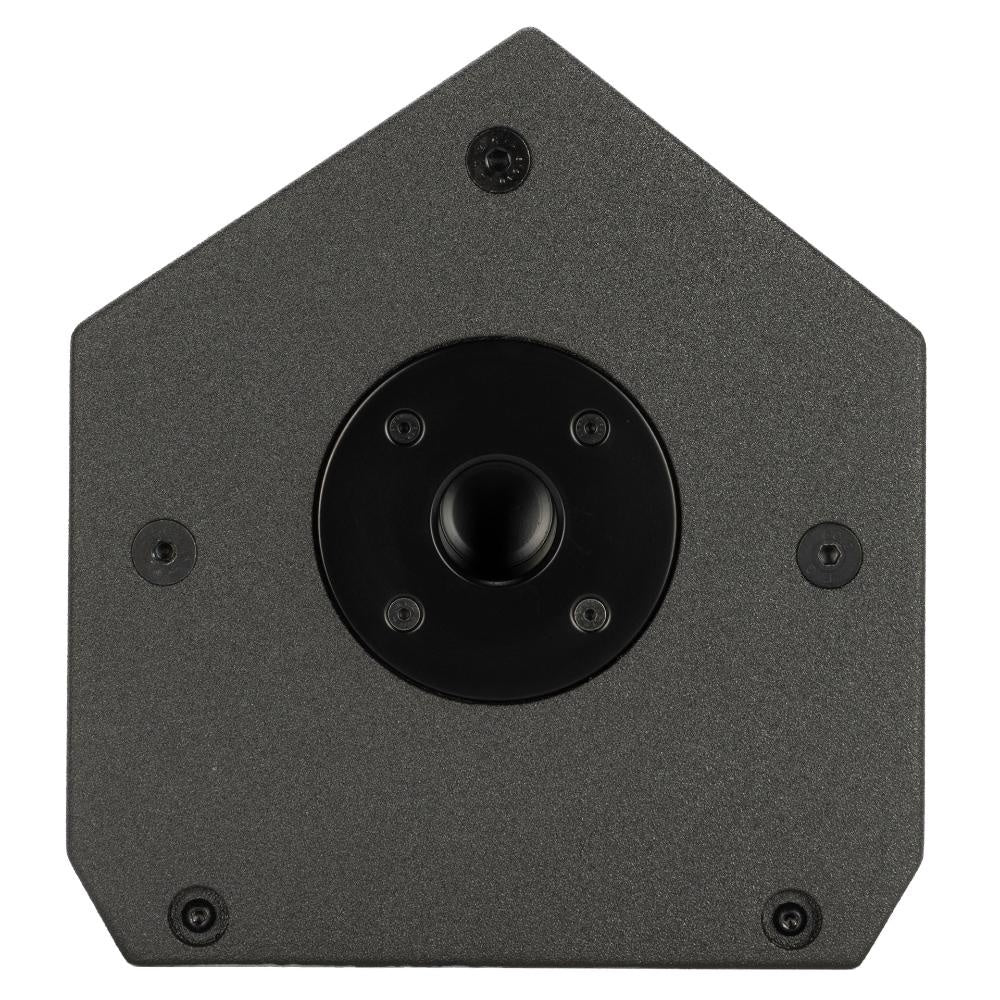

Pole mount/Cap
35 mm insert
Grille
Steel with clothing
Color
Black
Height
450 mm / 17.72 inches
Width
260 mm / 10.24 inches
Depth
285.4 mm / 11.24 inches
Weight
11 kg / 24.25 lbs
Shipping
Package Height
555 mm / 21.85 inches
Package Width
345 mm / 13.58 inches
Package Depth
315 mm / 12.4 inches
Package Weight
12.5 kg / 27.56 lbs
