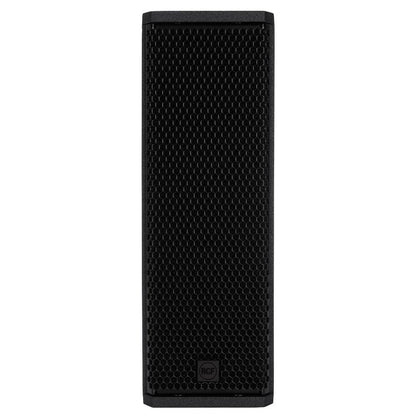

RCF KX 515-A High-Performance 2-Way Point-Source Active Speaker

RCF KX 515-A High-Performance 2-Way Point-Source Active Speaker

SoundPro Item: 148110 | Part Number: KX 515-A

$2,099.00
$2,999.00 $2,099.00
Your Price Sold out
MSRP: $2,999.00 | MAP: $2,099.00

Usually ships in 5-7 business days

  • Rotatable 100° × 70° CMD Waveguide Enables Flexible Coverage Control For Fills And Surrounds
  • Dual Custom-Loaded 5-Inch Neodymium Woofers With 2-Inch Voice Coils Deliver Punchy Low-Midrange Response
  • FiRPHASE And BMC DSP Processing Ensures Phase Coherence And Consistent Tonal Balance
  • RDNet Networked Management Provides Real-Time Monitoring And Recallable Presets Across Multi-Cabinet Systems
  • PowerCON TRUE1 TOP Mains Connections Simplify Touring Deployments And Reduce Cable Clutter
  • Lightweight 21.61 lb Cabinet With Quick-Fit Pole Socket Accelerates Rigging And Transport
Log in or register for YOUR best price

The KX 515-A combines RCF's proven transducer engineering with modern DSP and networked management, making it a go-to solution for touring sound engineers, rental houses, and system integrators who need a point-source cabinets that travels light without sacrificing output. Its controlled dispersion (100° × 70° CMD waveguide) and 127 dB max SPL allow it to function as a fill, surround, or compact main speaker in multi-cabinet rigs, while weatherproof construction and RDNet real-time monitoring keep it running reliably across outdoor events, theater installations, and corporate venues.

Purpose-built for speed: quick-fit pole mount, balanced XLR I/O, powerCON TRUE1 connectors, and on-board DSP with FiRPHASE and BMC processing eliminate setup delays. Whether rigging above a stage or ground-stacking in a compact corner, the KX 515-A adapts to the space while maintaining clarity across its 70 Hz–20 kHz bandwidth.

View full details

Specifications

Audio
Frequency Response
70 Hz - 20 kHz
Max SPL @ 1 m
127 dB
Horizontal Coverage
100°
Vertical Coverage
70°

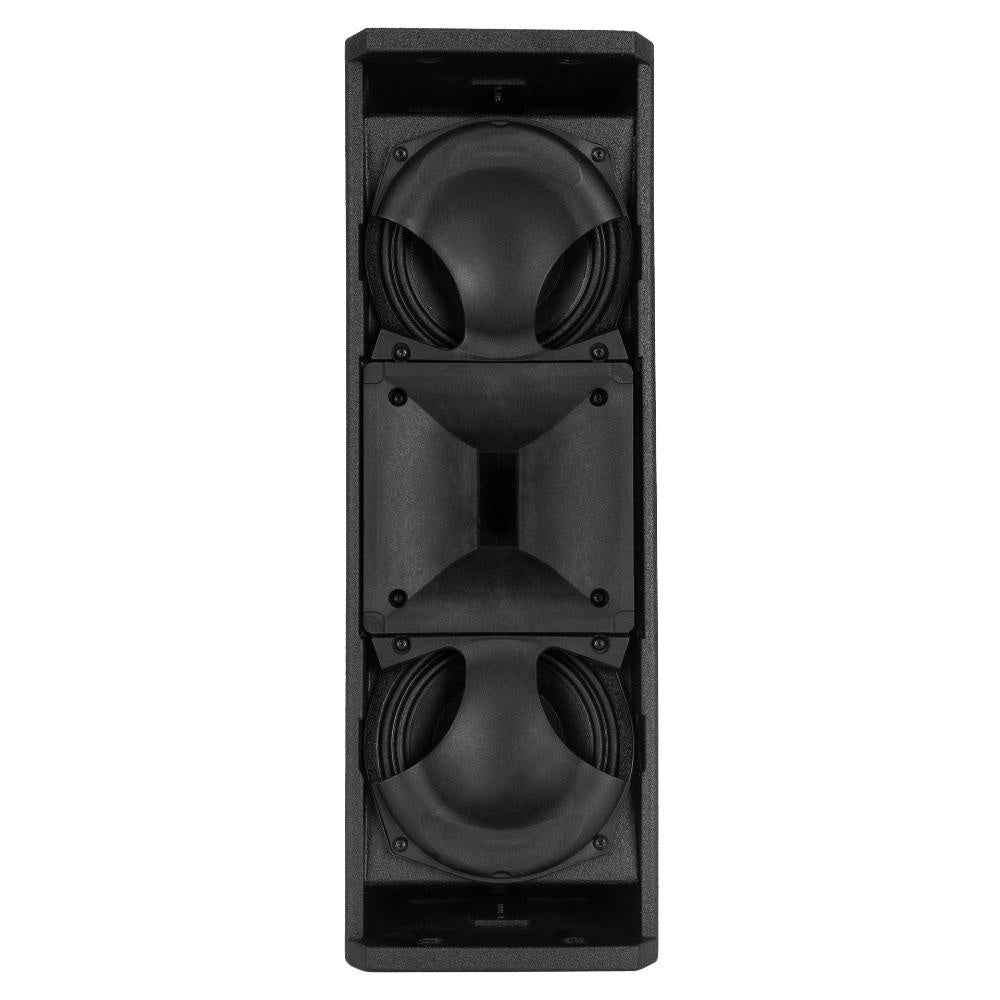

Transducers
Compression Driver
1 x 1.0" Neodymium, 1.75" Voice Coil
Woofer
2 x 5.0" Neodymium, 2.0" Voice Coil
Power
Total Power Output
2000 W Peak
High Frequency Power
600 W Peak
Low Frequency Power
1400 W Peak
Amplifier Type
2 x Class-D
Cooling
Convection

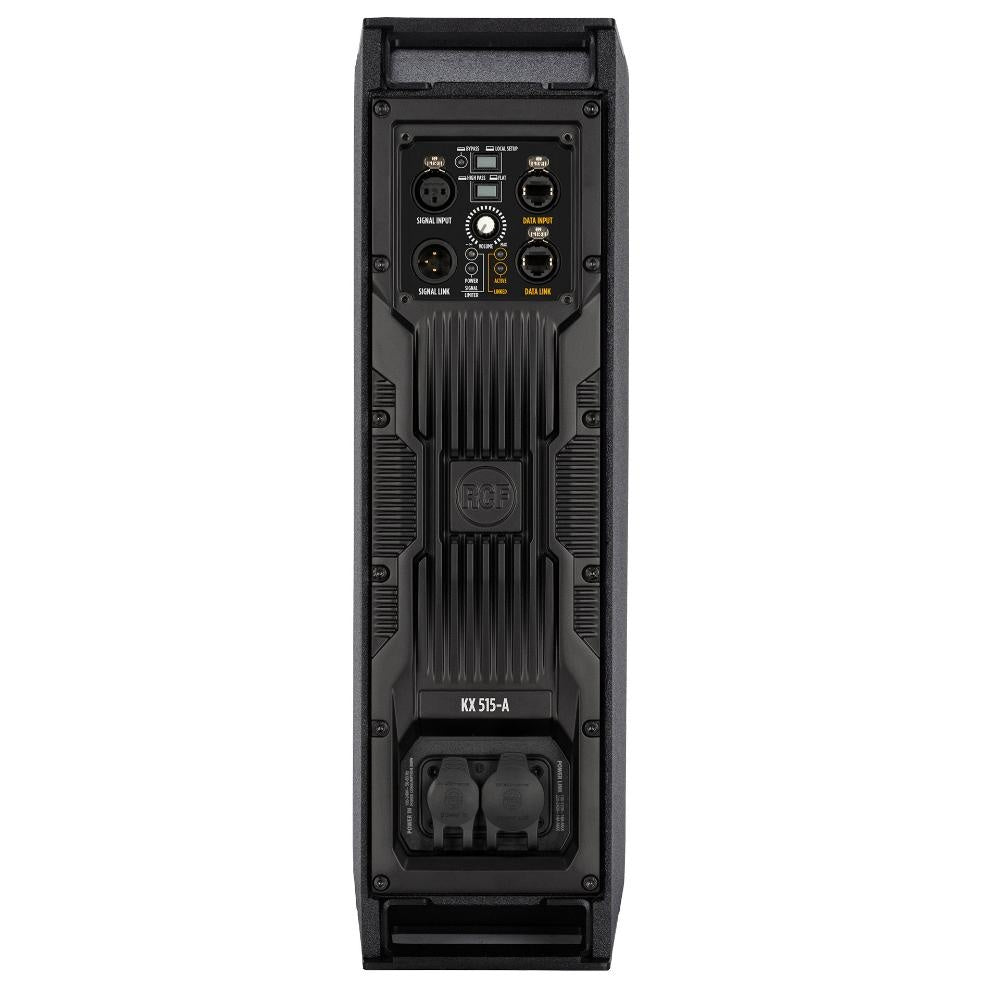

Connectivity
Input Signal
Balanced/Unbalanced
Input Connectors
XLR, RDNet Ethercon
Output Connectors
XLR, RDNet Ethercon
Mains Power
powerCON TRUE1 TOP IN/OUT
Input Sensitivity
-2 dBu/+4 dBu
Processor
Crossover Frequency
1200 Hz
Protections
Excursion Limiter, Fast Limiter
Controls
Bypass, Linear/High Pass, Volume
RDNet Management
Onboard
Construction
Cabinet Material
Baltic Birch Plywood
Grille
Steel With Clothing
Hardware
2 x M10 Top and Bottom, 2 x Pin D.10
Handles
2 Top and Bottom

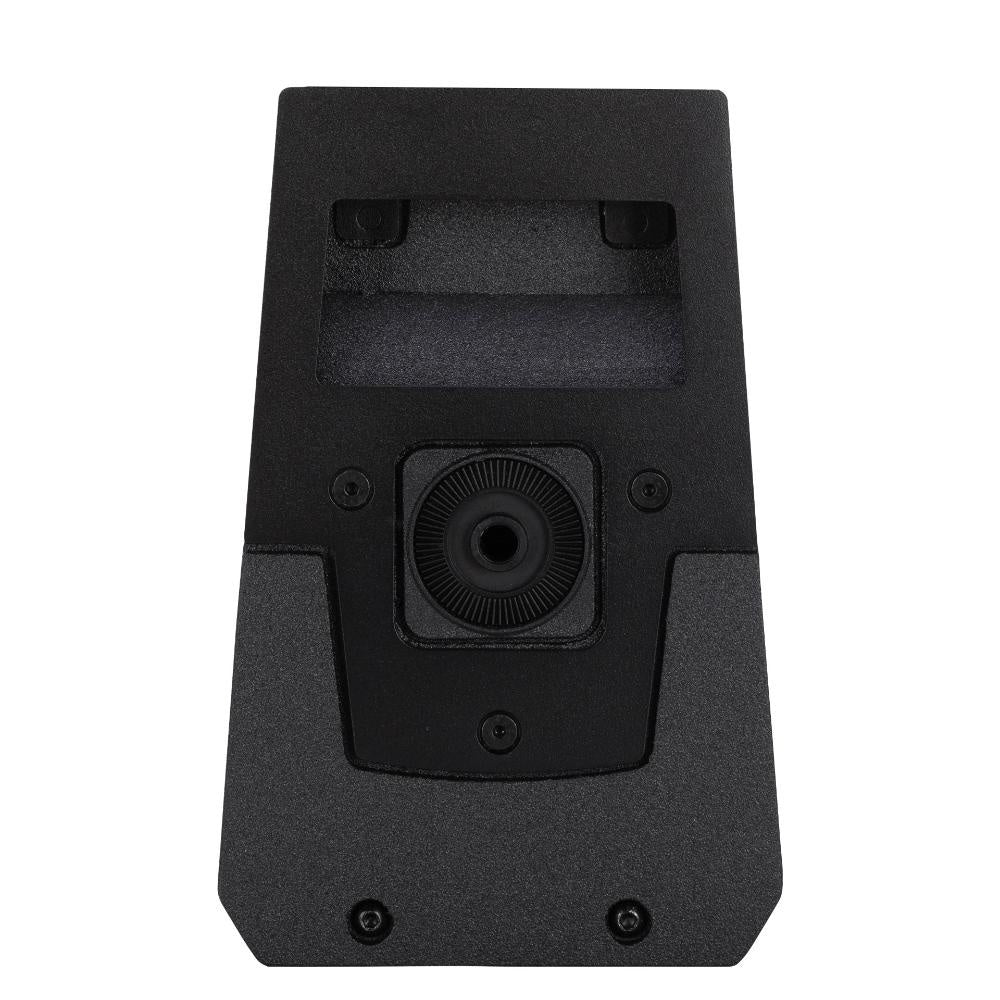

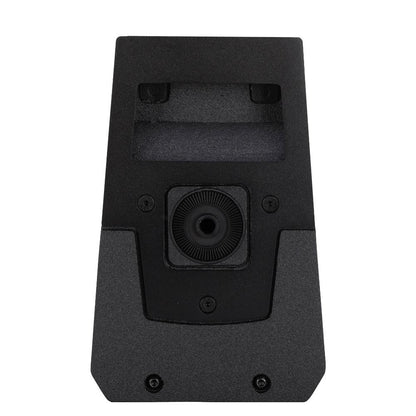

Pole Mount
Quick-Fit Socket
Finish
Black or White
Dimensions
Height
17.95"
Width
6.06"
Depth
9.35"
Weight
Product Weight
21.61 lbs
Shipping
Package Height
20.08"
Package Width
11.42"
Package Depth
7.87"
Package Weight
24.91 lbs
Certifications
Safety Agency
CE Compliant
