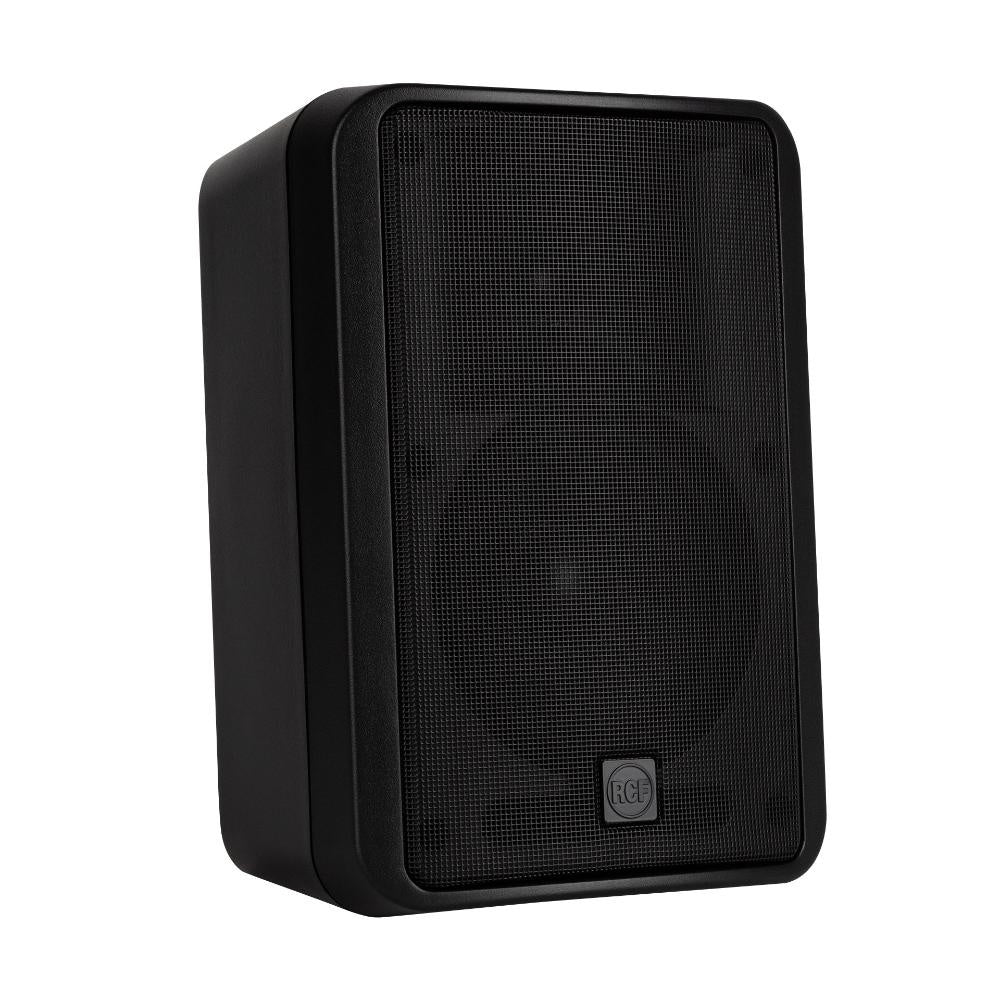

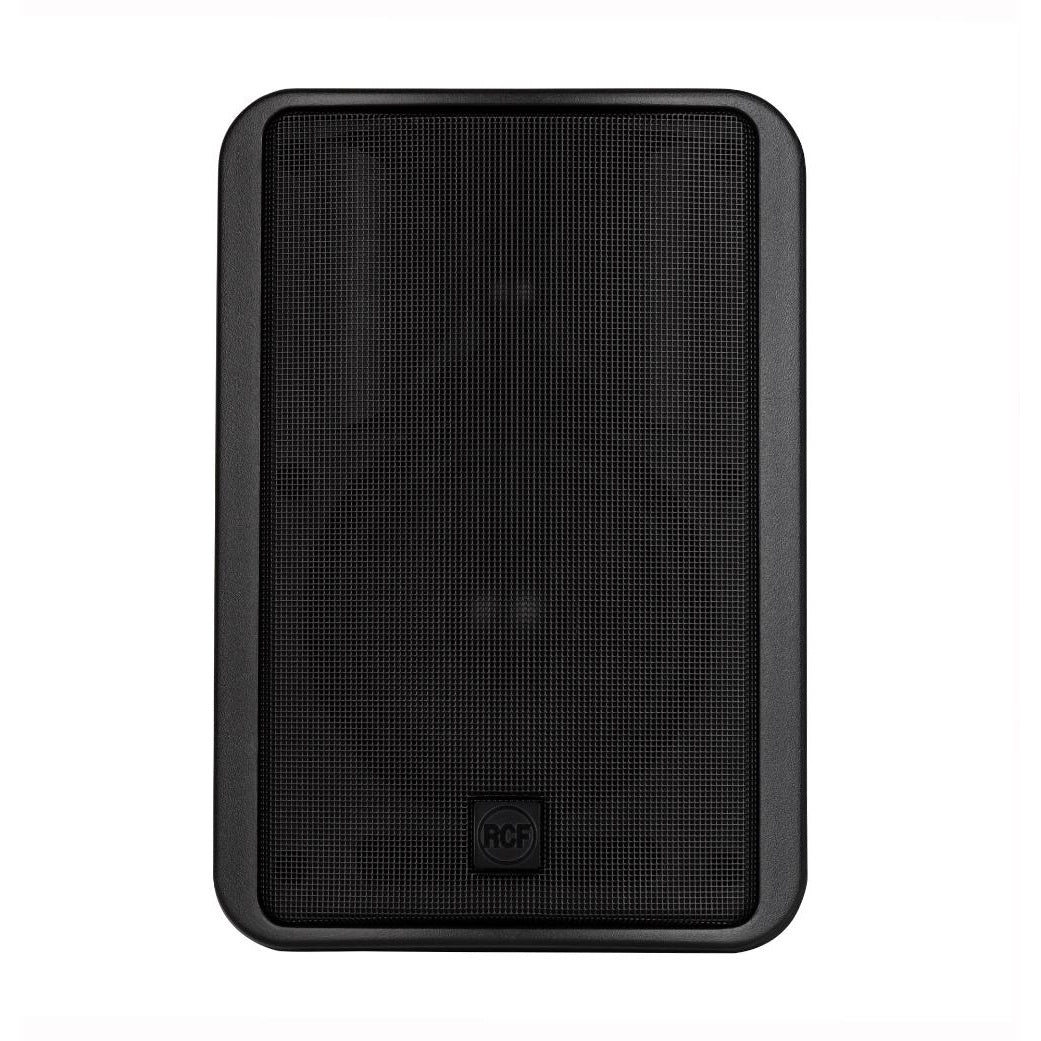

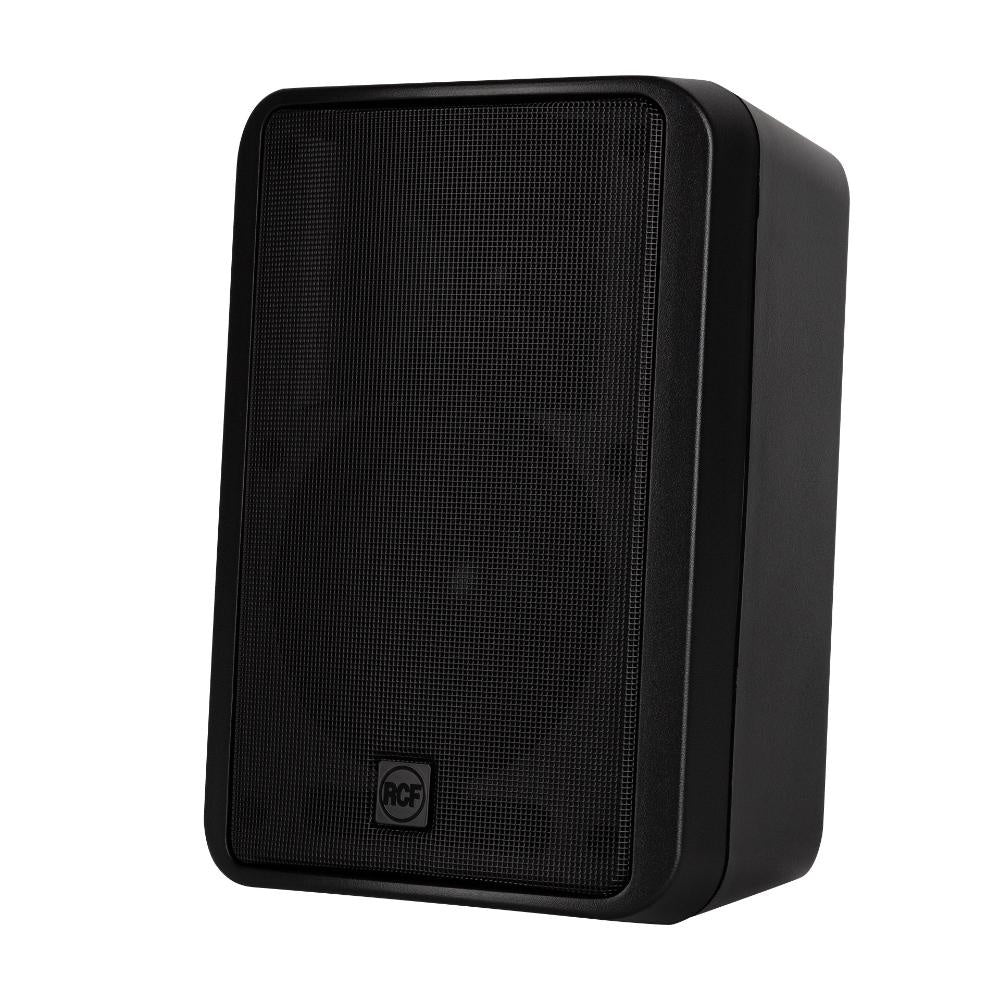

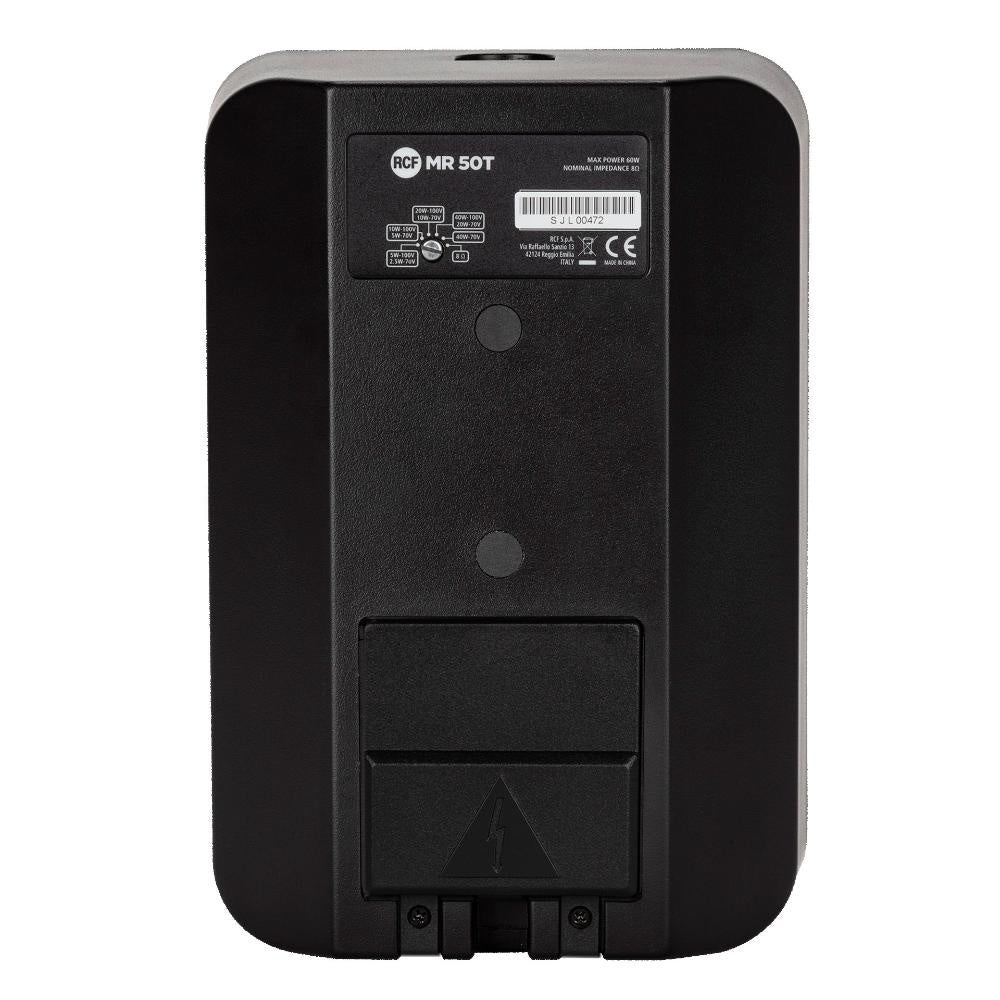

RCF 13100039 Two-Way Speaker With Line Transformer

RCF 13100039 Two-Way Speaker With Line Transformer

SoundPro Item: 47249 | Part Number: 13100039

$659.00
$899.00 $659.00
Your Price Sold out
MSRP: $899.00 | MAP: $659.00

Usually ships in 5-7 business days

  • IP55 Environmental Protection Enables Reliable Indoor And Outdoor Installation
  • 70/100V Constant Voltage Transformer With Four Selectable Power Taps
  • 110 dB Maximum SPL Handles High-Impact Audio Applications
  • 5-Inch Woofer And 1-Inch Neodymium Tweeter Deliver Extended Frequency Range

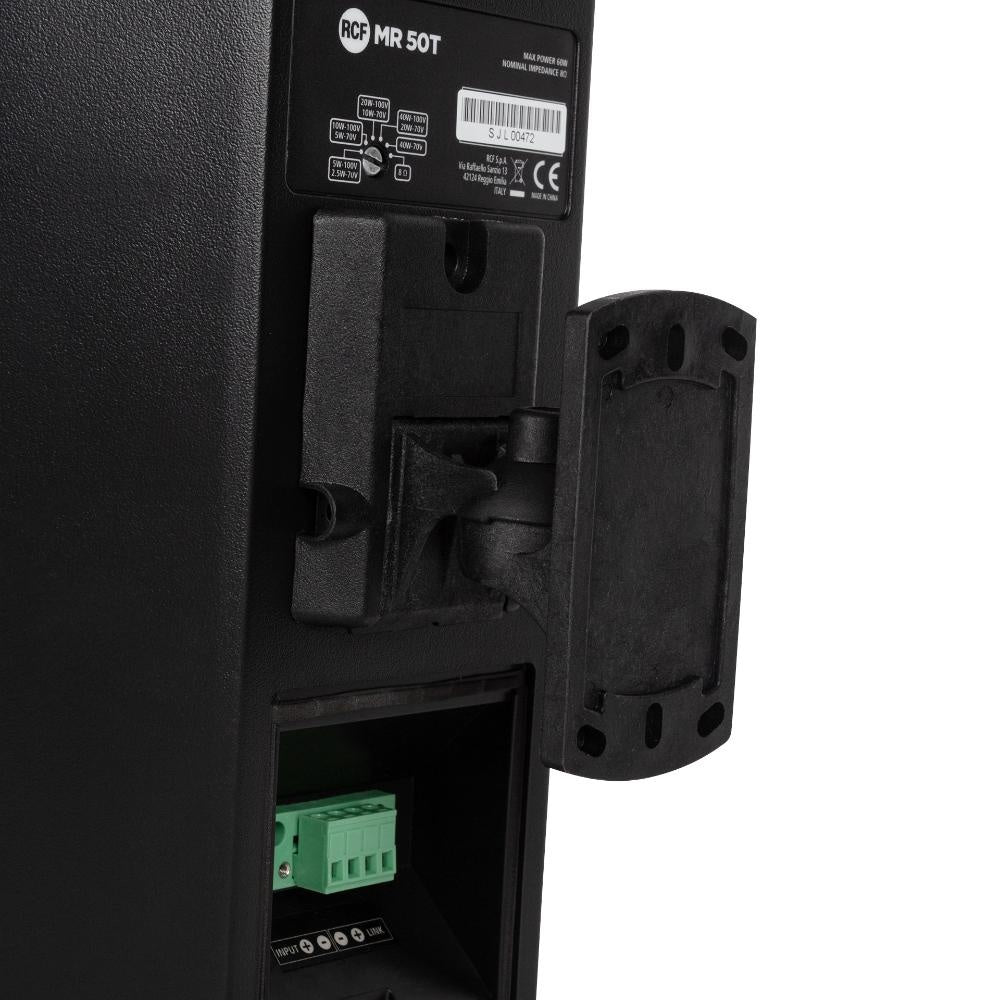

  • Swivel Wall Mount Bracket Included For Flexible Positioning
  • 3000 Hz Crossover Optimizes Transducer Integration And Clarity
Log in or register for YOUR best price

The RCF 13100039 MR 50T is a bass-reflex two-way speaker built for fixed installations where reliability and consistent acoustic performance matter. The integrated line transformer offers four selectable power settings (40W, 20W, 10W, 5W) on 70/100V systems, making it ideal for distributed audio networks in commercial venues, educational facilities, and installed sound systems. The IP55 protection rating supports both indoor and outdoor mounting.

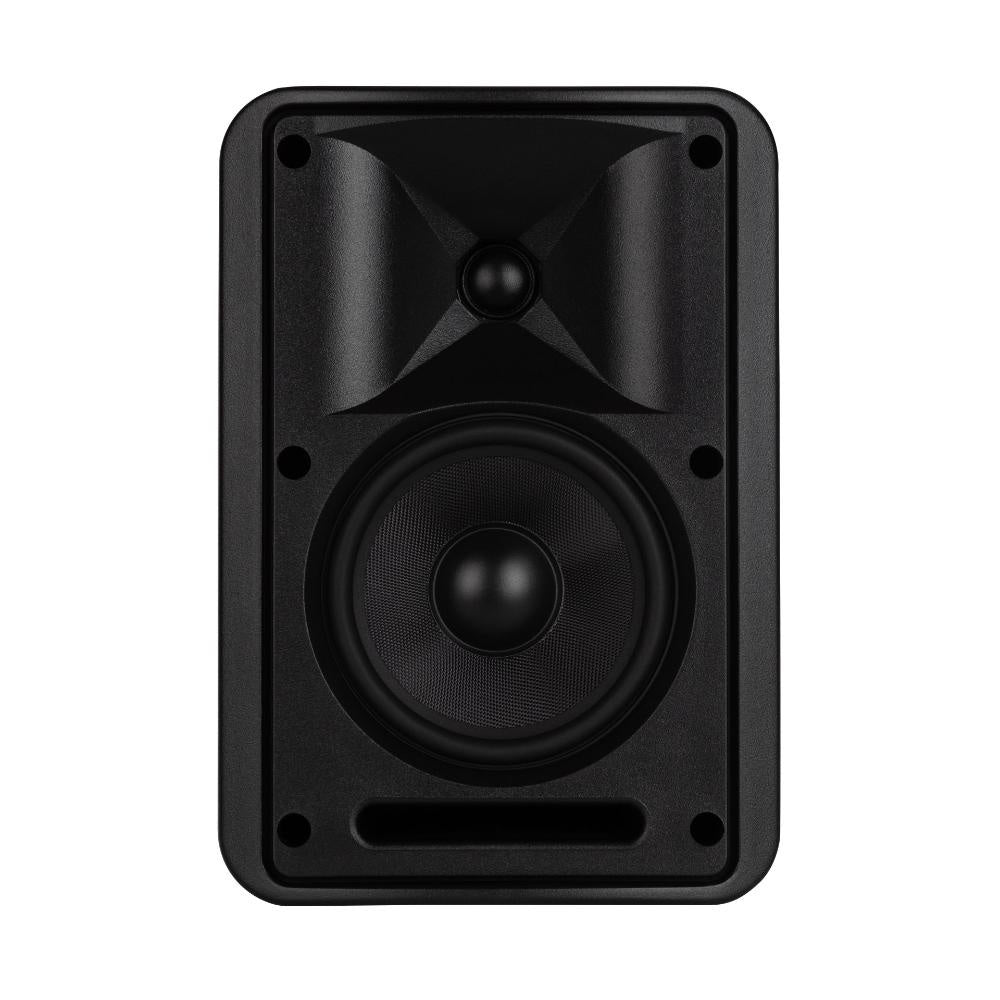

The 5-inch woofer and 1-inch neodymium dome tweeter deliver 110 dB max SPL with smooth frequency response from 60 Hz to 20 kHz and wide coverage angles (110° horizontal, 100° vertical). A swivel wall mount bracket and Euroblock connectivity simplify installation and integration into larger system architectures.

Downloads

View full details

Specifications

Acoustic
Frequency Response
60 Hz - 20000 Hz
Max SPL @ 1m
110 dB
Horizontal Coverage Angle
110°
Vertical Coverage Angle
100°
Directivity Index Q
7
System Sensitivity
87 dB
Transducers
Woofer
1 x 5.0", 1.0" v.c.
Dome Tweeter
1 x 1.0" neo, 0.8" v.c.
Power and Amplification
Nominal Impedance
8 ohm
Power Handling
60 W
Peak Power Handling
240 W PEAK
Crossover Frequency
3000 Hz
Protections
Bulb lamp

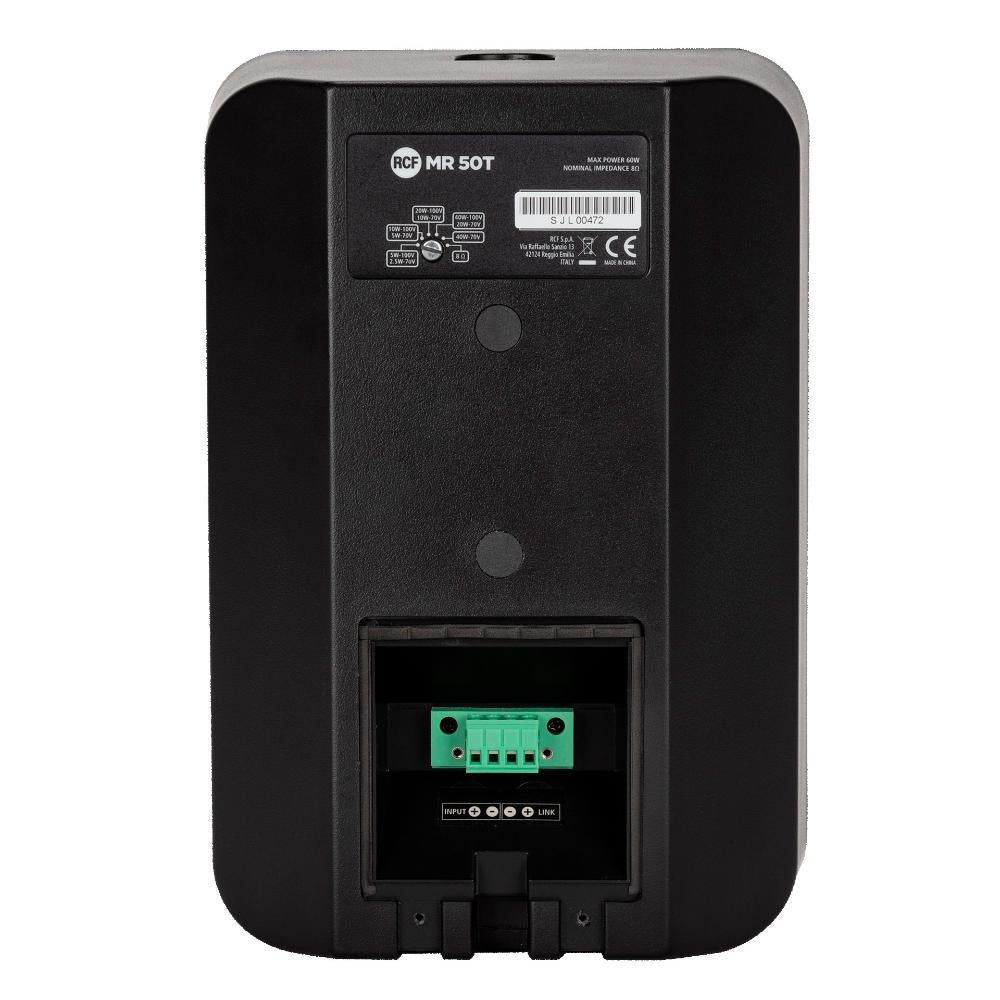

Constant Voltage Transformer
Transformer
70/100 V
Power Selection 1
40 W - 250 ohm
Power Selection 2
20 W - 500 ohm
Power Selection 3
10 W - 1000 ohm
Power Selection 4
5 W - 2000 ohm
Connectivity

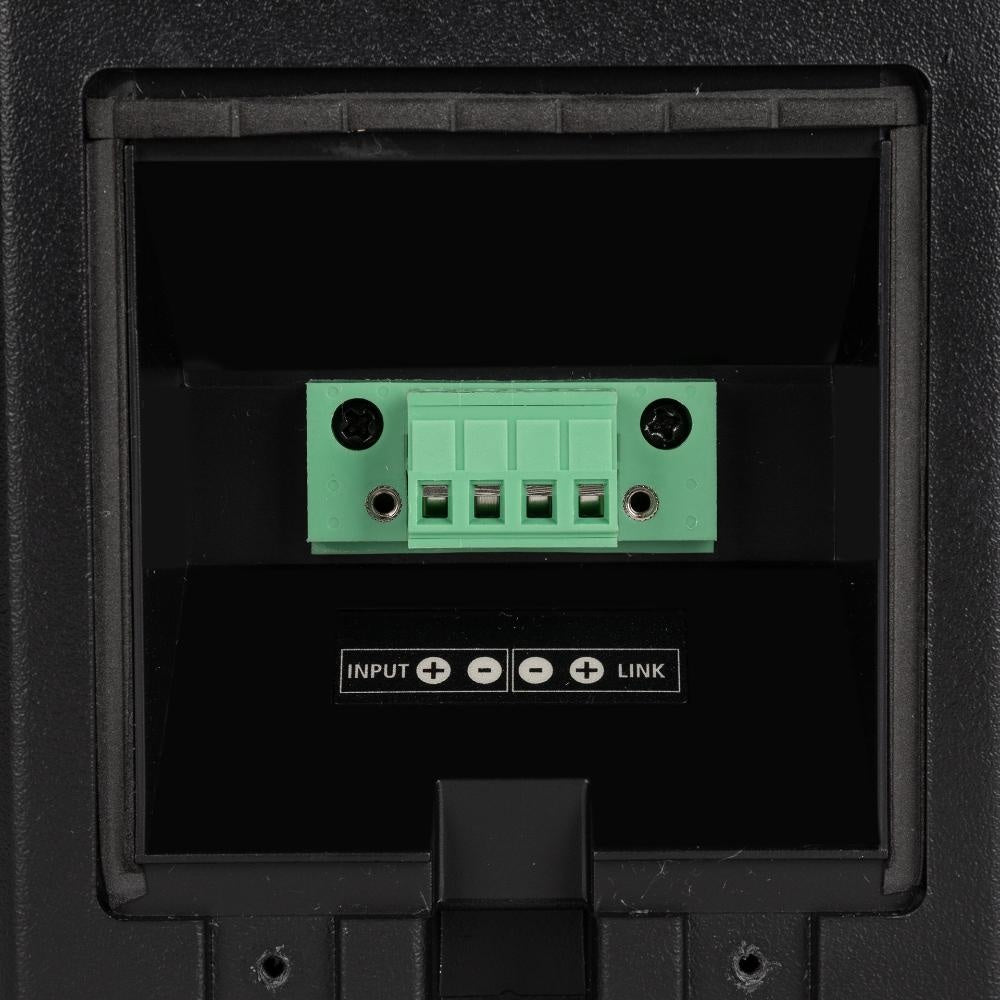

Input Connectors
Euroblock
Output Connectors
Euroblock
Construction
Cabinet Material
Plastic
Grille
Aluminium
Color Options
Black - RAL 9005, White - RAL 9003
Hardware
Wall mount bracket
Dimensions
Height
10.63"
Width
7.36"
Depth
6.57"
Weight
Product Weight
8.82 lbs
Shipping
Package Height
14.57"
Package Width
20.08"
Package Depth
9.84"
Package Weight
19.62 lbs
Certifications
IP Protection Grade
IP 55
Safety Agency
CE compliant
