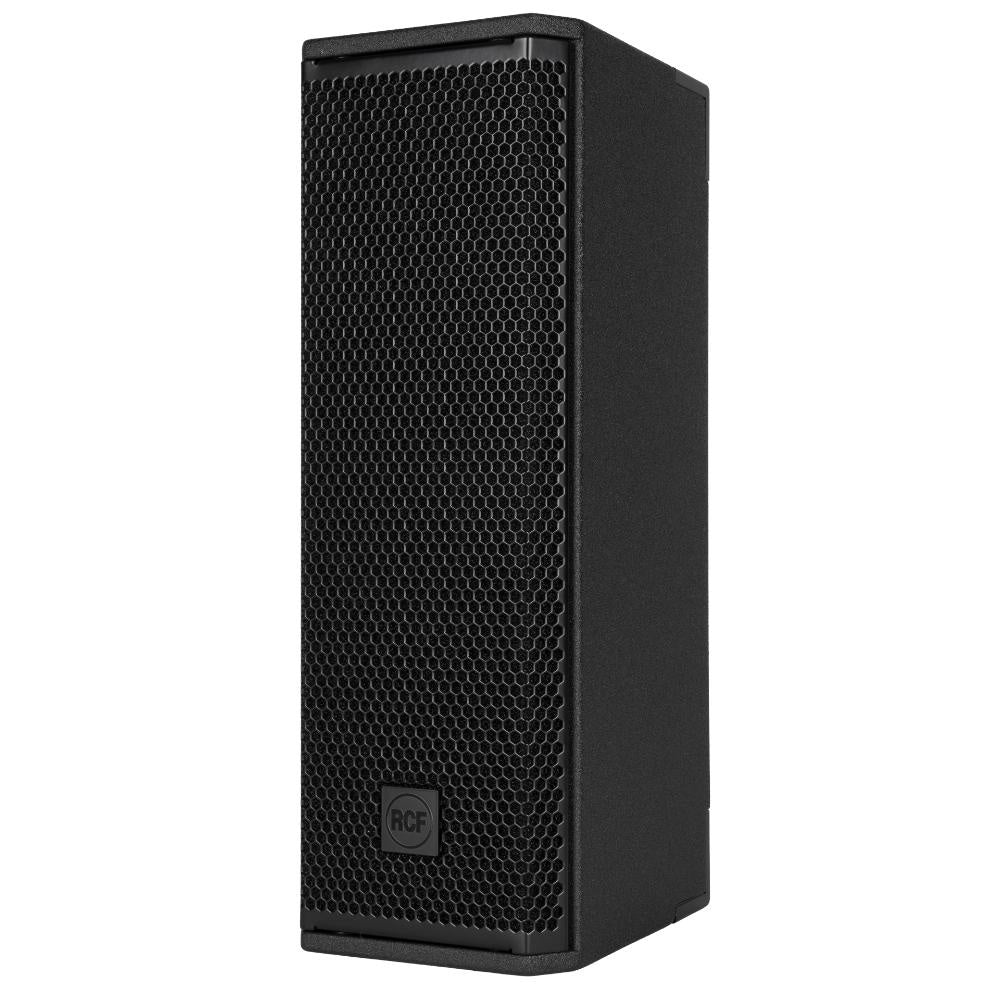

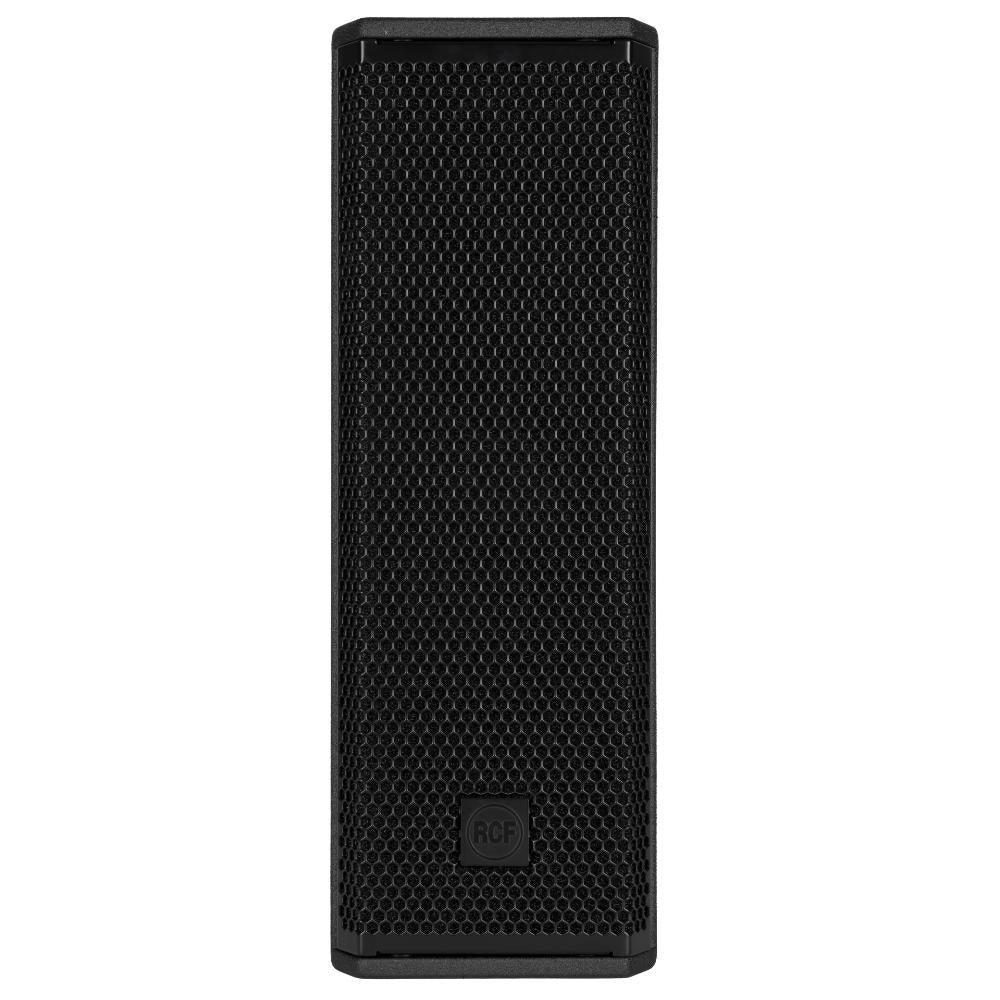

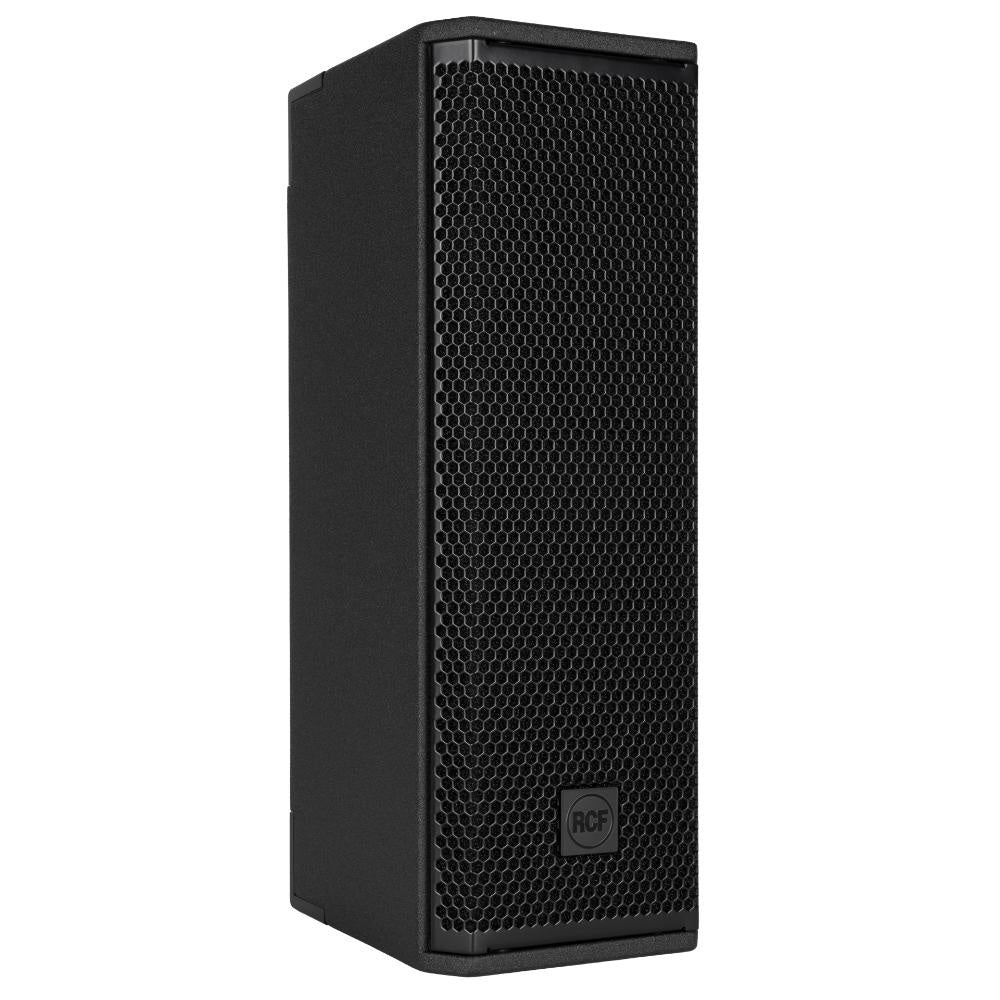

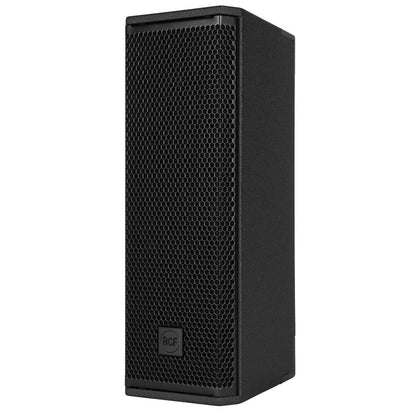

RCF NXL14-A Compact Active Point Source Speaker

RCF NXL14-A Compact Active Point Source Speaker

SoundPro Item: 146523 | Part Number: NXL14-A

$1,599.00
$2,299.00 $1,599.00
Your Price Sold out

Usually ships in 5-7 business days

  • 128 dB Max SPL From Compact Dual 6" Woofer Configuration
  • 2,100W Class-D Bi-Amplified Power Delivery
  • Rotatable 100° x 70° TRW Waveguide Optimizes Coverage Angles
  • 1.75" PKX Neodymium Compression Driver For Clear Vocal Articulation
  • FiRPHASE And Bass Motion Control Reduce External Processing Needs
  • Combo XLR/Jack Inputs With Switchable Sensitivity For Flexible Signal Routing
Log in or register for YOUR best price

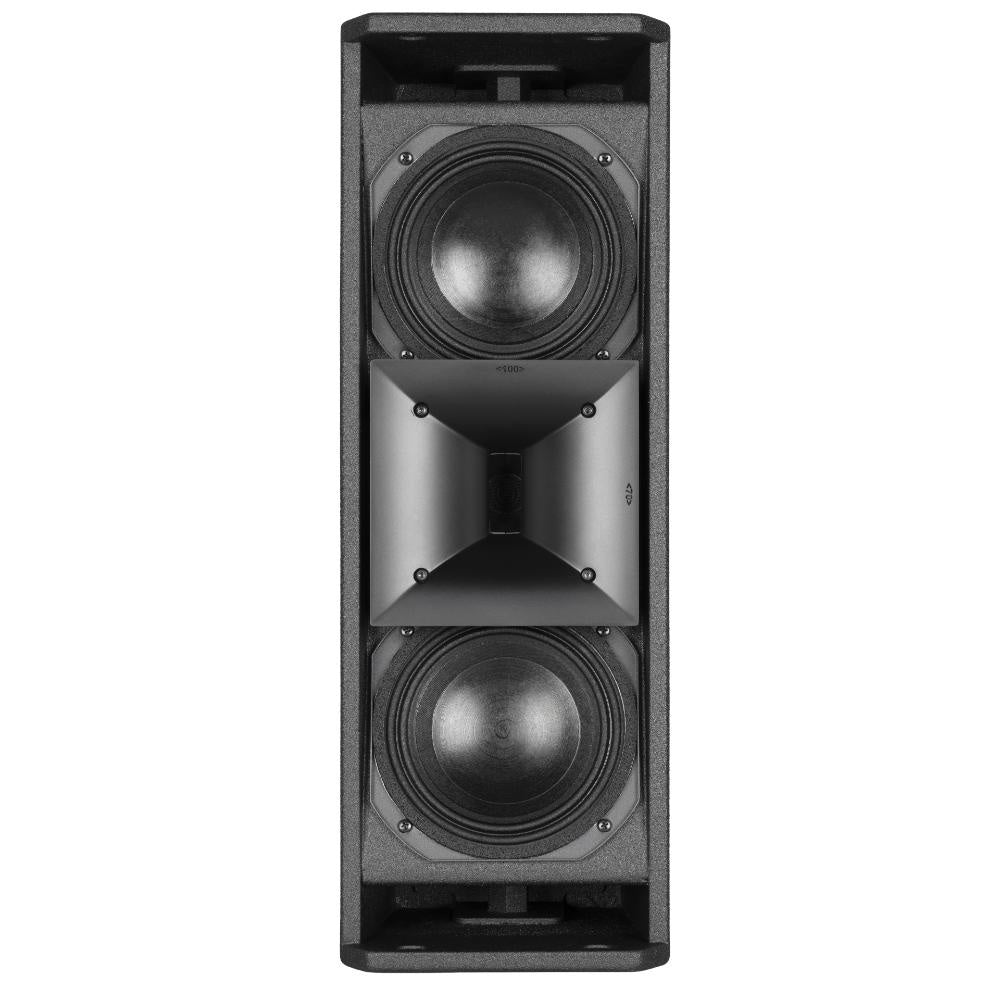

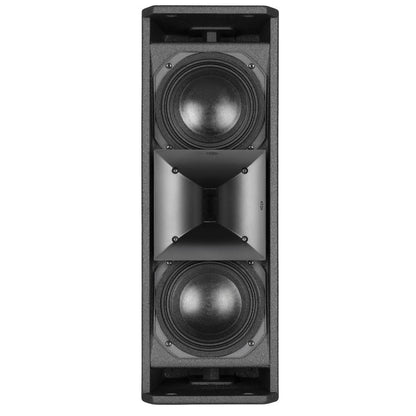

The RCF NXL14-A is the most compact offering in the professional NXL series, engineered for touring engineers, rental houses, and integrators requiring a high-output point source in minimal footprint. Featuring dual 6" neodymium woofers paired with a 1.75" precision compression driver on a rotatable TRW waveguide, the NXL14-A delivers 128 dB SPL from a 2,100W class-D bi-amplified platform. The symmetrical driver configuration ensures consistent polar response across horizontal and vertical planes, making it equally effective as a main speaker, fill unit, or compact system paired with RCF SUB series subwoofers in immersive or distributed installations.

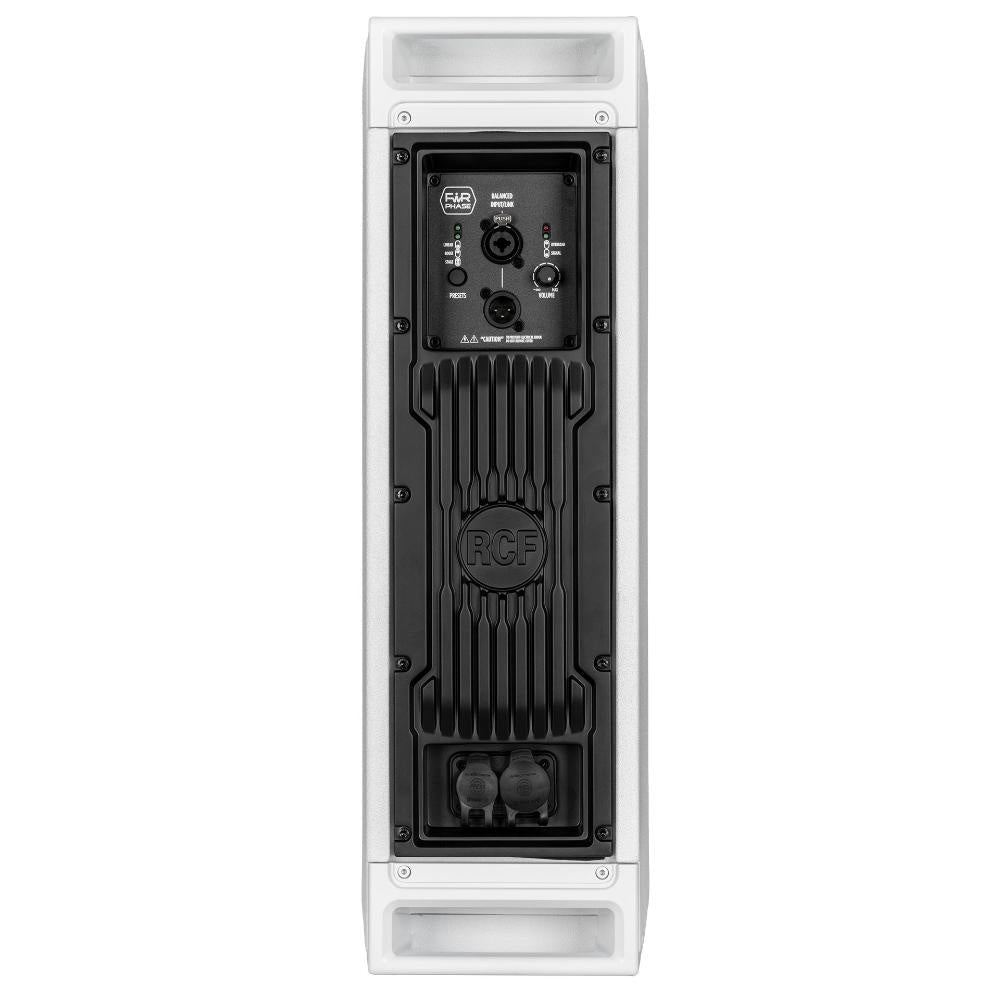

Built-in FiRPHASE processing and Bass Motion Control provide sonic refinement without requiring external processing, while combo XLR/jack inputs and switchable input sensitivity accommodate both line and microphone sources. The quick-fit pole socket, dual top-and-bottom handles, and 28.22 lb weight make the NXL14-A suitable for one-person rigging in venues where spatial and weight constraints rule out larger cabinets. Convection cooling and Powercon TRUE1 connectivity complete a package designed for production teams working broadcast, live events, theater, and touring applications.

Downloads

View full details

Specifications

Acoustical Performance
Frequency Response
70 Hz - 20000 Hz
Max SPL @ 1m
128 dB
Horizontal Coverage Angle
100°
Vertical Coverage Angle
70°
Transducers
Compression Driver
1 x 1.0" Neo, 1.75" Voice Coil
Woofer
2 x 6.0" Neo, 2.0" Voice Coil
Power
Total Power
2100 W Peak
High Frequency Power
700 W Peak
Low Frequency Power
1400 W Peak
Cooling
Convection

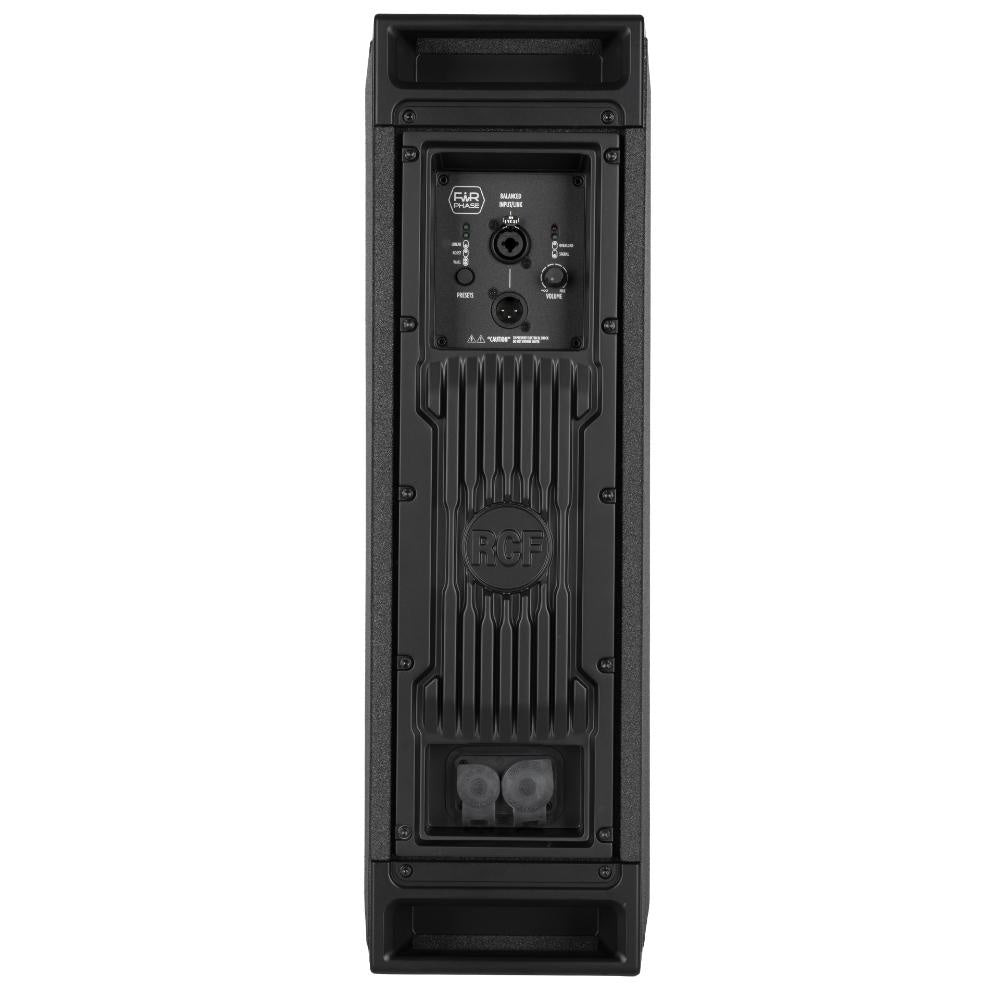

Connectivity
Input Signal
Balanced/Unbalanced
Input Connectors
Combo XLR/Jack
Output Connectors
XLR
Input Sensitivity
-2 dBu/+4 dBu
Power Connections
Powercon TRUE1 Top In/Out
Processing
Crossover Frequency
1200 Hz
Protections
Excursion Limiter, Fast Limiter
Controls
Linear/Boost/Stage Presets, Volume
Dimensions
Height
22.32"
Width
7.76"
Depth
10.63"
Weight
Product Weight
28.22 lbs
Construction
Cabinet Material
Plywood
Grille
Steel
Hardware
2x M10 Top And Bottom, 2x Pin D.10
Handles
2 Top And Bottom

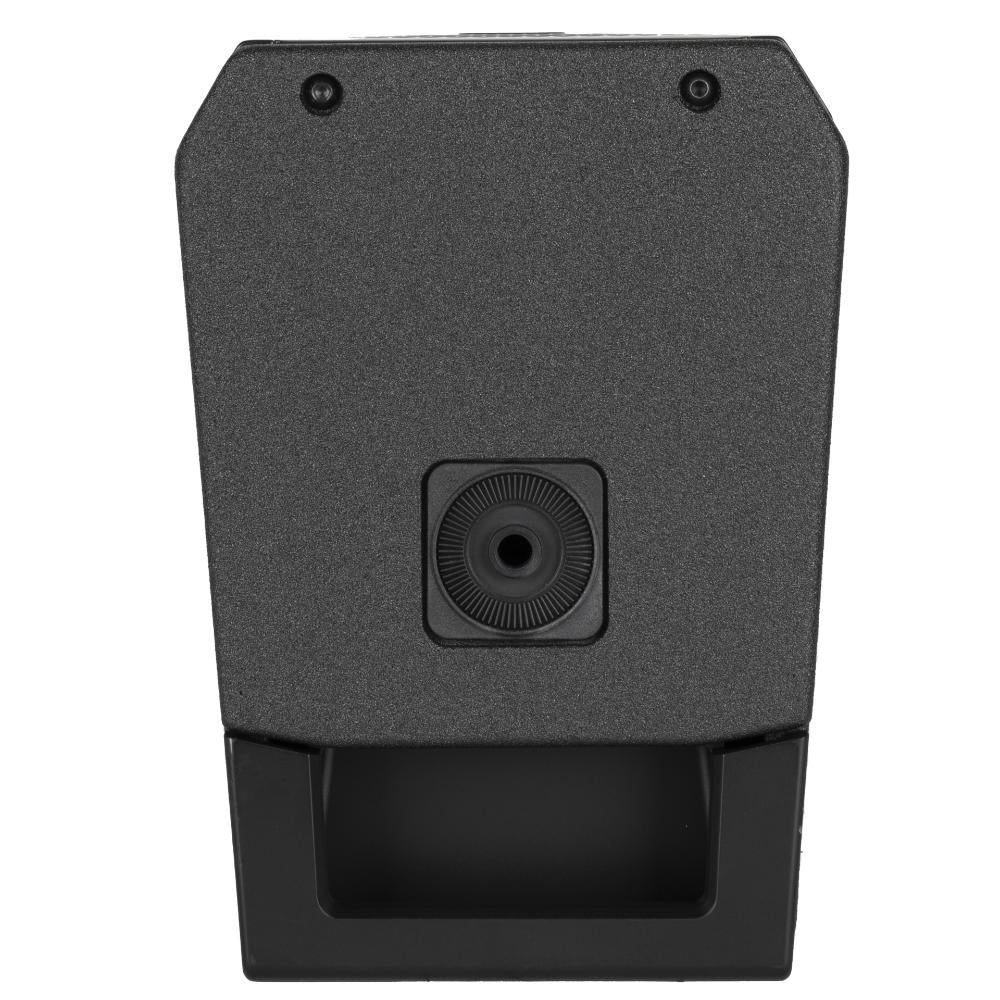

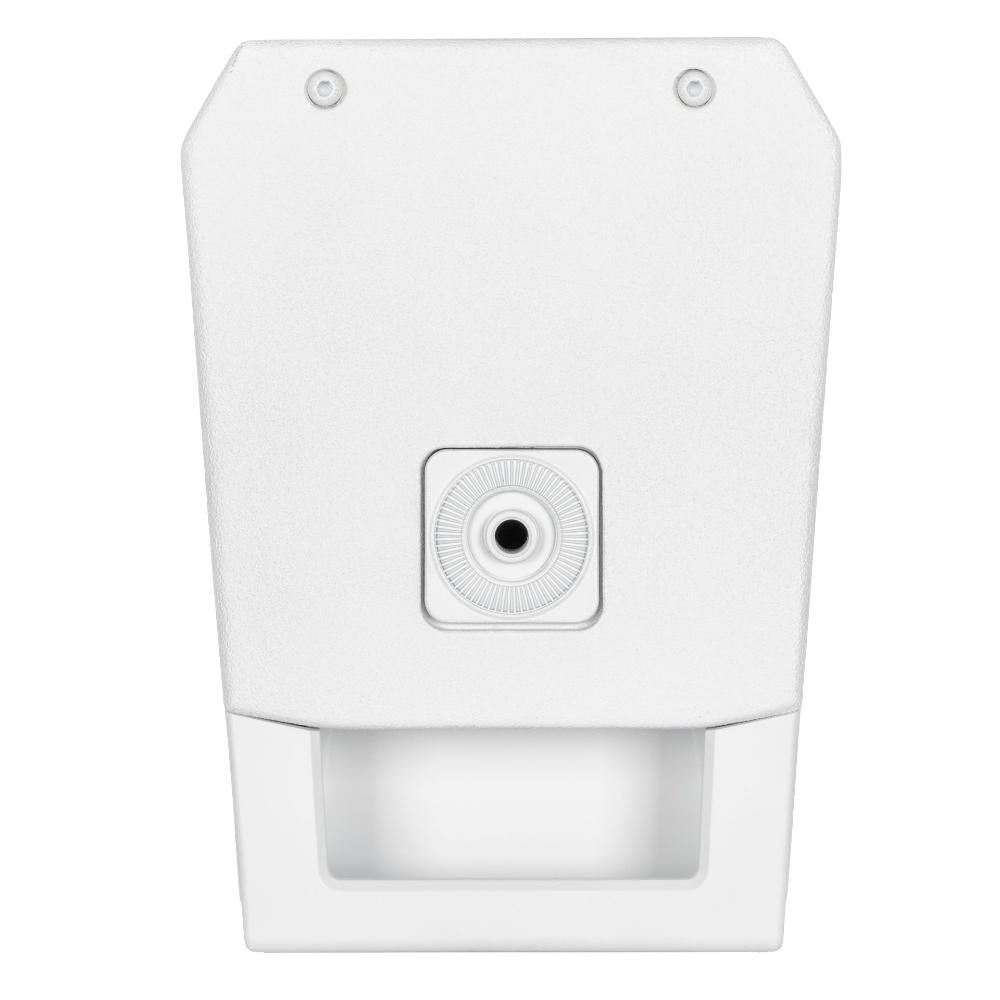

Pole Mount
Quick-Fit Socket
Color

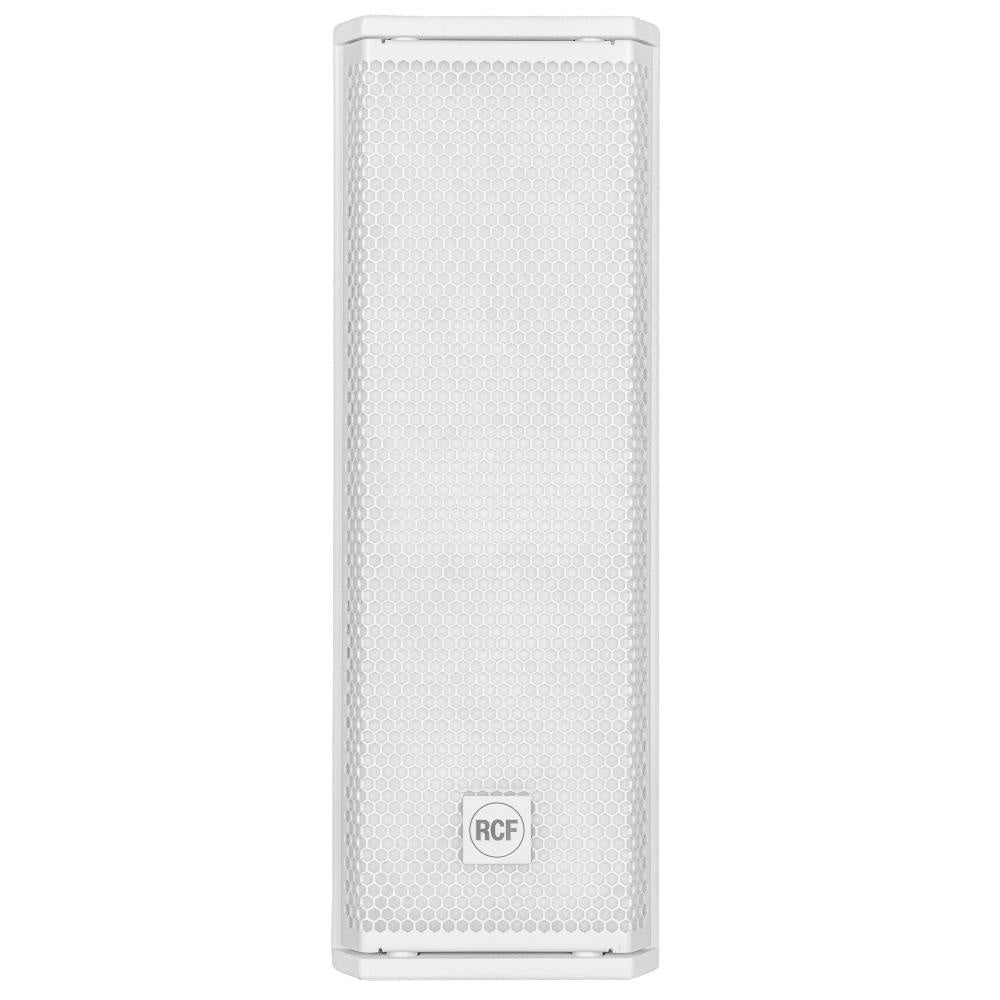

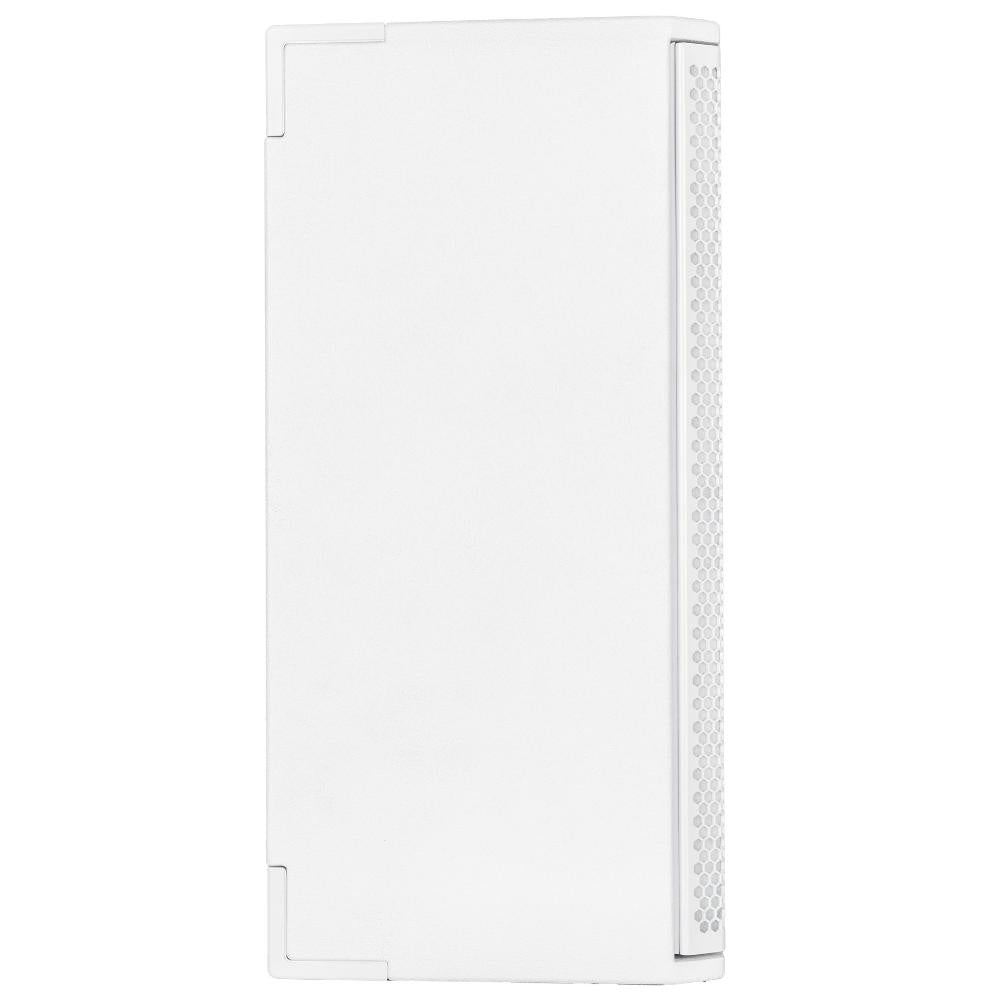

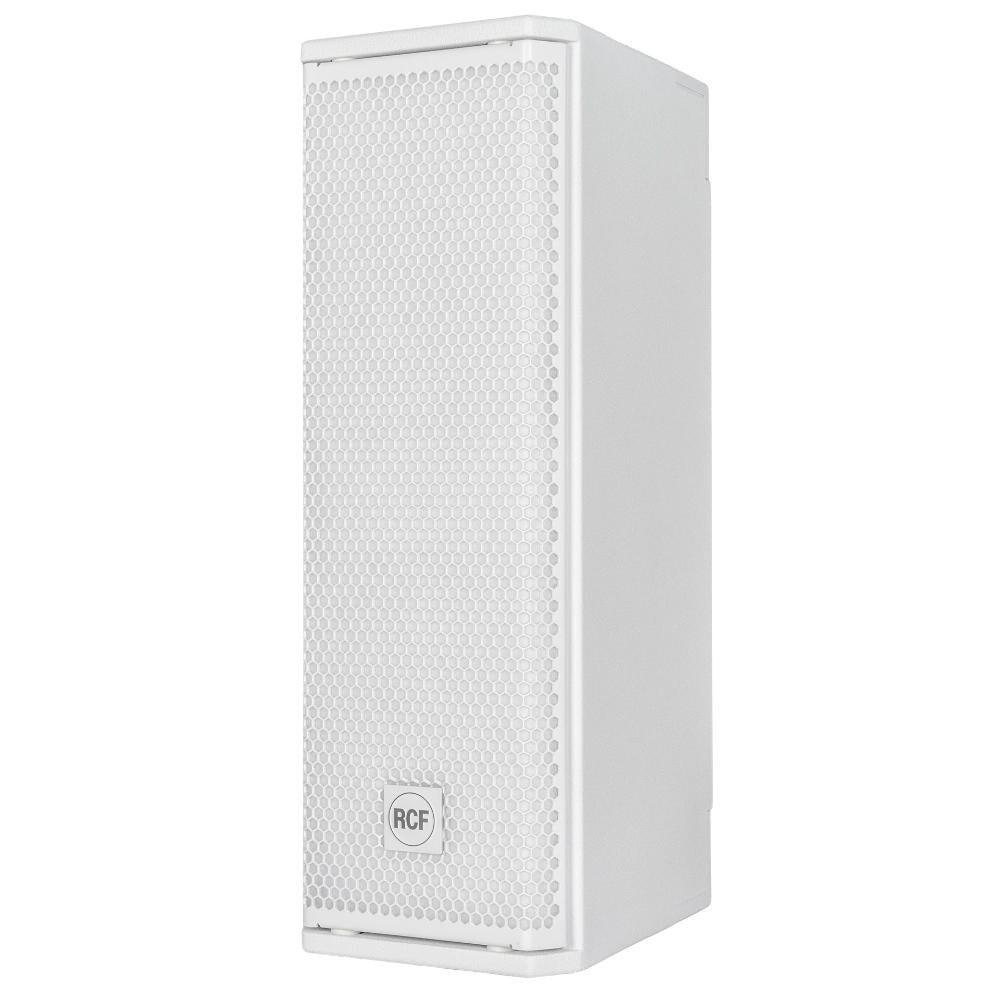

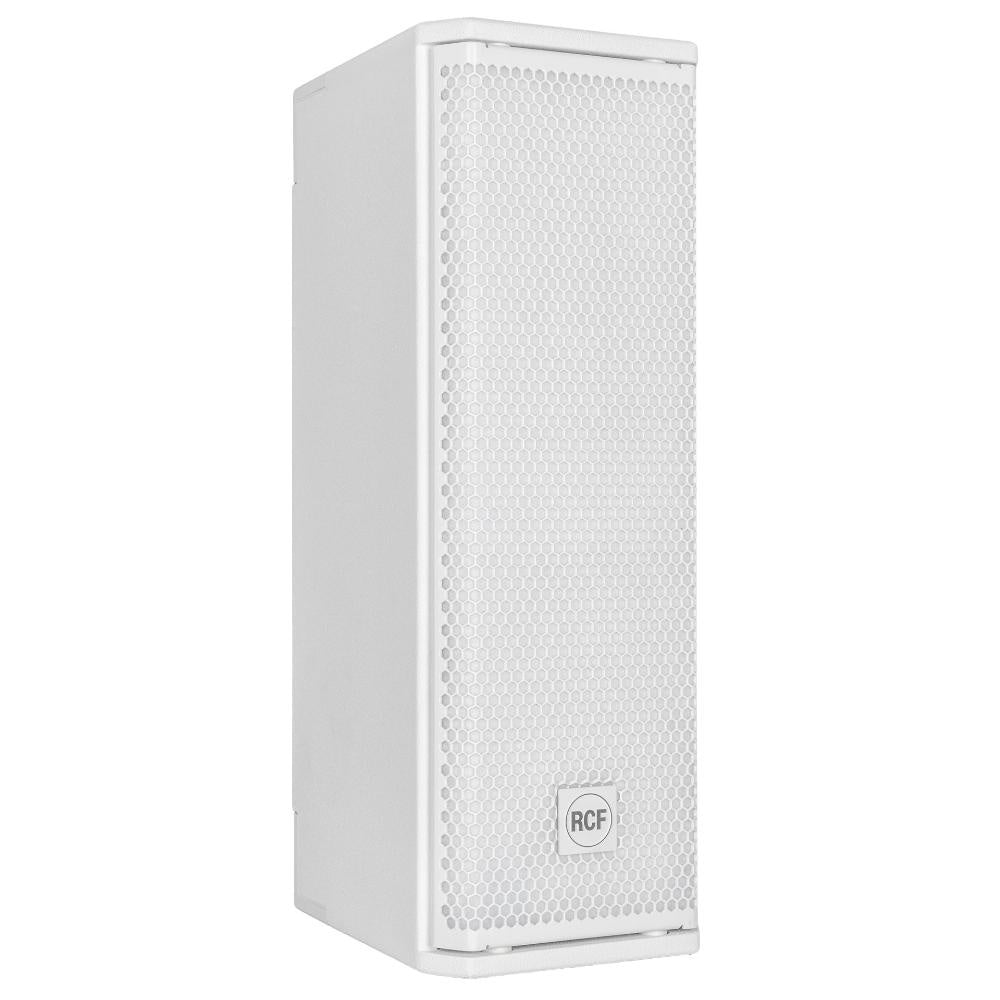

Black (RAL 9005), White (RAL 9003)
Compliance
Safety Agency
CE Compliant
Shipping
Package Height
23.62"
Package Width
9.13"
Package Depth
11.89"
Package Weight
32.19 lbs
