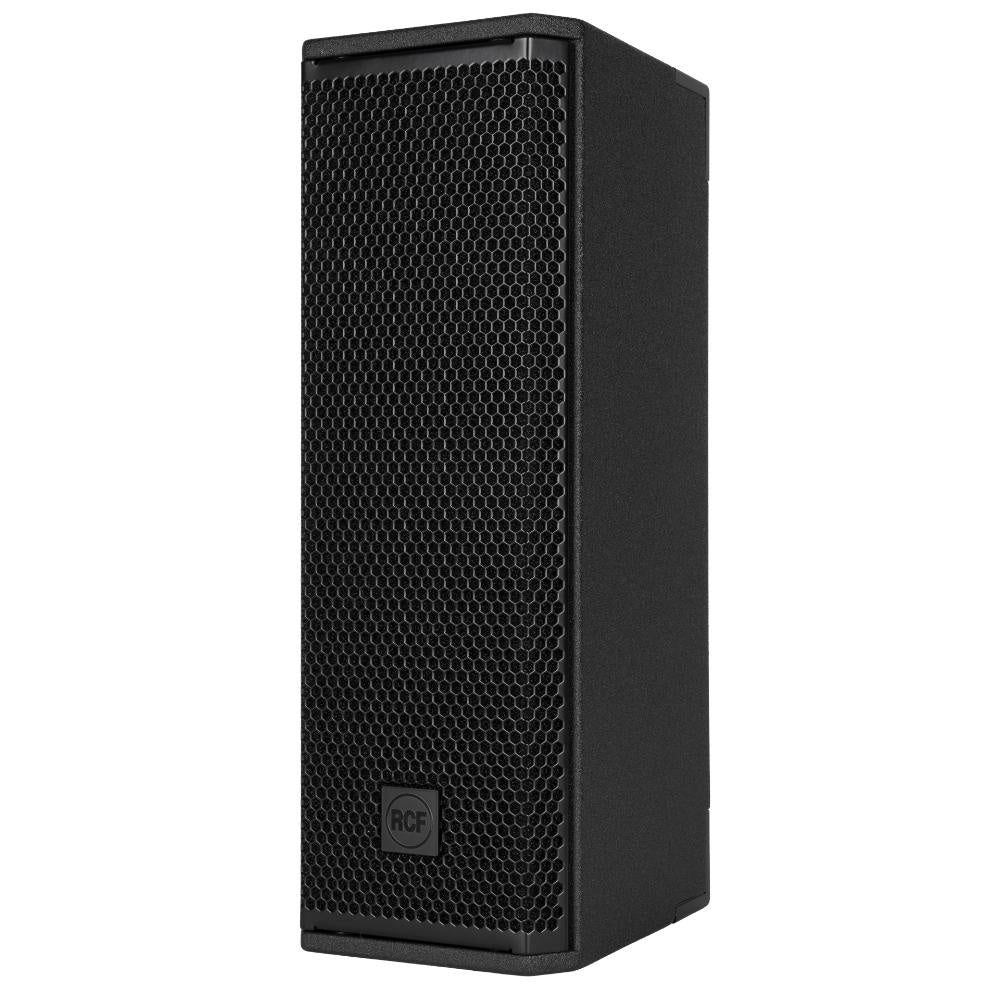

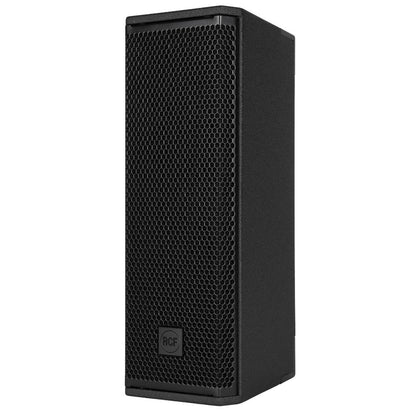

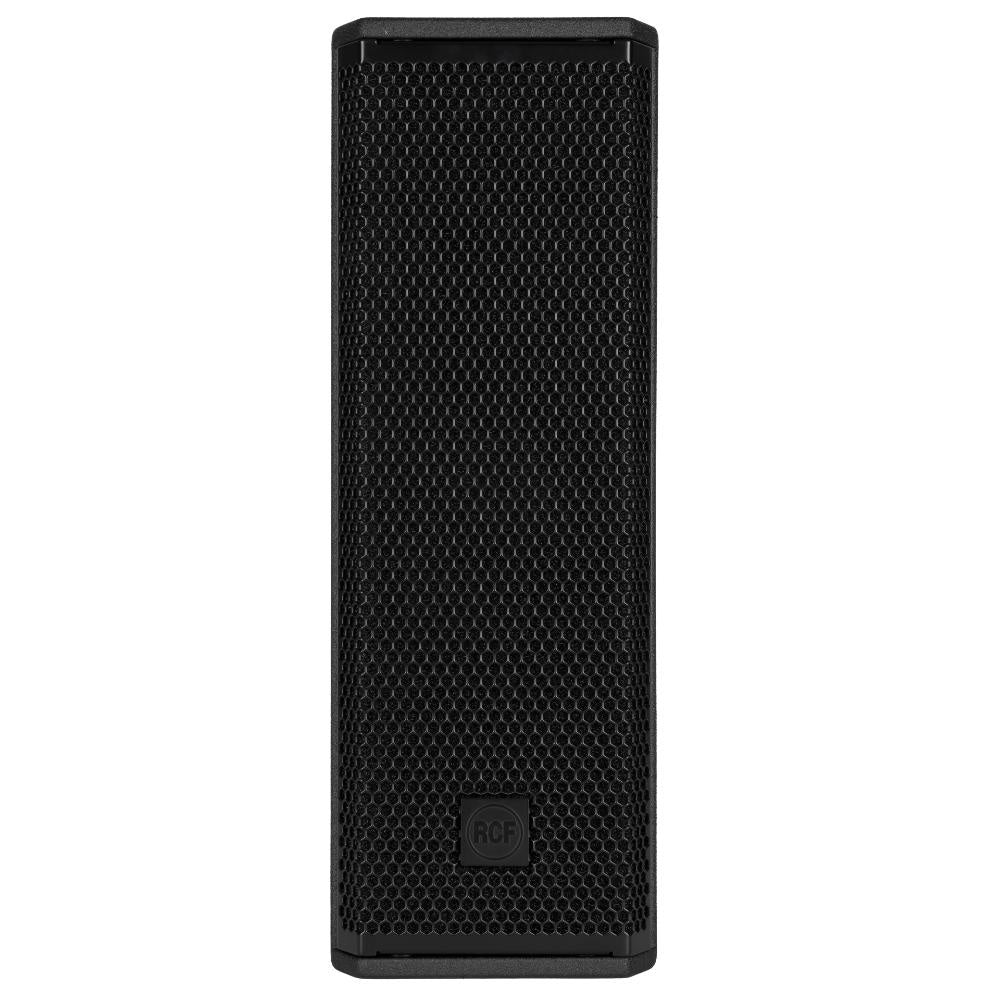

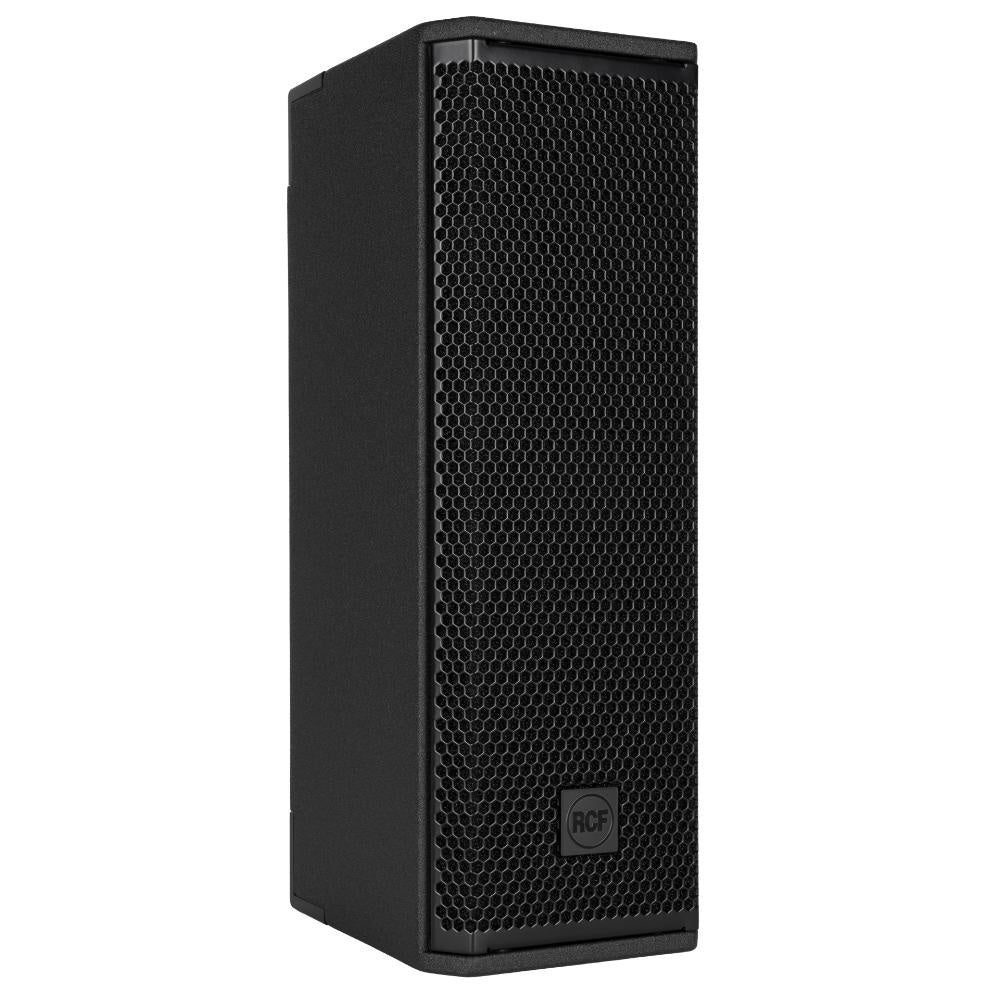

RCF NXL14-A-W Compact Active Point Source Speaker

RCF NXL14-A-W Compact Active Point Source Speaker

SoundPro Item: 146524 | Part Number: NXL14-A-W

$1,649.00
$2,349.00 $1,649.00
Your Price Sold out
MSRP: $2,349.00 | MAP: $1,649.00

Usually ships in 5-7 business days

  • Rotatable 100° x 70° TRW Waveguide Enables Precise Coverage Aiming
  • 2,100W Class-D Bi-Amplified Power Delivers Headroom Without Distortion
  • 128 dB Maximum SPL Ideal For Vocal Definition Across Live Venues
  • 1.75" PKX Neodymium Compression Driver With Dual 6" Woofers
  • FiRPHASE And Bass Motion Control For Consistent Response
  • Dual Handles And Quick-Fit Pole Cup Mount Enable Rapid Setup
Log in or register for YOUR best price

The RCF NXL14-A-W is the most compact member of RCF's professional NXL active speaker line, engineered for touring bands, rental houses, and integrated AV installers who need articulate midrange and powerful low-end without a separate subwoofer. Its symmetrical dual 6-inch woofer design and 1.75-inch neodymium compression driver deliver 128 dB maximum SPL with clarity across speech and music frequencies, making it equally at home as a main system speaker or dedicated fill channel in larger deployments.

Built for durability and rapid deployment, the NXL14-A-W features a steel grille, plywood cabinet with dual top and bottom handles, and a quick-fit pole cup mount. The rotatable TRW waveguide allows 100° horizontal and 70° vertical beam steering, enabling operators to aim coverage away from monitors and feedback sources. FiRPHASE processing and Bass Motion Control optimizations ensure consistent tonal balance across different throw distances and venue acoustics, while the convection-cooled Class-D bi-amplification (700W HF, 1400W LF) runs cool enough for all-day outdoor events without fan noise.

Compact enough to fit overhead rig positions or portable carts yet powerful enough to anchor a small venue or festival stage, the NXL14-A-W bridges the gap between ultra-portable single-driver systems and full-scale line arrays.

Downloads

View full details

Specifications

Audio
Frequency Response
70 Hz - 20000 Hz
Max SPL @ 1m
128 dB
Horizontal Coverage Angle
100°
Vertical Coverage Angle
70°
Compression Driver
1 x 1.0" Neodymium, 1.75" Voice Coil
Woofer
2 x 6.0" Neodymium, 2.0" Voice Coil
Crossover Frequency
1200 Hz
Electrical
Total Power
2100 W Peak
High Frequency Power
700 W Peak
Low Frequency Power
1400 W Peak
Input Sensitivity
-2 dBu/+4 dBu
Cooling
Convection

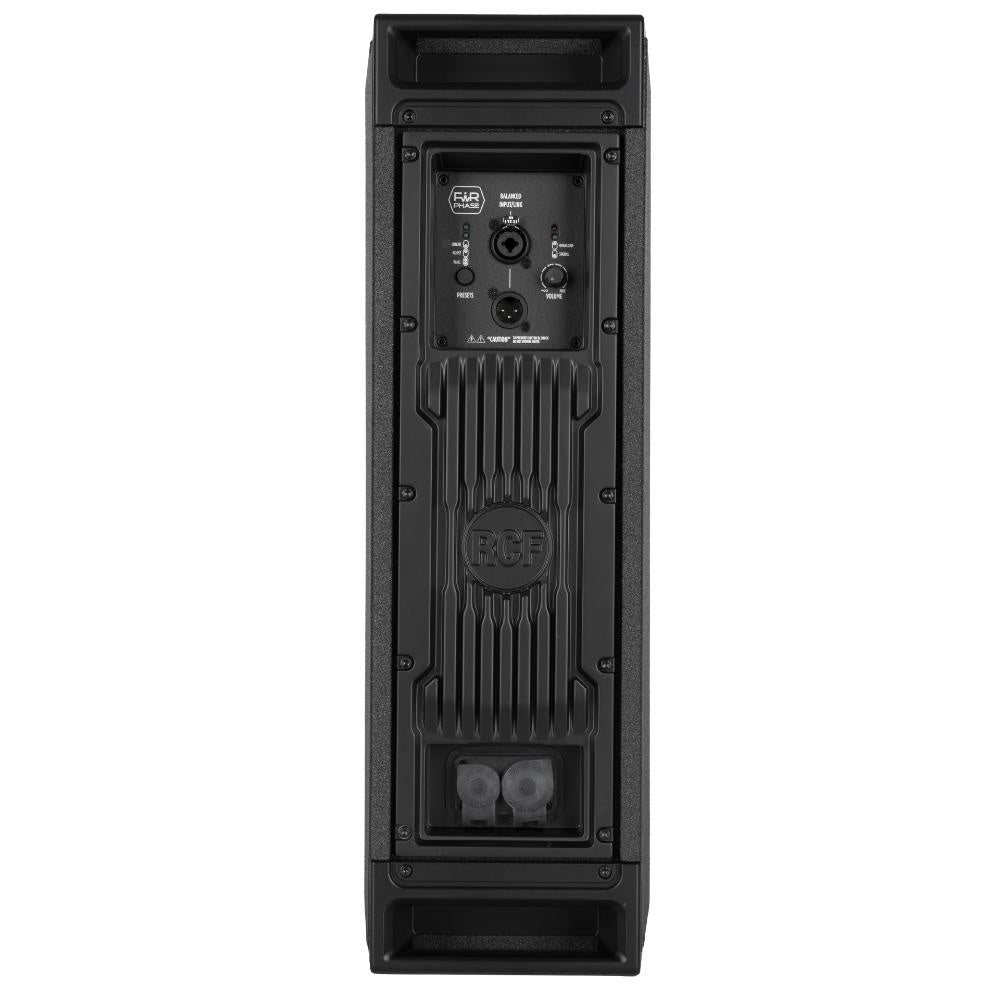

Connectivity
Input Connectors
Combo XLR/Jack
Input Signal
Bal/Unbal
Output Connectors
XLR
Power Connectors
Powercon TRUE1 TOP IN/OUT
Dimensions
Height
22.32"
Width
7.76"
Depth
10.63"
Weight
Product Weight
28.22 lbs
Construction
Cabinet Material
Plywood
Grille
Steel
Hardware
2x M10 Top and Bottom, 2x Pin D.10
Handles
2 Top and Bottom
Pole Mount
Quick-Fit Socket
Color
Black - RAL 9005, White - RAL 9003
Certifications
Safety Agency
CE Compliant
Shipping
Package Height
23.62"
Package Width
9.13"
Package Depth
11.89"
Shipping Weight
32.19 lbs
