Specifications
Amplifier
Class
HD
Output Power
4 x 1500 W @ 2 ohm, 4 x 1300 W @ 4 ohm, 4 x 700 W @ 8 ohm, 2 x 3000 W @ 4 ohm (bridge), 2 x 2600 W @ 8 ohm (bridge)
Frequency Response
20 Hz - 20000 Hz
Signal-to-Noise Ratio
>110 dB
Crosstalk
<70 dB
Total Harmonic Distortion
<0.05 %
Connectivity

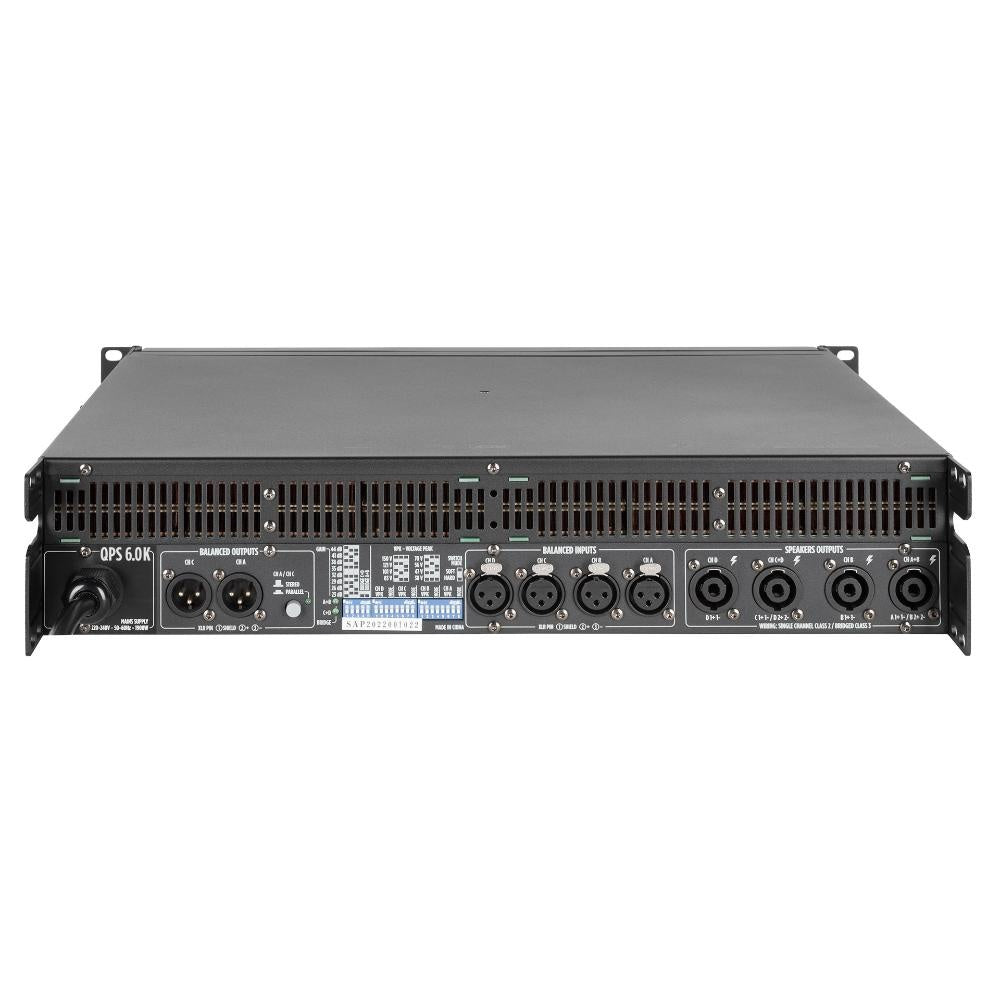

Input Connectors
4 x XLR (Balanced, Line Level)
Signal Output Connectors
2 x XLR
Power Output Connectors
SpeakON
Controls and Configuration
Configuration Method
DIP Switch, Front Panel
Channel Controls
Independent Gain Control Per Channel
Indicators
Signal, Clip, Fault LEDs
Protection
Short Circuit Protection
Yes
Thermal Protection
Yes
DC Protection
Yes
Fuse Protection
Yes
VHF Interference Filtering
Yes
Electrical
Operating Voltage
220-240/115 V~, 50/60 Hz
Power Consumption (MAX)
1400 W
Construction
Cabinet Material
Metal
Color
Black - RAL 9005
Handles
Metal Handles (Front Panel)
Rack Mounting
19", 2U
Dimensions
Height
3.46"
Width
19.02"
Depth
15.71"
Weight
Product Weight
30.2 lbs
Shipping
Package Height
5.91"
Package Width
22.52"
Package Depth
22.44"
Package Weight
33.07 lbs
Certifications
Safety Compliance
CE
