RCF SUB15-AX W Active 15" Powered Subwoofer With DSP Control | White

RCF SUB15-AX W Active 15" Powered Subwoofer With DSP Control | White

SoundPro Item: 143275 | Part Number: SUB15-AX W

$2,199.00
$3,199.00 $2,199.00
Your Price Sold out
MSRP: $3,199.00 | MAP: $2,199.00

Usually ships in 5-7 business days

  • 2200W Peak Output For High-Impact LF Reinforcement
  • Onboard DSP Simplifies Crossover And System Setup
  • Bluetooth Control Supports Faster Remote Adjustments
  • Touchscreen Interface Speeds Venue-Side Tuning
  • Dual In/Out Connections Fit Active PA Rigs
  • M20 Pole Mount Supports Satellite Speaker Placement
Log in or register for YOUR best price

The RCF SUB15-AX is a powered 15-inch subwoofer built for portable live sound systems in small to mid-sized venues. Designed to pair effectively with 10-inch and 12-inch tops, it brings low-frequency reinforcement together with onboard loudspeaker management in a single enclosure. The built-in processing platform includes crossover presets, routing, delay, EQ, and cardioid configuration tools, reducing the need for additional outboard system control in many event and installation workflows.

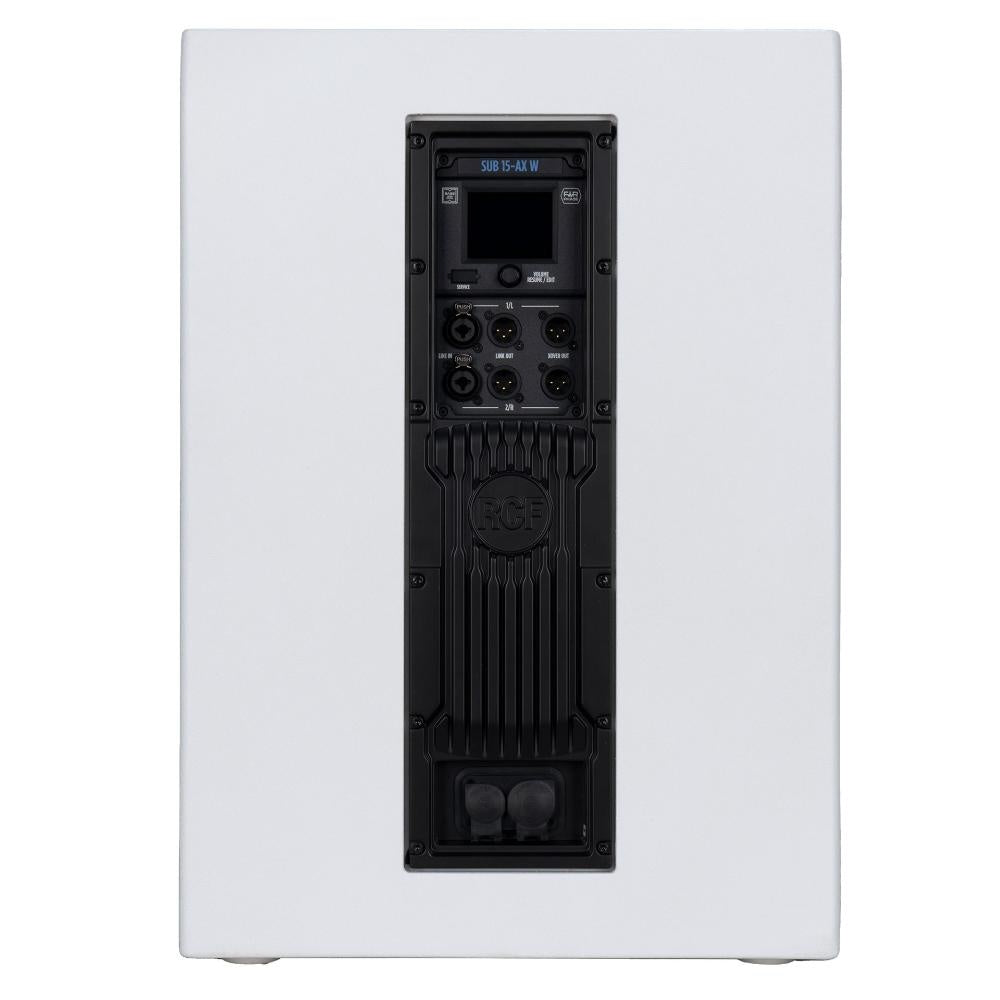

Its latest-generation transducer and Class-D amplifier platform provide strong output with headroom suited to DJs, bands, corporate AV, and mobile production setups. A color touch panel and encoder support local adjustment, while Bluetooth remote control through the LiveRemote app allows faster system setup and tuning from the listening position. Dual combo XLR/TRS inputs, link connections, and dual crossover outputs make integration straightforward for modern active speaker rigs.

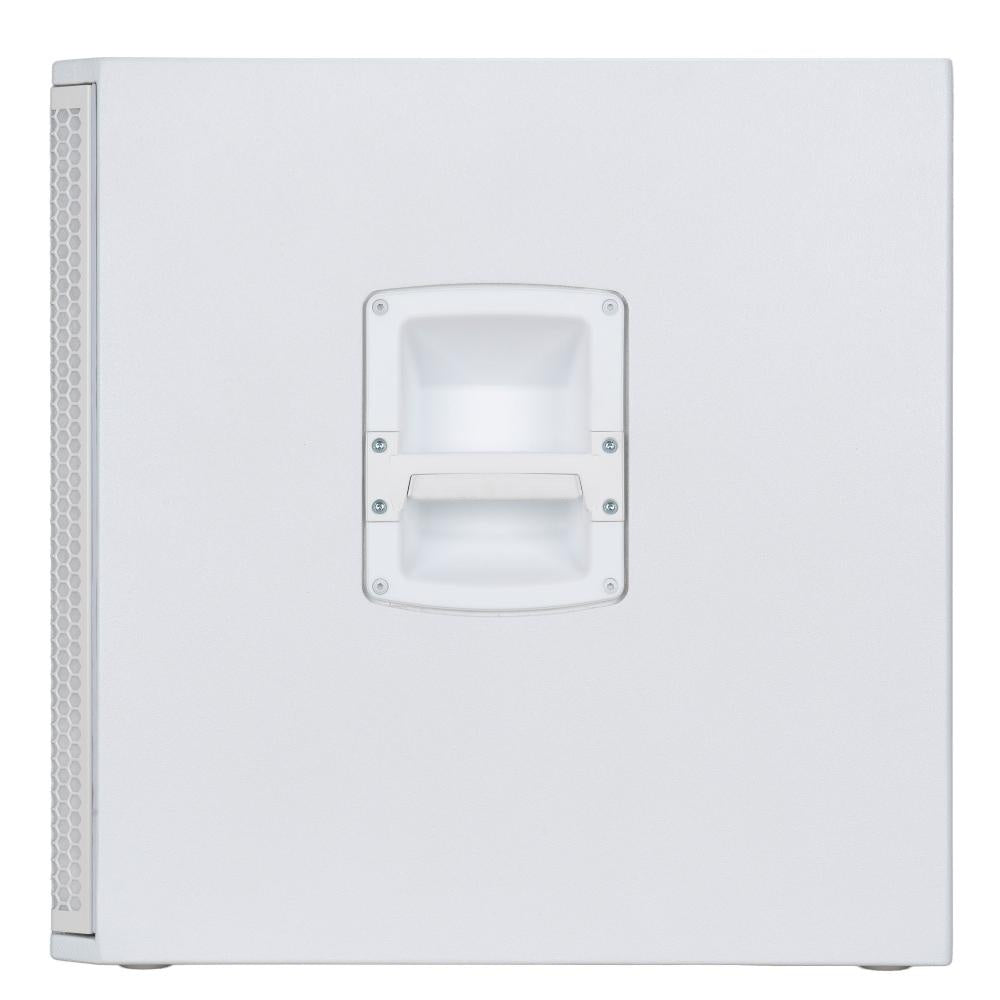

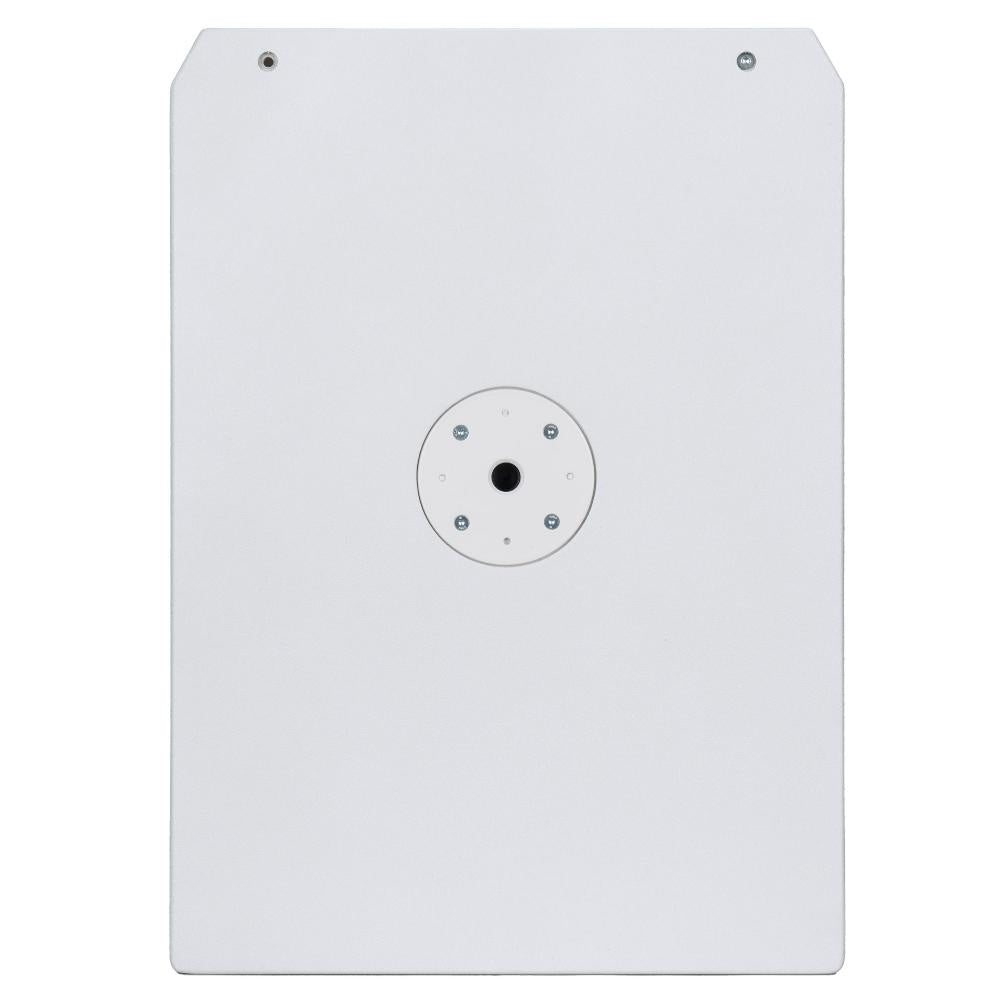

For real-world deployment, the plywood cabinet uses a polyurea coating for durability, includes side handles for transport, and provides an M20 pole mount for satellite speaker support. Additional design details such as convection cooling and a sealed Powercon TRUE1 TOP power connection support dependable operation in demanding event environments.

View full details

Specifications

Acoustical Specifications
Frequency Response
35 Hz - 120 Hz
Max SPL @ 1m
133 dB
Transducers
Woofer
1 x 15'', 3.0'' v.c
Input/Output Section
Input signal
bal/unbal
Input connectors
Combo XLR/Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Processor Section
Protections
Thermal
Limiter
Soft Limiter
Controls
Encoder for Volume control and data entry. Touch Screen for parameter management and monitor.
Power Section
Total Power
2200 W Peak, 1100 W RMS
Cooling
Convection
Connections
Powercon TRUE1 TOP IN/OUT
Standard Compliance
Safety agency
CE compliant
Physical Specifications
Cabinet/Case Material
Plywood
Handles
1 handle per side
Pole mount/Cap
M20 thread
Grille
Steel
Color
Black, White
Size / Weight
Height
590 mm / 23.23 inches
Width
420 mm / 16.54 inches
Depth
590 mm / 23.23 inches
Weight
31.4 kg / 69.23 lbs
Shipping Information
Package Height
640 mm / 25.2 inches
Package Width
650 mm / 25.59 inches
Package Depth
480 mm / 18.9 inches
Package Weight
36.5 kg / 80.47 lbs
