RDL EZ-MPA1 Microphone Preamplifier - Stereo Output with Compressors

RDL EZ-MPA1 Microphone Preamplifier - Stereo Output with Compressors

SoundPro Item: 151264 | Part Number: EZ-MPA1

$216.06
$288.08 $216.06
Your Price Sold out
MSRP: $288.08 | MAP: $216.06

Usually ships in 5-7 business days

  • Balanced Microphone Input on Rear-Panel XLR
  • Switch-Selectable Phantom on Rear Panel
  • Unbalanced Output on MINI or RCA Rear-Panel Jacks
  • Preamp Feeds Left and Right Output Channels
  • Front-Panel Compressor Enable/Disable Switch
  • Audio Compressor Controls Overloads
  • Front-Panel LEVEL Control
  • Dual-LED VU Meter
  • Optimized for Dynamic or Condenser Mics
  • Headroom Accomodates High Input Levels
  • Headroom Increases with Lower Gain Settings
  • Compressor Limits Clipping Over Wide Dynamic Range
Log in or register for YOUR best price

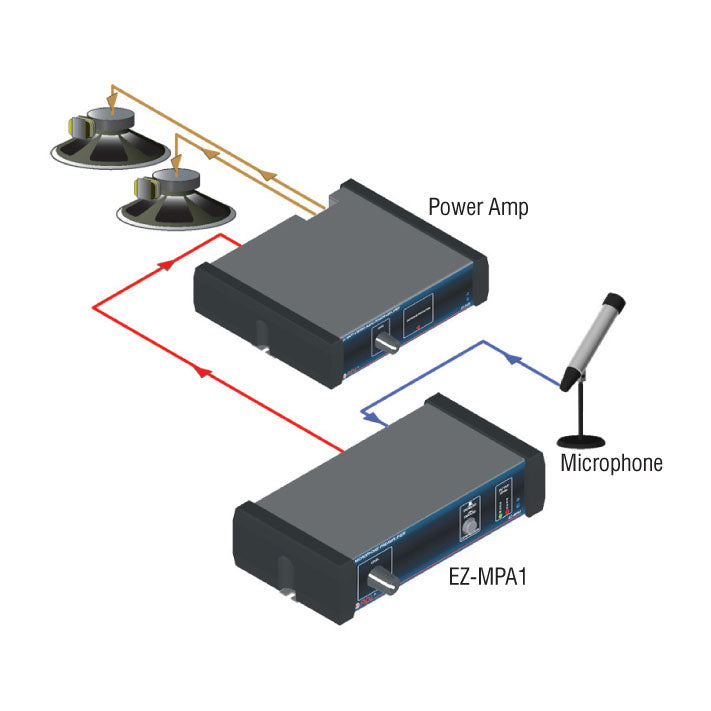

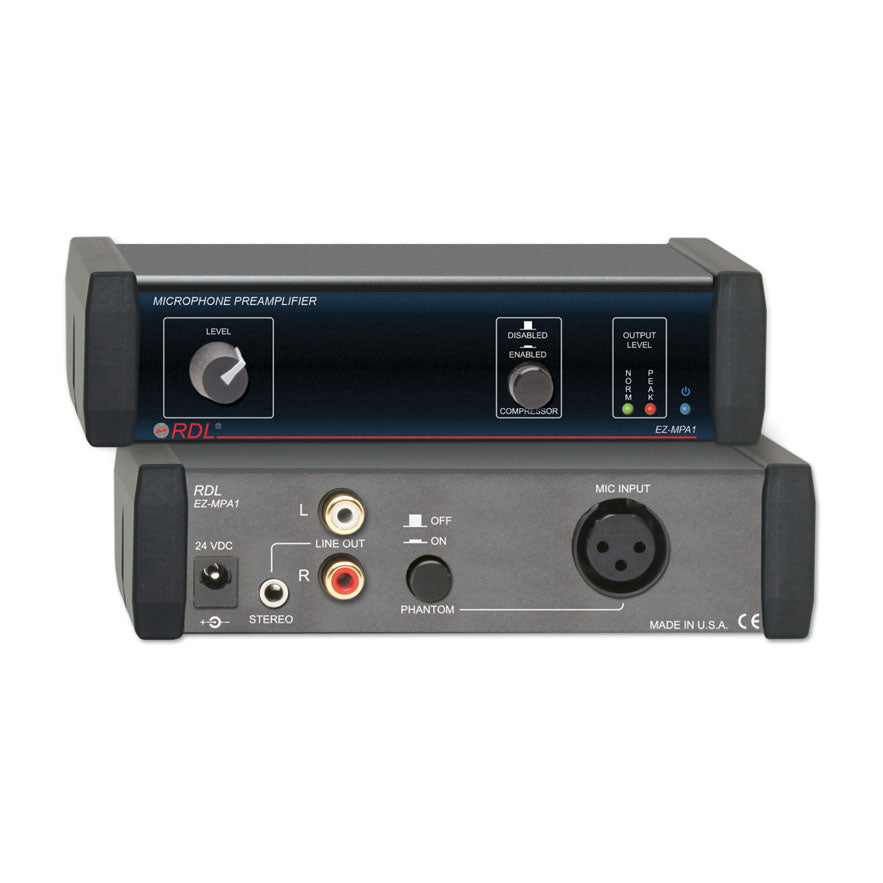

The EZ-MPA1 is a microphone preamplifier with front-panel volume control and audio level metering. A front-panel switch engages an audio compressor to control overloads and clipping during high level audio bursts or peaks from the microphone. Dynamic or condenser microphones are both supported with rear-panel switchable phantom voltage. The preamplified mic signal feeds both channels of the line output on RCA or mini-jacks. LED VU metering facilitates easy level adjustment. The EZ-MPA1 is ideal to add microphone inputs to mixers and amplifiers with line inputs. It is used in houses of worship, restaurants, clubs, meeting rooms, educational facilities, conference rooms, studios and commercial sound systems.

View full details

Specifications

Input:
1.2 kΩ balanced on XLR jack, mic-level, -11 dBu max.
Level control:
Off to 50 dB gain
Outputs (2):
-10 dBV nominal on RCA jacks or Mini jack, +16 dBV max. without compression, -4 dBV max. with 20 dB compression
Frequency Response:
80 Hz to 40 kHz (±1 dB, mic input, -6 dB at 20 Hz with integral high-pass filter)
THD+N:
< 0.1% (35 Hz to 20 kHz, -50 dBu input)
Compression :
20 dB range, switch-selectable
CMRR:
> 55 dB (20 to 20 kHz)
Metering:
Dual-LED VU Meter, calibrated to -10 dBV output
Phantom:
Switch-selectable 24 V (IEC 61938: 2013)
Noise:
< -65 dB (below -10 dBV output, -50 dBu input)
24 Vdc power supply current:
55 mA (idle), 80 mA (max.), 100 mA (max. with phantom)
Case dimensions:
5.75” (14.6 cm)W x 3” (7.6 cm)D
Mounting size:
1/3 rack width
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.56 lbs.
Shipping Weight:
0.955 lbs.
Package Dimensions:
9.5 x 7 x 2.25 in.
