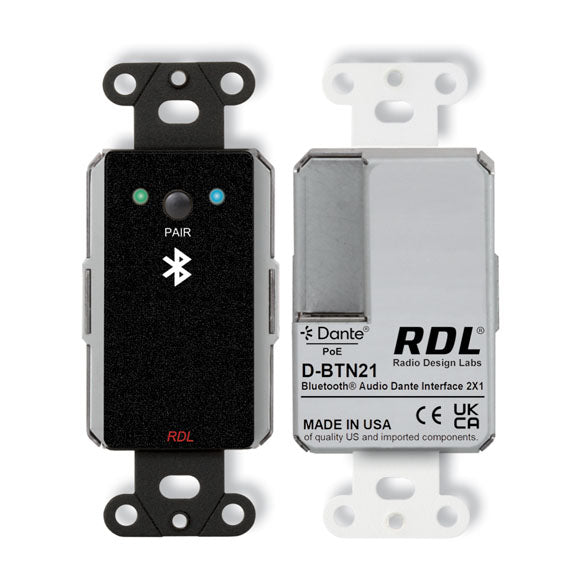

RDL DB-BTN21 Bluetooth Audio Dante Network Interface

RDL DB-BTN21 Bluetooth Audio Dante Network Interface

SoundPro Item: 147136 | Part Number: DB-BTN21

$430.92
$582.12 $430.92
Your Price Sold out
MSRP: $582.12 | MAP: $430.92

Usually ships in 5-7 business days

  • Bluetooth Audio Input for Dante or AES67 Networked System
  • Bluetooth Stereo or Mono Sum Feeds Two Network Channels
  • Return Audio Talk Channel from Dante Network to Bluetooth Connected Device
  • Intuitive Single Button Bluetooth Pairing with LED Status Indication
  • Bluetooth Functions are Controllable in RDL CONSOLE Software
  • Q-SYS Plug-In Available for Configuring in Q-SYS Environment
  • Bluetooth Functions are Controllable using Compatible RDL Remote Controls
  • Controllable Functions Include Pairing/Un-pairing, Media Source Track Selection and Level
  • Bluetooth Track Title and Artist Data are Multicast on the Network to Compatible Devices
  • Customize the Module ID Name, Settings and Mono/Stereo Mode using RDL CONSOLE Software
  • Module is PoE Powered
Log in or register for YOUR best price
View full details

Specifications

TYPICAL PERFORMANCE
Network Connector:
RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol:
Dante
Transmission Rate:
100 Mbps
Sample Rates Supported:
48 kHz
Bit Depth Supported:
24 bits
Audio Operating Levels:
-20 dBFS = +4 dBu (balanced); -20 dBFS = -10 dBV (unbalanced), nominal
Common
Indicators (Front Panel):
Bluetooth®, Network Sync
Power Connection:
PoE (RJ45)
Ambient Operating Environment:
0° C to 40° C
Power Requirement:
PoE
PoE:
Class 0, IEEE 802.3af
Dimensions:
1.71” (4.34 cm) W; 4.11” (10.44 cm) H; 2.09” (5.31 cm) D
Package Type:
Cardboard Box
Package Dimensions:
2.75 x 6.7 x 6.25 in.
Shipping Weight:
0.625 lb.
WEEE weight:
0.367 lbs.
US Tariff Code:
8543.70.9100
EU Tariff Code:
8543.70.0600
