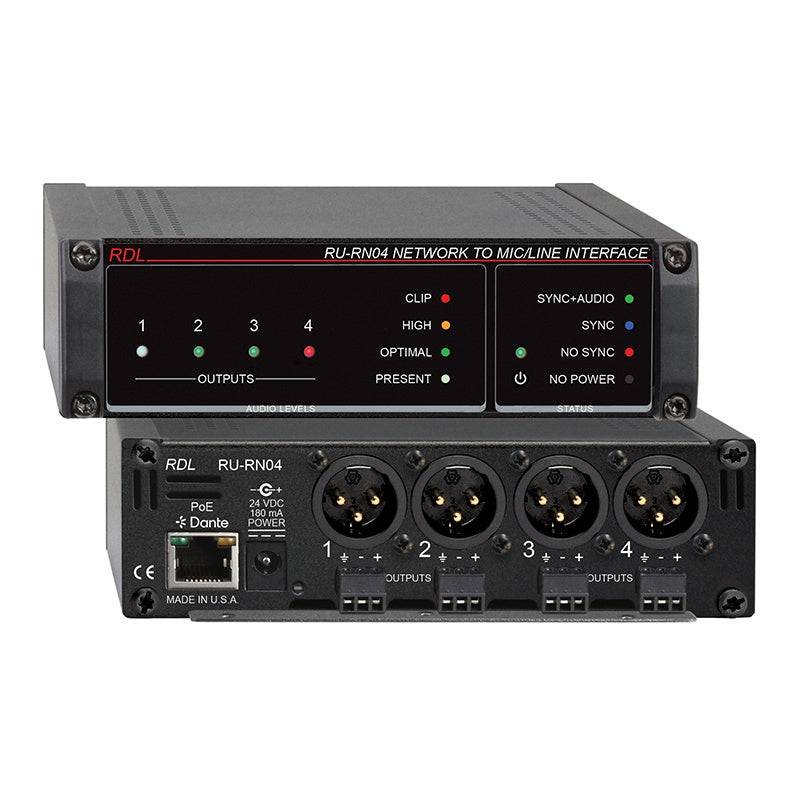

RDL Dante/AES67 Mic/Line Network Interface Rack-Up Module | 0X4

The RDL Dante/AES67 Mic/Line Network Interface Rack-Up series provides AV integrators and installed audio engineers with compact, network-native I/O modules that interface directly between Dante or AES67 audio networks and analog mic or line-level equipment. Designed for environments where distributed audio infrastructure demands precise signal routing without bulky processing hardware, these modules mount cleanly in equipment racks, closets, conference tables, and shelving systems, fitting naturally into commercial AV installations, corporate conferencing, houses of worship, and education facilities.

Each module in the family includes a mixing matrix with DSP filters, giving system designers granular control over signal paths without adding external processing. The modules connect to the network via a standard RJ45 interface supporting Dante or AES67 protocol at 100 Mbps, and support sample rates from 44.1 kHz through 96 kHz. Analog connections use XLR or detachable terminal block formats, supporting flexible field termination in installations where access is limited. The channel configuration options across the family cover output-only, input-only, and bidirectional layouts, so integrators can match the exact I/O profile to each zone or device without overprovisioning.

Compared to multi-channel Dante I/O boxes that require full rack space and dedicated power infrastructure, these Rack-Up modules offer a modular, distributed approach suited to modern installed AV. Whether addressing a single conference room endpoint or building out a campus-wide audio network, the series scales without requiring a centralized converter chassis.
