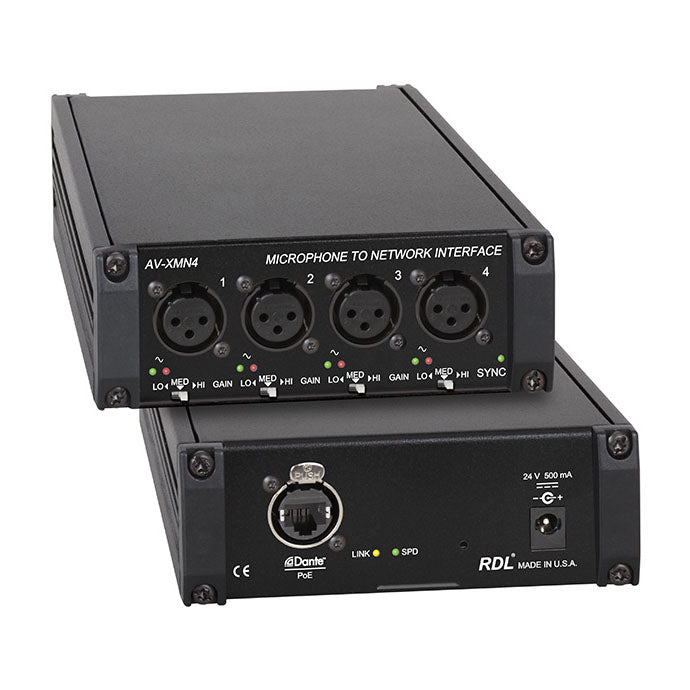

RDL AV-XMN4 Four Channel Mic to Dante Interface

RDL AV-XMN4 Four Channel Mic to Dante Interface

SoundPro Item: 84086 | Part Number: AV-XMN4

$967.23
$1,289.64 $967.23
Your Price Sold out
MSRP: $1,289.64 | MAP: $967.23

Usually ships in 5-7 business days

  • Dante Network Interface for Four Audio Mic Inputs
  • Each XLR Input Provides Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
  • 48 V Mic Phantom (P48) on each input
  • Four XLR Front-Panel Inputs
  • Converts Four Standard XLR Mic Audio Sources to Dante Network Channels
  • Special Software Not Required for Module Setup
  • High Resolution 24 Bit Analog to Digital Conversion
  • LED Indicator for Valid Power and Network Sync
  • Operation from PoE Power (Class 0, IEEE 802.3af) or external 24 Vdc
  • Mounts on a Microphone Stand using an RDL SF-MSM1
Log in or register for YOUR best price
View full details

Specifications

Network Connector:
RJ45 Neutrik® etherCON®
Digital Audio Ethernet Protocol:
Dante
Transmission Rate:
100 Mbps
Sample Rates Supported:
44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
Bit Depth Supported:
24 bits
Audio Operating Level:
-20 dBFS = +4 dBu
Reference Level:
0 dBFS = +24 dBu
Inputs (4):
XLR (female)
Gain:
Mic: 40 dB (LO), 48 dB (MED), 62 dB (HI); front-panel selectable
Input Level (for +4 dBu/-20 dBFS):
Mic: -36 dBu (LO), -44 dBu (MED), -58 dBu (HI)
Input Level (maximum):
Mic: -16 dBu (LO), -24 dBu (MED), -38 dBu (HI)
Input Impedance:
> 2.5 kΩ
Phantom Power:
P48, 48 Vdc
Standard for Phantom:
IEC 61938: 2013
Frequency Response:
20 Hz to 20 kHz (± 0.5 dB)
Equivalent Input Noise:
-130 dBu (62 dB gain); -132 dBu A-Weighted
Noise below -20 dBFS (20 to 20 kHz):
Mic: < -72 dB (LO), < -72 dB (MED), < -68 dB (HI)
THD+N:
< 0.1% (20 Hz to 20 kHz, +4 dBu/-20 dBFS); 0.015% at 1 kHz (typ)
CMRR:
> 65 dB (50 Hz to 120 Hz)
Crosstalk:
Below Noise Floor (20 Hz to 20 kHz at operating level, any input to any input, max. mic gain)
Indicators (11):
Ethernet Link and Speed (2, rear panel); Sync (front panel); dual-LED VU meter (8 LED, front panel)
Ambient Operating Environment:
0° C to 50° C
Power Requirement:
PoE Class 0, IEEE 802.3af, or 24 Vdc @ 500 mA, Ground-referenced
Specification Conditions:
Gain/Level: ± 1 dB; Source termination: 150 Ω; A to D values measured in digital domain
Dimensions:
5.19" (13.18 cm) W; 1.68" (4.27 cm) H; 5.97" (15.16 cm) D
Package Type:
Cardboard Box
Package Dimensions:
7 x 4.375 x 2.25 in.
Shipping Weight:
1.79 lbs.
WEEE weight:
1.56 lbs
Tariff code:
8543.70.9100
