RDL D-AVM4 Audio and Video Monitor Jack Panels

RDL D-AVM4 Audio and Video Monitor Jack Panels

SoundPro Item: 76803 | Part Number: D-AVM4

$55.77
$74.35 $55.77
Your Price Sold out
MSRP: $74.35 | MAP: $55.77

Usually ships in 5-7 business days

  • Stereo Audio Inputs to Stereo Audio Output
  • Stereo Inputs on RCA Jacks and Stereo Mini-Jack
  • Unbalanced Output on Detachable Terminal Block
  • Video Monitor Pass-Through Panel Connector
  • Available in RDL White/Gray
Log in or register for YOUR best price

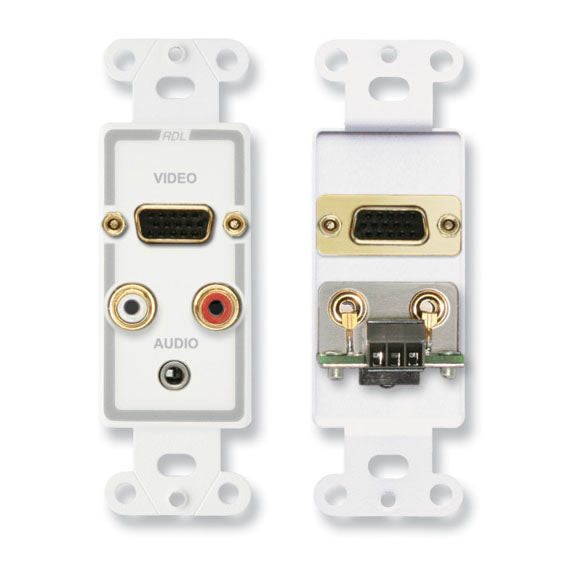

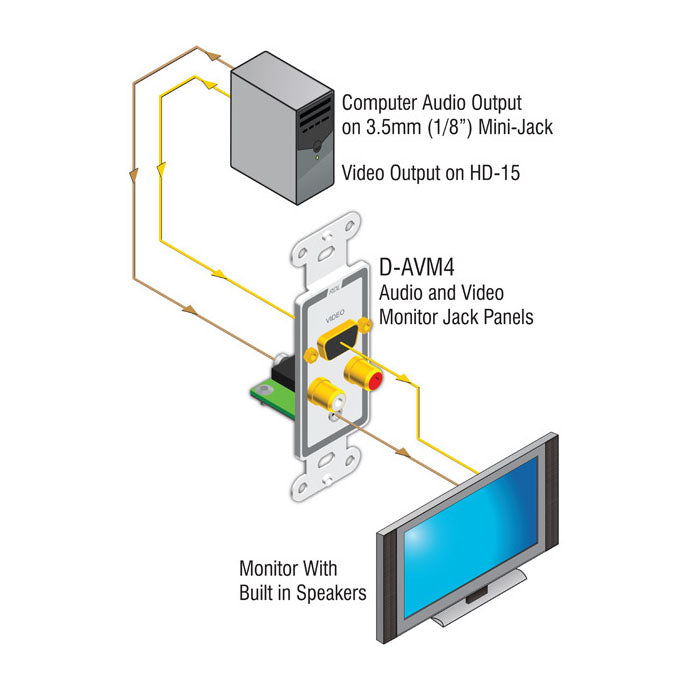

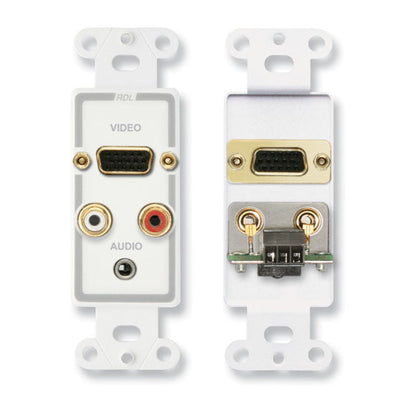

The D/S-AVM4 is the ideal choice in installations requiring a wall-mounted audio and video monitor input or output plate for computers, monitors and projectors. The panel is typically installed as an audio/video input plate, but may equally be used as an output jack panel. The front panel features a pass-through video monitor connector. Video connections are made on the front and rear panel using a standard DB15 video connector. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for stereo consumer line level audio sources. An input signal may be connected to either the phono jacks or to the mini-jack. The left and right signal inputs are fed to a rear-panel detachable terminal block. The audio signals are unbalanced and are intended for short wiring runs where balanced lines are not required.

View full details

Specifications

Audio output connector:
Detachable terminal block (Left and Right unbalanced audio)
Mounting Box Minimum Depth:
0.15 in. (0.38 cm) plus the depth of the installer-provided video connector
Video input connector:
Female DB15
Audio input connectors (3):
RCA jacks with gold contacts (Left and Right), Mini-jack 3.5 mm (Stereo)
Dimensions:
Height:\t4.13 in. 10.49 cm
Width:\t1.3 in.\t3.3 cm
Depth:\t1.8 in.\t4.57 cm
Video output connector:
Female DB15 (pass-through from front panel)
Package Type:
Cardboard Box
Tariff code:
8536.69.4030
WEEE weight:
0.105 lbs.
Shipping Weight:
0.25 lbs.
Package Dimensions:
3.625 x 4.625 x 2.125 in.
