RDL D-CIJ3 Consumer Input Jacks - Mono

RDL D-CIJ3 Consumer Input Jacks - Mono

SoundPro Item: 76911 | Part Number: 002-5357

$116.16
$151.54 $116.16
Your Price Sold out
MSRP: $151.54 | MAP: $116.16

In stock and ready to ship

  • Stereo Inputs to Mono Output
  • Stereo Inputs on RCA Jacks and Stereo Mini-Jack
  • Unbalanced to Balanced Conversion Without Gain
  • Transformer Isolation for Unbalanced Line Inputs
  • Hum Cancellation on Unbalanced Line Inputs
  • Line-Level Output to Feed 10 kΩ Equipment Inputs
  • Output Connections on Detachable Terminal Block
  • Mix Stereo Inputs to Mono Balanced
  • Available in RDL White/Gray (D-CIJ3)
  • Available in Stainless Steel (DS-CIJ3)
Log in or register for YOUR best price

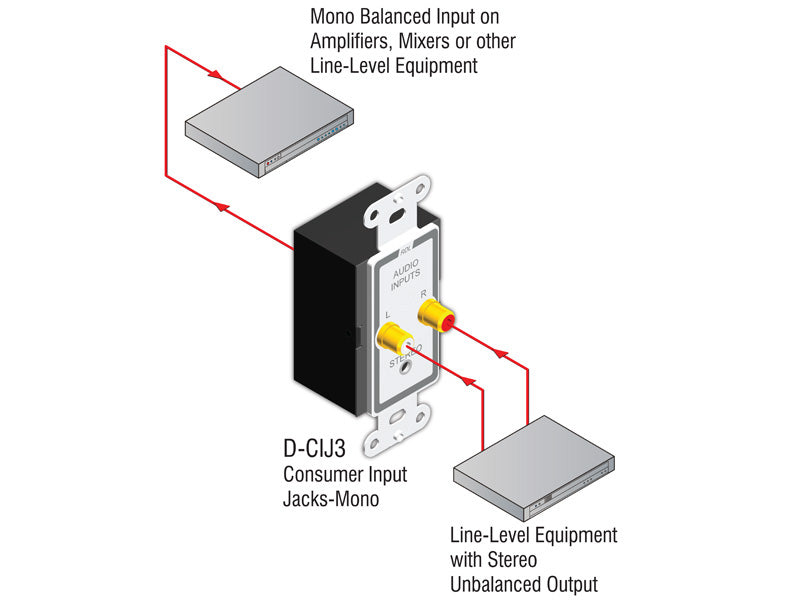

The D/S-CIJ3 is the ideal choice in installations requiring the passive mixing of two unbalanced line level audio sources to feed a mono balanced (or unbalanced) audio line.

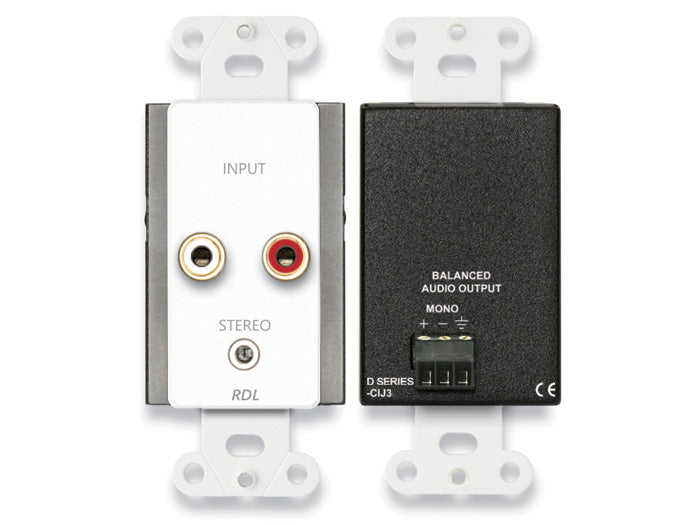

The D/S-CIJ3 is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The left and right signal inputs are combined and balanced through audio transformers configured to reject induced hum. A mono line-level output is provided on the rear-panel detachable terminal block for connection to a 10 kΩ or higher input impedance line-level module or equipment input.

View full details

Specifications

nput connectors (3):
Phono jacks with gold contacts (Left and Right), Mini-jack 3.5 mm (Stereo)
Frequency response (line level):
50 Hz to 20 kHz (±1 dB); 30 Hz to 20 kHz (±2 dB)
THD:
<0.2% (1 kHz)
Output connector:
Detachable terminal block
Ambient Operating Environment:
0° C to 55° C
Dimensions:
Height: 4.13 in. 10.49 cm, Width: 1.7 in. 4.32 cm, Depth: 2.15 in. 5.47 cm
Mounting Box Minimum Dimensions:
Width: 1.80 in. 4.57 cm, Depth: 1.75 in. 4.45 cm
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.34 lbs.
Shipping Weight:
0.48 lbs.
Package Dimensions:
3.625 x 4.625 x 2.125 in.
