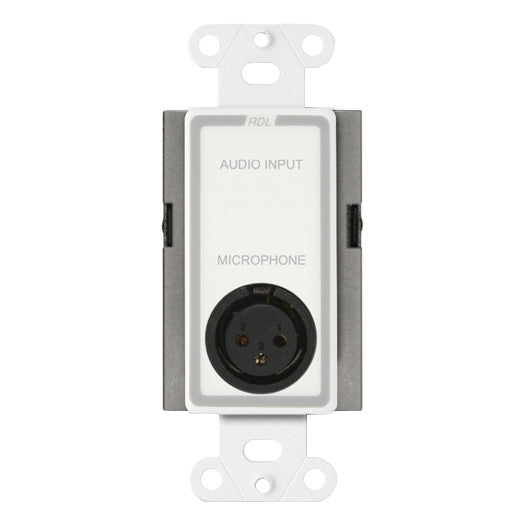

• RDL D-J1 Microphone Input Assembly front

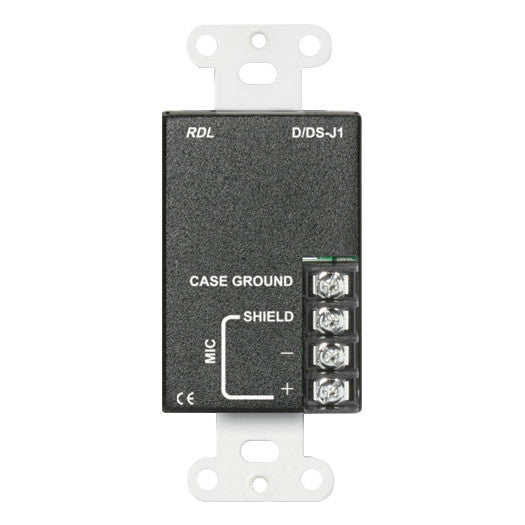

  • RDL D-J1 Microphone Input Assembly back
1 2

RDL D-J1 Microphone Input Assembly

RDL D-J1 Microphone Input Assembly

SoundPro Item: 76928 | Part Number: D-J1

$70.21
$93.61 $70.21
Your Price Sold out
MSRP: $93.61 | MAP: $70.21

Usually ships in 5-7 business days

  • Wall Mounted Microphone Input Panel
  • XLR Input Connector with Gold Contacts
  • Barrier Block Wiring Connections
  • Ground-Lift Terminals on Barrier Block
Log in or register for YOUR best price

The D SERIES-J1 from RDL is a complete microphone input panel assembly. Connections to the female front-panel XLR jack are made on a rear barrier block. Four terminals are provided: CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2) and - (XLR pin 3). The installer may install a jumper between the SHIELD connection and CASE GROUND if desired. The back of the D SERIES-J1 is finished with a metal enclosure clearly labeled for easy installation.

The D SERIES-J1 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.

View full details
  • Input Connector XLR female gold contacts
  • Output Connector Barrier block
  • Output Connections (4) CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2), - (XLR pin 3)
  • Power Requirement Passive
  • Dimensions Height 4.13 in. 10.49 cm; Width 1.7 in. 4.32 cm; Depth 2.15 in. 5.47 cm
  • Mounting Box Req. Width 1.80 in. 4.57 cm; Depth 1.75 in. 4.45 cm
  • Package Type Cardboard Box
  • Package Dimensions 3.625 x 4.625 x 2.125 in.
  • Shipping Weight 0.43 lbs.
  • WEEE weight 0.28 lbs.
  • Tariff code 8536.69.4030
