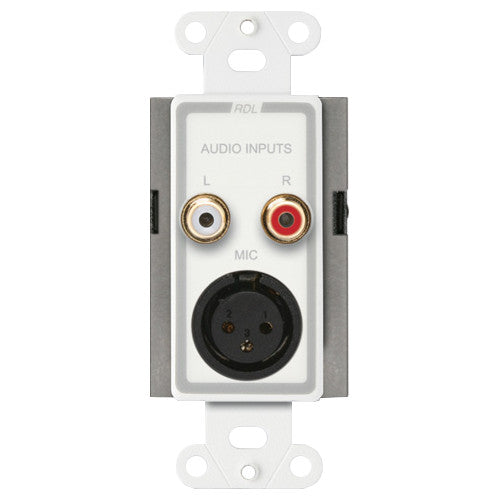

• RDL D-J3 Mic/Line Input Assembly

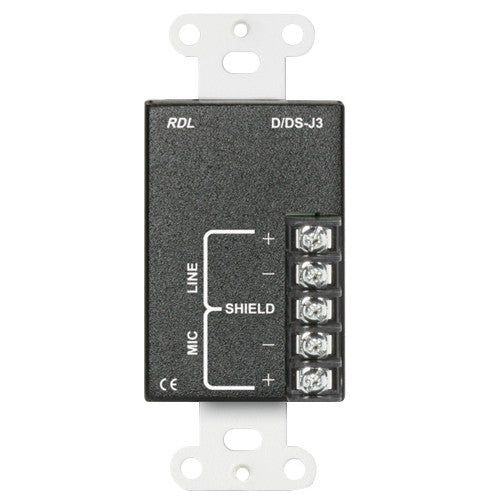

  • RDL D-J3 Mic/Line Input Assembly back
1 2

RDL D-J3 Mic/Line Input Assembly

RDL D-J3 Mic/Line Input Assembly

SoundPro Item: 76932 | Part Number: D-J3

$72.78
$97.04 $72.78
Your Price Sold out
MSRP: $97.04 | MAP: $72.78

Usually ships in 5-7 business days

  • Wall Mounted Audio Inputs
  • XLR Microphone Input with Gold Contacts
  • Gold Plated Phono Jack Line Inputs
  • Hum Cancellation on Unbalanced Line Inputs
  • Transformer Isolation for Unbalanced Line Inputs
  • Balanced Mono Output for Unbalanced Mono or Stereo Line Inputs
Log in or register for YOUR best price

The D SERIES-J3 is a complete audio input panel assembly. The front panel features a female XLR jack and two phono jacks. The XLR is connected directly to the rear-panel barrier block. The phono jacks are intended for mono or stereo consumer level sources. LEFT and RIGHT are combined and balanced through audio transformers configured to reject induced hum. The line-level output is provided on the rear-panel terminal block for connection to 10 kΩ or higher input impedance line level module or equipment inputs. The back of the D SERIES-J3 is finished with a metal enclosure clearly labeled for easy installation.

The D SERIES-J3 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
4.13x1.7x2.15" (10.49x4.32x5.47cm)
Package Dimensions
3.625x4.625x2.125"
Weight
Shipping Weight
0.505 lbs.
WEEE Weight
0.36 lbs.
Electrical
Power Requirement
Passive
Audio
Frequency Response (line in)
30 Hz to 20 kHz (±1 dB)
Connectivity
Input Connectors
XLR female with gold contacts (1); Phono jacks with gold contacts (2)
Output Connector
Terminal block
Output Connections (5)
Line: +, -, SHIELD; Mic: SHIELD (XLR pin 1), + (XLR pin 2), - (XLR pin 3)
General
Mounting Box Req.
Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm
Package Type
Cardboard Box
