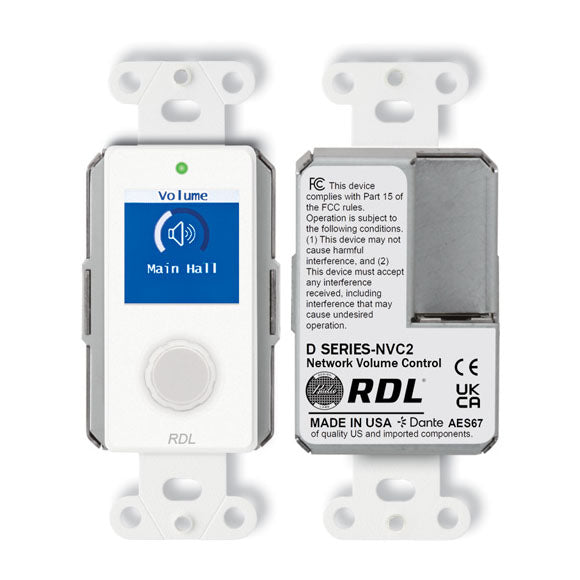

RDL D-NVC2 Dante / AES67 Network Volume Control

RDL D-NVC2 Dante / AES67 Network Volume Control

SoundPro Item: 200747 | Part Number: 001-7715

$538.92
$643.97 $538.92
Your Price Sold out
MSRP: $643.97 | MAP: $538.92

Usually ships in 5-7 business days

  • Rotary Encoder Volume Control with Full-Color LCD Display
  • Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • Attenuation Applied to One or Two Dante/AES67 Audio Channels
  • Network Audio Channels are Routed Through the D*-NVC2
  • Knob Rotation Adjusts Audio Volume Up or Down
  • Attenuation Adjustment in 1 dB Steps From 0 to 63 dB then Mute
  • Programmable Knob Action Acceleration
  • Momentary Knob Push to Mute/Unmute with Screen Indication
  • Extended Knob Push to Open Menu
  • Menu Allows User to Adjust Output Channel A, B or Both
  • Option to Sum Stereo Input to Mono on Outputs A and B Using RDL CONSOLE
  • Installer Sets Menu Default and Defines Channel Names Using RDL CONSOLE
  • The D-NVC2 May be Remote Controlled by RDL D-NMC1R or D-NLC1R
  • Selectable Screen Display Color Themes Using RDL CONSOLE
  • Adjusts Levels of Network Audio Signals Routed Through It*
  • Displays Audio Attenuation Level Applied to Routed Signals*
  • PoE Powered
  • Available in Stainless Steel, Black and White
Log in or register for YOUR best price
View full details

Specifications

TYPICAL PERFORMANCE
Network Connector:
RJ45 with LED indicators
Transmission Rate:
100 Mbps
Sample Rates Supported:
44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
Indicators (3):
Ethernet Link and Speed (2, rear panel); Power (front panel)
Screen:
Color LCD 240 x 240 pixels
Rotary Control:
Knob push short: Mute/Unmute or Enter;Knob push long: Menu selection;Knob rotation: Level Up/Down
Ambient Operating Environment:
0° C to 40° C; 30° C maximum recommended
Power Requirement:
PoE Class 0, IEEE 802.3af
Mounting:
Mounts in standard US electrical box;cover plate available separately
Dimensions:
1.8” (4.57 cm) W;4.11” (10.44 cm) H;1.61” (4.09 cm) D
US Tariff code:
8543.70.9860
EU Tariff code:
85437090
Package Type:
Cardboard Box
Package Dimensions:
3.625 x 4.625 x 2.125 in.
Shipping Weight:
0.51 lbs.
WEEE weight:
0.37 lbs.
