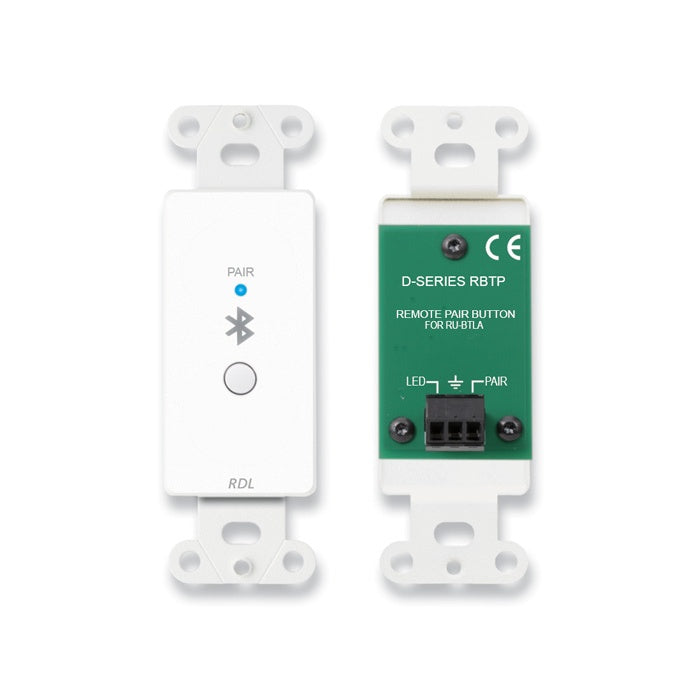

• D-RBTP Decora-style Bluetooth pairing remote front and rear views showing PAIR button with blue LED and green circuit board with 3-pin removable terminal block, RDL
1 1

RDL D-RBTP Decora-Style Bluetooth Pairing Remote For RU-BTLA

RDL D-RBTP Decora-Style Bluetooth Pairing Remote For RU-BTLA

SoundPro Item: 209295 | Part Number: D-RBTP

$99.00
$129.00 $99.00
Your Price Sold out
MSRP: $129.00 | MAP: $99.00

Usually ships in 5-7 business days

  • Single-Button Interface Initiates Pairing And Disconnects Without Rack Access
  • Blue LED Status Indicator Shows Disconnected, Pairing, And Paired States
  • Decora Form Factor Integrates With Standard Commercial Wall Plates
  • Mounts In Any Standard US Single-Gang Electrical Box For Clean Installs
  • Powered Directly From RU-BTLA, Requiring No Additional Power Supply
  • Supports Two Remotes Per RU-BTLA For Dual-Access Room Configurations
  • Compatible With Shielded Or Standard Twisted-Pair Cable Wiring
Log in or register for YOUR best price

The RDL D-RBTP is a Decora-style remote pushbutton designed for system integrators who need to place Bluetooth pairing control at the point of use rather than at the equipment rack. It works exclusively with the RDL RU-BTLA Bluetooth Audio Receiver and gives end users a clean, single-button interface to initiate pairing, monitor connection status through an integrated LED, and manually disconnect a paired device. The remote connects to the RU-BTLA over 3-conductor single-pair shielded or standard twisted-pair cable and draws all power from the receiver, so no additional wiring runs or power supplies are required at the wall.

Up to two D-RBTP remotes can be assigned to a single RU-BTLA, making it practical for dual-entry rooms or spaces where pairing access is needed at more than one location. The low-profile Decora form factor integrates with standard commercial wall plates, keeping installations in conference rooms, classrooms, hospitality venues, and presentation spaces looking finished and professional. For integrators, the ability to position the RU-BTLA in the most radio-advantageous location while routing user control to a convenient surface is a meaningful architectural advantage over solutions that require physical access to the receiver.

View full details

Specifications

Dimensions
Product Height
4.1"
Product Width
1.08"
Product Depth
1.6"
Controls
Pushbutton Type
Momentary (press and release to disconnect; press and hold to initiate pairing)
Indicator
Blue LED (off when disconnected; flashing when pairing; steady when paired)
Indicator Count
1 (Pair Status)
Power
Power Requirement
Provided from RU-BTLA
Environmental
Ambient Operating Temperature
0 degrees C to 50 degrees C
Shipping
Package Type
Cardboard Box
Package Dimensions
4" x 4" x 2"
Shipping Weight
1.11 lbs
WEEE Weight
1.16 lbs
US Tariff Code
8536.69.4030
EU Tariff Code
85366990
Identifiers
MPN
D-RBTP
