RDL D-RC2ST 2-Channel Remote Control for STICK-ON

RDL D-RC2ST 2-Channel Remote Control for STICK-ON

SoundPro Item: 76952 | Part Number: D-RC2ST

$142.64
$190.18 $142.64
Your Price Sold out
MSRP: $190.18 | MAP: $142.64

Usually ships in 5-7 business days

  • Remote Selection of 2 Audio Sources, Destinations or Functions
  • Single-Button Selection for Each Source
  • Open-collector Switching of 1 of 2 Module Functions
  • 3-wire or 4-wire Remote Wiring
  • Professional Aesthetic Appearance
  • Companion to other RDL® Remote Controls
Log in or register for YOUR best price

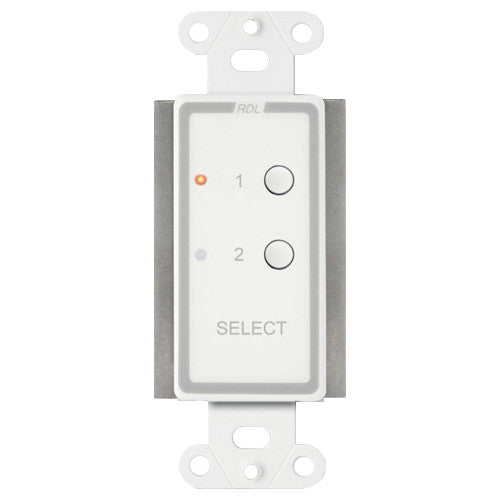

The front panel of the D-RC2ST features two pushbuttons with two associated LEDs. Upon initial power-up, source 1 is selected. Touching the other button de-selects source 1 and immediately selects source 2. An LED adjacent to each button shows which source is selected.

In a typical installation, the D-RC2ST may be used to select between two audio or video sources, or to route audio to two destinations. To select between two audio sources, the D-RC2ST is connected to an RDL ST-SSR1 Solid-State Audio Switch. For video switching, an RDL TX-MVX may be used. For audio routing, an RDL ST-RX2 is used. In each of the above examples, only one output terminal is needed for triggering. Therefore a single shielded pair (or 3-conductor cable) is required for remote connection. For more complex switching networks, both outputs may be used.

View full details
  • Selectors (2)Momentary pushbuttons, (1 for each channel)
  • Indicators (2)Red LEDs, (indicates channel selected)

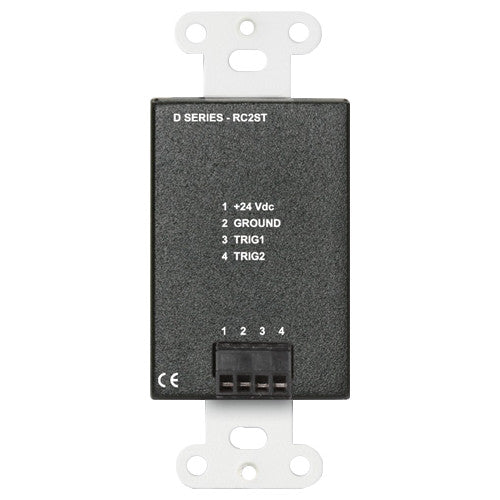

  • ConnectionsDetachable terminal block; Power input; open-collector outputs (25 mA current limited)
  • Ambient Operating Environment-10° C to 55° C
  • Power RequirementGROUND-REFERENCED, 24 Vdc @ 30 mA
  • MountingMounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately
  • Package Dimensions3.625 x 4.625 x 2.125 in.
  • Shipping Weight365 lbs.
  • WEEE weight0.215 lbs.
