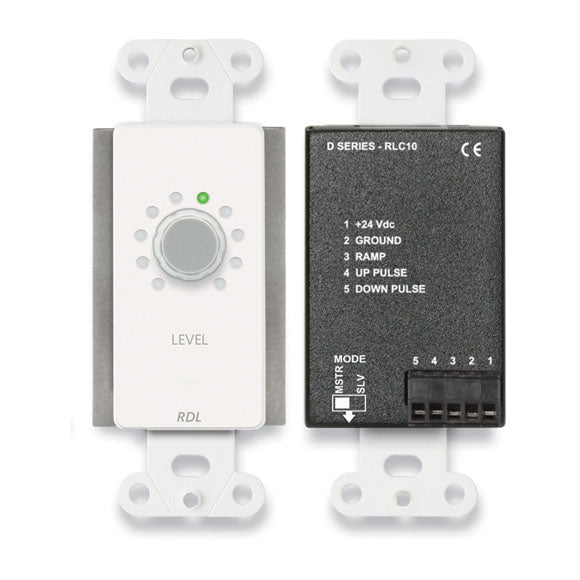

RDL D-RLC10 Remote Level Control

RDL D-RLC10 Remote Level Control

SoundPro Item: 76972 | Part Number: D-RLC10

$318.29
$424.39 $318.29
Your Price Sold out
MSRP: $424.39 | MAP: $318.29

Usually ships in 5-7 business days

  • Rotary Optical Encoder Remote Level Control

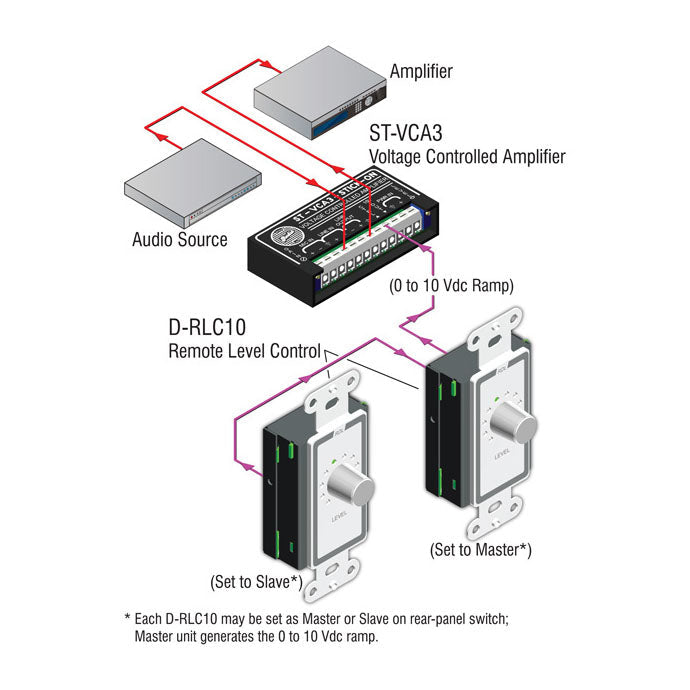

  • Single or Multiple Control Locations
  • Up To Ten Remote Control Locations
  • Integral 0 to 10 VDC Ramp Generator
  • Visual Level Display of Operating Level
  • Display is Bright During Adjustment
  • Display Dims After Adjustment
  • Powers Up to Last Level Used
  • Compatible with All RDL VCA Modules
  • Available in Stainless Steel, Black and White
Log in or register for YOUR best price
View full details

Specifications

Ramp:
0 to 10 Vdc (Slave mode input; Master mode output)
Pulse outputs (2):
Open-Collector @ 20 mA (UP, DOWN)
Pulse duration:
500 uS (min.) to 4 mS (max.)
Pulse interval:
500 uS (min., between consecutive pulses)
Rotations, approximate min-to-max:
5 (slow rotation, no acceleration)3 (medium rotation, with acceleration)1 (fast rotation counterclockwise)
Level Control:
Optical rotary encoder
Power Requirement:
24 Vdc @ 50 mA, Ground-referenced
Mounting:
Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately
Dimensions:
Height: 4.11 in. 10.44 cm; Width: 1.31 in. 3.33 cm; Depth: 0.98 in. 2.49 cm (w/o knob); Depth: 0.545 in. 3.93 cm (overall)
Package Type:
Cardboard Box
Package Dimensions:
3.625 x 4.625 x 2.125 in.
Shipping Weight:
0.415 lbs.
WEEE Weight:
0.27 lbs
Tariff Code:
8543.70.9860
