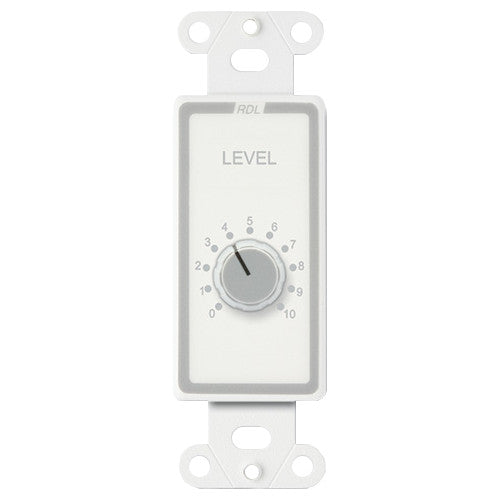

• RDL D-RLC10K Remote Level Control

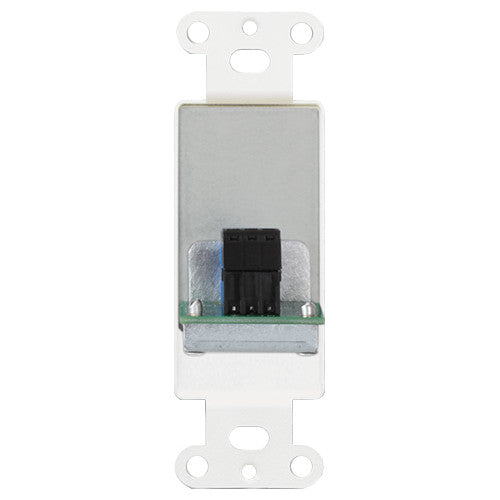

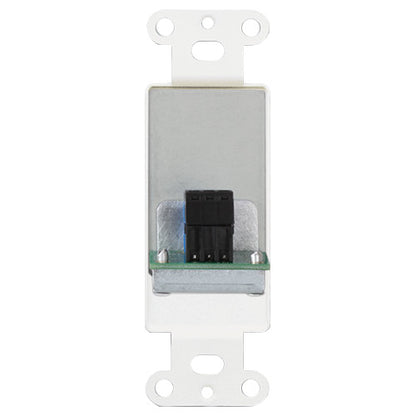

  • RDL D-RLC10K Remote Level Control back
1 2

RDL D-RLC10K Remote Level Control

RDL D-RLC10K Remote Level Control

SoundPro Item: 69563 | Part Number: 001-0114

$53.56
$71.42 $53.56
Your Price Sold out
MSRP: $71.42 | MAP: $53.56

Usually ships in 5-7 business days

  • Remote Level Control Panel
  • Rotary Control
  • Direct Connection to RDL® VCA Modules
  • Single Control Location
  • Premium-Quality Remote Panel
  • Professional Aesthetic Appearance
Log in or register for YOUR best price

The RLC10K is the ideal companion to the RDL VCA modules where levels are to be controlled from a single remote location. It is designed to directly interface with the 3-wire control input of the VCA module. The RLC10K contains a high-quality 10 kO potentiometer for setting the control voltage.

The RLC10K panel has 10 graphic increments which provide a visual indication of the level setting. The RLC10K and RDL remote source selector may be mounted together in a double box/plate to form a visually appealing control of both audio source and audio level.

Three conductors are required for connection between the RLC10K and an RDL VCA. A single shielded pair is normally used.

All the RLC10K features combine to make it the optimum economical choice for single-point remote level control in high-quality systems. Use the RLC10K individually with an RDL control module, or combine it side-by-side with other RDL remote accessories as part of a complete audio/video system.

View full details

Specifications

Dimensions
Package Dimensions
3.625 x 4.625 x 2.125 in.
Weight
Shipping Weight
0.43 lbs.
WEEE Weight
0.295 lbs.
Electrical
Resistance
0 to 10 kΩ, linear
Construction
Mounting
Mounts in US electrical box or RDL< international wall boxes WB-1U, WB-2U; decorative plate available separately
General
Ambient Operating Environment
-10° C to 55° C
