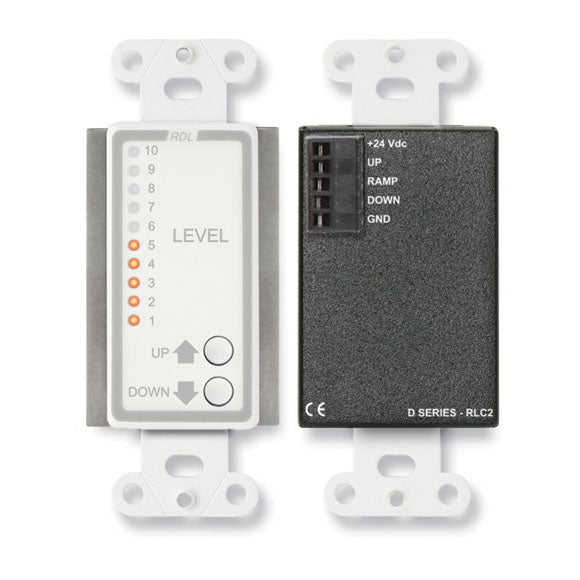

RDL D-RLC2 Remote Level Control - Ramp

RDL D-RLC2 Remote Level Control - Ramp

SoundPro Item: 76979 | Part Number: D-RLC2

$196.93
$262.57 $196.93
Your Price Sold out
MSRP: $262.57 | MAP: $196.93

Usually ships in 5-7 business days

  • Remote Level Control Panel
  • Pushbutton UP and DOWN
  • 10-segment Visual Level Display
  • Multiple Control / Indication Locations
  • Premium-Quality Remote Panel
  • Professional Aesthetic Appearance
Log in or register for YOUR best price

The D-RLC2 is the ideal choice where levels are to be controlled from a single, or from multiple control locations, and visual level indication is desired. The D-RLC2 is designed to directly interface with RDL control modules, such as the STICK-ON® series ST-RG1 Ramp Generator, or RACK-UP® series RU-VCA2A Digitally Controlled Audio Attenuator. The D-RLC2 has two momentary pushbuttons, UP and DOWN. Pushing each button sends the appropriate signal back to the RDL control module. When connected to the RU-VCA2A, pushing both buttons on the D-RLC2 simultaneously causes the level to return to the PRESET level on the RU-VCA2A.

View full details

Specifications

Ramp Input:
0 to 10 Vdc
Outputs:
UP and DOWN, pushbutton actuated 15 Vdc @ 5 mA
Mounting:
Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately
Ambient Operating Environment:
0° C to 55° C
Connections:
Detachable terminal block;
Power Requirement:
GROUND-REFERENCED, 24 Vdc @ 75 mA
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.215 lbs.
Package Dimensions:
3.625 x 4.625 x 2.125 in.
Shipping Weight:
0.365 lbs.
