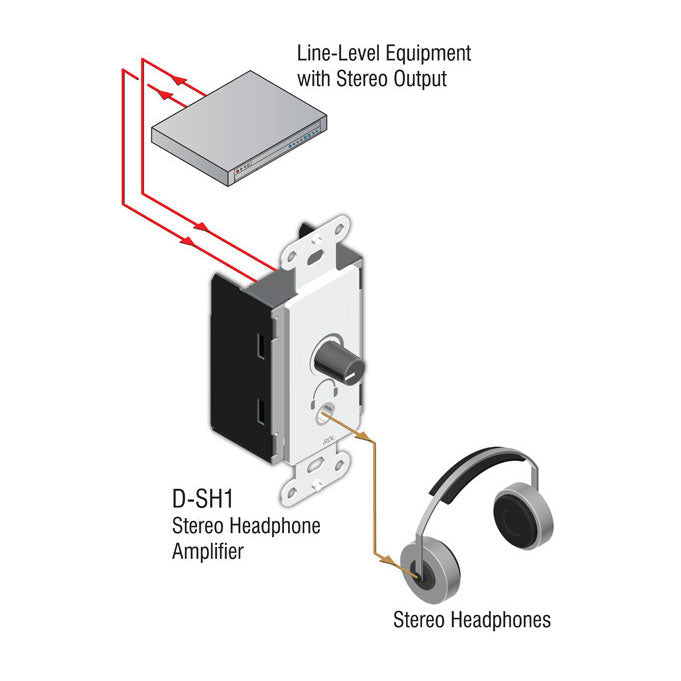

RDL D-SH1 Stereo Headphone Amplifier - Decora panel with user level control

RDL D-SH1 Stereo Headphone Amplifier - Decora panel with user level control

SoundPro Item: 77014 | Part Number: D-SH1

$212.52
$283.36 $212.52
Your Price Sold out
MSRP: $283.36 | MAP: $212.52

Usually ships in 5-7 business days

  • Panel-Mounted Headphone Amplifier
  • Wall-Mounted Headphone Amplifier
  • Integral Long-Life VCA Stereo Level Control
  • Balanced or Unbalanced Inputs
  • Switch-Selectable Input Sensitivity
  • Switch-Selectable Mono (Left) or Stereo Operation
  • Amplifier To Drive High or Low Impedance Headsets
  • Convenience of Decora® Mounting Possibilities
Log in or register for YOUR best price
View full details

Specifications

Inputs (2):
10 kΩ balanced or unbalanced bridging
Input Level:
+4 dBu nominal (Low input sensitivity);-15 dBV nominal (High input sensitivity)
Maximum Input Level:
+21 dBu (Low input sensitivity);+3 dBu (High input sensitivity)
Output Signal (normal rated):
10 mW into 100 Ω
Output Signal (maximum):
50 mW into 100 Ω
THD+N:
< 0.5% @ 1 kHz
Frequency Response:
30 Hz to 20 kHz (± 2 dB)
Noise:
< -70 dB below normal operating level
Gain:
User-adjustable on front panel 18.5 dB (maximum, High input sensitivity); Unity (maximum, Low input sensitivity)
CMRR:
> 60 dB (50 to 120 Hz)
Crosstalk:
Below noise floor (20 Hz to 20 kHz)
Ambient Operating Environment:
0° C to 55° C
Power Requirement:
GROUND-REFERENCED 24 Vdc @ 50 mA
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.33 lbs.
Shipping Weight:
0.475 lbs.
Package Dimensions:
3.625 x 4.625 x 2.125 in.
