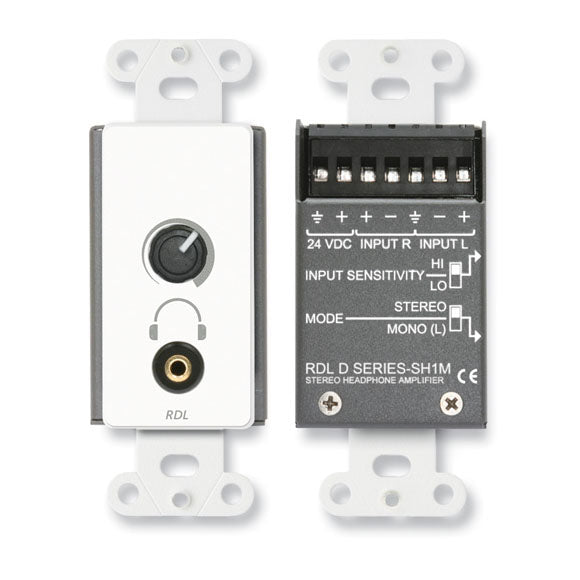

RDL D-SH1M Stereo Headphone Amplifier

RDL D-SH1M Stereo Headphone Amplifier

SoundPro Item: 77016 | Part Number: D-SH1M

$207.32
$276.43 $207.32
Your Price Sold out
MSRP: $276.43 | MAP: $207.32

Usually ships in 5-7 business days

  • Integral Long-Life VCA Stereo Level Control
  • Balanced or Unbalanced Inputs
  • Switch-Selectable Input Sensitivity
  • Switch-Selectable Mono (Left) or Stereo Operation
  • Amplifier to Drive High or Low Impedance Headsets
  • Output: Mini-Jack
Log in or register for YOUR best price
View full details

Specifications

Inputs (2):
10 kΩ balanced or unbalanced bridging
Input Level:
+4 dBu nominal (Low input sensitivity);-15 dBV nominal (High input sensitivity)
Maximum Input Level:
+21 dBu (Low input sensitivity);+3 dBu (High input sensitivity)
Output Signal:
10 mW into 100 Ω (normal rated);
Output Signal:
50 mW into 100 Ω (maximum)
THD+N:
< 0.5% @ 1 kHz
Frequency Response:
30 Hz to 20 kHz (±2 dB)
Noise:
< -70 dB below normal operating level
Gain:
User-adjustable on front panel; 18.5 dB (maximum, High input sensitivity);Unity (maximum, Low input sensitivity)
CMRR:
> 60 dB (50 to 120 Hz)
Crosstalk:
Below noise floor (20 Hz to 20 kHz)
Power Requirement:
GROUND-REFERENCED, 24 Vdc @ 50 mA
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.305 lbs.
Shipping Weight:
0.455 lbs.
Package Dimensions:
3.625 x 4.625 x 2.125 in.
