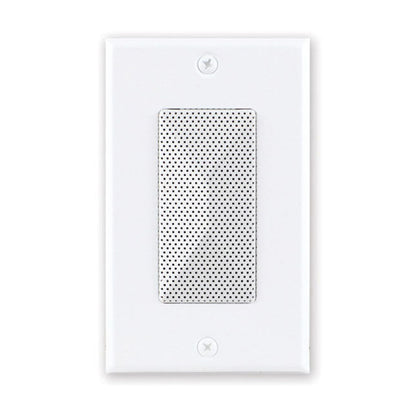

RDL D-SP1A 2 Watt Decora-Style 8 Ohm Loudspeaker

RDL D-SP1A 2 Watt Decora-Style 8 Ohm Loudspeaker

SoundPro Item: 68052 | Part Number: D-SP1A

$108.67
$144.90 $108.67
Your Price Sold out
MSRP: $144.90 | MAP: $108.67

Usually ships in 5-7 business days

  • Acoustically Optimized Decora Enclosure
  • Fidelity Comparable to Larger Drivers
  • Exceptional Audio Quality for Ultra-Compact Size
  • Rich Presence and Detailed Clarity
  • Hemispherical Dispersion Mounted In Wall or Flat Surface
  • Convex Aluminum Cone with Rubber Surround
  • Neodymium Motor
Log in or register for YOUR best price

The D SERIES-SP1A is a compact 8 ohm loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a hemispherical area of nearly 180 degrees with the speaker mounted in a wall. The input is connected through a 2-position detachable terminal block on the rear panel. The D SERIES-SP1A operates with a continuous audio input up to 2 watts, making it suited to be driven by speech or music content from amplifiers with a maximum rated power of up to 10 W. Models are available with grills in black (DB-SP1A), white (D-SP1A), gray (DG-SP1A) or stainless steel (DS-SP1A).

View full details

Specifications

Input Power:
2 W RMS (modulation peaks limited to 10 W)

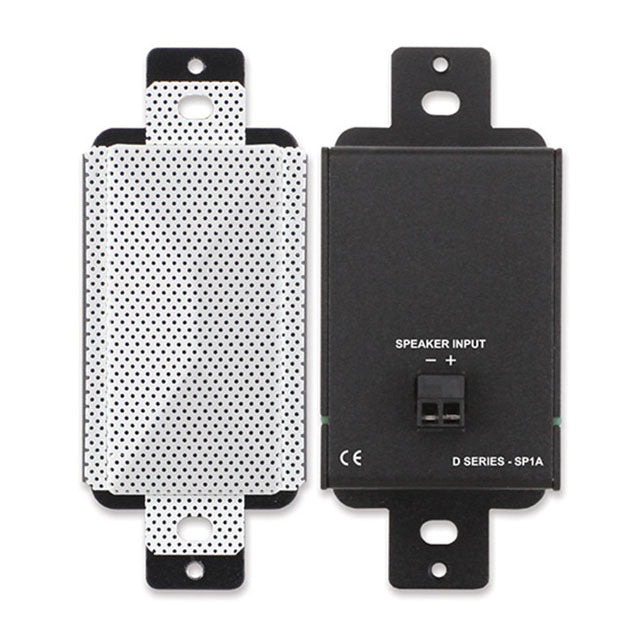

Input Connection:
Detachable terminal block (14 to 24 AWG)
Impedance:
8 Ohms (nominal)
Frequency Range:
150 Hz to 20 kHz, nominal
Sensitivity:
78 dB (1 W, 1m nominal)
Enclosure:
Powdercoated steel
Grill:
Formed perforated steel
Dimensions:
Height: 4.1 in. 10.4 cm; Depth: 2.07 in. 5.26 cm (with terminal block); Width: 1.72 in. 4.37 cm
Mounting:
Mounts in US electrical box, RDL international wall boxes WB-, surface mount box SMB-, or desktop chassis' DC- available separately.
Mounting Box Minimum Depth:
2 in. 5.08 cm
Package Type:
Cardboard Box
Package Dimensions:
3.625 x 4.625 x 2.125 in
Shipping Weight:
0.54 lbs. (D-SP1A, DB-SP1A); 0.525 lbs. (DS-SP1A)
WEEE weight:
0.390 lbs. (D-SP1A, DB-SP1A); 0.380 lbs. (DS-SP1A)
Tariff code:
8518.21.0000
