RDL D-TPA1A 3.5 Watt Decora Audio Power Amplifier
RDL D-TPA1A 3.5 Watt Decora Audio Power Amplifier
SoundPro Item: 77109 | Part Number: D-TPA1A
Usually ships in 5-7 business days
- 3.5W RMS Audio Amplifier into 8 Ohms
- 6.5W RMS Audio Amplifier into 4 Ohms
- Output Drives 4 or 8 Ohm Speaker
- Setting Level to Minimum Activates Energy-Saving Sleep Mode
- High-Efficiency Class D Operation
- VCA Level Adjustment for Scratch-Free Long Life
- Input and Power Connection on RJ45
- Connects to Format-A Sender using Twisted-Pair Cable
- Powered from RDL Twisted Pair Format-A Sender
- Speaker Output Connection on Detachable Terminal Block
- Ultra-Compact All Metal Construction
- Thermal and Short-Circuit Protection

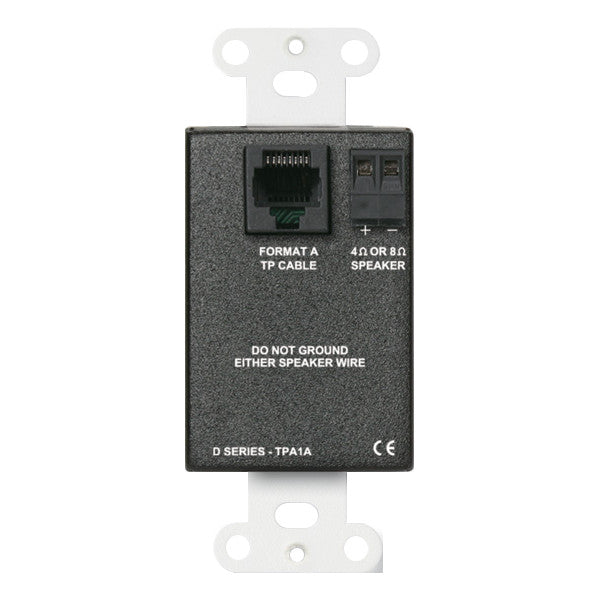

The D-TPA1A modules are two pair audio amplifier modules compatible with RDL Format A twisted pair products. Each D-TPA1A receives stereo audio and 24 Vdc power through a rear-panel RJ45 jack. The left and right audio signals received on pairs B and C of the twisted pair cable are summed to mono and amplified. The amplified output level is set by an internal VCA which is controlled by a front-panel volume control. The VCA attenuator provides years of scratch-free gain adjustment.
The D-TPA1A circuits are all designed for low power consumption. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. When the user reduces the audio level to minimum, the class D output stage is switched off. This sleep mode remains active until the user turns up the output level.
The output drives either a 4 Ohm or 8 Ohm speaker. The speaker cable connects to the module using a detachable terminal block.
The front panel does not include any illuminated indicators, making the D-TPA1A ideally suited to installation in dark rooms or areas. Installation is simple and quick, requiring only the connection of the speaker leads and the twisted pair RJ45.
The D-TPA1A may be fed and powered from any RDL Format-A sender, and is ideal in hospitality installations fed from a sender connected to a TV monitor (for example: FP-TPS4A Audio Sender from TV with fixed audio output level).
Use the D-TPA1A wherever a single speaker user-adjustable wall mounted amplifier is needed. Combine the amplifier with other RDL Format-A products for a cost-effective, high-performance audio system.
- Input RDL Format-A
- Input Connector RJ45
- Gain Adjustment Single turn audio taper, VCA attenuator
- Frequency Response 50 Hz to 20 kHz (± 1.5 dB)
- THD+N < 0.1% (@ 1 kHz, 1 W)
- Noise <-70 dB (below 1W RMS)
- CMRR > 50 dB (50 Hz to 120 Hz)
- Output Power 3.5 W RMS (max., into 8 Ohms); 6.5W RMS (max., into 4 Ohms)
- Sleep Mode Power Consumption < 0.3W
- Sleep Mode Enable Active at audio gain <-60 dB
- Ambient Operating Environment 0°C to 40°C Maximum; 20° C Recommended
- Power Consumption 45 mA (idle), 95 mA (1W into 8 Ohms), 150 mA (1W into 4 Ohms), 215 mA (3.5W into 8 Ohms)
- Dimensions (HxWxD): 4.13x1.7x2.15" (10.49x4.32x5.47cm)
- Package Type Cardboard Box
- Package Dimensions 3.625x4.625x2.125"
- Shipping Weight 0.41 lbs
- Tariff Code 8543.70.9910
