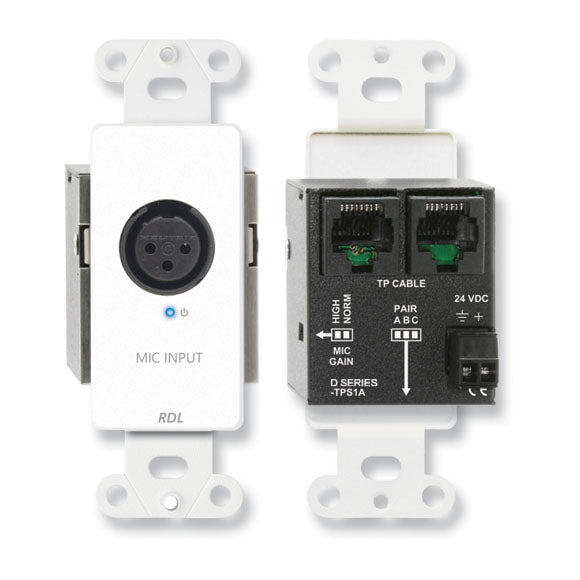

RDL D-TPS1A Active Single-Pair Sender - Twisted Pair Format-A - XLR microphone input with phantom

RDL D-TPS1A Active Single-Pair Sender - Twisted Pair Format-A - XLR microphone input with phantom

SoundPro Item: 77123 | Part Number: D-TPS1A

$233.29
$311.06 $233.29
Your Price Sold out
MSRP: $311.06 | MAP: $233.29

Usually ships in 5-7 business days

  • View the New, Updated D-TPSML1A
  • Balanced Microphone XLR Input with Phantom
  • Switch-Selectable Mic Gain on Rear Panel
  • Switch Selects which RJ45 Pair (A, B or C) is Fed
  • Signal and Power Pair Pass-Through on RJ45 Jacks
  • Remote Powering through Twisted Pair Cable
  • Fused Local Power Feeds all Connected Modules
  • Local Power Input on Terminal Block
  • Blue LED Indicates Module is Powered
  • Daisy-Chain with Single-Pair or Two-Pair Senders
  • Studio-Quality Precision Active Balanced Circuitry
Log in or register for YOUR best price
View full details

Specifications

Input:
1.2 kΩ Balanced with 24 Vdc phantom (IEC 61938: 2013)
Input Connection:
XLR
Input Level:
-45 to -65 dBu Balanced; Maximum: -40 dBu (HIGH Gain), -28 dBu (NORM Gain)
Format-A Signal Pair Used:
Switch-selectable A, B, or C
Gain:
50 dB (NORM) or 63 dB (HIGH), Switch-selectable on rear panel
Format-A Input:
RJ45 (not applicable to EM-)
Output:
RDL TP Format-A
Output Connection:
RJ45 (Models D-, DS-); Detachable Terminal Block (Model EM-)
Frequency Response:
100 Hz to 30 kHz (± 1 dB); integral low-cut filter -10 dB @ 30 Hz
THD+N:
< 0.1% (80 Hz to 20 kHz)
Noise below +4 dBu:
< -80 dB (NORM Gain), < -70 dB (HIGH Gain)
Headroom above +4 dBu:
> 18 dB
CMRR:
> 60 dB (HIGH Gain 50 Hz to 150 Hz), > 65 dB (NORM Gain 50 Hz to 150 Hz)
Indicator:
Power In
Power Connections (2):
Detachable terminal block; RJ45
Ambient Operating Environment:
0° C to 50° C
Power Requirement:
24 Vdc @ 65 mA plus connected loads
Dimensions:
1.6" (4.06 cm) W; 4.11" (10.45 cm) H; 1.89" (4.8 cm) D
Mounting Box Minimum Depth:
2.4" (Models D-, DS-); 39 mm (Model EM-)
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.235 lbs.
Shipping Weight:
0.38 lbs.
Package Dimensions:
3.625 x 4.625 x 2.125 in.
