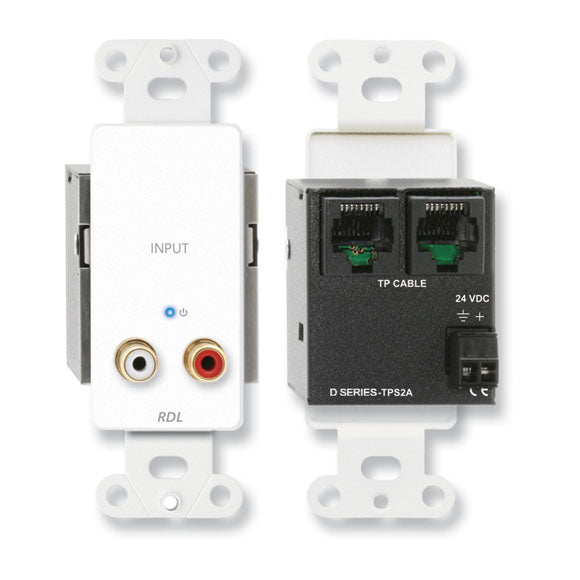

RDL D-TPS2A Active Two-Pair Sender - Twisted Pair Format-A - stereo RCA jack inputs

RDL D-TPS2A Active Two-Pair Sender - Twisted Pair Format-A - stereo RCA jack inputs

SoundPro Item: 77125 | Part Number: D-TPS2A

$222.71
$296.95 $222.71
Your Price Sold out
MSRP: $296.95 | MAP: $222.71

Usually ships in 5-7 business days

  • Two Unbalanced -10 dBV Phono Jack Audio Inputs

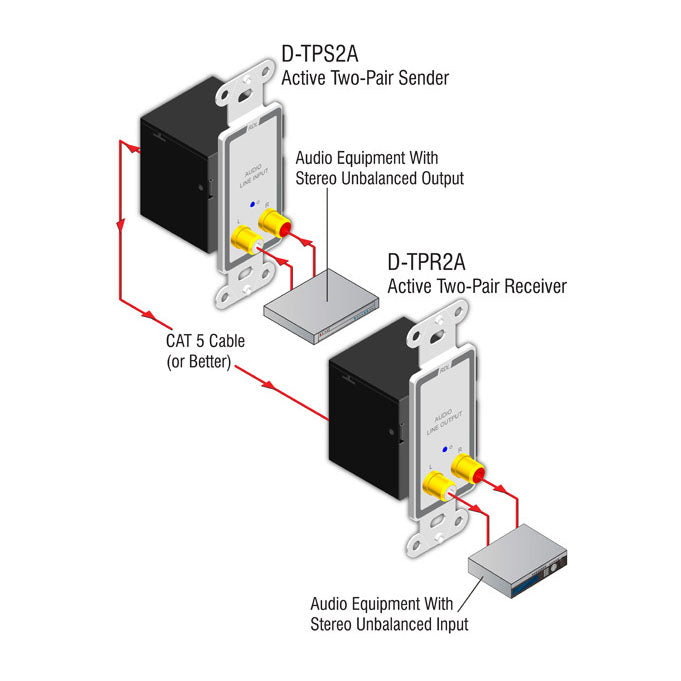

  • Left (L) Input Feeds Pair B; Right (R) Feeds Pair C
  • Signal and Power Pair Pass-Through on RJ45 Jacks
  • Remote Powering through Twisted Pair Cable
  • Fused Local Power Feeds all Connected Modules
  • Local Power Input on Terminal Block
  • Blue LED Indicates Module is Powered
  • Daisy-Chain with Single-Pair Senders
  • Studio-Quality Precision Active Balanced Circuitry
  • Available in Stainless Steel, Black, and White
Log in or register for YOUR best price
View full details

Specifications

Inputs (2):
10 kΩ Unbalanced
Input Connection:
RCA Phono
Input Level:
-10 dBV Unbalanced; +10 dBV Maximum
Format-A Signal Pairs Used (2):
B (Left); C (Right)
Gain:
12 dB
Format-A Input:
RJ45 (not applicable to EM-)
Output:
RDL TP Format-A
Output Connection:
RJ45 (Models D-, DS-); Detachable Terminal Block (Model EM-)
Frequency Response:
20 Hz to 50 kHz (± 0.5 dB)
THD+N:
< 0.05% (20 Hz to 50 kHz); <0.005% (1 kHz)
Noise below +4 dBu:
< -95 dB
Crosstalk:
< 90 dB (1 kHz); < 75 dB (20 Hz to 20 kHz)
Headroom above +4 dBu:
> 18 dB
Indicator:
Power In
Power Connections (2):
Detachable Terminal Block; RJ45
Ambient Operating Environment:
0° C to 55° C
Power Requirement:
24 Vdc @ 65 mA plus connected loads
Dimensions:
1.6" (4.06 cm) W; 4.11" (10.45 cm) H; 1.89" (4.8 cm) D
Mounting Box Minimum Depth:
2.4" (Models D-, DS-); 39 mm (Model EM-)
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.24 lbs.
Shipping Weight:
0.385 lbs.
Package Dimensions:
3.625 x 4.625 x 2.125 in.
