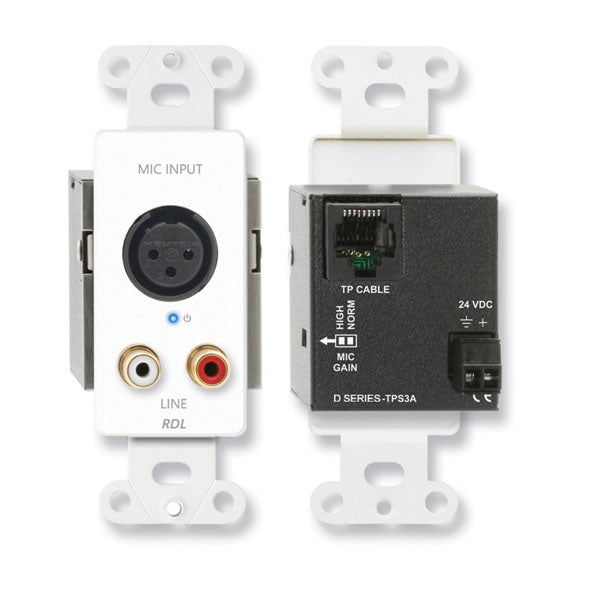

RDL D-TPS3A Active Three-Pair Sender - Twisted Pair Format-A - XLR microphone & stereo RCA in

RDL D-TPS3A Active Three-Pair Sender - Twisted Pair Format-A - XLR microphone & stereo RCA in

SoundPro Item: 77127 | Part Number: D-TPS3A

$236.01
$314.68 $236.01
Your Price Sold out
MSRP: $314.68 | MAP: $236.01

Usually ships in 5-7 business days

  • Balanced Microphone XLR Input with Phantom
  • Switch-Selectable Mic Gain on Rear Panel
  • Two Unbalanced -10 dBV Phono Jack Line Inputs
  • MIC Feeds Pair A; L Feeds Pair B; R Feeds Pair C
  • Remote Powering through Twisted Pair Cable
  • Fused Local Power Feeds all Connected Modules
  • Local Power Input on Terminal Block
  • Blue LED Indicates Module is Powered
  • Utilizes All Three Format-A Pairs
  • Studio-Quality Precision Active Balanced Circuitry
  • Available in Stainless Steel, Black, and White
Log in or register for YOUR best price
View full details

Specifications

Inputs (3):
Mic: 1.2 kΩ Balanced with IEC 24 Vdc Phantom; Line (left and right): 10 kΩ Unbalanced
Input Connection:
Mic: XLR; Line: RCA Phono
Input Level:
Mic: -45 to -65 dBu Balanced; Maximum: -40 dBu (HIGH Gain), -28 dBu (NORM Gain); Line: -10 dBV Unbal.; +10 dBV Max
Format-A Signal Pairs Used:
A (Mic); B (Unbal Line Left); C (Unbal Line Right)
Gain:
Mic: 50 dB (NORM) or 63 dB (HIGH), Switch-selectable on rear panel; Line: 12 dB
Output:
RDL TP Format-A
Output Connection:
RJ45 (Models D-, DS-); Detachable Terminal Block (Model EM-)
Frequency Response:
Mic: 100 Hz to 30 kHz (± 1 dB); integral low-cut filter -10 dB @ 30 Hz; Line: 20 Hz to 50 kHz (± 0.5 dB)
THD+N:
Mic: < 0.1% (80 Hz to 20 kHz); Line: < 0.05% (20 Hz to 50 kHz); <0.005% (1 kHz)
Noise below +4 dBu:
Mic: < -80 dB (NORM Gain), < -70 dB (HIGH Gain); Line: < -95 dB
Crosstalk:
Line to Line: < 90 dB (1 kHz); < 75 dB (20 Hz to 20 kHz); Line to Mic (HIGH Gain): < 65 dB (1 kHz), < 60 dB (20 Hz to 20 kHz); Line to Mic (NORM Gain): < 75 dB (1 kHz), < 70 dB (20 Hz to 20 kHz)
Headroom above +4 dBu:
> 18 dB
CMRR:
Mic: > 60 dB (HIGH Gain 50 Hz to 150 Hz), > 65 dB (NORM Gain 50 Hz to 150 Hz)
Indicator:
Power In
Power Connections (2):
Detachable terminal block; RJ45
Ambient Operating Environment:
0° C to 55° C
Power Requirement:
24 Vdc @ 65 mA plus connected loads
Dimensions:
1.6" (4.06 cm) W; 4.11" (10.45 cm) H; 1.89" (4.8 cm) D
Mounting Box Minimum Depth:
2.4" (Models D-, DS-); 39 mm (Model EM-)
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.24 lbs.
Shipping Weight:
0.39 lbs.
Package Dimensions:
3.625 x 4.625 x 2.125 in.
