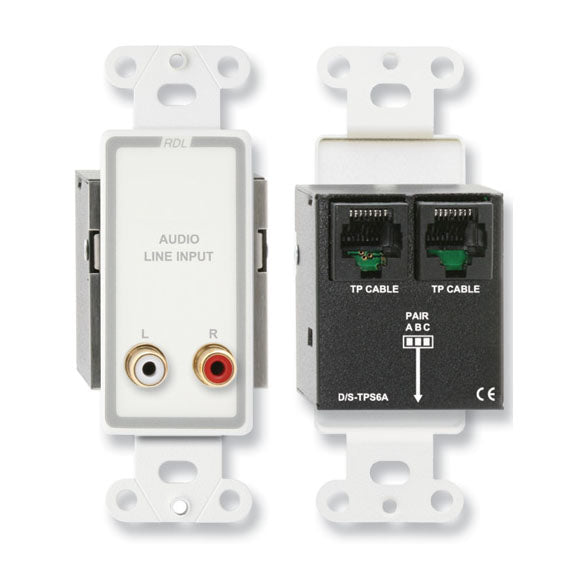

RDL D-TPS6A Passive Single-Pair Sender

RDL D-TPS6A Passive Single-Pair Sender

SoundPro Item: 77131 | Part Number: D-TPS6A

$106.11
$141.48 $106.11
Your Price Sold out
MSRP: $141.48 | MAP: $106.11

Usually ships in 5-7 business days

  • Stereo Audio Input Combined to Mono Output
  • Input on Dual RCA Jacks
  • Switch Selects which RJ45 Pair (A, B or C) is Fed
  • Signal and Power Pair Pass-Through between TP CABLE RJ45 Jacks
  • Passive Circuitry Does Not Require Power
  • Galvanic Isolation through a Studio-Quality Transformer
  • Daisy-Chain with Single-Pair or Two-Pair Format-A Senders
Log in or register for YOUR best price

The -TPS6A is a single-pair audio sending module compatible with RDL® Format-A twisted pair products. The front panel features two gold plated phono jacks intended for stereo consumer line level audio sources. A studio-quality transformer provides isolation between the audio source and the RJ45 TP CABLE. The -TPS6A is a single-pair sender, feeding the input signal to the cable pair set on the rear-panel switch during installation. This module drives only one cable pair, therefore a TP CABLE RJ45 jack is provided to accept signals and power from other mic-level or line-level Format-A senders. Two other single-pair senders may be chained to a TP CABLE jack, or a single two-pair sender may be connected. If three single-pair senders are connected together, each sender must feed a different pair: A, B or C. The -TPS6A must be set to feed pair A if it is connected together with an RDL two-pair sender that feeds stereo audio on pairs B and C. The -TPS6A is a passive module that does not require power to operate. If power is present on a cable connected to a TP CABLE jack, that power is passed through to the modules connected to the other TP CABLE jack.

View full details

Specifications

Input:
2 RCA jacks, unbalanced stereo combined to mono
Input Level:
-10 dBV, +22 dBu max
Format-A Signal Pair Used:
Switch-selectable A, B, or C (rear-panel switch)
Format-A Input:
RJ45 TP CABLE
Ouput:
RJ45 TP CABLE, RDL TP Format-A
Frequency Response:
20 Hz to 20 kHz (±0.5 dB)
THD:
< 0.1% (50 Hz to 20 kHz); <0.001% (1 kHz typ)
Power Requirement:
Passive
Dimensions:
1.6” (4.06 cm) W; 4.11” (10.45 cm) H; 1.89” (4.8 cm) D
Package Type:
Cardboard Box
Tariff code:
8543.70.9860
WEEE weight:
0.365 lbs.
Shipping Weight:
0.515 lbs.
Package Dimensions:
3.625 x 4.625 x 2.125 in.
