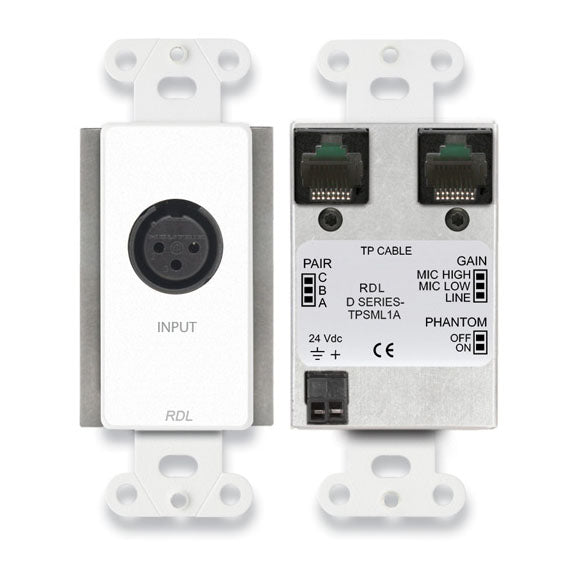

RDL D-TPSML1A Active Single-Pair Sender - Twisted Pair Format-A - XLR Mic/Line Input

RDL D-TPSML1A Active Single-Pair Sender - Twisted Pair Format-A - XLR Mic/Line Input

SoundPro Item: 201113 | Part Number: 001-4695

$233.29
$311.06 $233.29
Your Price Sold out
MSRP: $311.06 | MAP: $233.29

Usually ships in 5-7 business days

  • Balanced Microphone or Line-Level XLR Input
  • Switch-Selectable Mic or Line Operation on Rear Panel
  • Switch-Selectable Mic Gain on Rear Panel
  • Switch-Selectable P24 Phantom for Mic Inputs
  • Mic High Gain: 60 dB; Mic Low Gain: 46 dB; Line Gain: Unity
  • Switch Selects which RJ45 Pair (A, B or C) is Fed
  • Signal and Power Pair Pass-Through on RJ45 Jacks
  • Remote Powering through Twisted Pair Cable
  • Fused Local Power Feeds all Connected Modules
  • Local Power Input on Terminal Block
  • Blue LED in XLR Indicates Module is Powered
  • Daisy-Chain with Single-Pair or Two-Pair Senders
  • Studio-Quality Precision Active Balanced Circuitry
  • Available in Stainless Steel, Black and White
Log in or register for YOUR best price
View full details

Specifications

TYPICAL PERFORMANCE
Input Connection:
XLR
Mic Input Level:
-42 to -64 dBu Bal.; Max:-35 dBu (MIC HIGH Gain), -21 dBu (MIC LOW Gain)
Line Input Level:
+4 dBu Balanced; Max: +24 dBu
Phantom Power:
IEC P24
Format-A Signal Pair Used:
Switch-selectable A, B, or C
Gain:
46 dB (MIC LOW), 60 dB (MIC HIGH),Unity (LINE), Switch-selectable on rear panel
Format-A Input:
RJ45
Output:
RDL TP Format-A
Output Connection:
RJ45
Frequency Response:
20 Hz to 20 kHz (+/- 0.25 dB)
THD+N:
< 0.1% (20 Hz to 20 kHz)
Noise below +4 dBu:
< -80 dB (MIC LOW Gain),< -70 dB (MIC HIGH Gain),< -90 (LINE Gain)
Headroom above +4 dBu:
> 18 dB
CMRR (50 to 150 Hz):
> 65 dB (MIC HIGH Gain),> 70 dB (MIC LOW Gain),> 60 dB (LINE Gain)
Indicator:
Power In
Power Connections (2):
Detachable terminal block; RJ45
Power Requirement:
24 Vdc @ 35 mA plus connected loads
Maximum Load Current:
135 mA
Dimensions:
1.73” (4.39 cm) W;4.11” (10.45 cm) H;1.89” (4.8 cm) D
Mounting Box Min. Depth:
2.4”
Package Type:
Cardboard Box
US Tariff code:
8543.70.9860
EU Tariff code:
85437090
WEEE weight:
0.28 lbs.
Shipping Weight:
0.44 lbs.
Package Dimensions:
1.9 X 3.5 X 4.75 in.
