RDL DB-CIJ3 Consumer Mono Input Jacks

RDL DB-CIJ3 Consumer Mono Input Jacks

SoundPro Item: 76813 | Part Number: DB-CIJ3

$109.34
$145.79 $109.34
Your Price Sold out
MSRP: $145.79 | MAP: $109.34

Usually ships in 5-7 business days

  • Stereo Inputs to Mono Output
  • Stereo Inputs on RCA Jacks and Stereo Mini-Jack
  • Unbalanced to Balanced Conversion Without Gain
  • Transformer Isolation for Unbalanced Line Inputs
  • Hum Cancellation on Unbalanced Line Inputs
  • Line-Level Output to Feed 10 kO Equipment Inputs
  • Output Connections on Detachable Terminal Block
  • Mix Stereo Inputs to Mono Balanced
Log in or register for YOUR best price

The DB-CIJ3 is the ideal choice in installations requiring the passive mixing of two unbalanced line level audio sources to feed a mono balanced (or unbalanced) audio line.

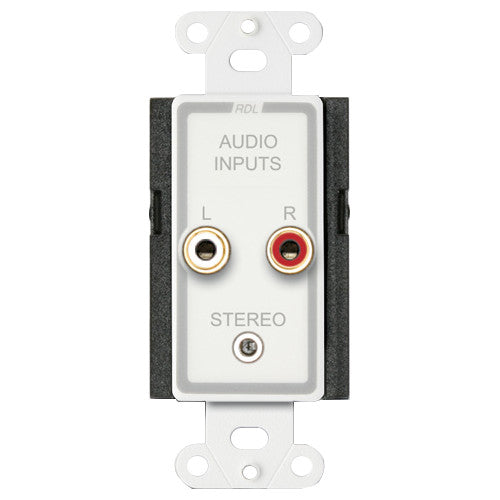

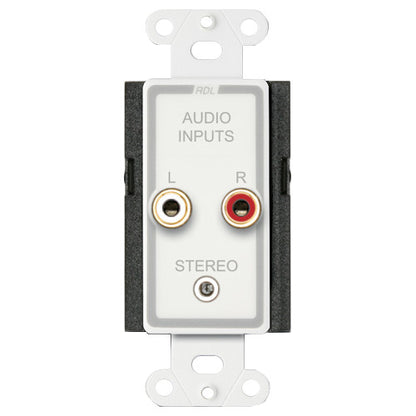

The DB-CIJ3 is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The left and right signal inputs are combined and balanced through audio transformers configured to reject induced hum. A mono line-level output is provided on the rear-panel detachable terminal block for connection to a 10 kO or higher input impedance line-level module or equipment input.

View full details

Specifications

Dimensions
Dimensions:Height
4.13 in. 10.49 cm, Width: 1.7 in. 4.32 cm, Depth: 2.15 in. 5.47 cm
Mounting Box Minimum Dimensions
Width: 1.80 in. 4.57 cm, Depth: 1.75 in. 4.45 cm
Package Dimensions
3.625x4.625x2.125"
Weight
Shipping Weight
0.48 lbs.
WEEE Weight
0.34 lbs.
Audio
Frequency Response (line level)
50 Hz to 20 kHz (±1 dB); 30 Hz to 20 kHz (±2 dB)
THD
<0.2% (1 kHz)
Connectivity
Input Connectors (3)
Phono jacks with gold contacts (Left and Right), Mini-jack 3.5 mm (Stereo)
Output Connector
Detachable terminal block
General
Ambient Operating Environment
0°C to 55°C
